How To UUNP - REDONE!     by C5Kev       Updated April  2019





*  *  Added an MS Word Document with Images  *  *



Now With Added Fun and Excitement





This guide is designed to assist those that would like to utilize older, non-physics-based UNP / CBBE outfits and turn them into UUNP / BodySlide outfits, so they can properly fit a user's BodySlide preset, as well as add body physics so said outfits have "jiggly-bits".  The following "process" isn't hard, just that some things need to be done in a certain order. So let's get started!



File Actions

START OUTFIT STUDIO   Duh...!



Start a new project. "File > New Project". A dialog box will appear. Select "Unified UNP HDT" , click "Next"...





Start with the cuirass, selecting the "High Weight" , "_1.nif" file...





NOTE:  If the outfit is CBBE HDT, locate its .nif files from the "Data\CalienteTools\BodySlide\ShapeData" directory if you've installed the mod or wherever you might have un-zipped it.



The outfit and a generic "reference" body will appear. Now, the reference body is only there as a "place marker" that will be replaced with your body preset when making the outfit in BodySlide. Notice that "UUNP" is in green, which denotes that it is the "reference".





Some outfits may fit the reference body perfectly, while others won't.  The majority of the time, a body is often included with the outfit or "clothes" part. We only want the clothes, so turn on / off "parts" to find and delete that body. Many times, the body included isn't called "body", but something else as shown below...





In the upper-right window pane, it's best to change the clothes to "wire mesh" so you can see through the outfit for a good fit to the body.



Sliders  - There are actually two parts to the UUNP slider list - individual body part sliders and lower down, generic UNP body shapes.  So first start by moving one of the generic UNP body shape sliders toward 100%. Most times moving one or a combo of a couple will fit the reference body into the outfit. Trying UNPB High or UNPB Oppai High are a good starting point. For this case, it's a "SeveNBase" body.

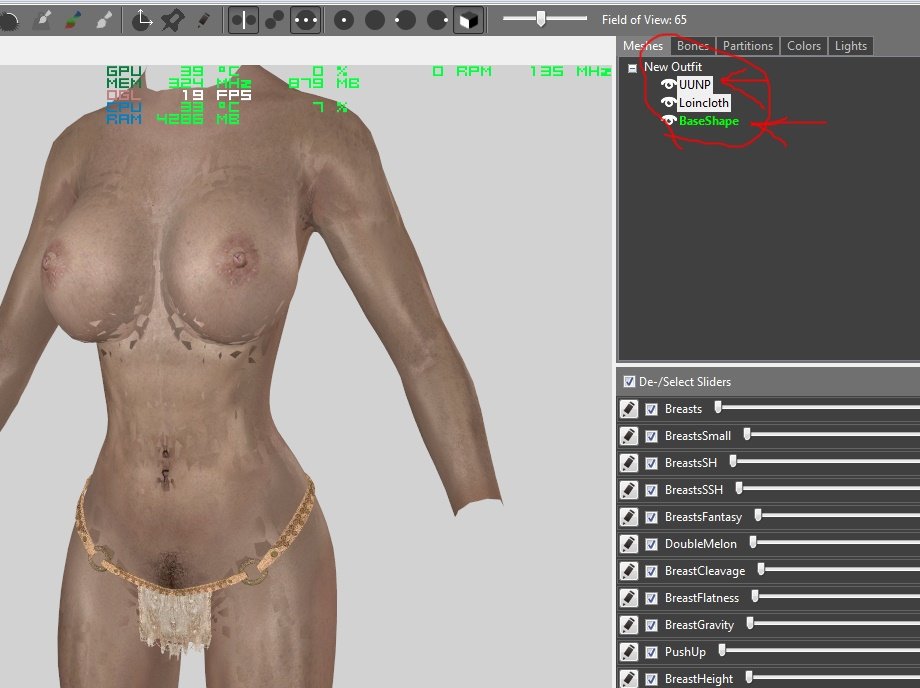

With the new "UUNP" "reference" body in and the old SeveNBase body out, I've renamed the meshes ("right-click > rename" or press F2)  so I know what's what. Time to fit the clothes to the new body...





Scroll down the slider list of the "generic" UNP body shapes. I've selected "SeveNBase". If you look at the earlier images, the body was actually named "S7B", which is SeveNBase Bomshell", but I'm using a body that's a little "off" to show some things...





"SeveNBase" fits sorta good, but we can make it a bit better. Notice that I've moved the "Back" and "RoundAss" sliders to fit tighter to the bottom...





** CRITICAL STEPS AHEAD **



The cuirass fits pretty good now, so it's "Magic Time".   Select "File > Make Conversion Reference"...





The following dialog will display. No need to name it, just click "OK"...





Now, select "Slider > Conform All".  This step is what makes the clothes "Stick" to the body.  Hey, what happened to all of the sliders?  Hang on...





Move the "ConvertToBase" slider to 100%.  It's the basis for "100% character weight" in BodySlide...





Now, select "Slider > Set Base Shape"...

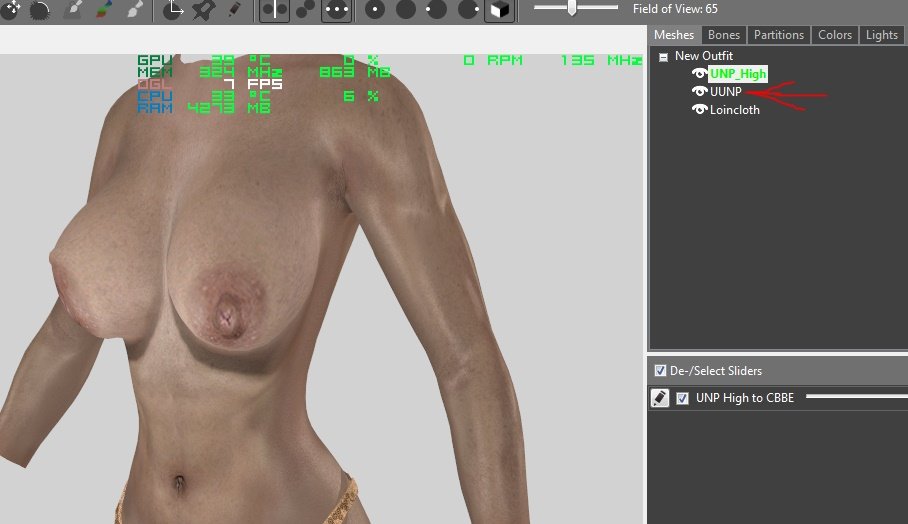

Now it's time to load up a new, generic UUNP "reference" body based from all the above settings. Select "File > Load Reference" and select "UUNP HDT" like we did at the very beginning...





A new body "pops" in and notice that our sliders have now returned...





Once again, select "Slider > Conform All" to make the clothes "stick" to the new body...





** CRITICAL STEPS OVER **



OK...looks pretty good.  Now for some clothes "fine tuning"...





Pressing key #2 activates the "inflate" brush, key #3 ativates the "deflate" brush.  You'll want to keep brush size and strength around the area shown.  The brush circle shows an area that too high and to the left an area that's too low. Lightly tap your mouse button to make those areas more level...

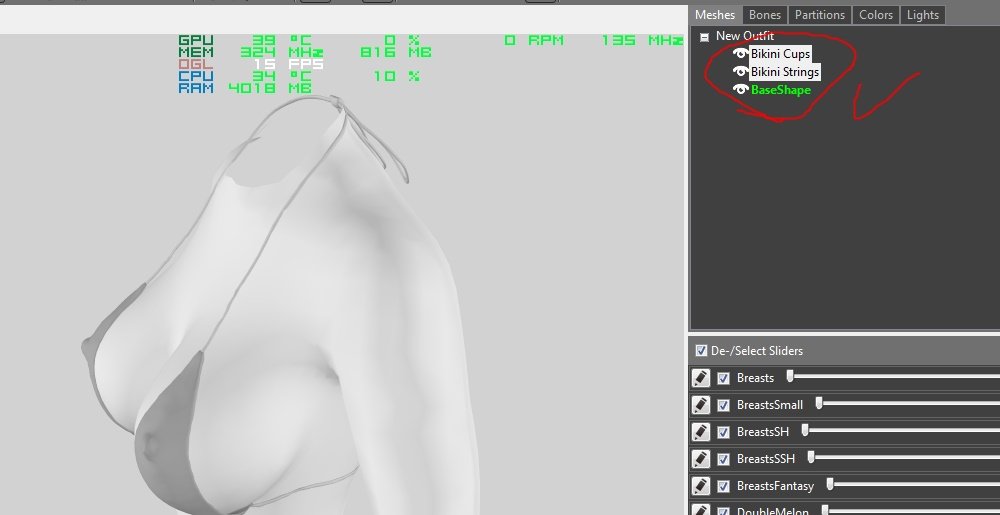

Many times, things like bikini strings aren't done all too well.  Below, change the "Panty Strings" mode to "wire frame" so we can see the vertices. Press key #4 to activate the "move" brush. Move groups of vertices accordingly so we get a nice, smooth arc around the hips...





There, that's better.  I often use the deflate brush to place "strings" so they're just under the body skin, then use the inflate brush to pop them back out so they're close to the body...





Check around back to make sure all items are showing or not in weird positions...





Things are looking pretty good. Now's a good time to save, so fill out a "Display Name", we know this part of the outfit was named "cuirass", so type that in and fill in the "Output Data Path" as to where you want you armor parts to go to when it time to use BodySlide.  Now press the "To Project" button, which fills in the "Project" area. These are the appropriate BodySlide file names and locations that contain the outfit's "data" BodySlide needs so it can fit the outfit to your character's preset.





With that done, now you'll need to go through the "body part" sliders by clicking its pencil (activate edit mode), to see how the body affects the outfit. Supposedly, making changes while the slider is purple (edit mode), saves the changes.  While that seems to be true for CBBE, I've found that with UUNP, the changes don't always stay. Why? don't know.



So, click the pencil (activate) to see where skin pops through, click the pencil again (de-activate) - remembering where you saw "stuff". Use your inflate / deflate brushes to correct things, then click the pencil again (activate) to see how it looks.  When it looks good, move on. It sounds more tedious than it really is.  Also know that not all sliders are going to affect, say, the cuirass - like "calves" or sometimes "arms".





Looking good back here...especially if your a "Chubby Butt" fan...





OK. Physics Time!  What physics Law describes how light acts within a prism?  Oops, sorry. Wrong "physics".  Below, select the outfit mesh parts and right-click, selecting "Copy Bone Weights"...





This dialog appears and while the default arrow locations are probably good, I usually bump them up a bit...





Time to save again. Since you did this earlier, everything's filed in already, so "Save".     Congratulations my friend, you've just converted an old UNP outfit to "UUNP" with body physics. Now hit a local pub (or even a dance club) and tell anyone who will listen - they'll be very interested!  ?  Especially the grizzled, old fart drinking by himself...



Boots and / or Shoes



You've done the "main" armor part, so let's try some boots.  If the above is still "loaded", select "File > Unload Project". Now, "File > New Project" and select the "High Weight "boots_1.nif" file...



Hmmm...  OK.





This time I'm going to select using the "SeveNBase Bombshell" body by clicking its pencil to see how it looks.   Hey, looks almost perfect...





** CRITICAL STEPS AHEAD **



So, select "File > Make Conversion Reference"...





This dialog appears again, no need to name, just click "OK"...





Select "Slider > Conform All".  Again, "Conform All" is what makes the mesh "stick" to the body.  Damn sliders disappeared again, but they'll be back...





Move the "ConvertToBase" slider to 100%...





Select "Slider > Set Base Shape"...





Time again to load a new, generic UUNP "reference" body...





Select "UUNP HDT" as you did earlier...





** CRITICAL STEPS OVER **



BAMM!  Look at that, a perfect fit!  Well, almost...





Select "Slider > Conform All" to make the boots "stick" to the new body...





Time again to go through the "body part" sliders to see how things react. "Chubby Legs" looks good so far...





Ah! A tiny bit of skin showing on the back-side.  Brush up!





OK, I've got things where I want them and have renamed the meshes ("right-click > rename" or press F2)





Remember, there is only one (1) "reference" body per outfit, normally the torso or chest area.  That means we need to delete the "UUNP" reference body here.  But wait!  These "boots" have exposed feet, so we'll have to set them as a "reference" so BodySlide knows to add them when making the boots. The word "feet" will turn green.





Now you can delete the UUNP "reference" body...





OK. Physics Time!  What Law of physics makes a perpetual motion machine impossible?  Oops, sorry. Wrong "physics".  Below, select the outfit mesh parts and right-click, selecting "Copy Bone Weights", but DON'T select feet or shoes / shoes parts aka heels, soles, etc. Anything above the ankles.





This dialog appears and while the default arrow locations are probably good, I usually bump them up a bit...





You're done!  Save time, so fill out a "Display Name", we know this part of the outfit was named "boots", so type that in and fill in the "Output Data Path" as to where you want you armor parts to go to, for when it's time to use BodySlide.  Now press the "To Project" button, which fills in the "Project" area. These are the appropriate BodySlide file names and locations that contain the outfit's "data" BodySlide needs so it can fit the outfit to your character's preset.





Gloves / Gauntlets - with exposed hands





Handle these items the same way as you did with the boots. Hands now become the "reference" item when deleting the "reference" body. And when applying "Bone Weights", DON'T highlight hands and its "default" nails.





A Little Additional Info -



OUTFIT STUDIO BRUSHES  - A PRIMER



Primary Brushes To Use:   Key 2 = Inflate    Key 3 = Deflate    Key 4 = Move   Key 5 = Smooth



The outfit's wire mesh is composed of various sized triangles, with each corner having a "vertice". Outfit Studio's brush has a red circle and a blue dot - and these affect the mesh vertices.  For now, you'll only need to focus on brush Size and Strength.



- The Size slider is for the overall size of the red circle. The brush will affect (inflate / deflate / smooth) all vertices within that circle. A larger size is good to move lots of vertices is a certain direction. Obviously a smaller size is for "pin-point" adjustments like a low or high spot on a strap.



- The Strength is how much vertices move with one tap of your mouse button. Strength is strongest at the blue dot and weakens as it gets to the edge of the red circle. The strength slider should almost always be rather low, with the slider to the left.



Doing fine tuning takes time and requires some finesse. Light tap your mouse when doing this and continually adjust the brush size and strength.



- Use the #2 - "inflate" brush to cover up exposed body areas. Brush size and strength will need to be adjusted, but keep things "small" - with sliders primarily to the left.



- Use the #3 - "Deflate" brush to make things tighter to the body.



- Use the #4 - "Move" brush to move mesh vertices.



- Use the #5 - "Smooth" brush to smooth out somewhat "wavy" areas.



- Always remember to "Save" at points within this process. If you fuck up, you can reload the project and continue.



Remember, the more experience one has, it'll become easier to judge these items. I can't tell you how to do this part with words.







OUTFIT STUDIO WEIGHT PAINTING



- When trying to save, if you receive a dialog box stating that certain item's vertices have no weighting and will be masked, DON'T SAVE YOUR FILE. Let's continue on...



- The "mask" makes certain areas of parts black-ish, so note which items and areas those are.



- Press Key "T" . That turns all textures into a grey scale so you can more easily see the masking locations. Now highlight an affected part with masking on it.



- Keep a mental picture of where the affected vertices are and "Tool > Clear Mask".



- Click the "Bones" tab on the right and you'll notice all the bones listed.



- When clicking on a bone, notice the areas affected on the reference body. Let those areas be a guide for the affected "parts" and the bones required to be selected for weight painting.



- Based on the part(s), highlight the bones that would affect that part.  Obviously a bra would be affected by the left and right breast bones.  Select the left breast bone and press Key 6, which enables the weight painting brush.  Remember that this can only be done when looking at the "Bones" pane.



- Move your brush strength slider way up toward the right.  Now use the brush on the left side of the bra - you'll notice it starts out blue and the longer one stays in an area, it starts to turn red.  Blue = not too much vertice movement in relation to that bone,  Red = much more movement of vertices in relation to that bone.  The nipple is the farthest from the bone, so make that red and can kinda fade out from there, going up the straps, etc.  Just use some common sense if you think you have some.



- Now do the right side of the bra after selecting the right breast bone.



- Basically, that's all there is to it. Some parts are a little more complicated than others, but after you goof with this a bit, it's quite easy to do and won't take long to do.  Make sure you "paint" all the necessary parts.  I always hit "Slider > Conform All" again just for grins.  Now save.  If you get the message again,  just go back and double-check your work.  It won't take long to fix.



Hope this helps folks - Kev







---
