Fallout New Vegas GECK & Scripting Help 101

[Guest]

waffles if you dig few posts ago you can see the whole explanation and script



I'm really curious now, tomorrow I'll do some tries to check if it makes the same issue to me and in which blocktypes

[Guest luthienanarion]

I'm well aware of the AI bug triggered by adding items to an actor's inventory, and I'm thankfully also aware of its workarounds.

One method involves adding and then removing an item from the actor's inventory after adding your item(s). The other involves unequipping and re-equipping the actor's weapon. In my experience it's best to do both.



When you add your leveled item to an NPC, try also adding a "token" item with the following object script on it:

scn AIFixTokenOS

ref container
ref weapon
float timer

begin onadd

    set container to getcontainer
    if container                            ; I've seen this fail if a sanity check isn't made. Not sure why.
        container.additem Pencil01 1 1
        container.removeitem Pencil01 1 1   ; Removing an item usually fixes the bug caused by adding something.
        set weapon to container.geteqobj 5
        container.unequipitem weapon 0 1    ; Re-equipping their weapon fixes it otherwise.
    endif

end ; onadd

begin gamemode

    if doOnce
    else
        if timer < 10                 ; This counts 10 frames before re-equipping.
            set timer to timer + 1    ; You can substitute GetSecondsPassed for the increment here for a timed delay.
            return                    ; I've used a one-second delay in the past, but it can probably be shortened for a smoother effect.
        else
            container.equipitem weapon 0 1
            removeme
            set doOnce to 1            ; A doOnce is used to prevent RemoveMe from being called twice and crashing the game.
        endif
    endif

end ; gamemode

That should fix the actor's AI and then remove the token. I wrote that from memory, so let me know if it needs refining.

[ArgusSCCT]

Will do, and thanks. Some bug, that is requiring a whole other script to function. I guess I could add this in the same script but its getting a bit crowded. The one workaround no one talked about was equipping and unequipping weapons.



Regardless, thanks. Hope this means I can go on with the rest of the mods, I've been stuck on this particular script far too long.

[astymma]

Equipping/Unequipping is what I do in SmallerTalk. Since it does AddItem to add its conversation token I ran into the weapon bug too.



So I have:





scn SmallerTalkScript

ref refTarget
int intChecked
ref refWeapon
short doTimer
float fTimer

Begin GameMode

    if ((IsControlPressed 5) && (0 == doTimer))

        set intChecked to 0
        set refTarget to GetCrosshairRef

        if 1 == SmallerTalkVars.iVariable4 && 1 == Player.IsSneaking
            return
        endif

        if 0 == SmallerTalkVars.iVariable3 && 1 == refTarget.GetIsCreature
            return
        endif

        if 0 == reftarget.IsActor
            return
        endif

        if 0 == refTarget
            return
        endif

        if 1 == refTarget.GetDead || 1 == refTarget.IsInCombat
            return
        endif

        if refTarget.GetSleeping > 0
            return
        endif

        if ListGetFormIndex SmallerTalkIgnoreList refTarget >= 0
            return
        endif

        if refTarget.GetInFaction SmallerTalkIgnoreFaction == 1
            return
        endif

        set intChecked to 1

        set refWeapon to refTarget.GetEquippedObject 5

        if refWeapon
            refTarget.UnequipItem refWeapon 0 1
            set doTimer to 1
            set fTimer to .2
        endif

        refTarget.AddItem SmallerTalkResetAIToken 1 1
        refTarget.AddItem SmallerTalkDialogueToken 1 1

        if 1 == SmallerTalkVars.iVariable2
            printtoconsole "SmallerTalk: Target under crosshair: %n", refTarget
            printtoconsole "SmallerTalk: FormID of Target: %i", refTarget
            printtoconsole "SmallerTalk: Value of intChecked: %.0f", intChecked
        endif

        if 0 == intChecked
            set refTarget to 0
        endif

    endif

    if 1 == doTimer
        if fTimer > 0
            set fTimer to fTimer - GetSecondsPassed
        else
            set doTimer to 0
            set fTimer to 0
            refTarget.EquipItem refWeapon 0 1
        endif
    endif

End ; GameMode

Begin MenuMode 1075

    if 1 == intChecked
        if 0 == SmallerTalkVars.iVariable6
            set intChecked to 0
            refTarget.RemoveItem SmallerTalkResetAIToken 1 1
            refTarget.RemoveItem SmallerTalkDialogueToken 1 1
        endif
    endif

End ; MenuMode







Checks if they have a weapon... unequips it, does the additems for the tokens, runs a .2sec timer, re-equips it...

[ArgusSCCT]

Thanks, more examples are always useful. One thing I do have a question about this is about using it within a loop. I'm using a ForEach on an array, I don't suppose sticking that code in there will do anything out of place?

[astymma]

Equipping and Unequipping take more than 1 frame to execute afaik. They update the 3d scene graph. You can do a bunch of equips in a row or unequips in a row, but anything else should probably be in a new frame after a short timer.

[ArgusSCCT]

Alright, I'll see what happens, thanks.

[prideslayer]

Just a note, MCM is *extremely* sensitive to missing endif's and things like that. One screwed up bit of nesting in your MCM script(s) will break every other MCM using mod in your load order. If you don't ismodloaded + getmodindex + buildref your MCM reference in a game loaded/started block (if you use a generic init/stage block or quest stage instead), a change to the MCM position in your load order will blow up in your face as well.



- Always make sure you get the proper buildrefs for MCM in ALL your MCM scripts before doing anything else.

- Quadruple-check that you don't have any code nesting errors with if/elseif/else/end statements or other blocks and conditionals. FORMAT YOUR CODE.

[ArgusSCCT]

Well it seems the equipping and unequipping work around seems to work, made my script a little larger than I would've liked but I doubt there's any other way to deal with AddItem, it's Bethesda's fault anyway. Gonna test it later with a higher level character and some mods that add Power Armor.



Thanks for the help everyone. I may have just finished this damn thing.



EDIT: Spoke too soon, everything works, at least now if you shoot the NPCs they take out their weapons, nonetheless, their weapons are not visible when they have them holstered, as I see it, that means that EquipItem function isn't doing its job. Basically, they don't act like morons anymore, but their weapons are not equipped on their back. or their legs or whatever. They only equip their weapons if I shoot them.

[Guest tomm434]

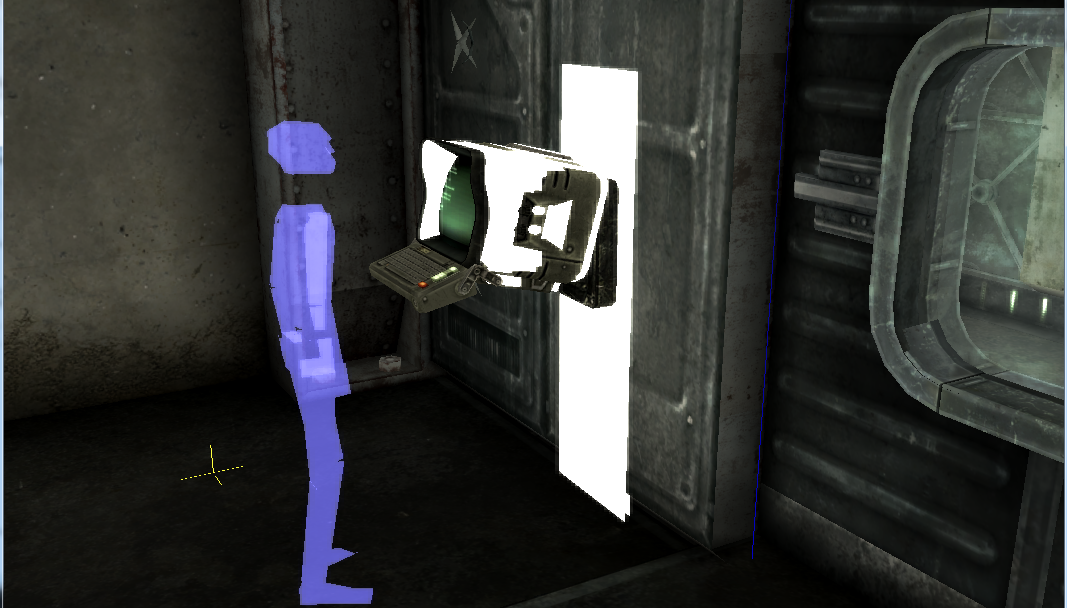

How can I force npc to use a terminal?(I need her to pretend that she is typying there - like Doctor Li when she hacks the terminal in Fallout 3 during escape scene).)

I've got terminal itself and marker(marker is considered to be furniture). Then i add script package to the NPC but she just goes to terminal and stands in front of it.











[nyaalich]

Pick a typing anim for the Idles tab of the package.

[Guest tomm434]

Pick a typing anim for the Idles tab of the package.

Thanks, it worked. For some reason some idle animations don't play on NPC.The anims that start with "Loose" always play. "Use console" for example doesn't plays. "Use terminal" does.

[nyaalich]

If you preview them, they're kind of funny sometimes.  Very formal bows at a 90 degree angle.

[Guest tomm434]

If you preview them, they're kind of funny sometimes.  Very formal bows at a 90 degree angle.

yes, there is funny animation in Mothership Zeta where npc flyes away =)

an you help me to find a log file? First time I encounter CTD in my mod and I don't know why. I added

iFileLogging =1

to Fallout.ini but I can't find log file anywhere. Can you tell  me where is it?

[nyaalich]

@tomm434:  It may be a myth?



Scanner use feedback:  I've mentioned it before, but the scanner is supposed to locate broc flowers and xander roots in a cell if she doesn't have 10 of each in her inventory.  If the companion is within some believable distance  to see or smell them (6-20 ft. / 2-7m?), she goes and executes activate packages.



Usually scanners return the closest thing or processes stuff and then you're finished besides clearing out the list (or that's my current impression).  Is there a way to get REFERENCES out of a form list?  It looks to me like most fxns return the base form when performed on a form list.  Due to the believable range and player running speed, it seems like I'd need to rerun the scanner every second or so until she finds some.  This seems extremely inefficient.



Do I need to look into arrays?  I haven't read up on them yet.  Would that make it plausible to fill it and then every second or so getdistance on the entries (which would indeed hopefully be returned as refs)?

[Guest tomm434]

@tomm434:  It may be a myth?



That's unfortunate. But print to console and ToggleDebugtext are not what I'm looking for. That's s shame I have to blindly edit scripts and packages to find a mistake.

[nyaalich]

Look into running SCOF when you start the game.  It writes console output to a file.  Throw in some print to console commands for whatever needs to be tracked.

[jaam]

There is a setting in nvse_config.ini (since v3 I think) that should reactivate runtime warnings.

It is not heavily tested, and could generate hugue amount of data and script lag if used inconsedarably



In short, use at your own risk.



[RUNTIME DEBUG]
Print=1


[Guest tomm434]

Print =1 doesnt work. I created "nvse_config.ini" in NVSE\Data folder and typed this and nothing happens ingame

I don't know ho can I use ToggleDebugtext, SCOF commands. Nothing happens. Is there a guide how I can use this? I still can't figue out the source of problem.

[Odessa]

When does the CTD happen, and what scripts do you have running then?



Is it always in the same place, and does it always happen?



To use scof:



type scof "somefilename.txt" in the console; this will create an output file in your root folder by that name.

[Guest tomm434]

When does the CTD happen, and what scripts do you have running then?



Is it always in the same place, and does it always happen?



To use scof:



type scof "somefilename.txt" in the console; this will create an output file in your root folder by that name.



I still don't know the point of SCOF command - I can see console text even without it. I was looking for log like in Skyrim(where everything that happens is written)



CTD happend randomly.There is the script for what its worth.

if pdstage ==21 && pdtimer >=10
playercloneref.disable
playercloneref.markfordelete
player.imod BlacksexISFX
set pdstage to 22
endif

if pdstage ==22 && pdtimer >=11
player.showmessage aaalabmes28freed
player.moveto aaalab28playermarker
aaalabmanaref.evp
aaalabmancref.evp
set pdstage to 23
endif

if pdstage ==23 && pdtimer >=14
aaalabmanbref.moveto aaalab26playermarker
setstage aaalab 28
set pdstage to 24

stage 28

aaalabdoorexit2ref.setopenstate 0
player.rimod BlacksexISFX

aaalabmanbref start dialogue with player(he has dialogue  package with condition of queststage 28). He also has a lot of other packages for each stage of the quest and Sandbox package in which I added additional condition of quest stage !=28 (and some others stages).



CTD can happen the moment aaalabmenbref starts dialogue or the moment I choose any dialogue topic(Literaly the moment I choose dialogue option). After dialogue is finished -  stage is set to 29 and he picks his sandbox package again. And if CTD didn't happen during dialogue it doesn't happen at all.





PS. And for some reason quest script stops working after dialogue. And I get CTD if I try to greet some NPC(even those who have constant greeting for all stages).

update2: No, npc with their own greetings are fine.

[DoctaSax]

Eh, dumping everything that happens to a log can create a bit of drag, especially when a lot's happening at the same time. That can already happen with scof let alone something that prints everything. So using scof in combination with well-placed formatted debugprints (only print to console when debugmode is on) lets you control that. You can also use con_scof to start a scof from script (if NVSE4+).



ctd when picking dialog option, I dunno - any result scripts there?





[Guest tomm434]

Eh, dumping everything that happens to a log can create a bit of drag, especially when a lot's happening at the same time. That can already happen with scof let alone something that prints everything. So using scof in combination with well-placed formatted debugprints (only print to console when debugmode is on) lets you control that. You can also use con_scof to start a scof from script (if NVSE4+).



ctd when picking dialog option, I dunno - any result scripts there?



No begin\result scripts in greeting topic.

So, you mean that after each line of code I should type a line (like showwarning "X") and then after CTD happens I see the log and see after what line of code CTD happened?

[DoctaSax]

A dbp after each line is a bit overkill, but sometimes when you just can't find the source of a problem, you add a few more, to see just how far your script works without problems. Process of elimination.

[Odessa]

Not ShowWarning, do console print like:

PrintC "I will always appear in the console at this point"
DebugPrint "I will appear only with debug mode enabled for the mod"

SetDebugMode 1 ; this enables debug for the mod containing the script

; in the game console, you must specify the mod index in _Decimal_ not Hex, if you want to enable it like:
SetDebugMode 1 75

; I always add this to my main quests:

int iIndex
if GetGameLoaded || GetGameRestarted
    set iIndex to GetModIndex "MyModName.esp"
    PrintC "My mod version X loaded at index (hex): %x2 or (dec): %g" iIndex iIndex
endif

; this tells you the definite index in both hex and dec in case you want to do console stuff.

The quest not running suggests something crashed it, try adding console print at key sections to try and find where. Also, do you have any MenuMode blocks that may be running during dialogue?
