Romancing SaGa2 : Revenge of the Seven Mod Creation Guide

[oppaiman]

I am not very good at English, so I use machine translation(DeepL Translator). There may be some strange English.

I hope more people will make mods and more mods will be available.
However, you are free to make whatever mods you want, but I am not responsible for the mods you make.

I am not a modder and cannot respond to production requests.
I am still learning, so feedback is welcome!



Required Tools

Spoiler

umodel_acl_2.1.exe
https://www.gildor.org/smf/index.php/topic,8304.msg42970.html#msg42970



Find the link “Experimental builds for games using newer ACL format:link” and download it from the link.
Scroll down the page and you will find it about in the middle.
Extract the assets (game data) packed in .ucas format in a format that can be handled by 3D modeling software.





umodel_64.exe (latest version)
https://www.gildor.org/en/projects/umodel#files



Required for umodel_acl_2.1.exe to work.





Blender 3.6 or other 3D modeling software
https://www.blender.org/download/lts/3-6/



I am using Blender 3.6, but it is probably possible with other modeling software.

Models can be edited with versions lower than 3.6, but 3.6 or higher is required when exporting FBX files.

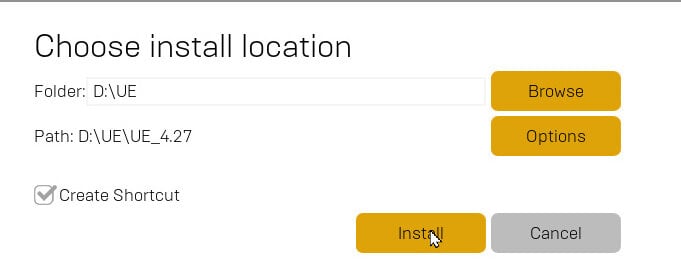

Unreal Engine 4.27
https://www.unrealengine.com/en-US/download



Pack models edited in Blende into a mod that can be used in games.



Fmodel (latest version)
https://github.com/4sval/FModel/releases/tag/4.4.4.0



Optional. Not required.
You can view textures, meshes, etc. directly from .ucas. This is useful for checking file locations and references.
Extract assets (game data) packed in .ucas format.



Other

I have had other games where the mods are no longer available after an update.
You may want to back up your current version1 game files.



About folder and file names

Spoiler

Folder name



Common
Contains files that are common to many characters.



NormalCharactor
Contains individual character files.



NB××_000
Indicates the type of soldier. By gender. Example.
Light infantry (female) - NB003_000
Ranger (male) - NB004_000
Ranger (female) - NB005_000



NB×××_001
This folder is for the default (first) character of each class.
NB×××_002 is for the second person, and NB×××_003 is for the third person.
If you want to make mods for all 8 members of a class, create all folders from NB×××_001 to NB×××_003 (and 4 if there is NB××××_004).



File name



SK_NB104_001
Files beginning with SK_ are meshes (skeletal meshes).
It is a polygon of a character.



T_NB104_001_Wear_BC
 _BC at the end of the file name is the base color texture.





T_NB104_001_Wear_N
The _N at the end of the file name is a normal map texture.
It has the effect of making the image look three-dimensional.







T_NB104_001_Wear_LM
The _LIM at the end of the file name seems to be a texture for an effect called “Limlight”.

It seems to have the effect of emphasizing the outline of the character and making it look beautiful, but I don't know the details.



Other



MI_NB104_001_Hair

A material is a feature that sets the color and texture of a 3D model.
Files beginning with MI_ are instances (children) of the material. An instance inherits the properties of its parent material.



ABP_NB104_001

Animation BP, assets related to animation, physics, collision detection, etc.

The animation files themselves are located elsewhere.



AS_VNC104_000_F99_B_GSS_Victory_L
Files with names beginning with AS_VNC are animation files.



Edited April 13, 2025 by oppaiman

[oppaiman]

How to use Fmodel

Spoiler

Please refer here for installation and usage instructions.

https://github.com/4sval/FModel/wiki/Installing-FModel



After extracting Fmodel to the desired location, double-click Fmodel.exe to start it.
Click on the “setting” menu on the screen.





General Tab
Output Directory・・・Specifies the location from which data is extracted.
UE Versions・・・4.27




Model Tab
Model Export Directory・・・Specifies where to extract model data.
Mesh Format・・・Specify which format to use to extract data.
Restart after setting.





Double-click on Game-WindowsNoEditor.utoc (15.9 GB).

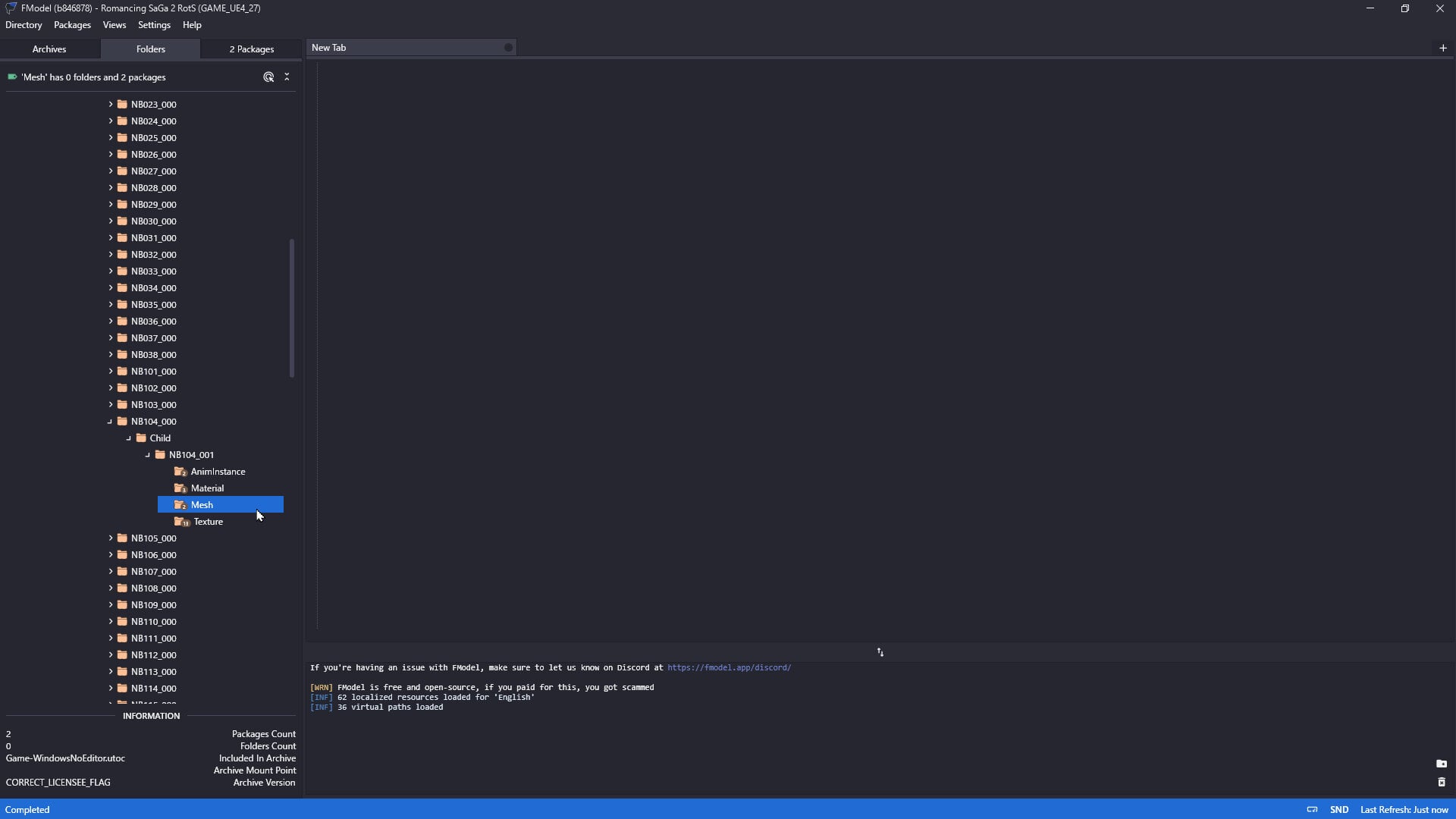

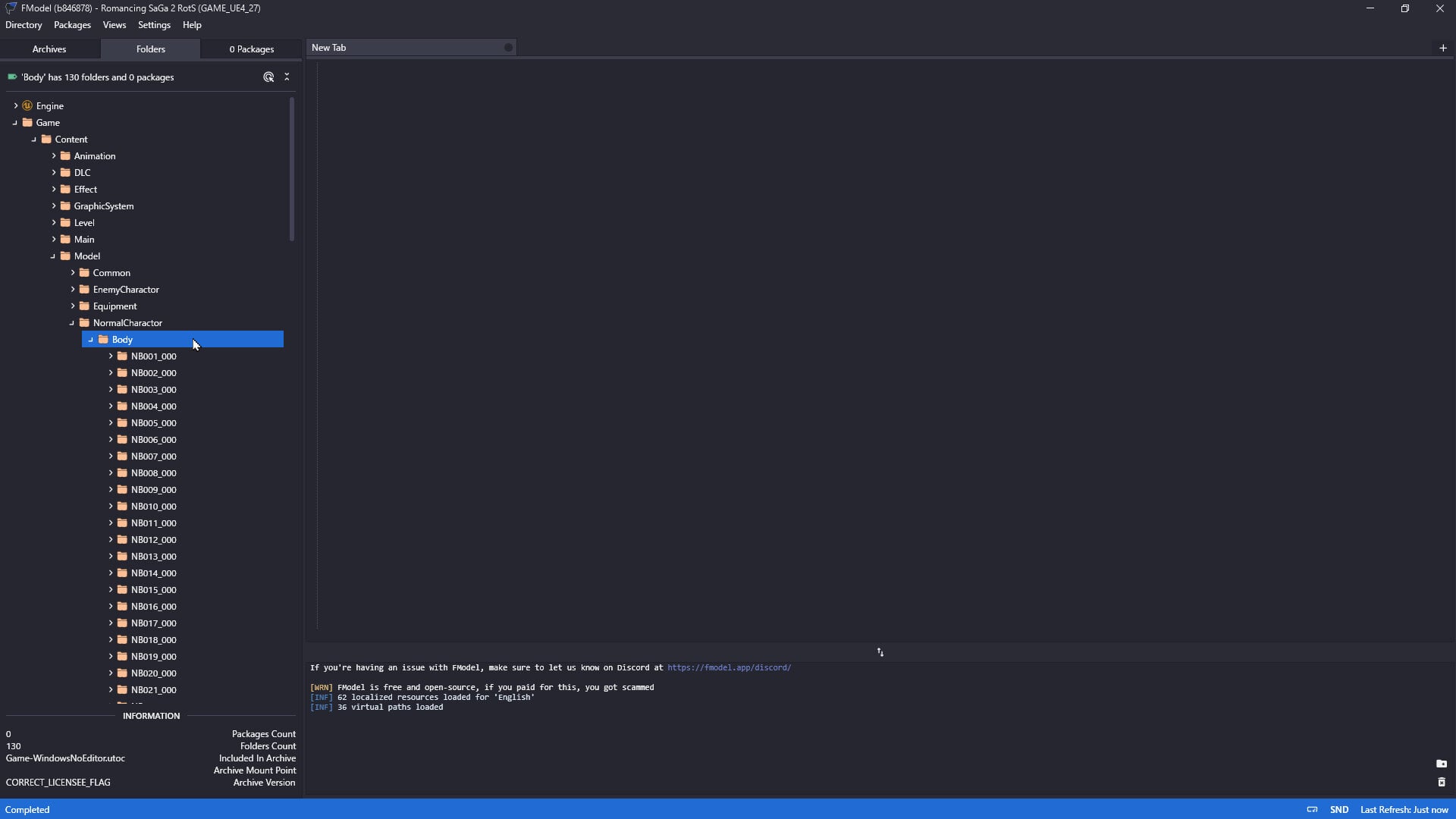

Game data will appear in a tree format. Find the model data to be modified.



Body materials and textures are common to many characters. The common folder is located in the following location.
Content/Model/Common/Material/Body



Eye materials and textures may be in the common folder or in individual character folders.
Content/Model/Common/Material/Eye



Hair and clothing materials, textures, and meshes are located in character-specific folders.
Content/Model/NormalCharactor/Body/NB×××_000





Here we open the mesh data of the final emperor. You will find it in the following location
Game/Model/NormalCharactor/Body/NB104_000/Child/NB104_001/Mesh/SK_NB104

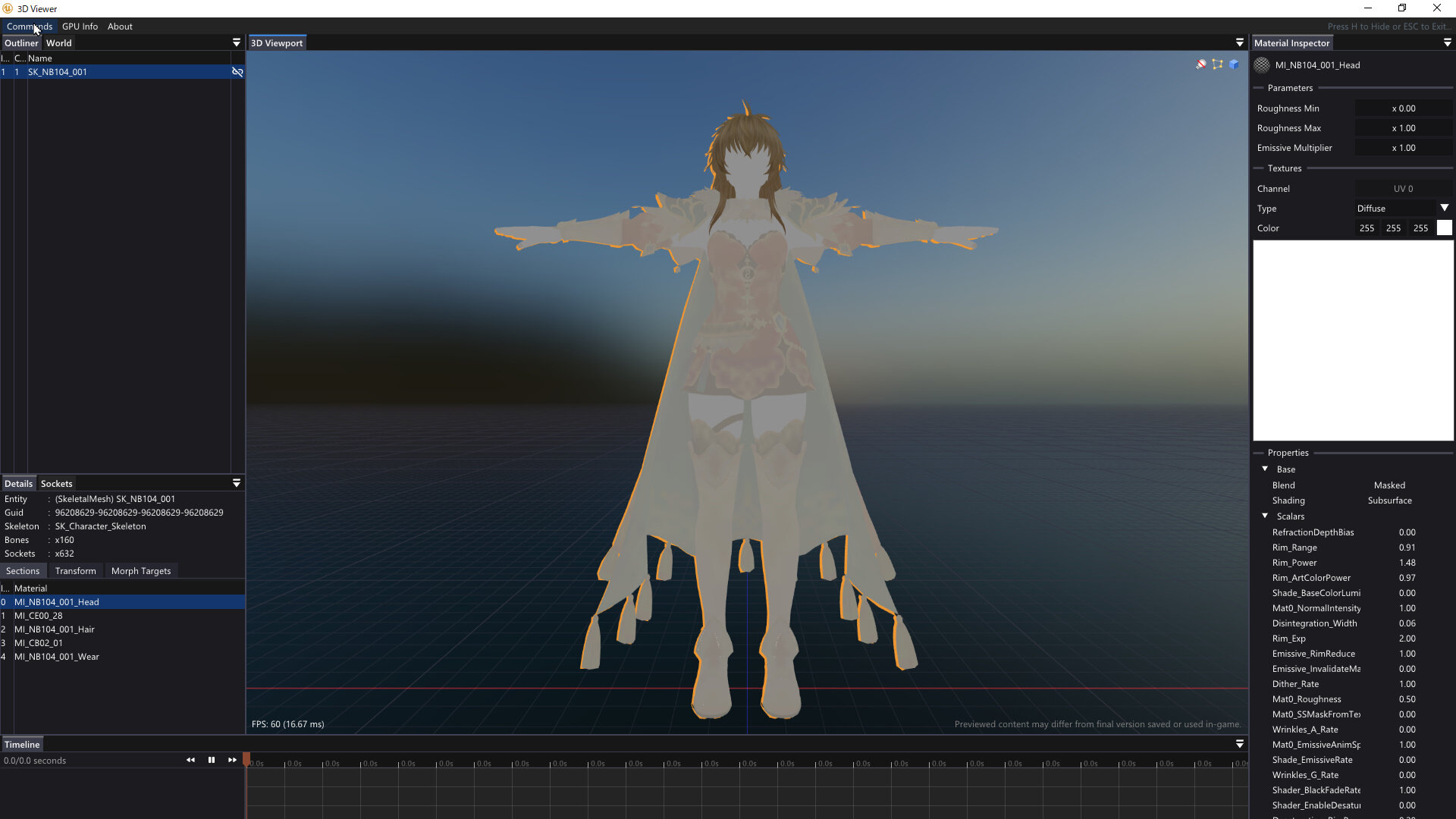

The 3D viewer will open and display the character.
Materials and textures associated with the character are displayed.





I use Umodel to extract model data; Fmodel is only used to check file names and placement locations.
This is the end of the description of Fmodel.

Edited December 6, 2024 by oppaiman

[oppaiman]





Extracting assets using Umodel

Spoiler

Extract umodel_win32.zip and place it in the game content folder.
Romancing SaGa 2 RotS/Game/Content



Extract umodel_acl_2.zip and place umodel_acl_2.1.exe in the umodel_win32 folder.
It will look like this image.





Double-click umodel_acl_2.1.exe to start it.

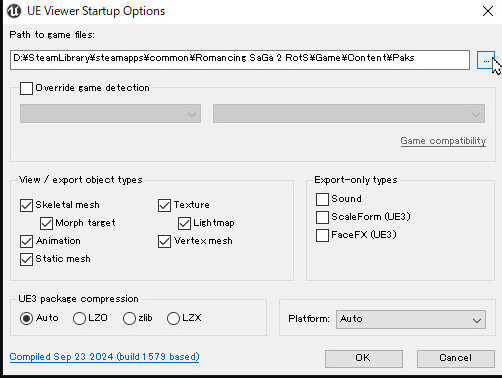

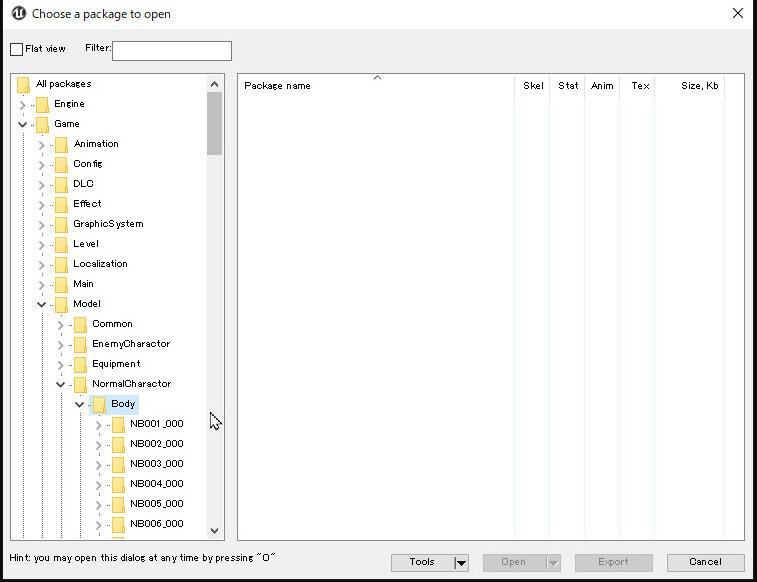

Specify the location of Paks(.ucas) in the pull-down menu.
Romancing SaGa 2 RotS/Game/Content/Paks

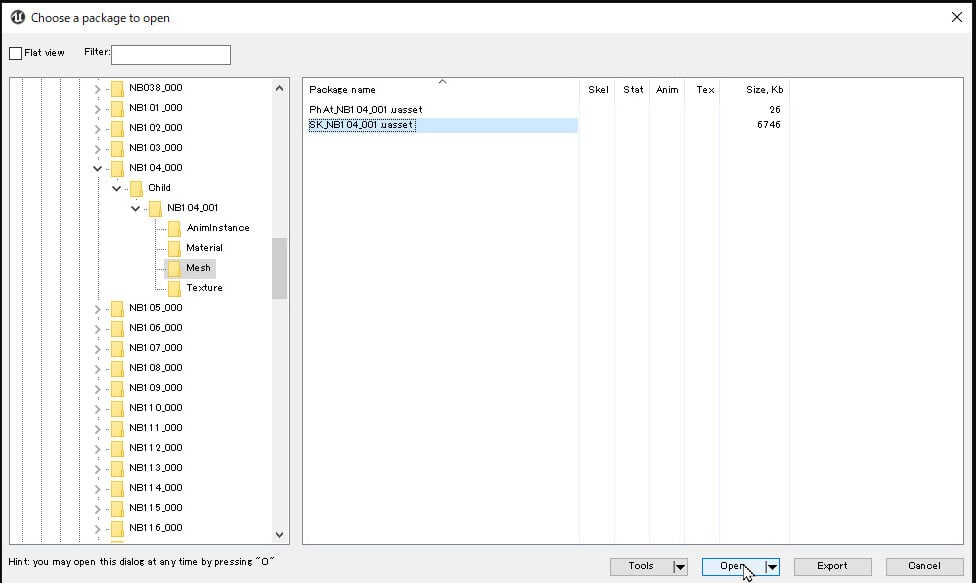

Once the tree is open, select the file to be extracted.





This time, we will modify the Final Emperor's hair to change its color.

The final emperor mesh is located at
Game/Model/NormalCharactor/Body/NB104_000/Child/NB104_001/Mesh/SK_NB104

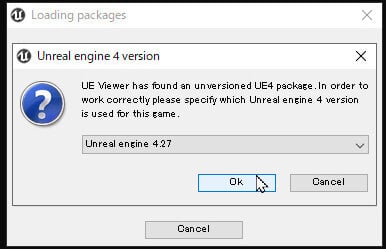

Select SK_NB104.uasset and press Open, you will be asked for the engine version.
Select 4.27 from the pull-down menu.

mesh of the selected model will be displayed.

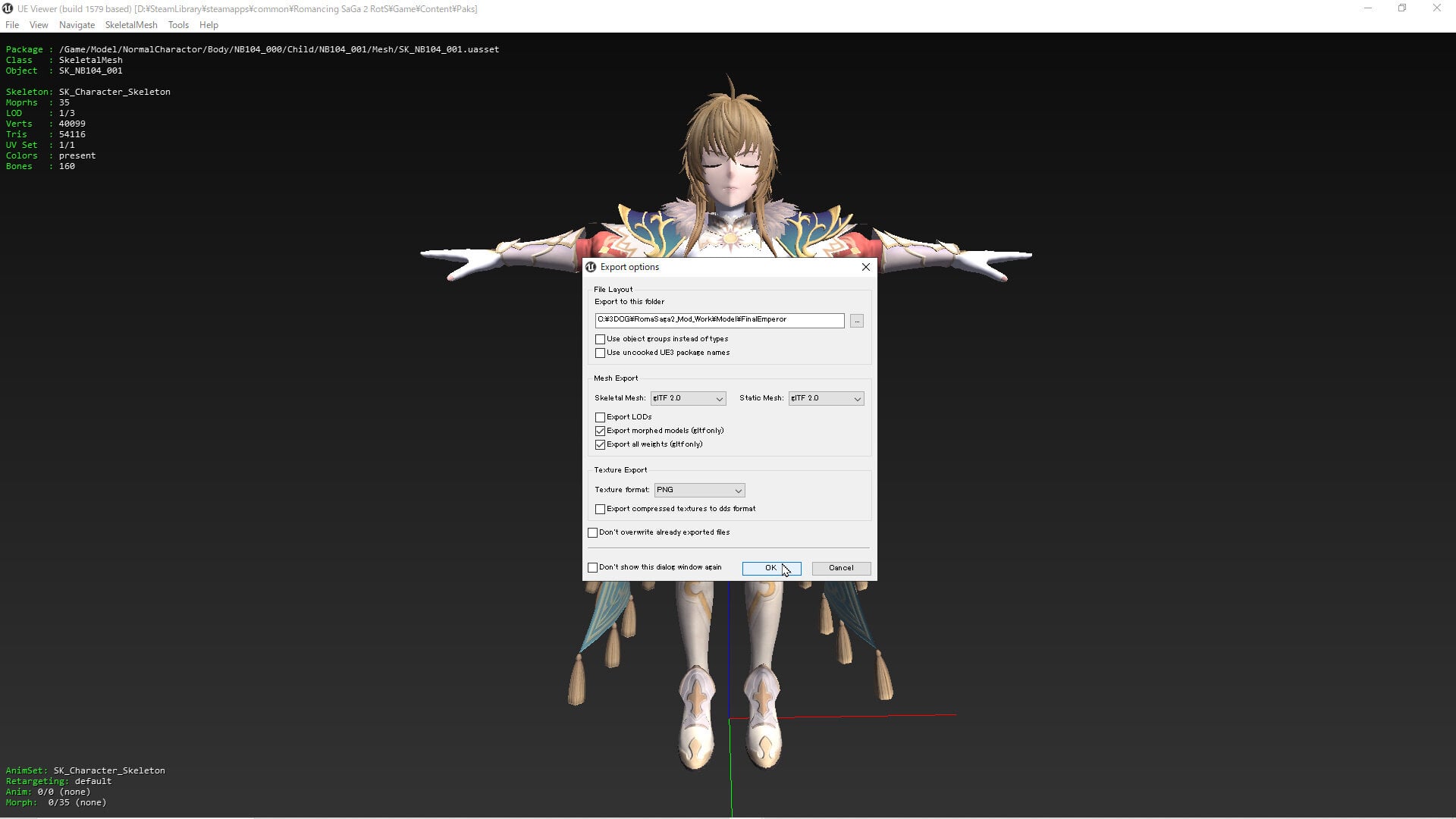

Press Tools→Export current object at the top. Specify any folder from which to extract files.
Set the Export setting as follows

Skeletal Mesh:glTF
Static Mesh:glTF
Check Export morphed models
Check Export all weights
Texture format:PNG

Press OK.





When you are done extracting, press Tools→Export current object at the top again.
Set the Export setting as follows

Skeletal Mesh:psk
Static Mesh:psk

Press OK.

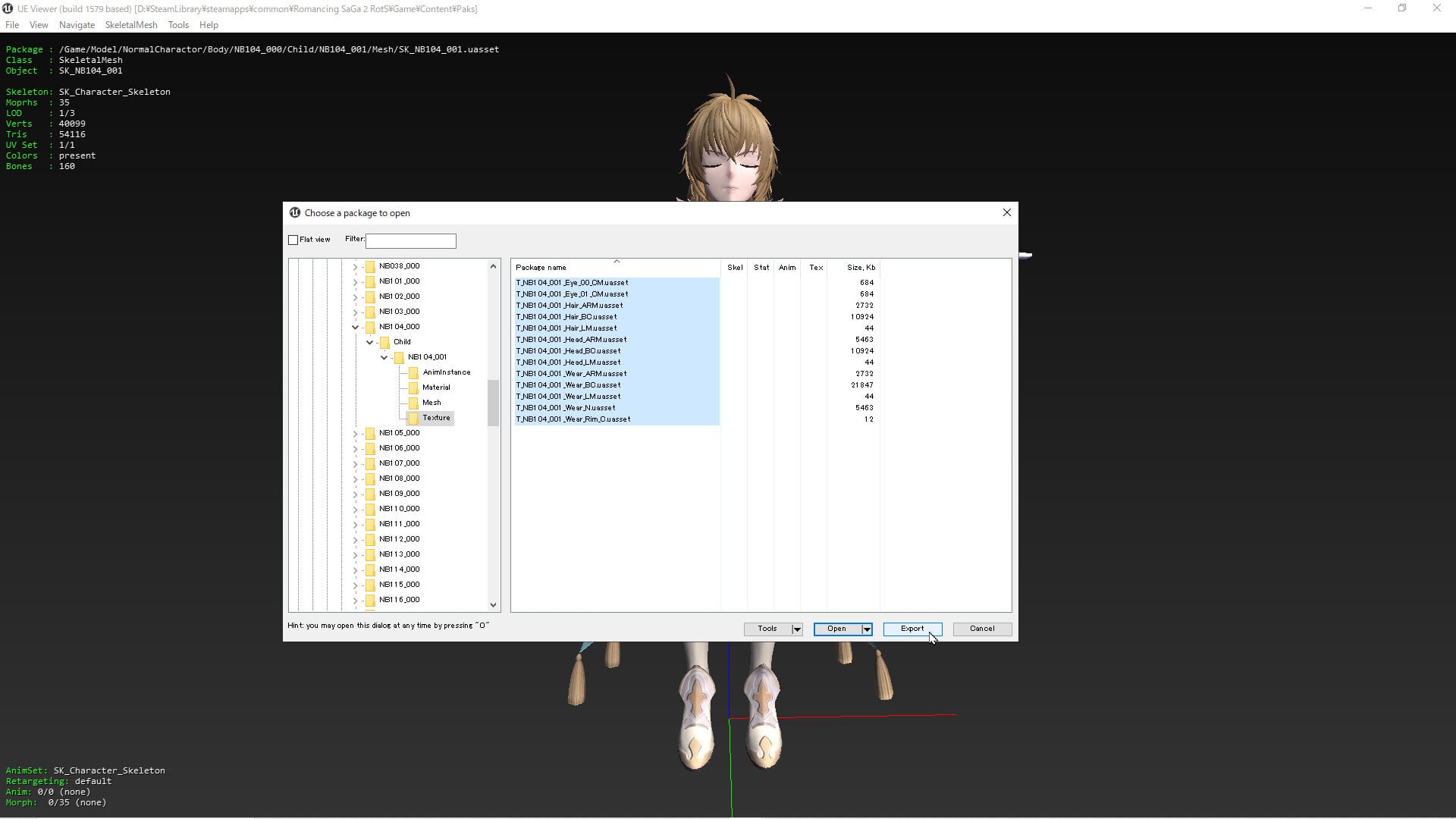

When you return to the original screen, press O to open the tree,

click on the Texture folder, select all the textures displayed, and press Export.





A Game folder is created in the specified folder and the extracted files are contained in the Game folder.
All you need is the file in the Model folder.
Umodel work is finished.





Edited November 23, 2024 by oppaiman

[oppaiman]



Edit 3D models in Blender



Step 1: Import glTF

ネタバレ

To import psk format files in Blender, you need to install an add-on.
Download and install io_import_scene_unreal_psa_psk_280.zip.
See the link for installation instructions.



https://github.com/matyalatte/blender3d_import_psk_psa

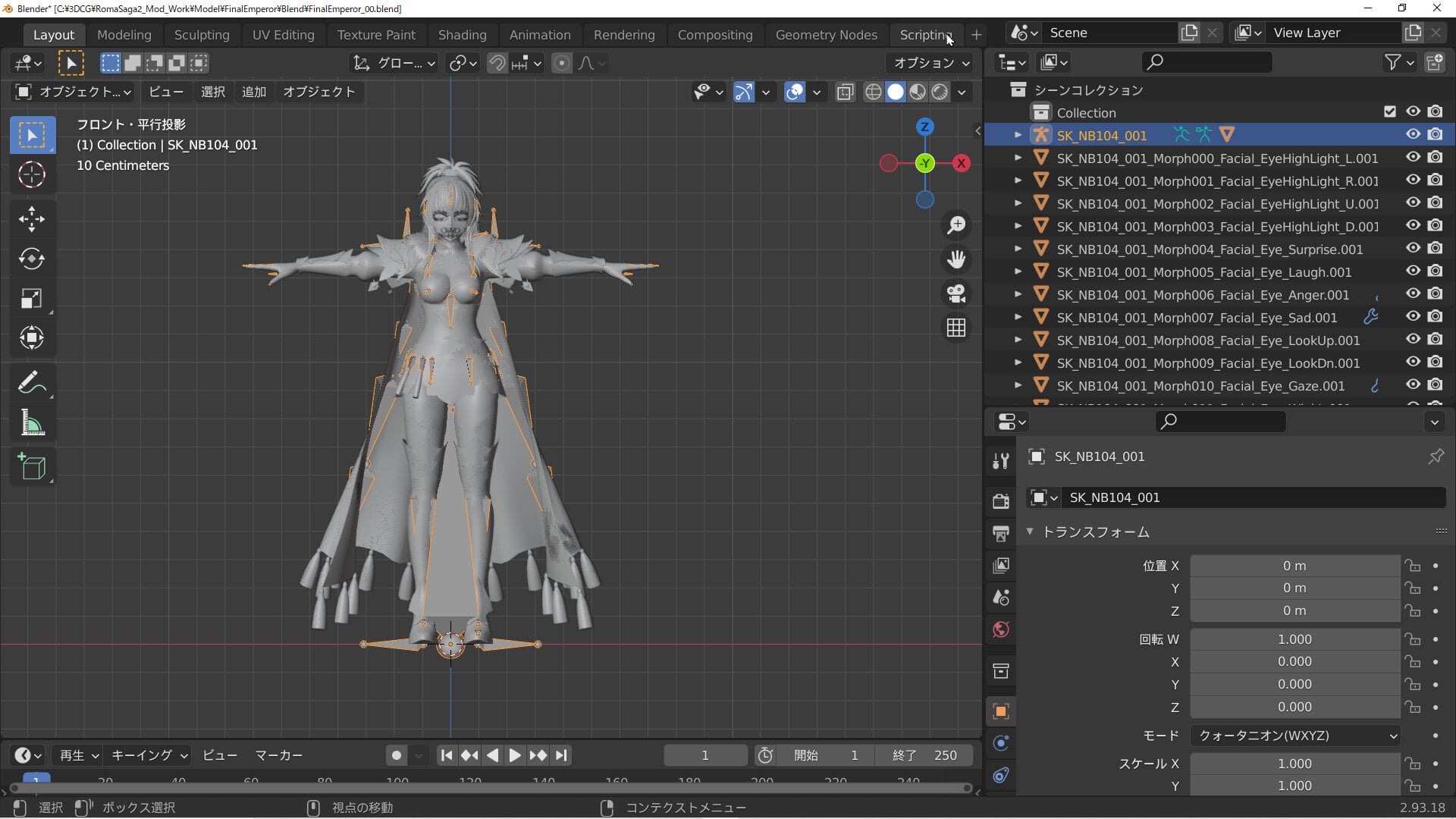

Delete cameras, cubes and lights in the scene collection.

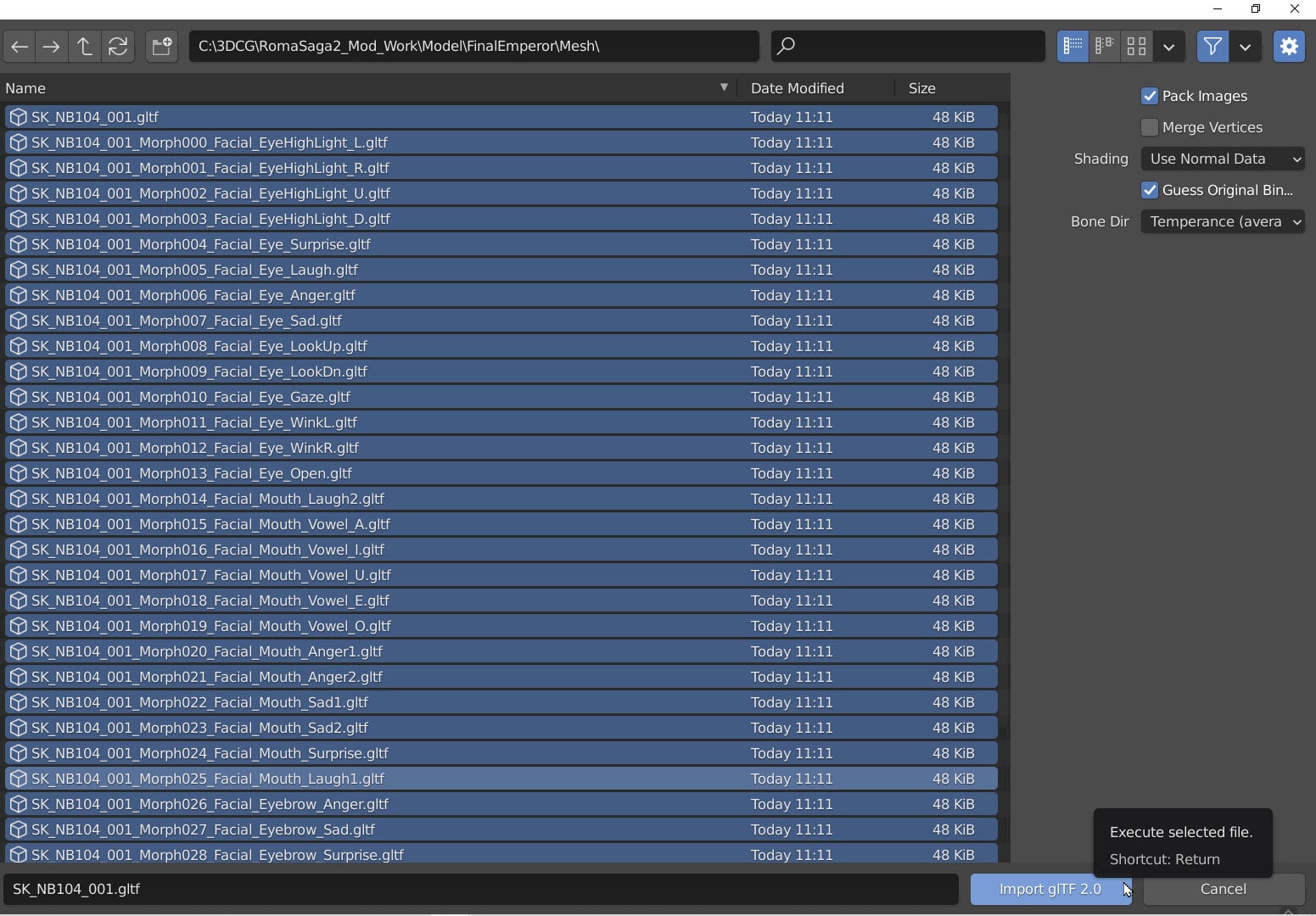

File→Import→glTF.

Select and import all extracted glTFs.
The settings can be left as default.



This may take some time depending on the performance of your computer.
Once import is finished, save the file once before working.







Step 2: Shape key (facial animation)

ネタバレ

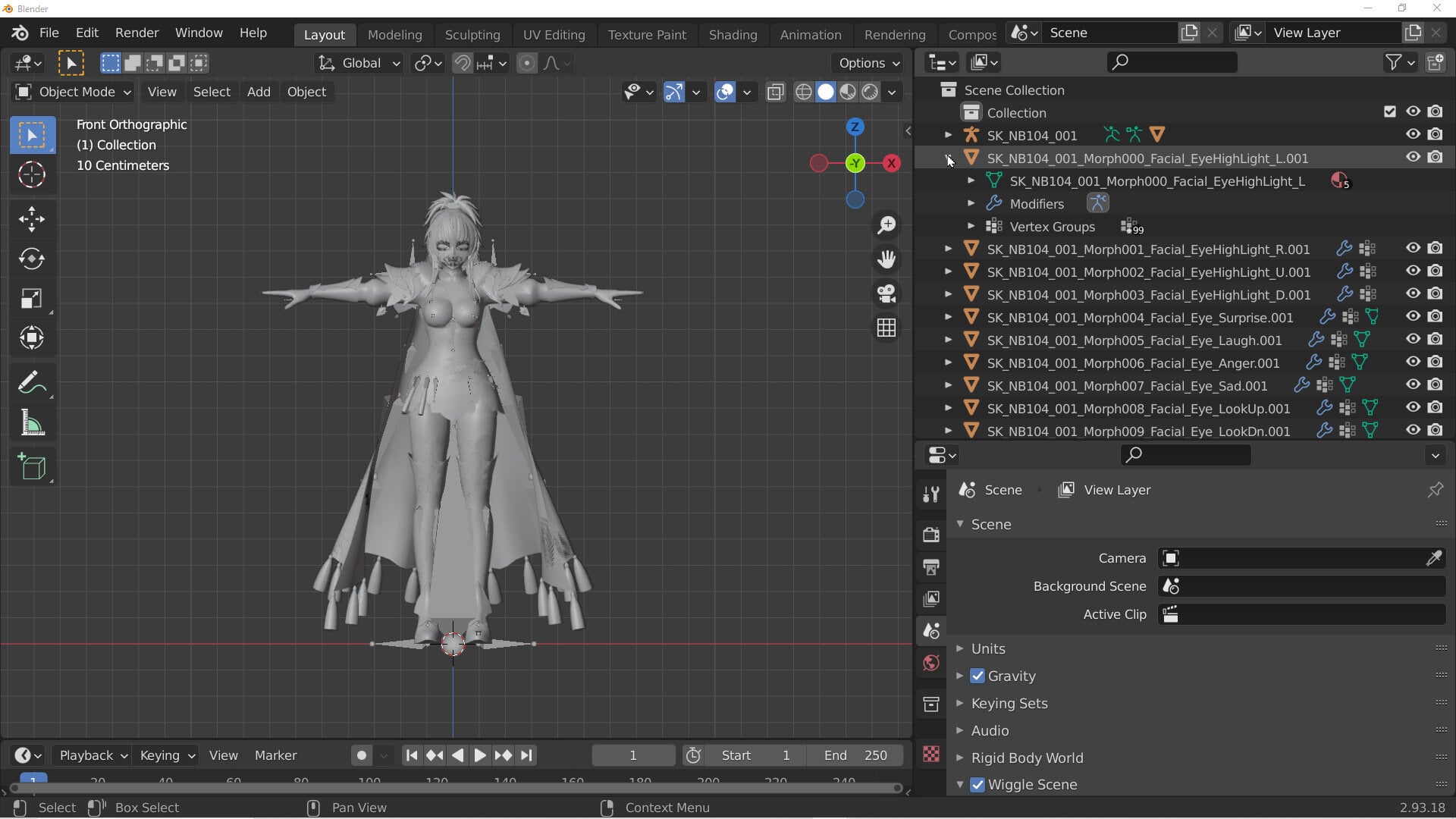

SK_NB104_001_Morph000_Facial_xxx is a Shape Key (facial animation).
Edit it so that it moves in the game.

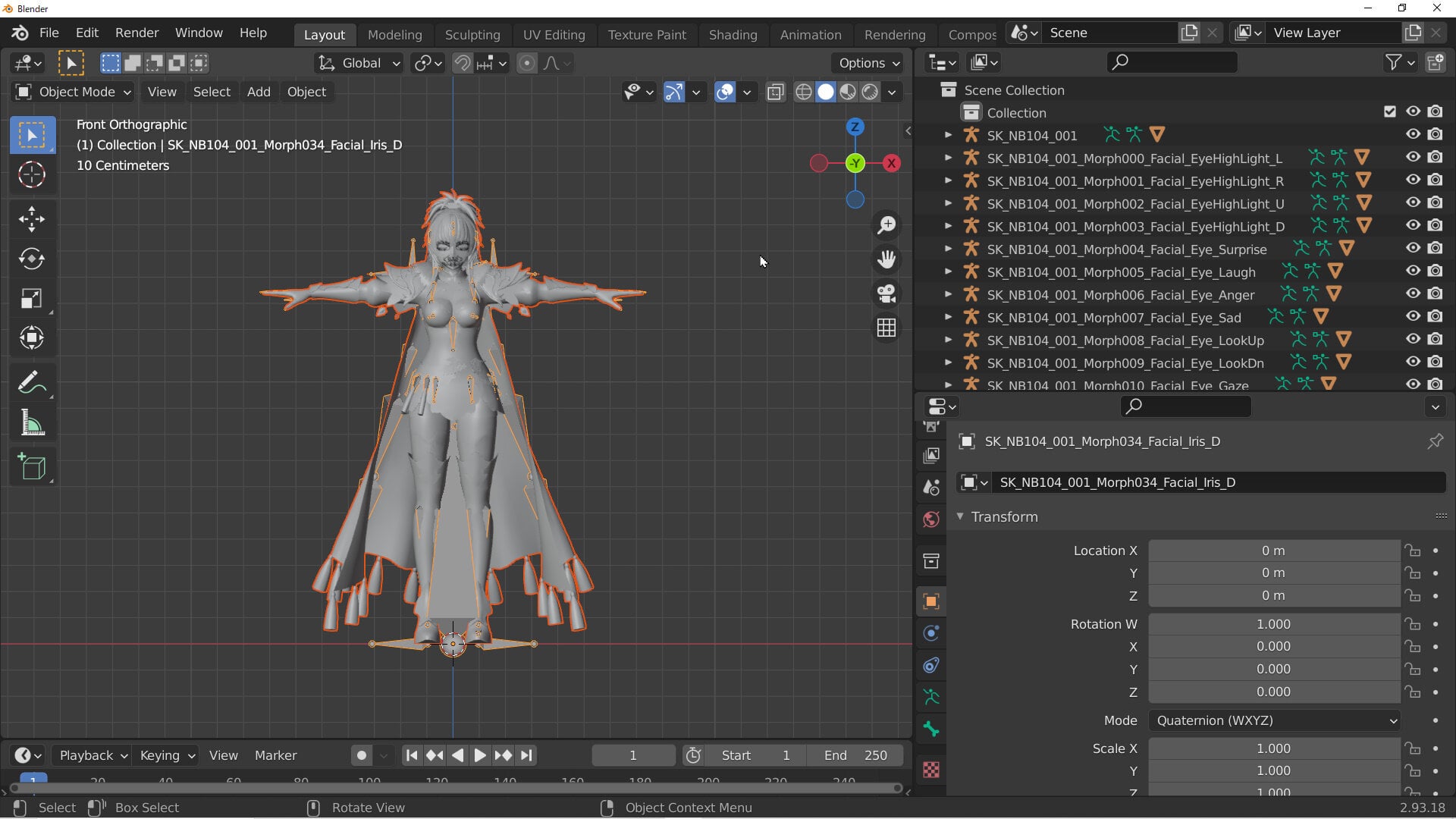

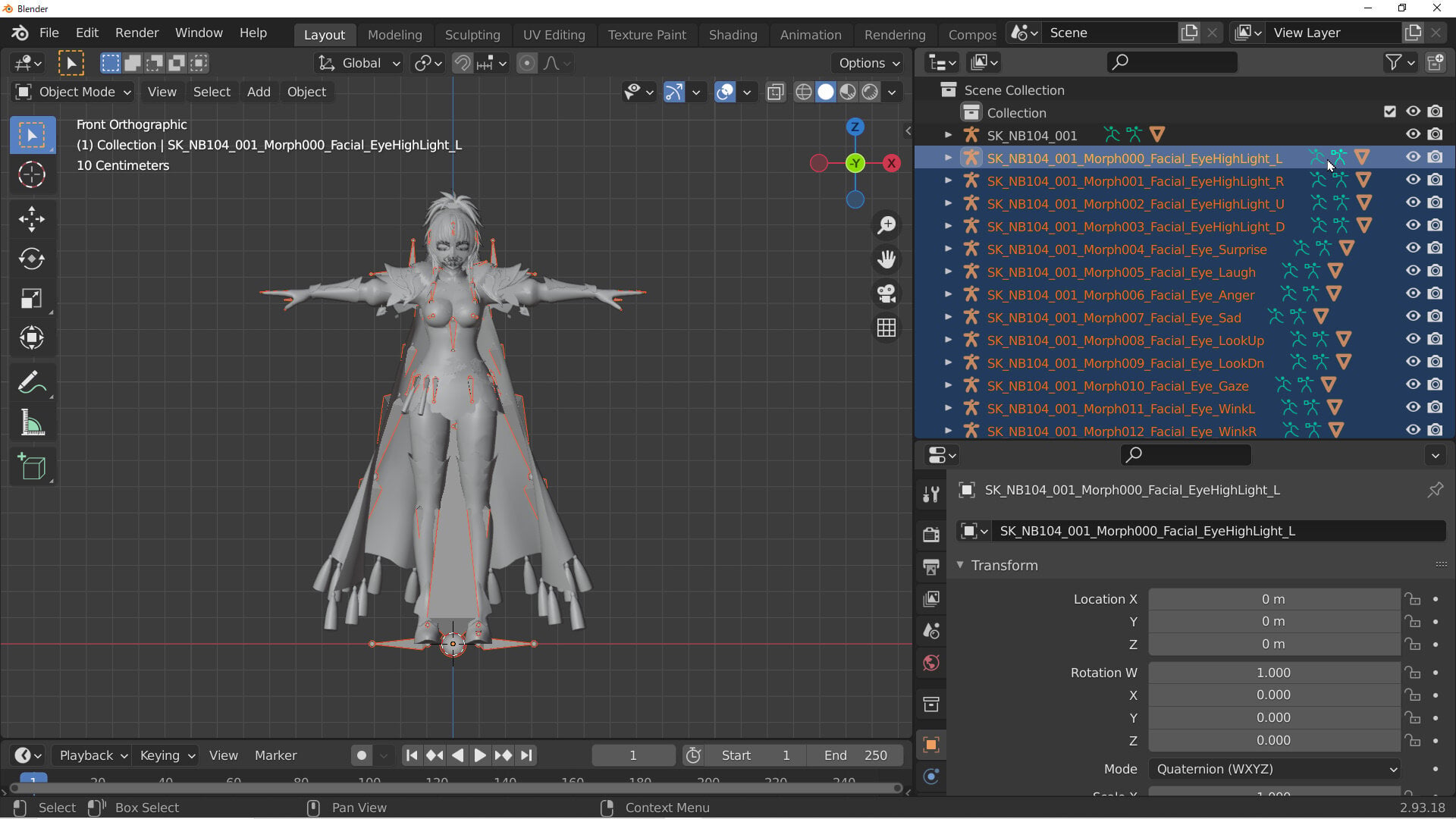

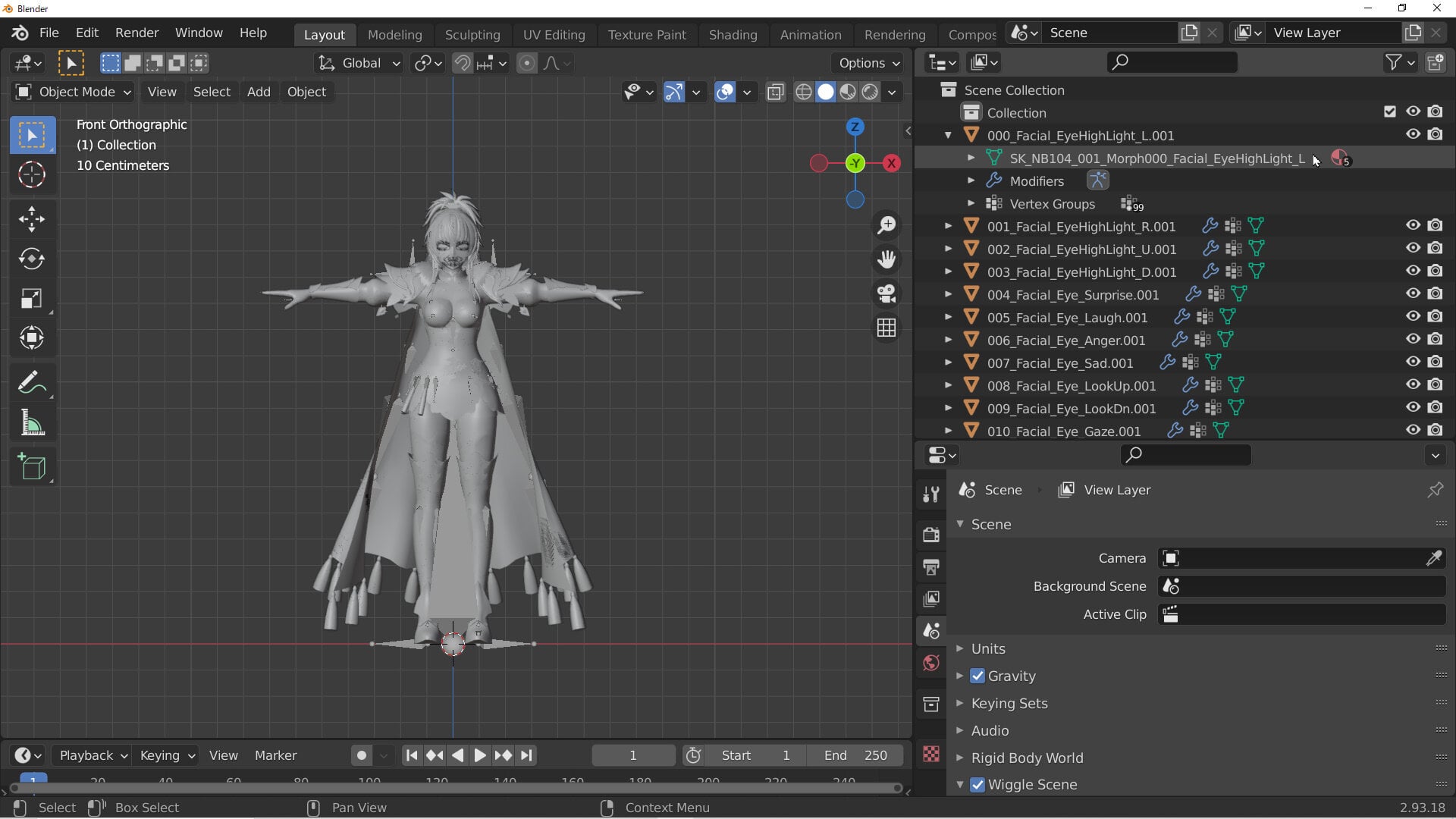

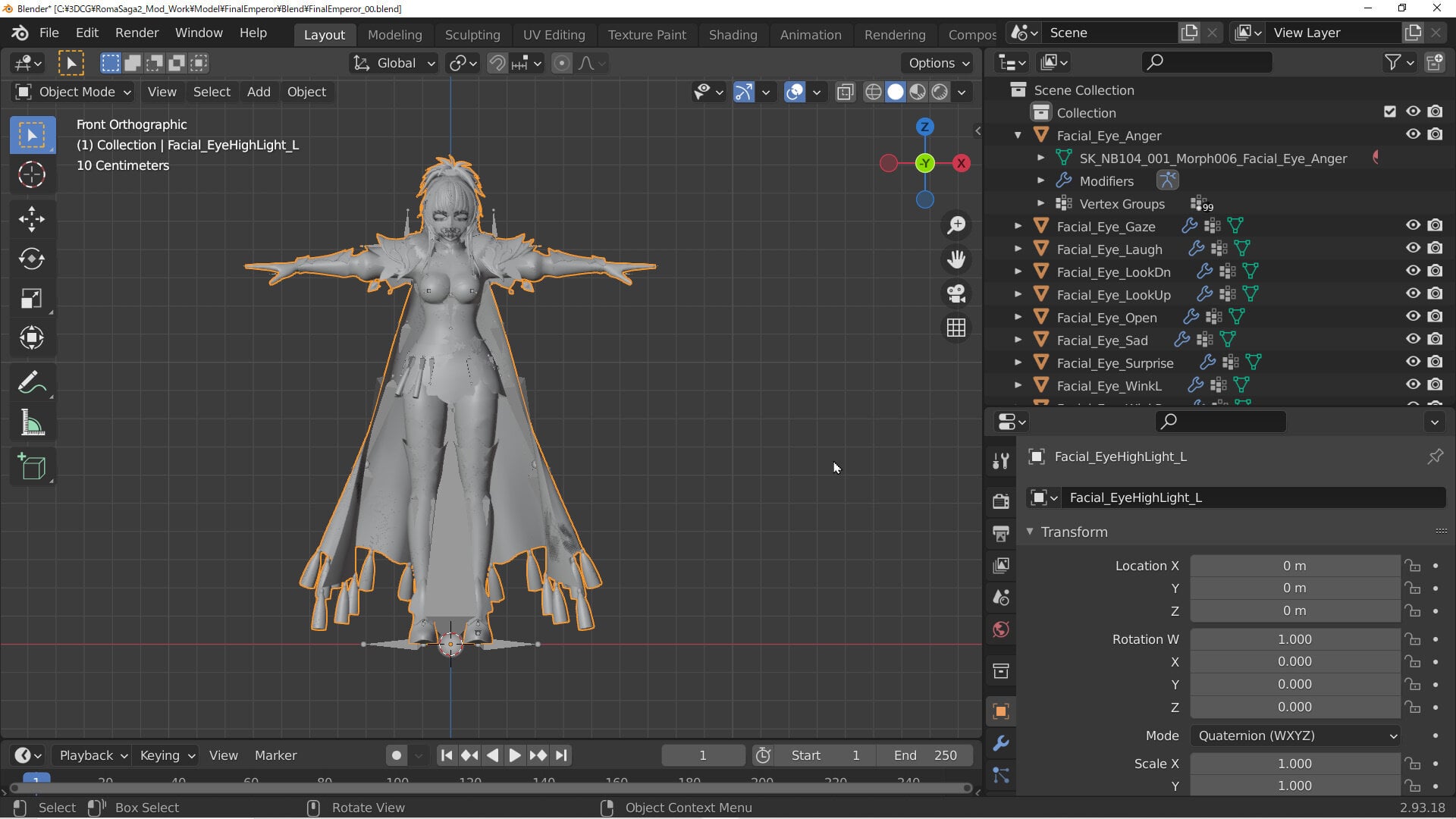

First, select all the humanoid icons named SK_NB104_001_Morph000_Facial_xxx and press Delete.
Do not delete SK_NB104_001.




The human-shaped icons will change to triangular icons.
Press ▷ on the left to expand the tree so that the mesh (green icon) is also visible.





Renames objects and meshes.



Method 1
Renaming using Blender script

Spoiler

I was given a Blender script by aararara_001 who watched the tutorial to easily rename shape keys.
To use it, download this text file or copy and paste the code below into a new text and save it.



RomaSaga2RenameScript.txt



Spoiler

import bpy
import re



def rename_object(name, remove_prefixes, remove_digits=True, remove_punctuation=True):
    for prefix in remove_prefixes:
        if name.startswith(prefix):
            name = name[len(prefix):]



    if remove_digits:
        name = re.sub(r'^\d+', '', name)



    if remove_punctuation:
        name = re.sub(r'^[\.\_]', '', name)

    name = re.sub(r'\.001$', '', name)



    return name



remove_prefixes = ["SK_NB005_001_Morph"]



for material in bpy.data.materials:
    old_name = material.name
    new_name = rename_object(old_name, remove_prefixes)
    material.name = new_name
    print(f"Material renamed: '{old_name}' -> '{new_name}'")



for obj in bpy.data.objects:
    if obj.type == 'MESH':
        old_name = obj.name
        new_name = rename_object(old_name, remove_prefixes)
        obj.name = new_name
        print(f"Mesh Object renamed: '{old_name}' -> '{new_name}'")



for mesh in bpy.data.meshes:
    old_name = mesh.name
    new_name = rename_object(old_name, remove_prefixes)
    mesh.name = new_name
    print(f"Mesh Data renamed: '{old_name}' -> '{new_name}'")

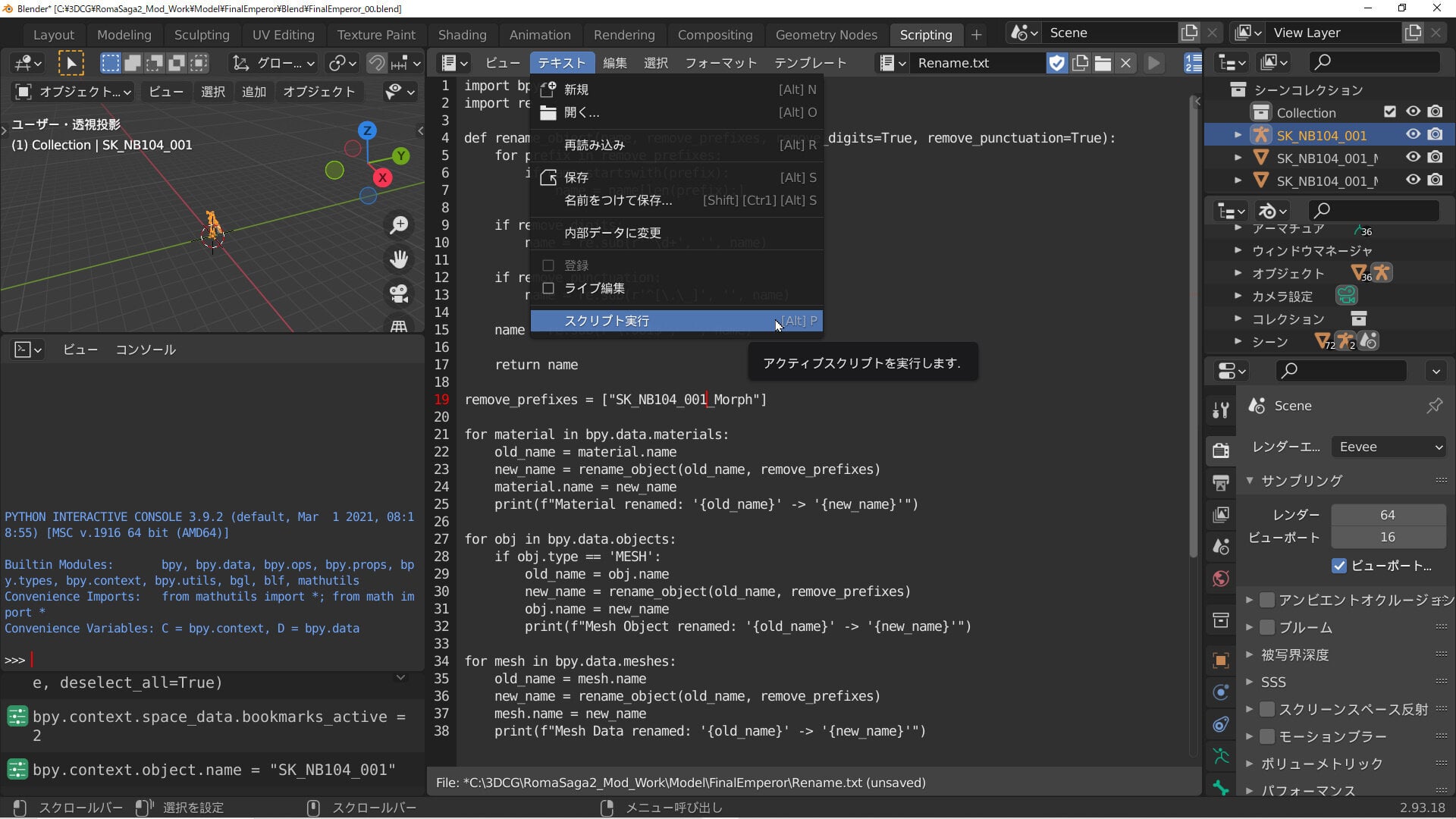

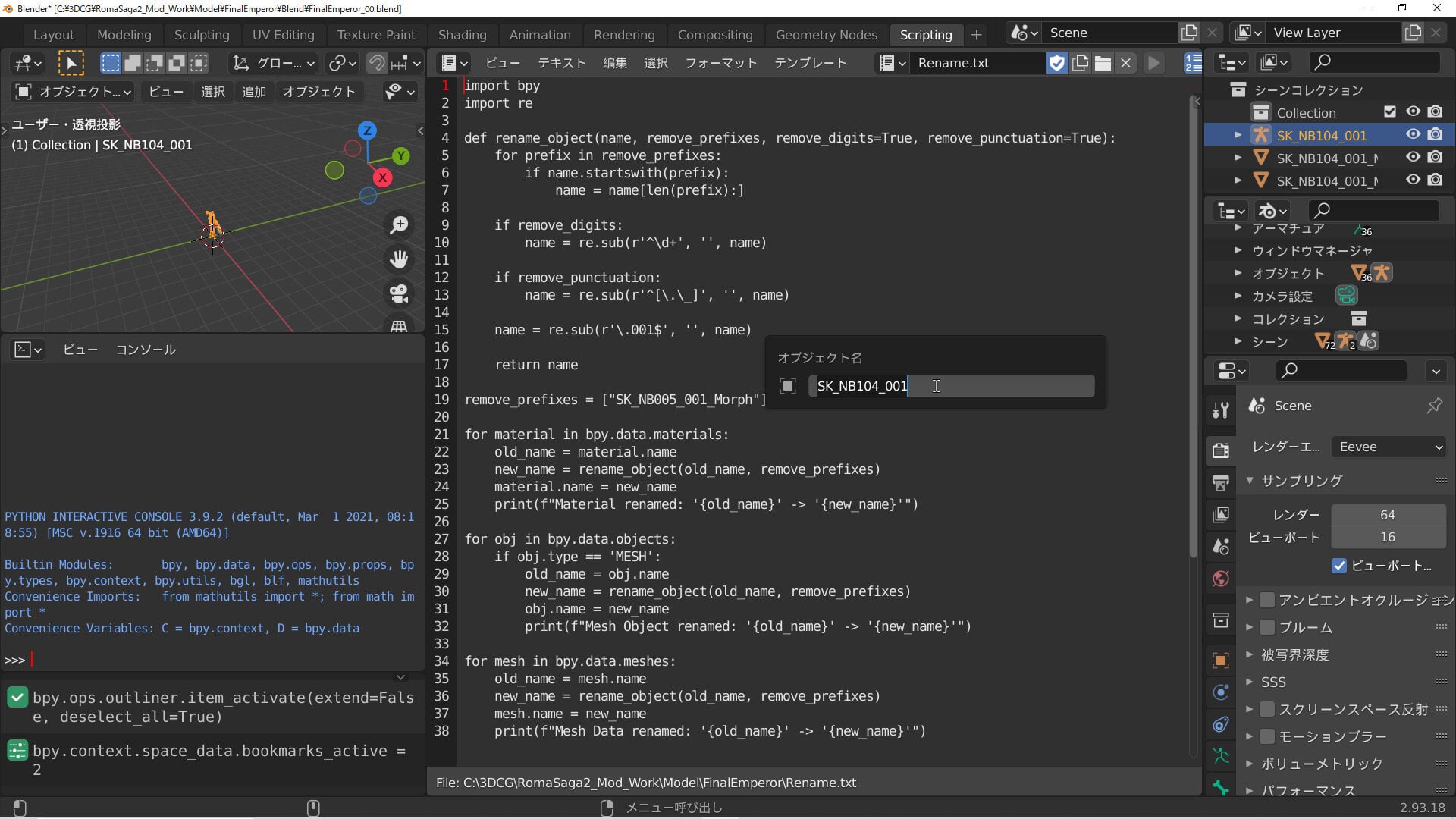

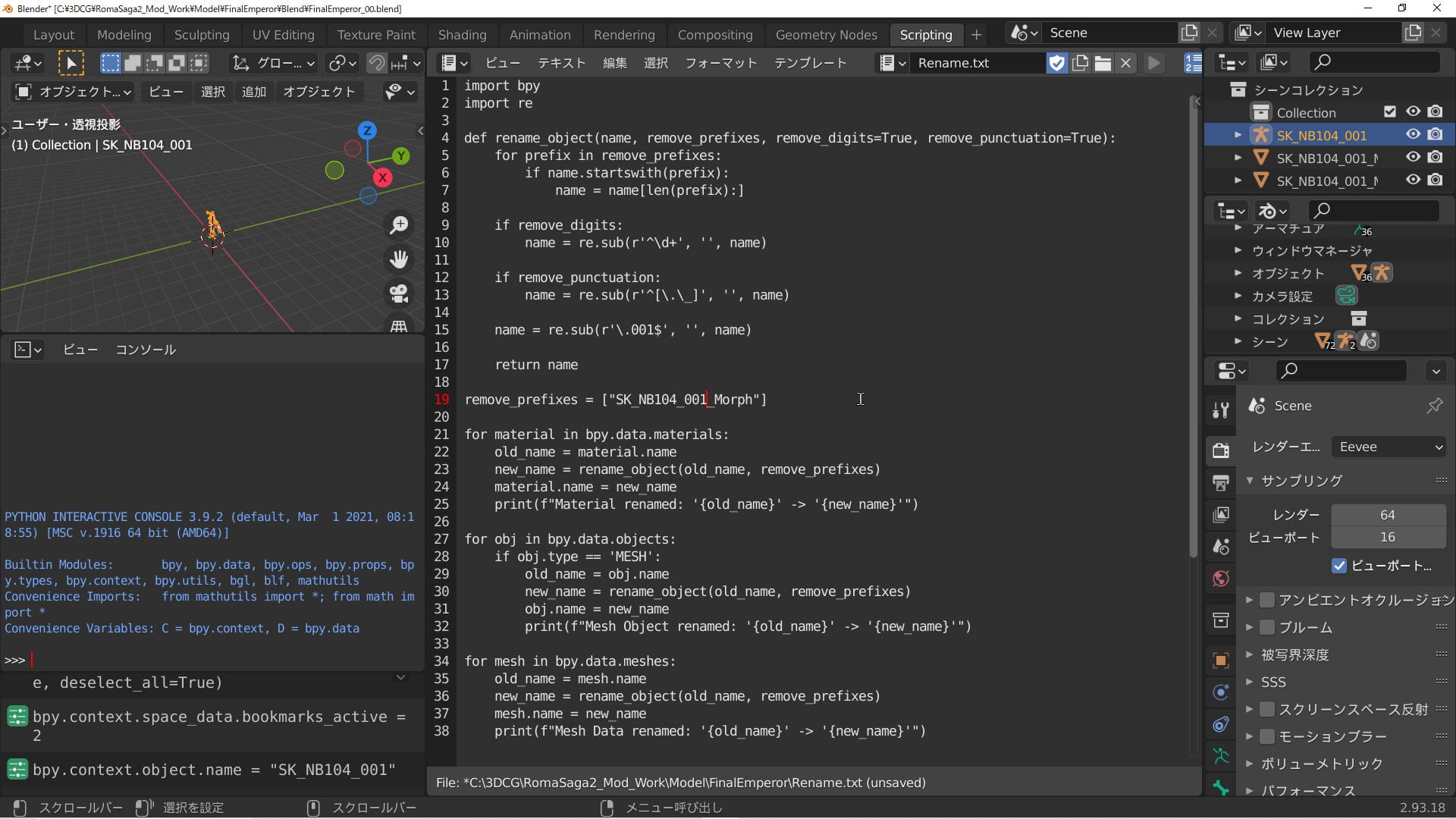

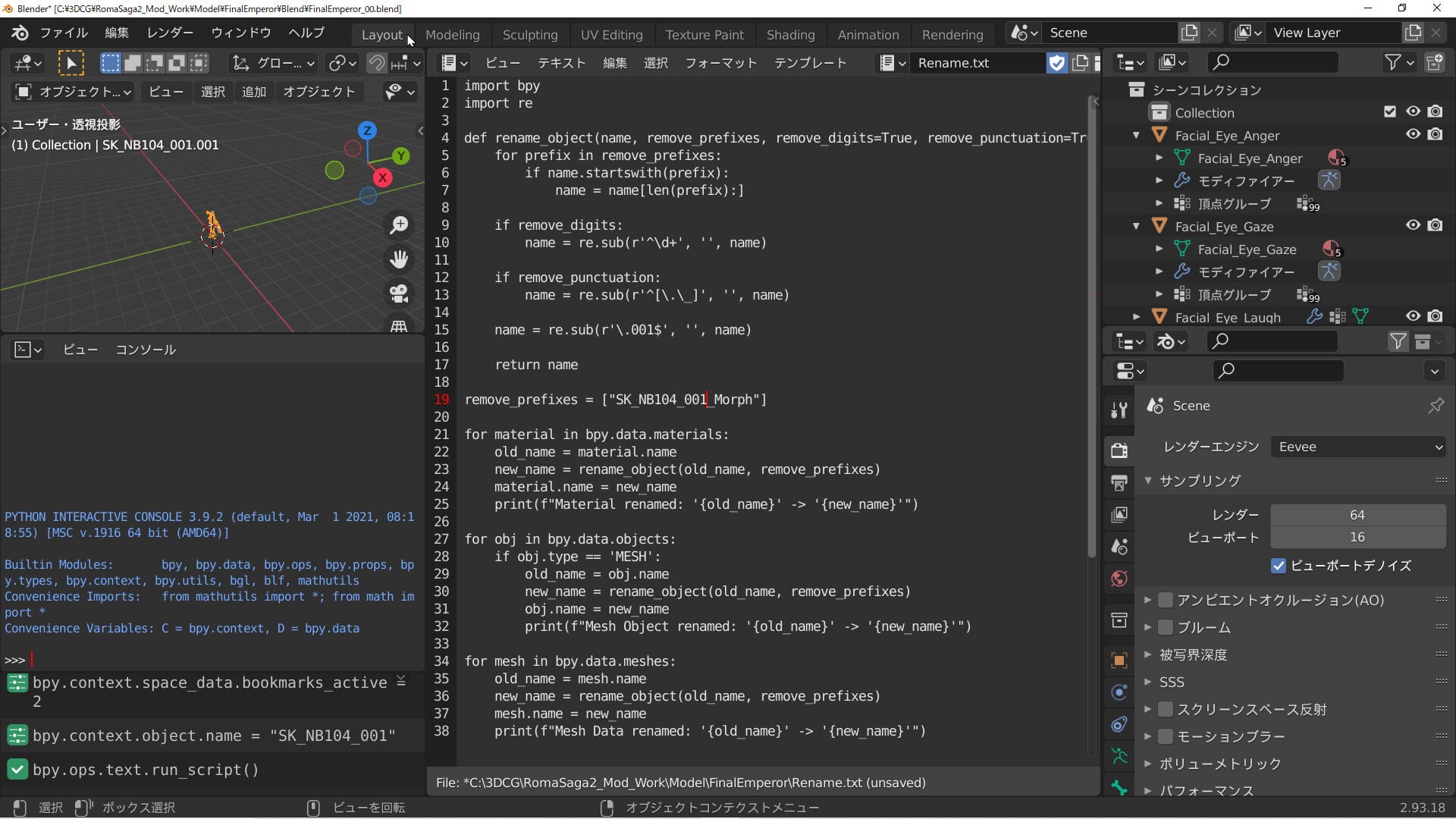

How to use

1．Click the main object SK_NB104_001, then scroll the menu at the top of Blender(where the Blender icon is) to the right with the mouse wheel and click Scripting.

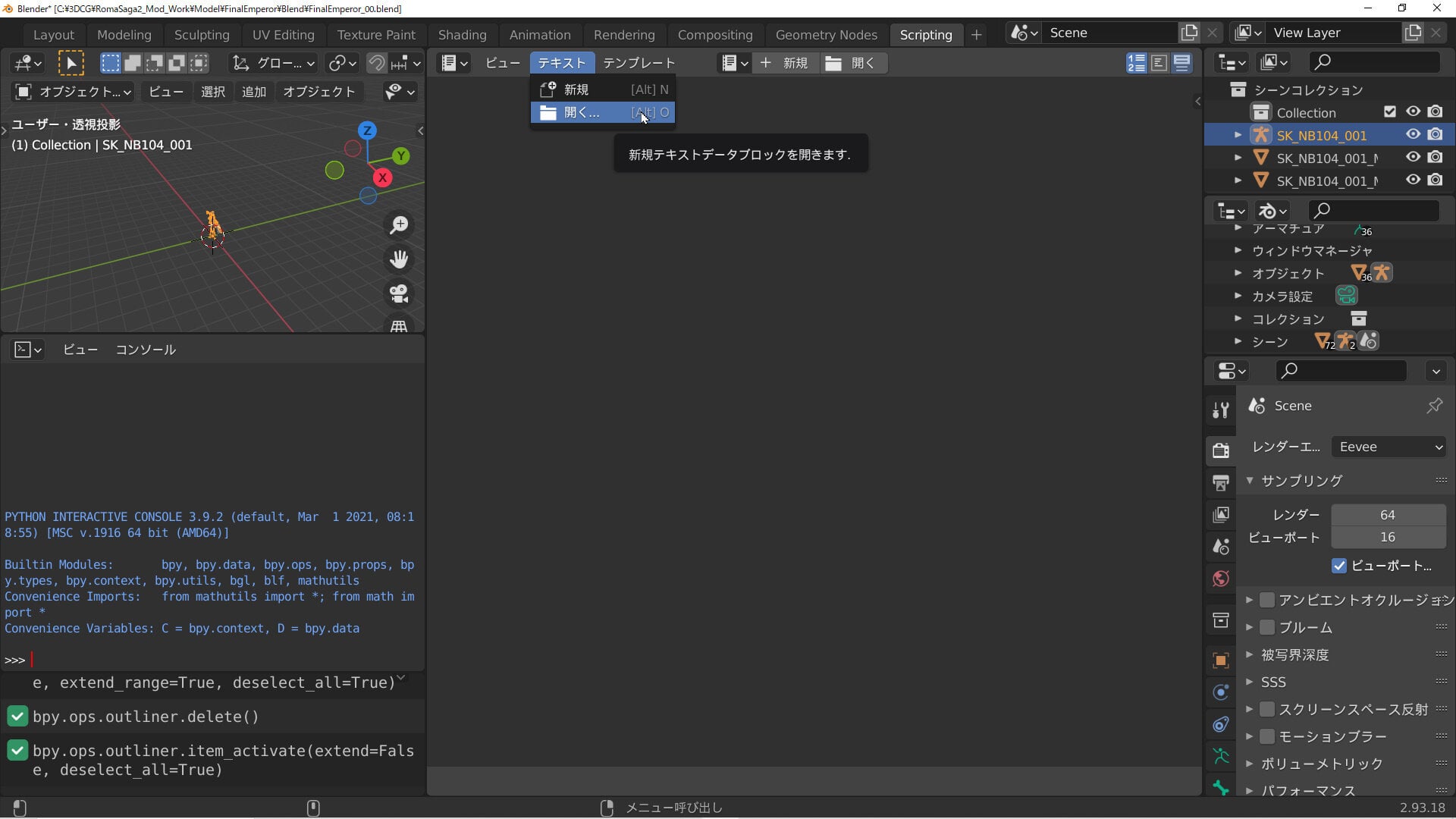

2．Open the saved renaming script text with Text→Open.

3．Press F2 on the keyboard to open the Object Name window and copy the main object name you just clicked on.





4．remove_prefixes = [“SK_NB005_001_Morph”], delete SK_NB005_001 and paste the copied object name.(Be careful not to delete all the way down to _Morph).





5．Text→Execute Script to rename the object and mesh.





6．

Scroll the menu at the top of Blender to the left with the mouse wheel and click on Layout to return to the previous screen.
Once you are back on the previous screen, rename the material.
Open Rename All with Ctrl+F2 and set the following



All Materials
Type Find/Replace
Search: .001 (dot 001)
Replace: blank (enter nothing)



Press OK and the .001 after the material name will be deleted.
This completes the renaming process. Make sure there are no mistakes and save the file.
Please refer to the second half of Method 2, “Join as Shapes,” for a continuation of this process.



Method 2
How to rename using Batch Rename

Spoiler

Rename objects.

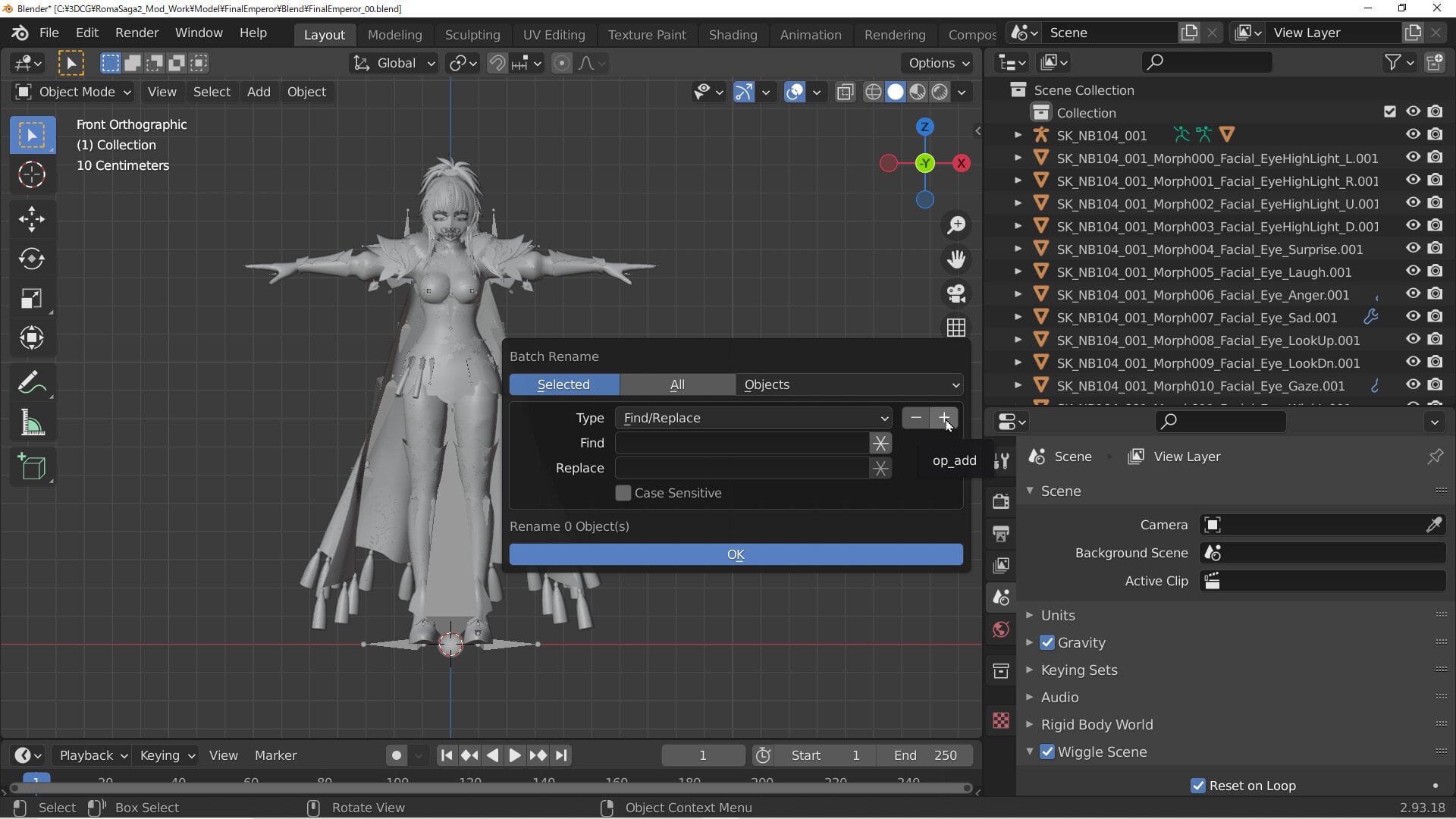

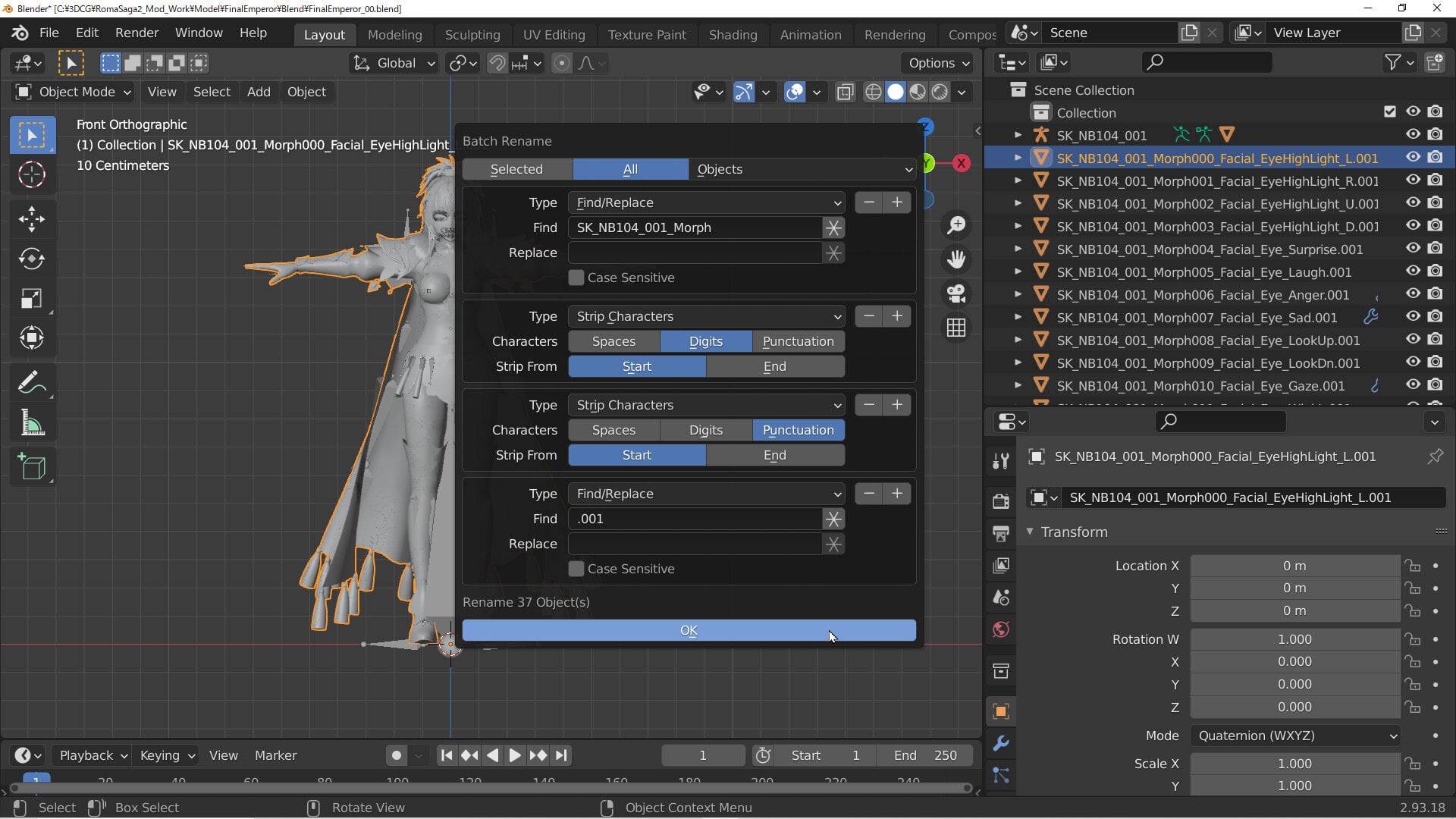

Press Ctrl+F2 to open the rename window.





Press + in the upper right corner of the window to increase the number of batch renaming windows.
Set the number of rename windows to four.
Set up as follows



All Objects



Type:Find/Replace
Find:SK_NB104_001_Morph
Replace:Blank (do not enter anything)



Type:Strip_Characters
Characters:Digits
Strip From:Start



Type:Strip_Characters
Characters:Punctuation
Strip From:Start



Type:Find/Replace
Find:.001(dot001)
Replace:Blank (do not enter anything)





Press OK.
Unnecessary parts of the object name are deleted.

• The first part, SK_NB104_001_Morph
• The next number
• The next underscore
• The .001 at the end of the file name





Rename the mesh (green ▼) using the same operation.

Press Ctrl+F2 to display the Batch Rename window.
Settings remain the same as when the object was changed.



Type: Find/Replace
Find: .001 (dot 001)
Replace: blank (enter nothing)
This setting is not needed, so press the right - to remove it.
Set to the next setting.

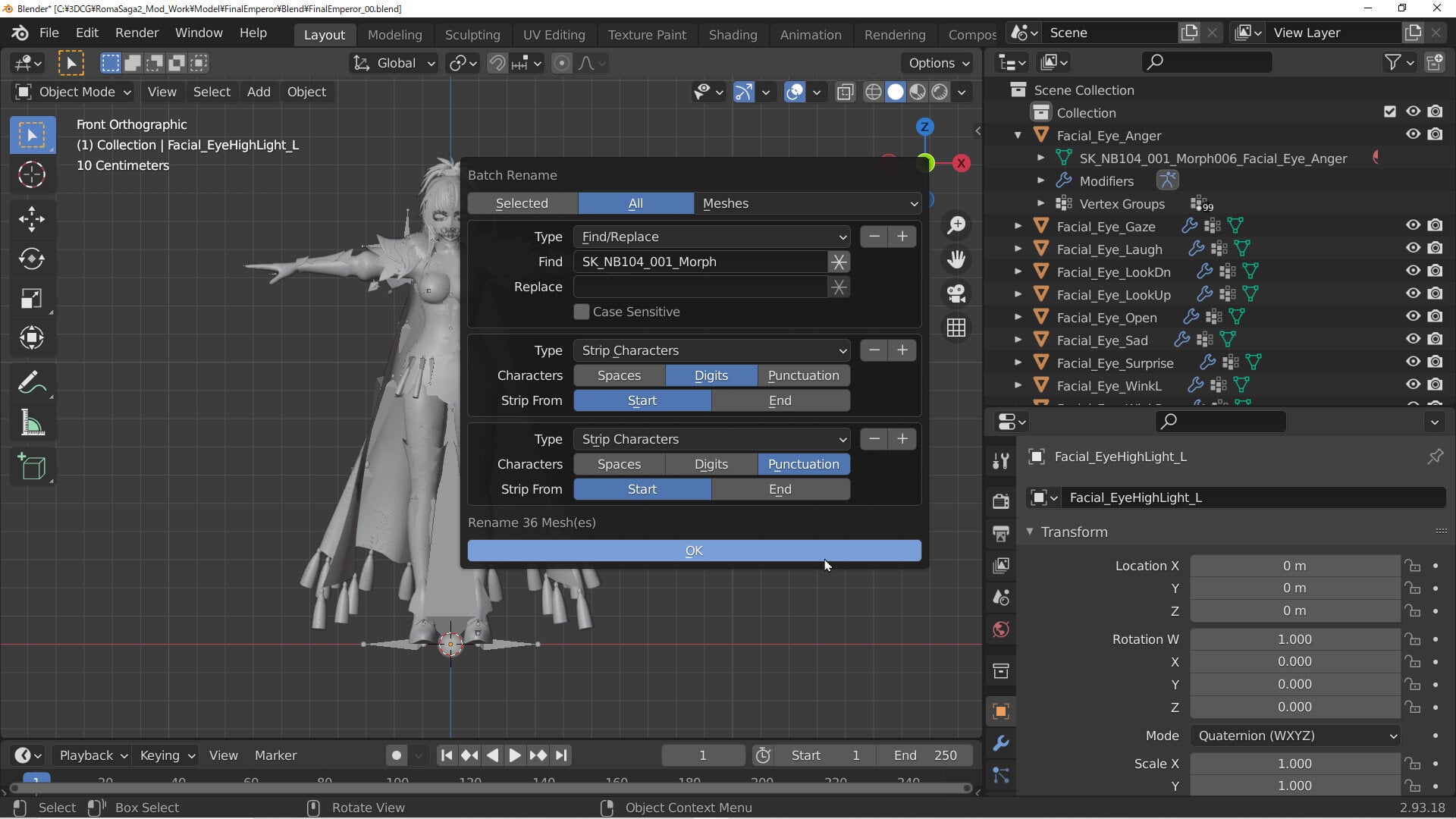

All meshes



Type:Find/Replace
Find:SK_NB104_001_Morph
Replace:Blank (do not enter anything)



Type:Strip_Characters
Characters:Digits
Strip From:Start



Type:Strip_Characters
Characters:Punctuation
Strip From:Start





Press OK.
Unnecessary parts of the mesh name are deleted.

• The first part, SK_NB104_001_Morph
• The next number
• The next underscore.

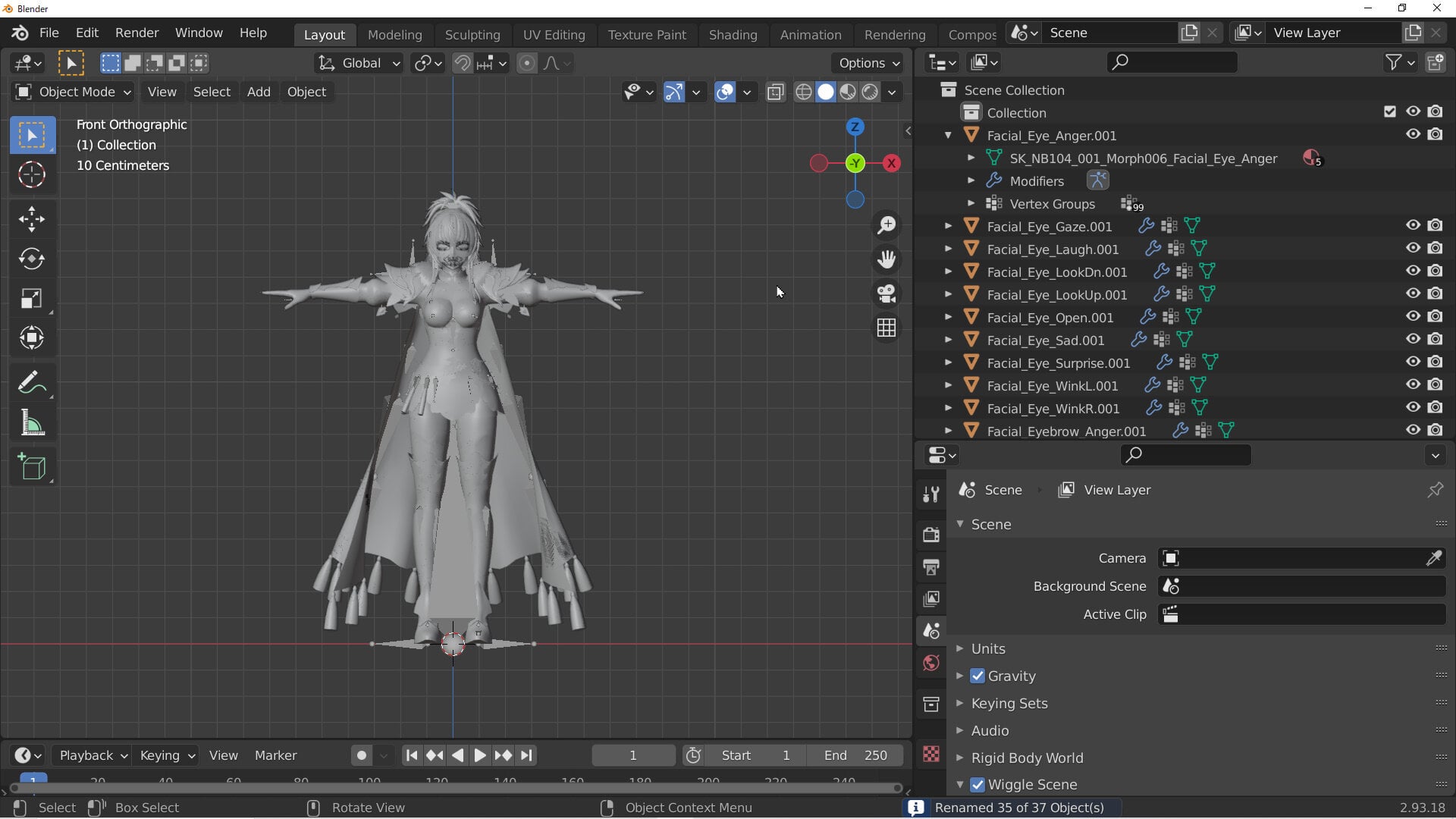

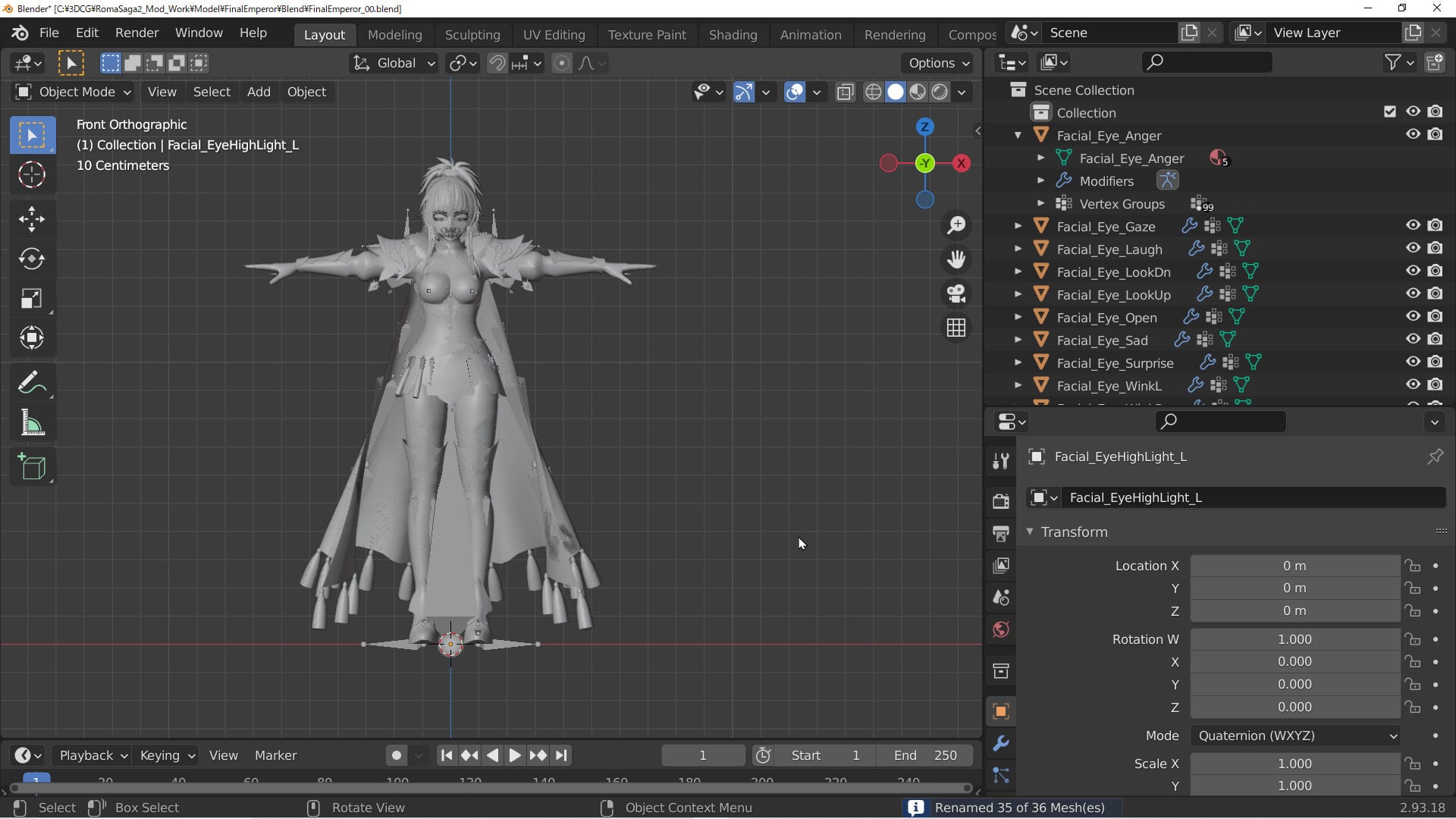

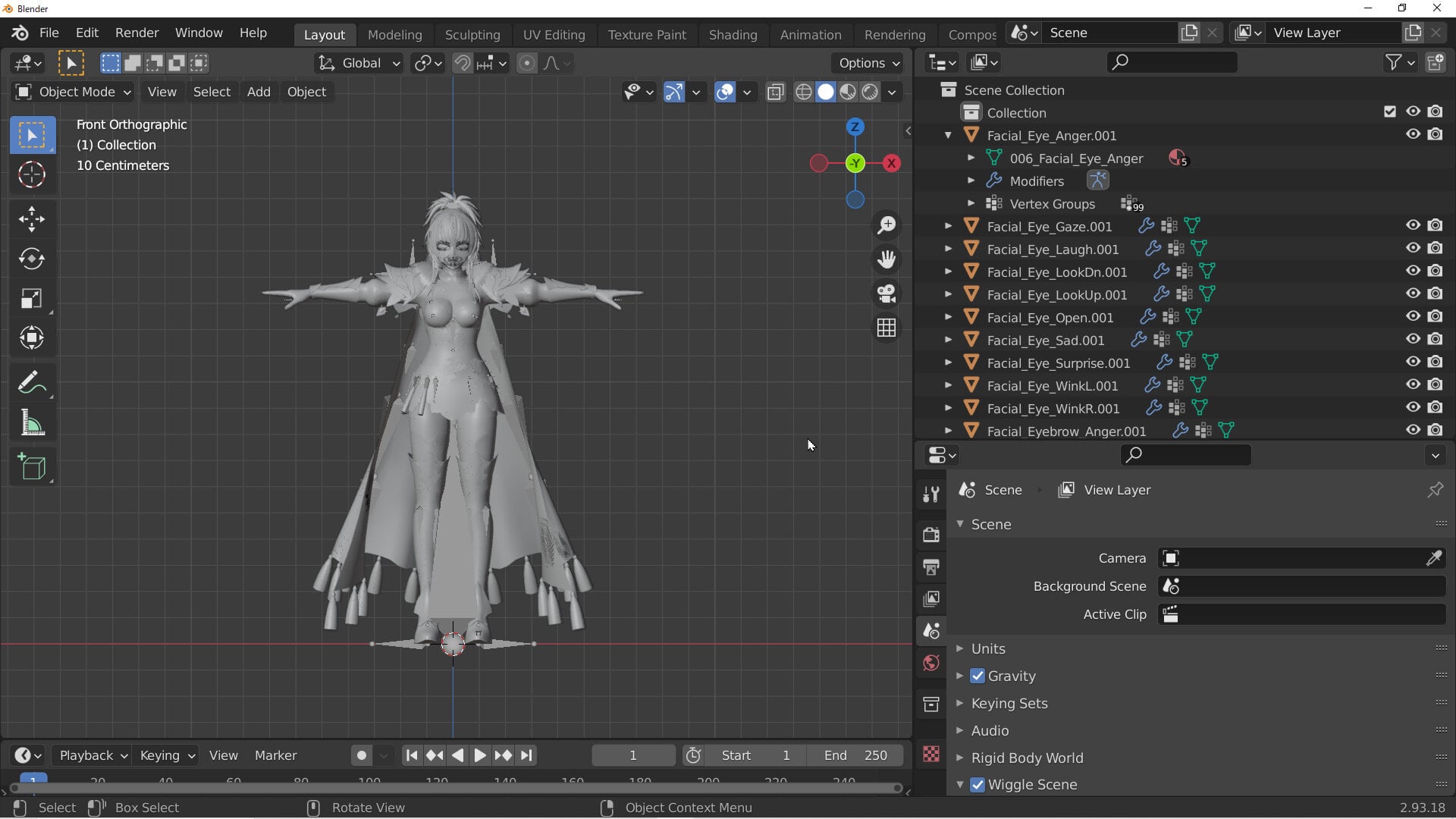

Both the object and the mesh will have simple names like Facial_Eye_Anger.
Make sure the name is correct.
If not, the facial expression animation will not work.
If all is well, save the file.

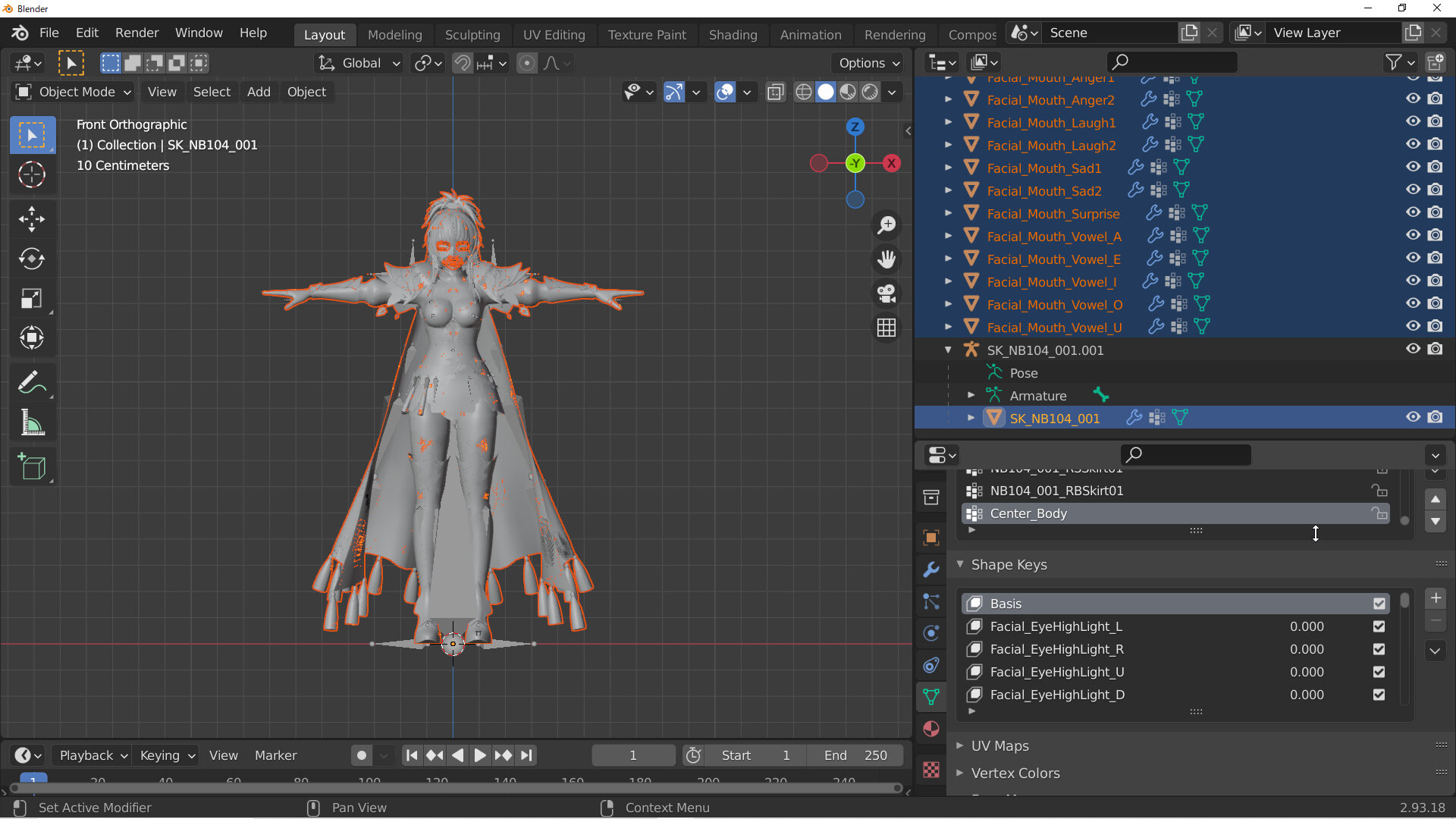

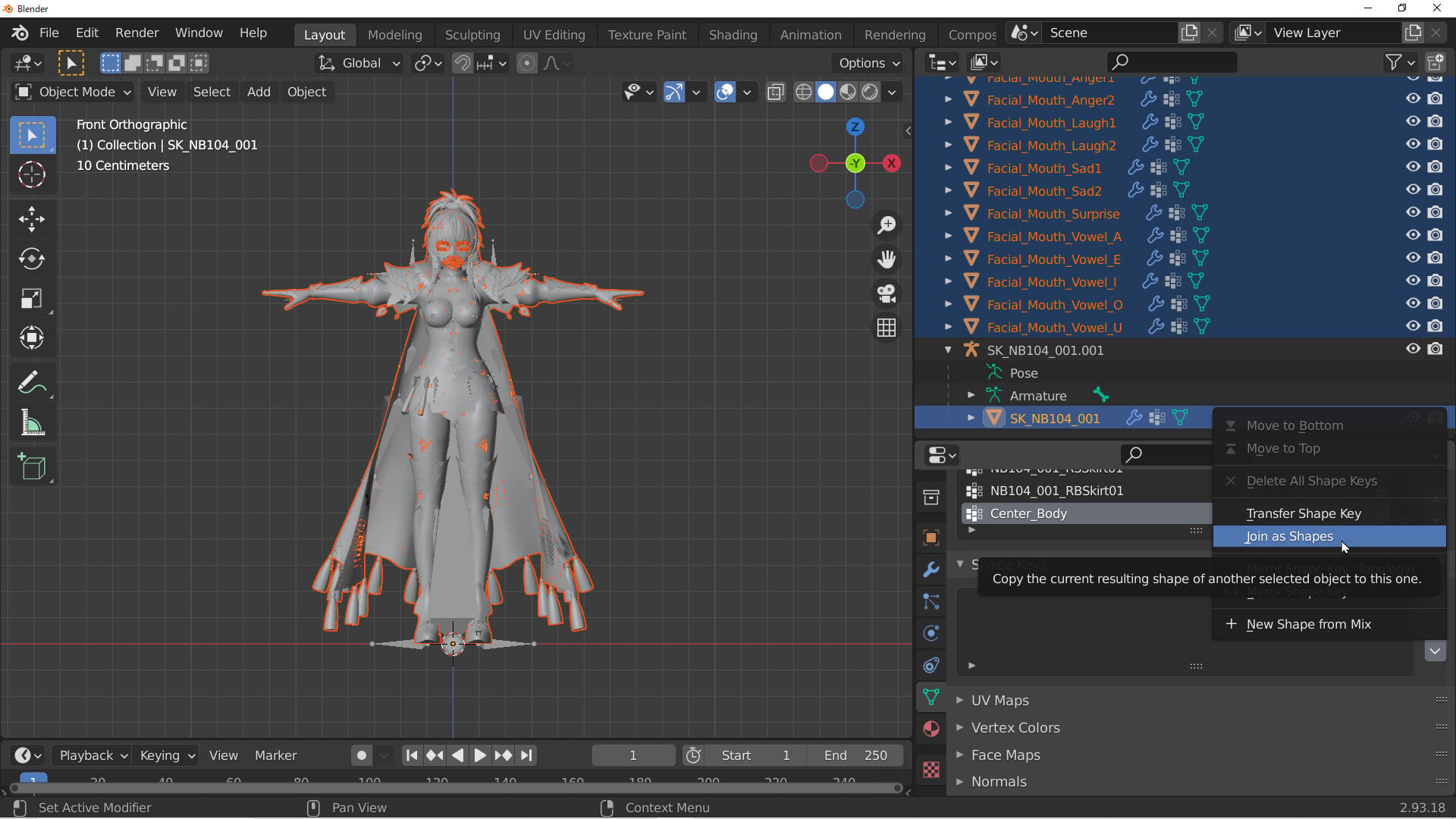

Join as Shapes



Go to object mode and change Blender's property editor to Object Data Properties.
Select all renamed objects while holding down the Shift key.
Finally, hold down the Ctrl key and click on the main object (SK_NB104_001).



Press ▽ on the right edge of the Shape keys window in Object Data Properties.
Press “Join as Shapes”.

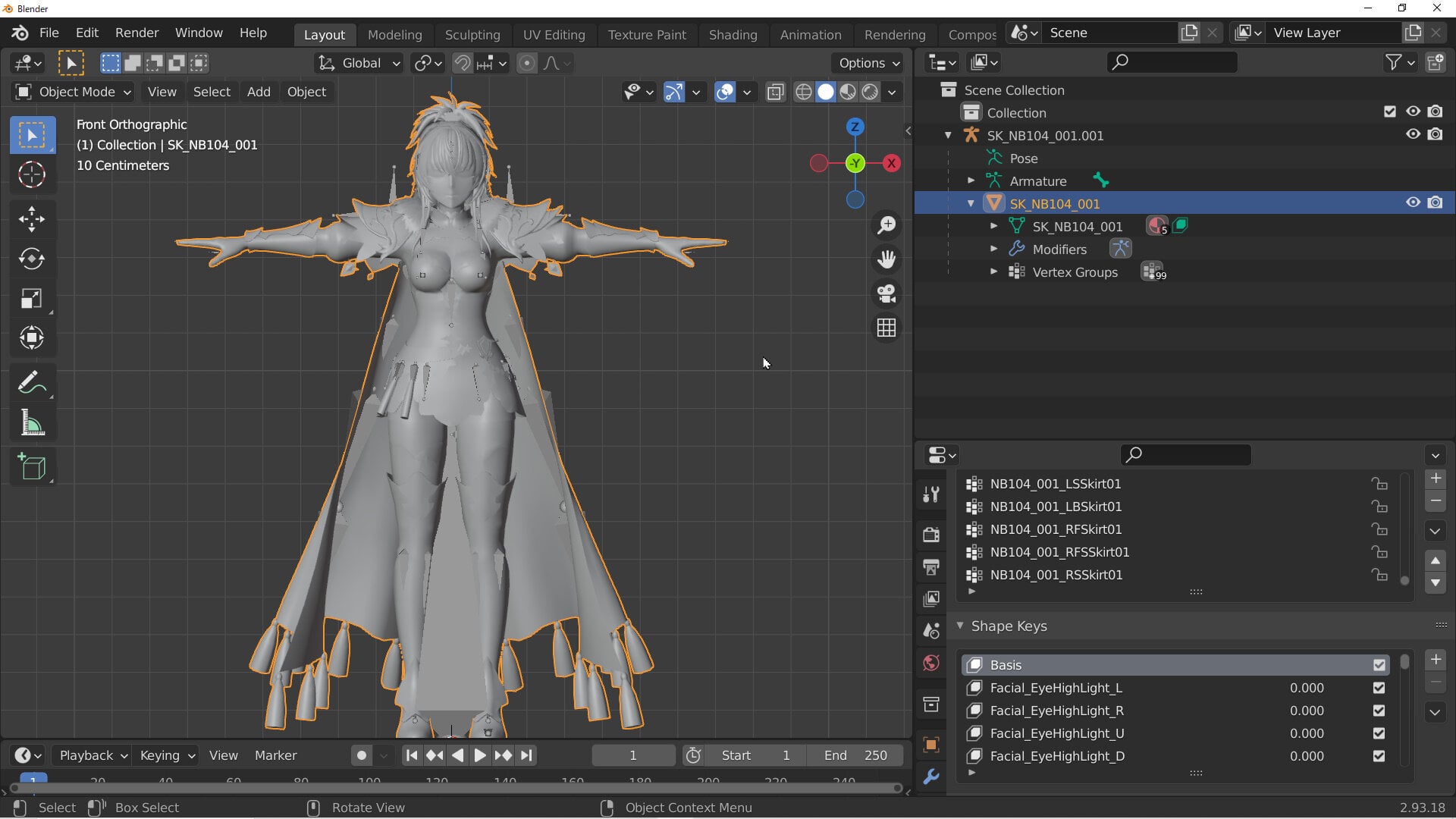

The facial data will be merged into the main object's Shape Keys.

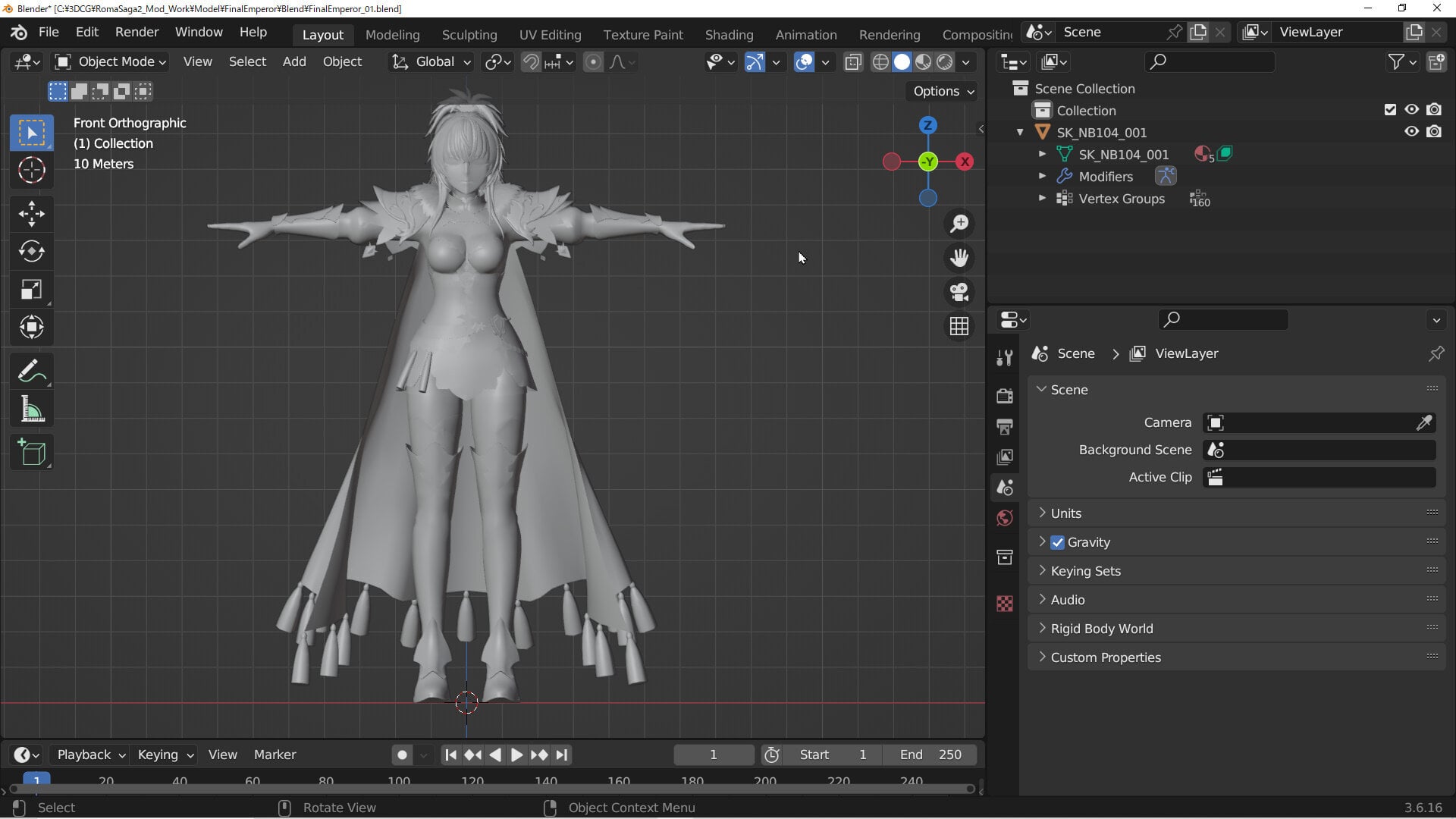

The renamed object is no longer needed. Select all of them and delete them.

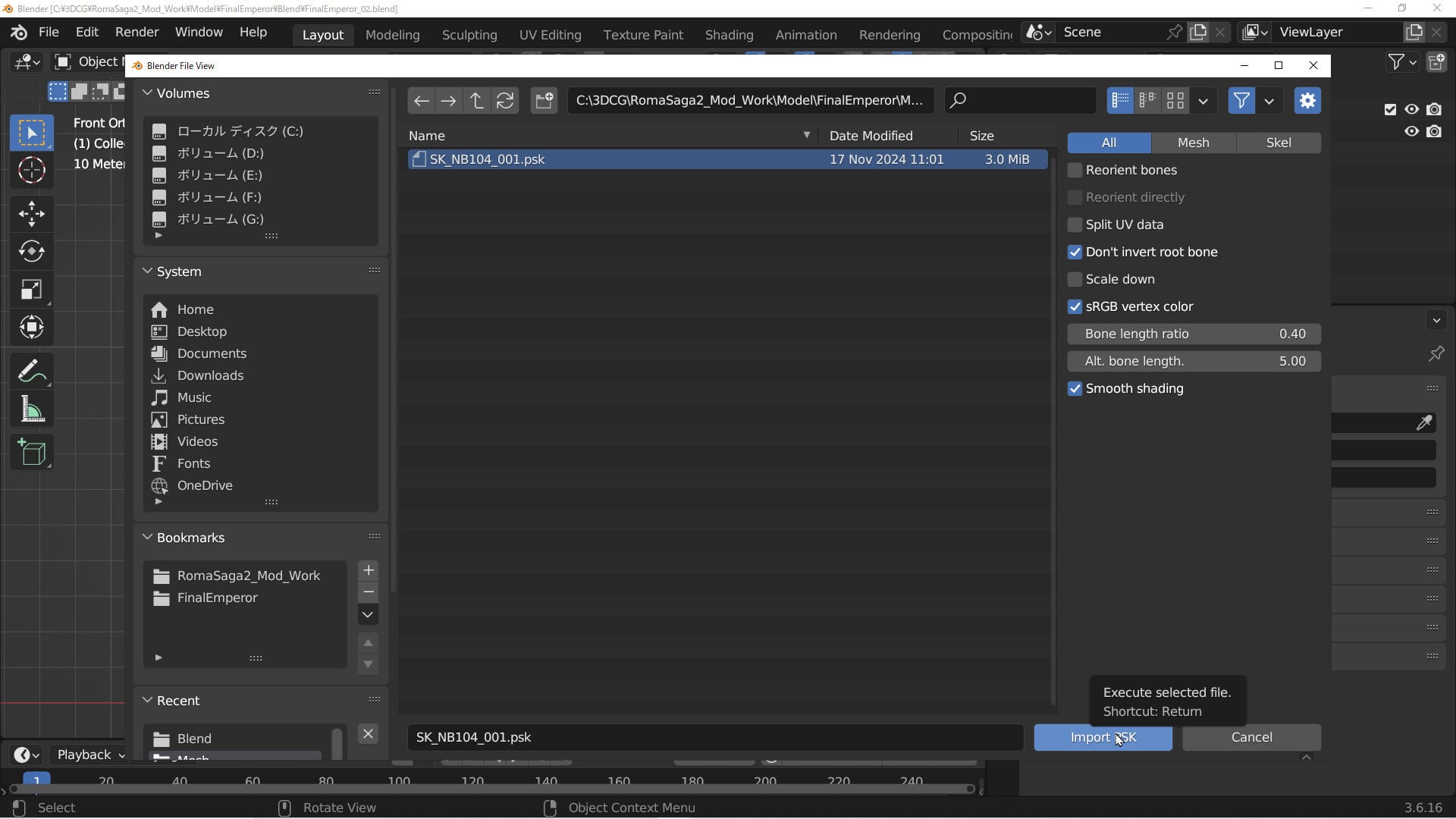

Step 3: Import psk

Spoiler

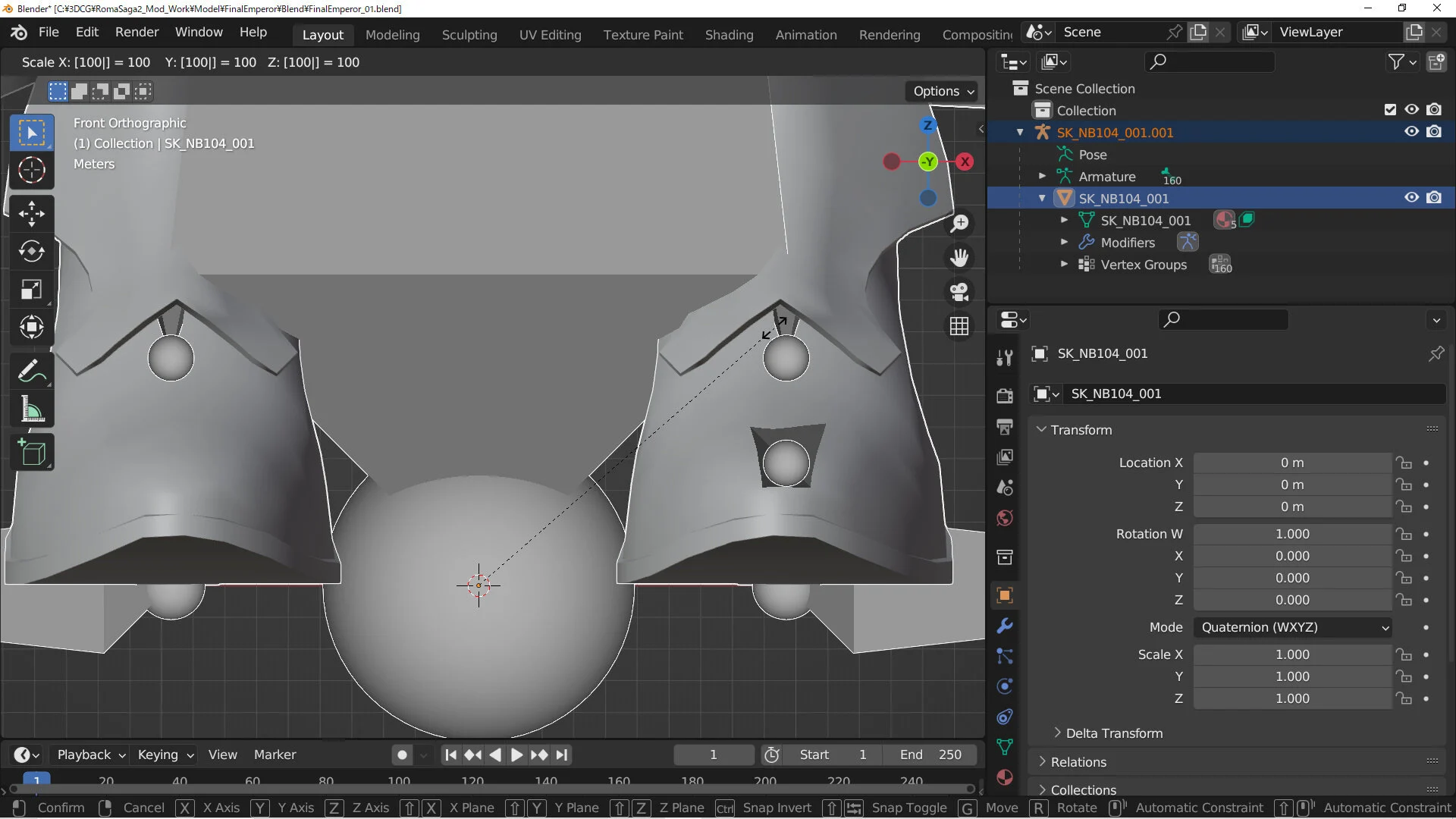

Use the psk armature and the glTF object, but multiply the glTF size by 100 since they are different sizes.

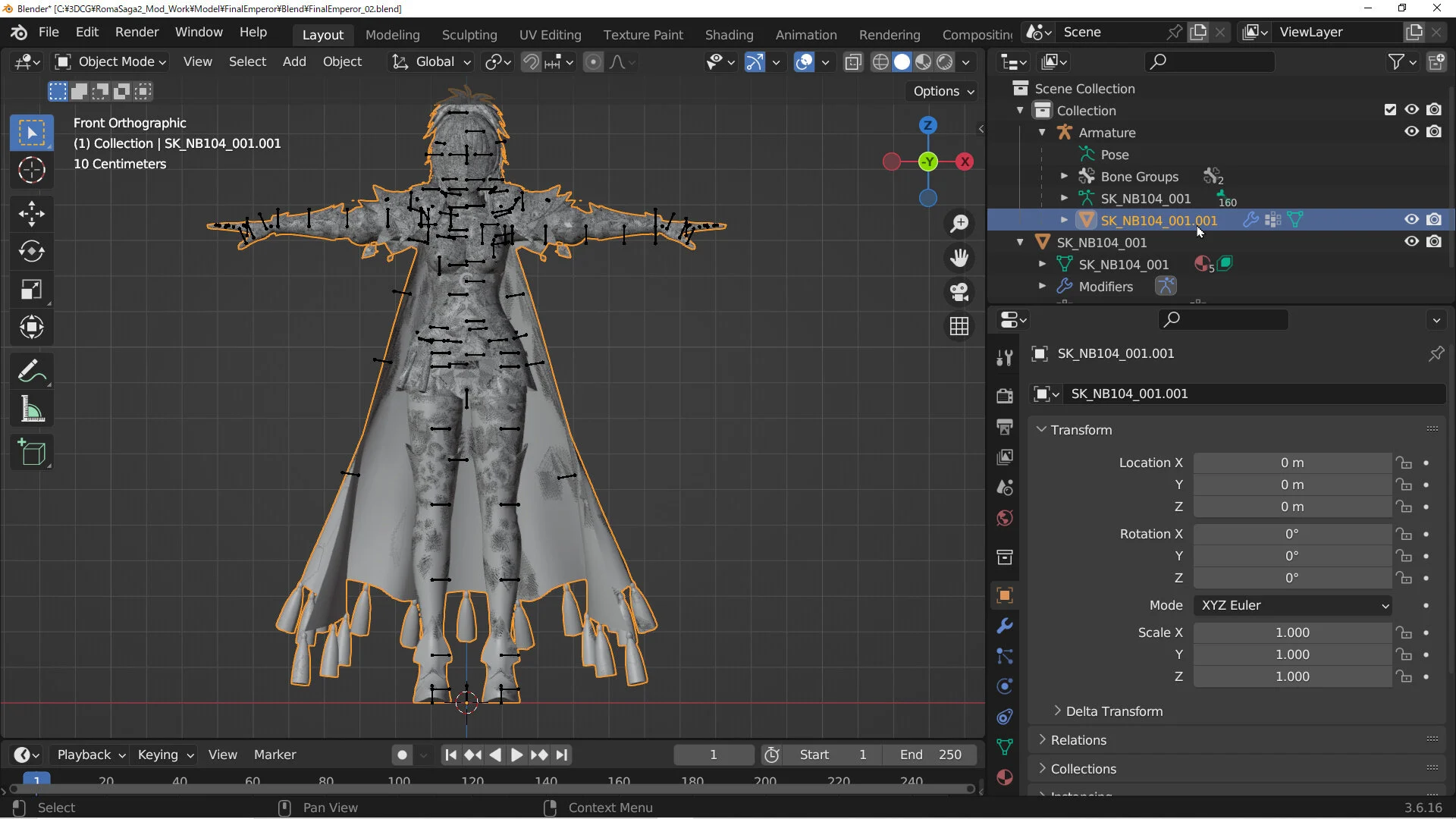

Click on the glTF armature (SK_NB104_001.001).
S key on the keyboard→100→Enter
The size is multiplied by 100.





Select both the glTF armature (SK_NB104_001.001) and the object (SK_NB104_001) and click on Object in the Blender top menu.

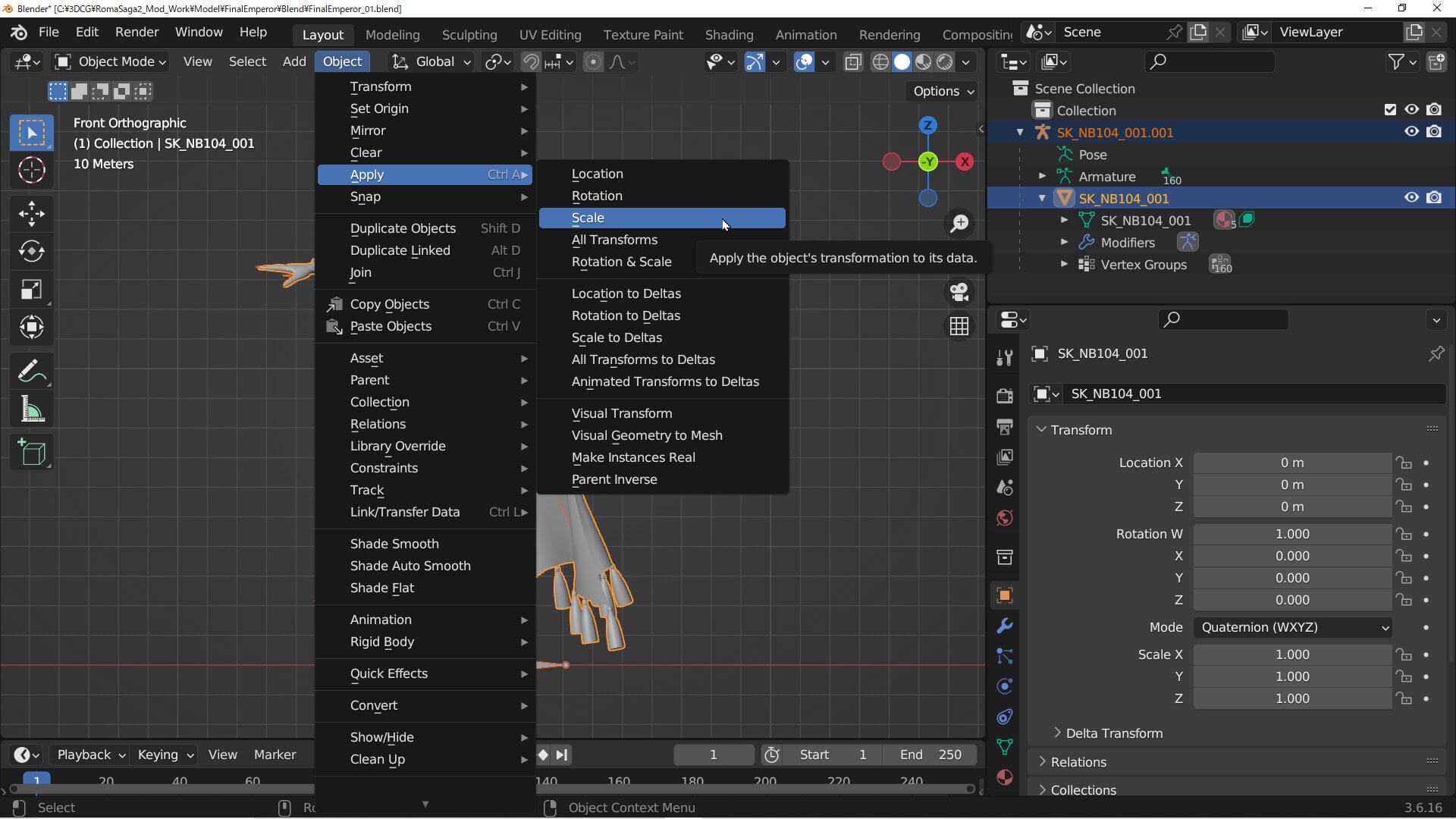

Click on Scale in Apply, and the size multiplied by 100 will be the default.





Delete the glTF armature (SK_NB104_001.001) as you do not need it.





Next, import psk.
File→Import→psk
The default settings can be left as is.





imported psk is automatically renamed as armature.
Delete the psk object (SK_NB104_001.001) as it is not needed.

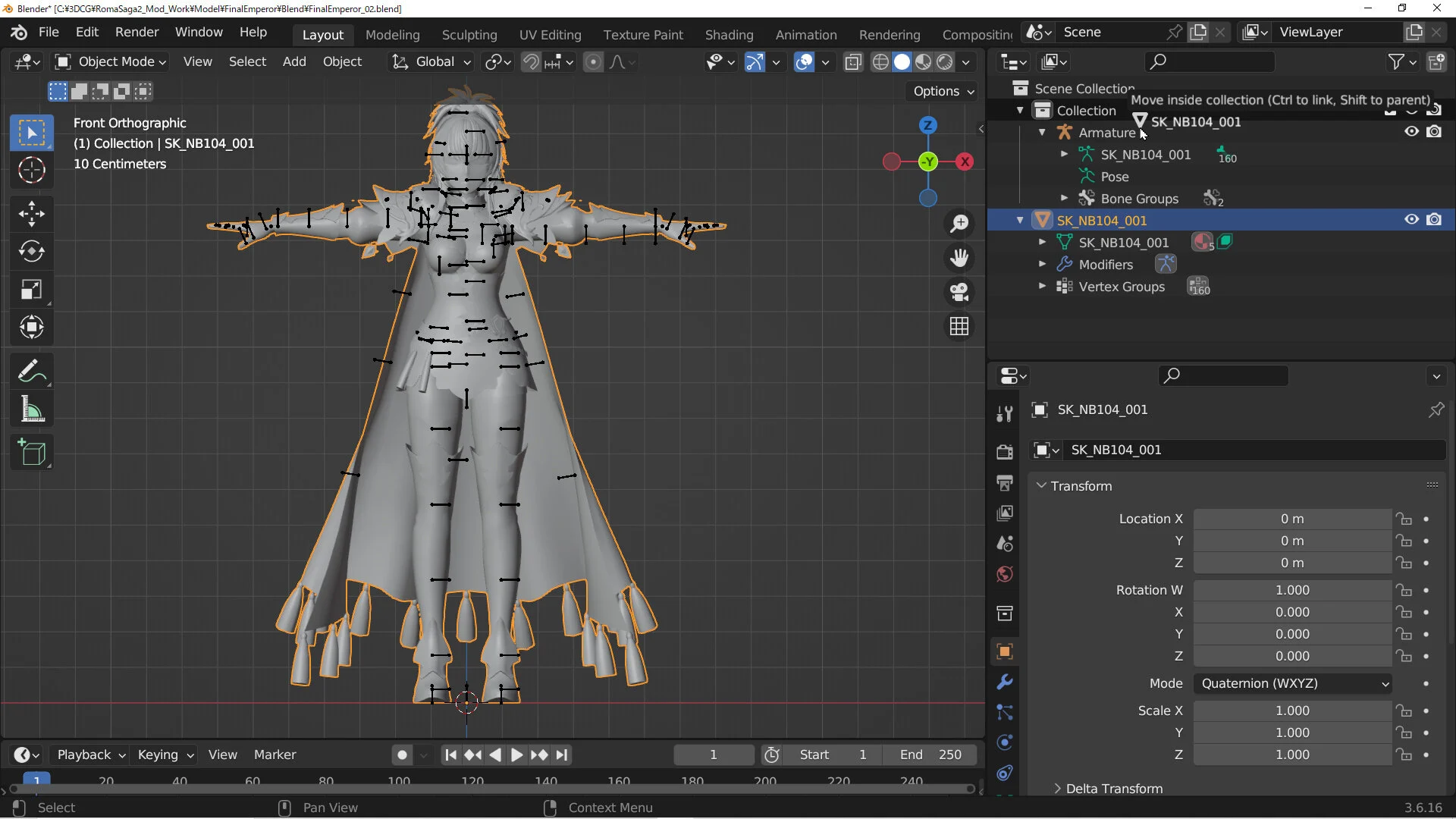

Drag SK_NB104_001 and drop the cursor at Armature.
The position of SK_NB104_001 will change.





Select SK_NB104_001 → Armature while holding down the Ctrl key, and then

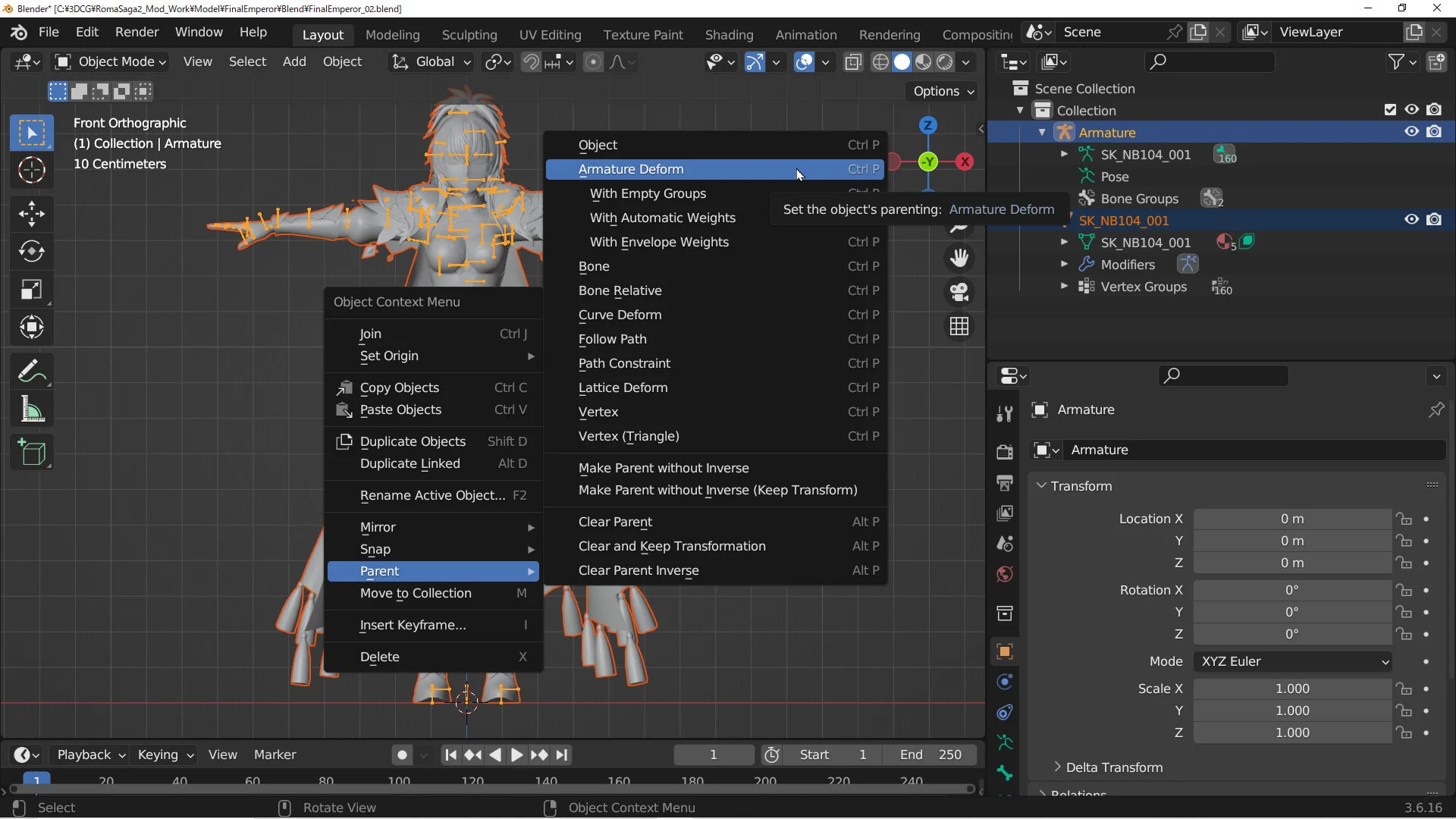

Right click→Parent→Armature Deform.
The glTF object and the psk armature are now combined into one.





Textures can be set either in Blender or in UE4.
I set mine in UE4.

This completes the editing of the model.
Make sure there are no mistakes in the names of the objects and shape keys before saving.



*Attention.
Modifying a mesh that has a shape key (Faishal animation) may break the mesh.
If you modify the mesh, you should not throw away the Blend file before modification.





Step 4: Export FBX

Spoiler

Press keyboard A to select the armature and object.
File→Export→FBX

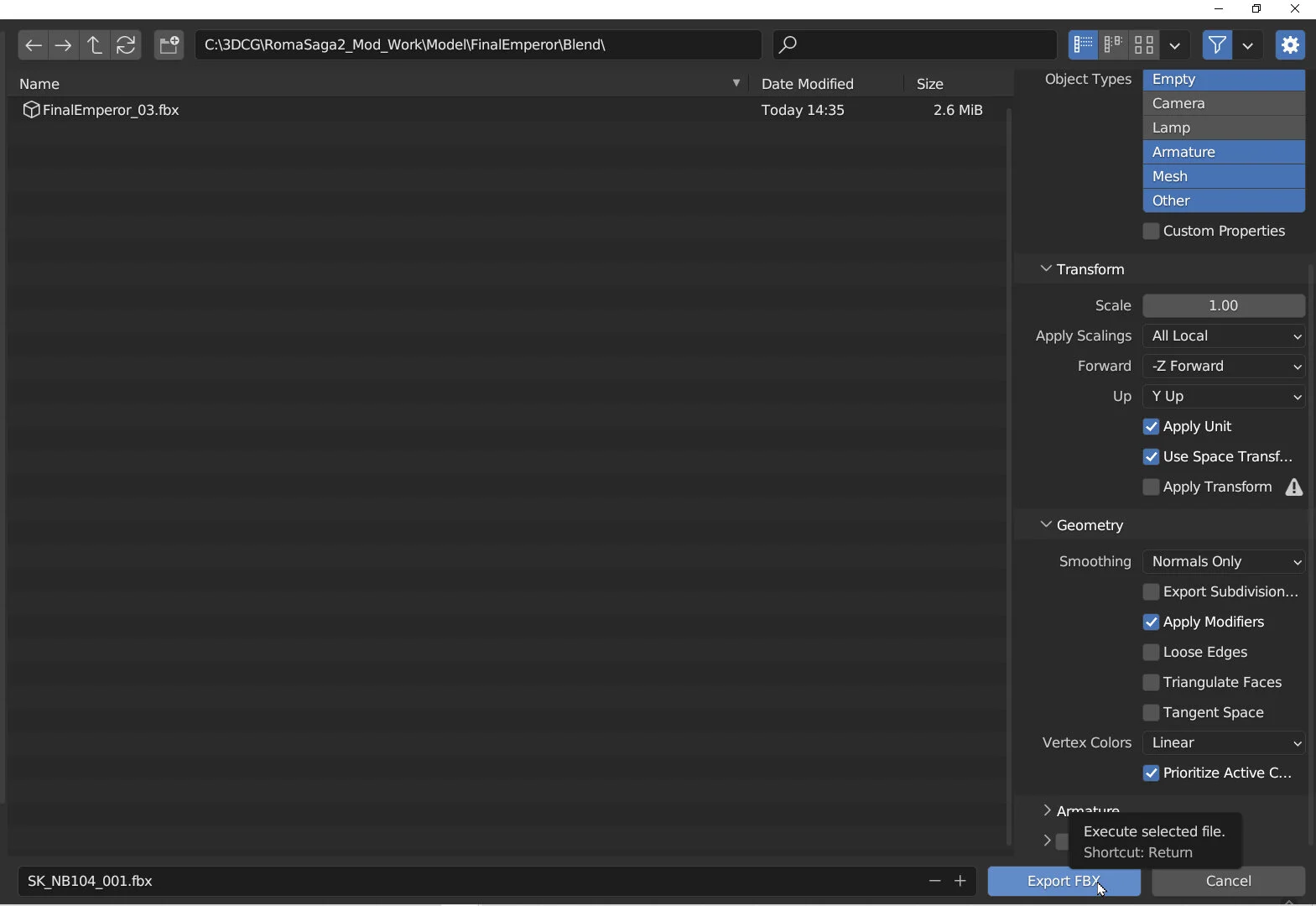

Configure as follows
Object Types: Camera and Lamp off
Scale: 1.00
Vertex Colors: Linear
Add Leaf Bones unchecked
Bake Animation unchecked

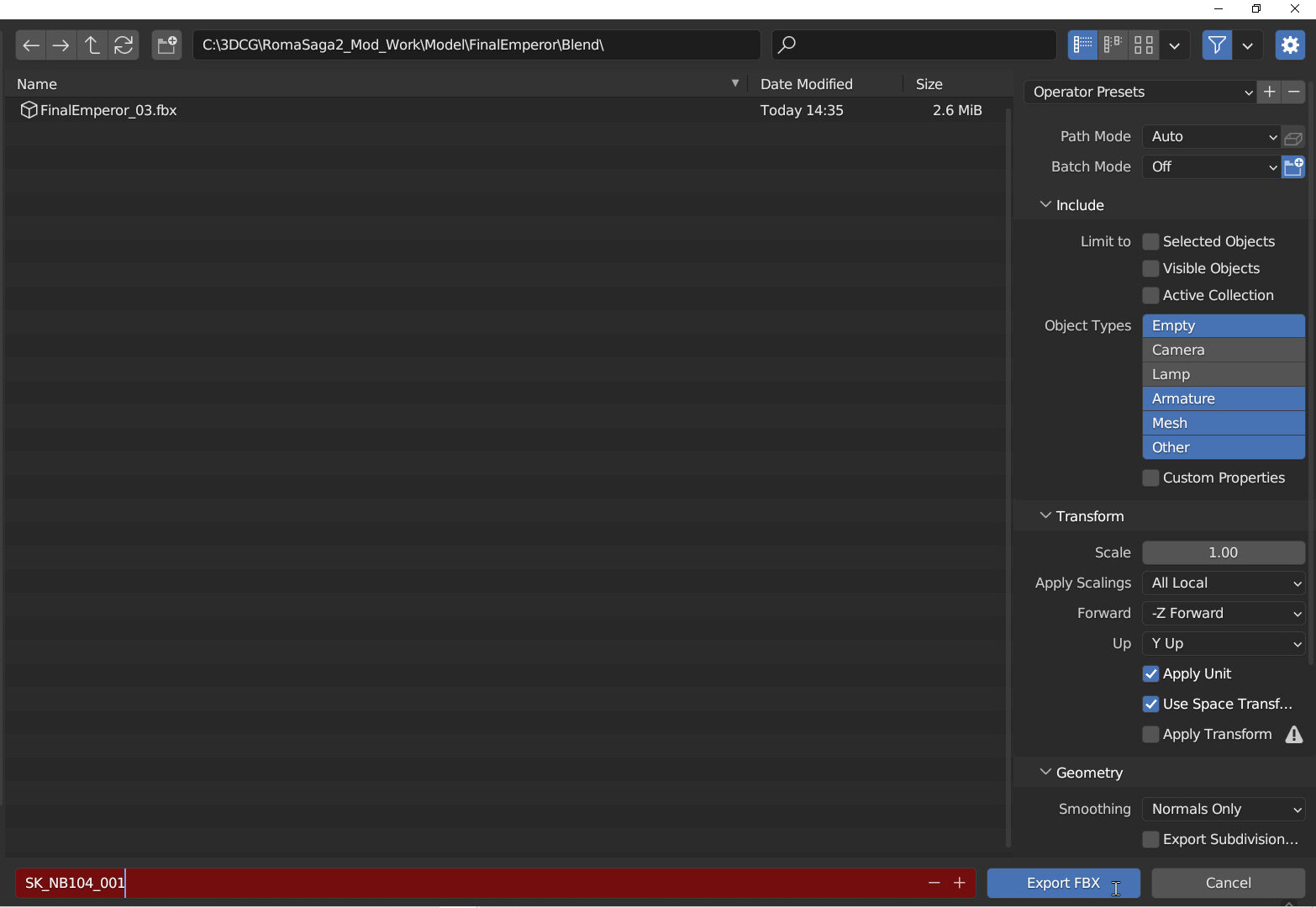

Choose a location to save the file.
The file name is optional, but I use the character mesh name of the mod I am creating.
In this case, I chose SK_NB104_001.



This is the end of the Blender work.



This image below is not needed but for some reason I could not delete it.
Please ignore it and proceed to the next Unreal Engine part.



Edited December 13, 2024 by oppaiman

[oppaiman]

Working with Unreal Engine 4





How to install Unreal Engine 4.27

Spoiler

Install the Epic Games Launcher.

https://store.epicgames.com/en-US/download




After launching the Epic Games Launcher, press Unreal Engine on the left tab and Library on the top tab.

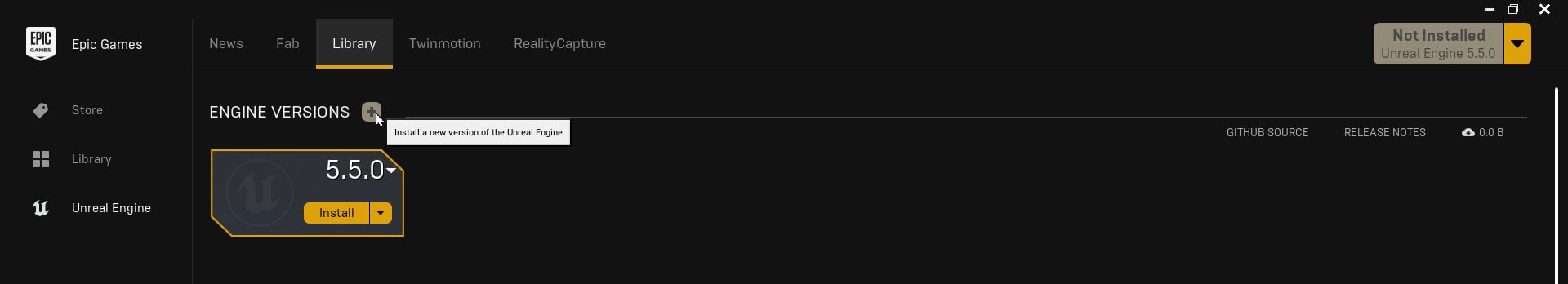

Press ENGINE VERSIONS and it will appear, press 5.50▼, change it to 4.272 and press install.







Specify the installation location and press Options.





Uncheck everything except Core Components and press APPLICATIONS.





Press Install.
It takes time, so I'll have a cup of coffee and wait.







Creating a project

Spoiler

Start UE4 and create a new project.

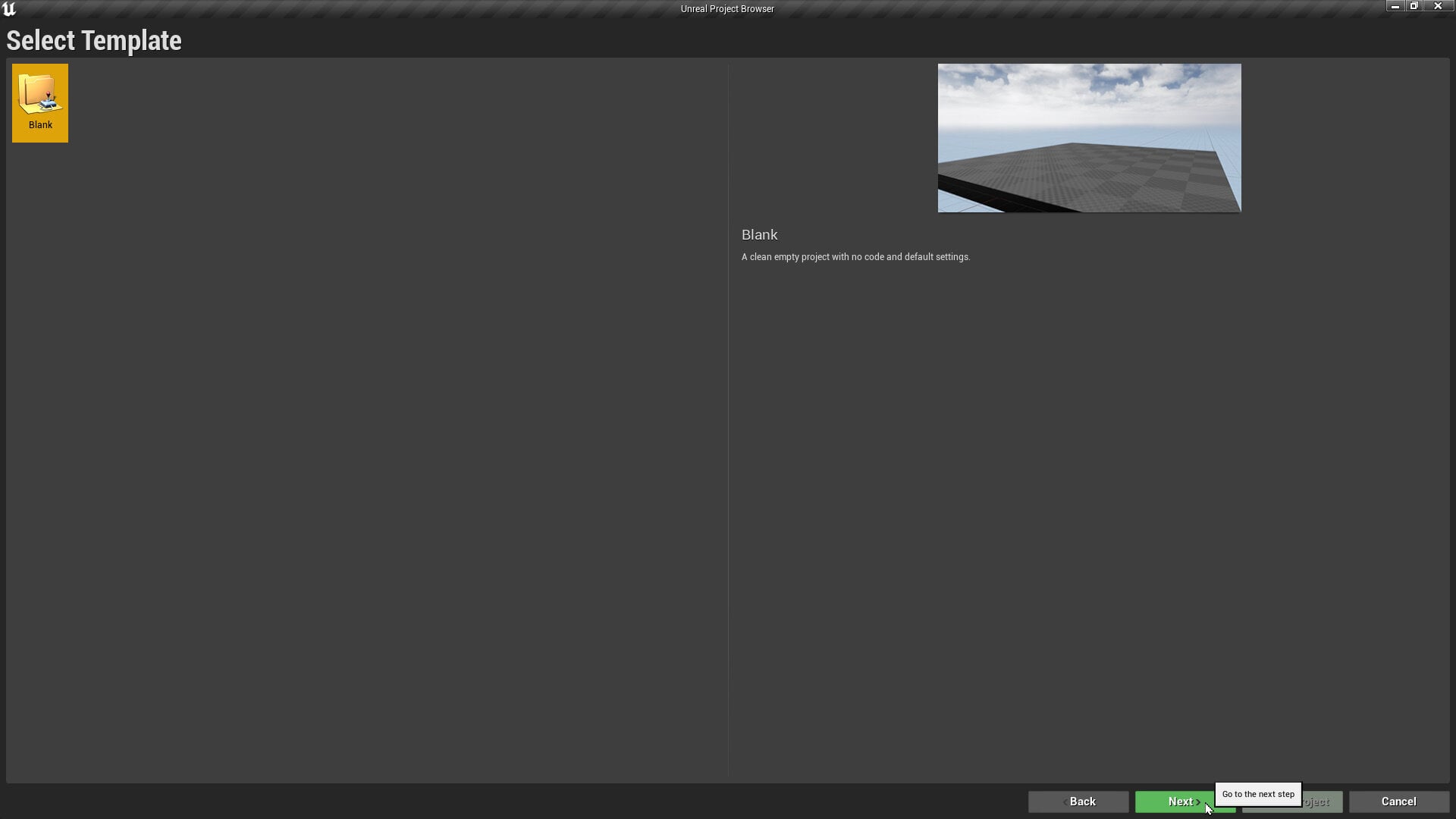

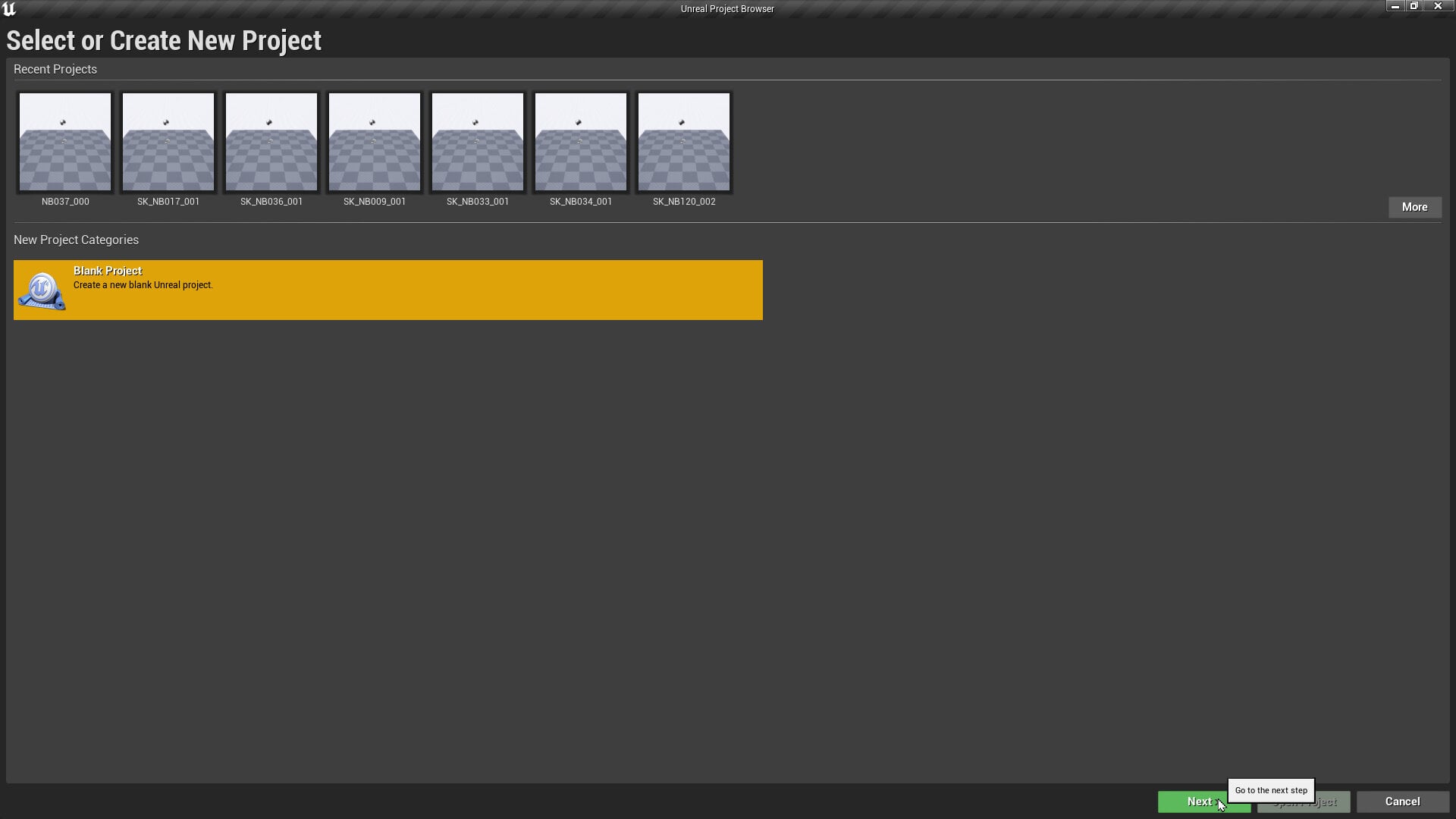

Press “Blank Project” to next.


Next, press “Blank” again.

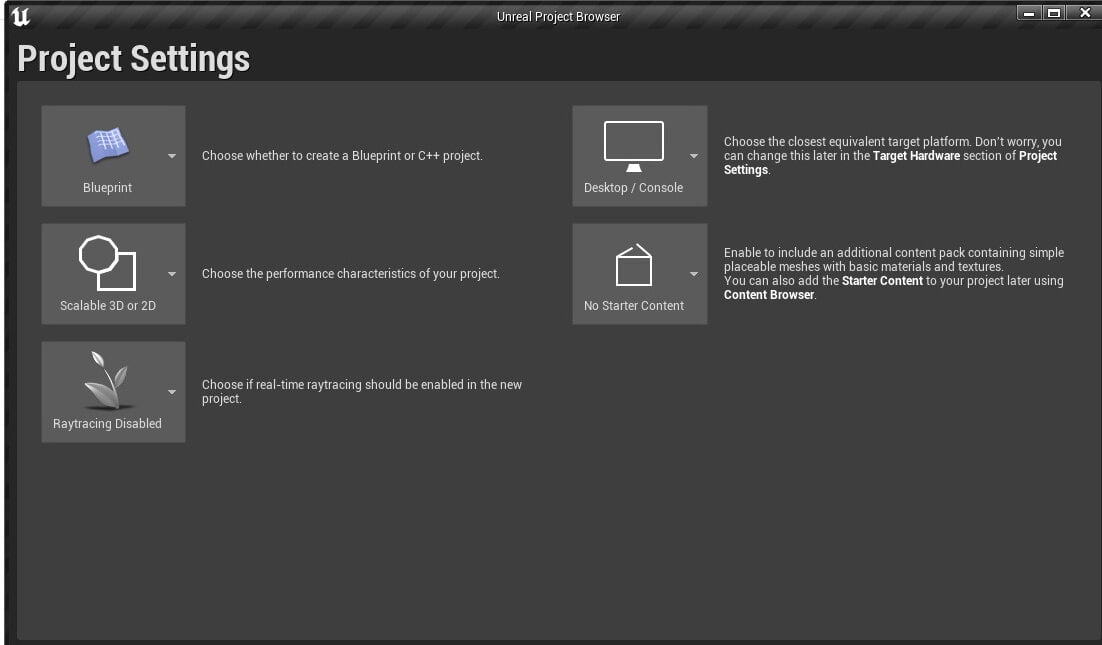

Change the Maximum Quality to Scalable 3D.
Create Project by specifying a folder and a project name.
The project name is free, but we chose NB104_000, which is the name of the folder containing the final emperor's data.







Language Preferences

Spoiler

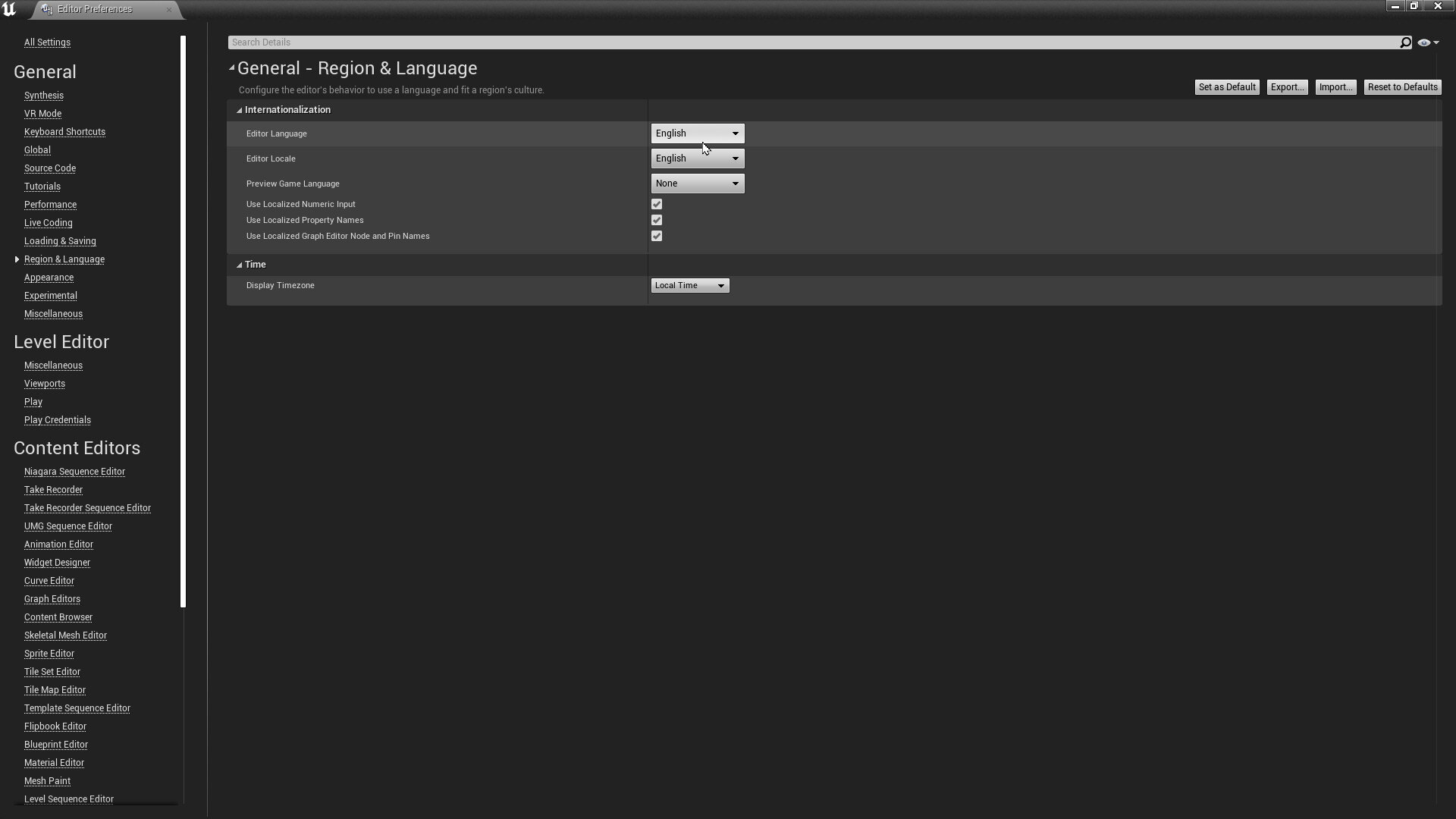

Menu at the top → Editor Preferences → General on the left → Region and Language
You can change to your language.

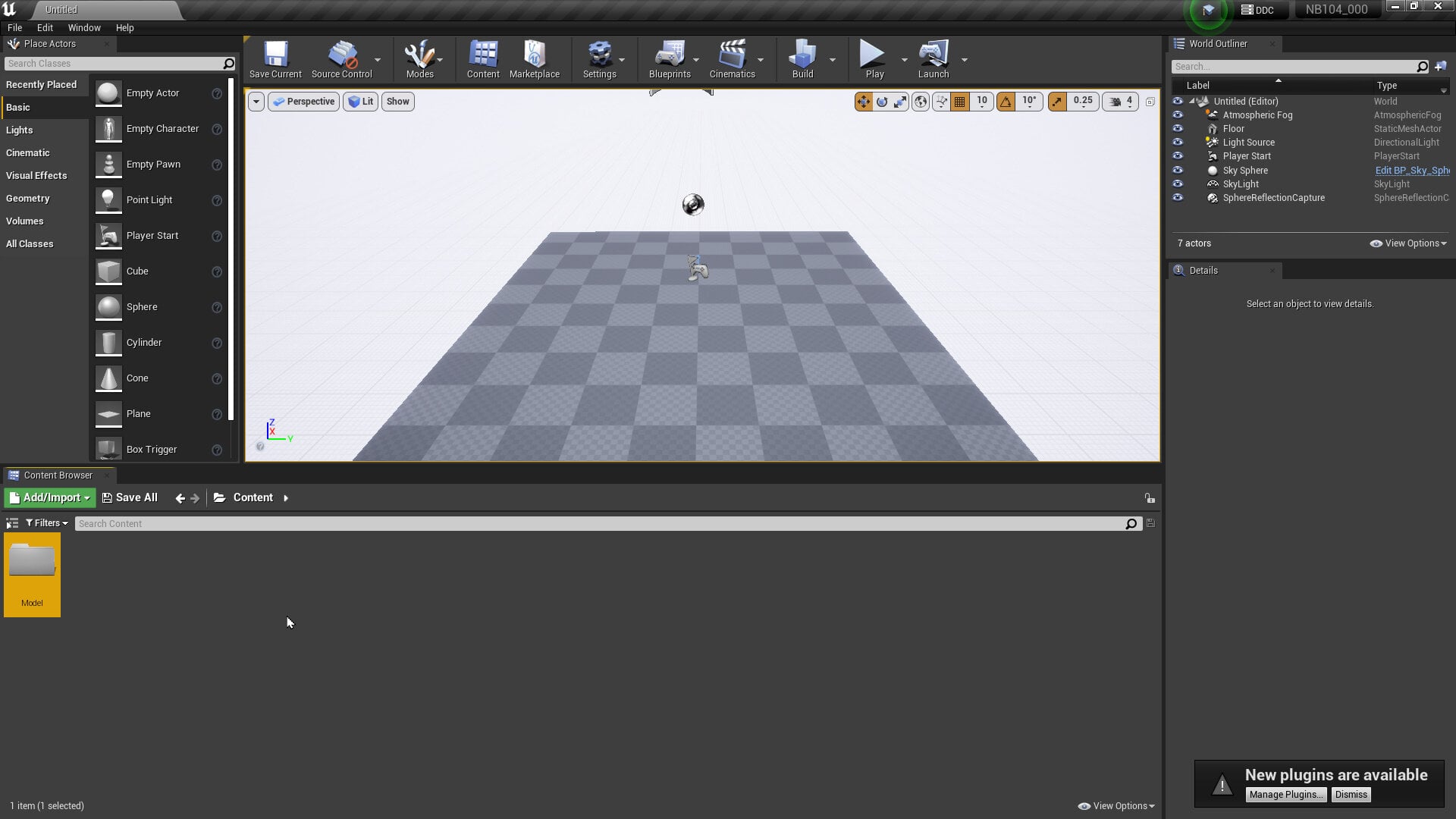

Creating Folders

Spoiler

Check Fmodel for the required folder and arrangement.
We will start from the next folder of the content.
In this case, we will start with Model.

File names must be accurate.
Please be careful to avoid capitalization errors and extra spaces.







Import FBX

Spoiler

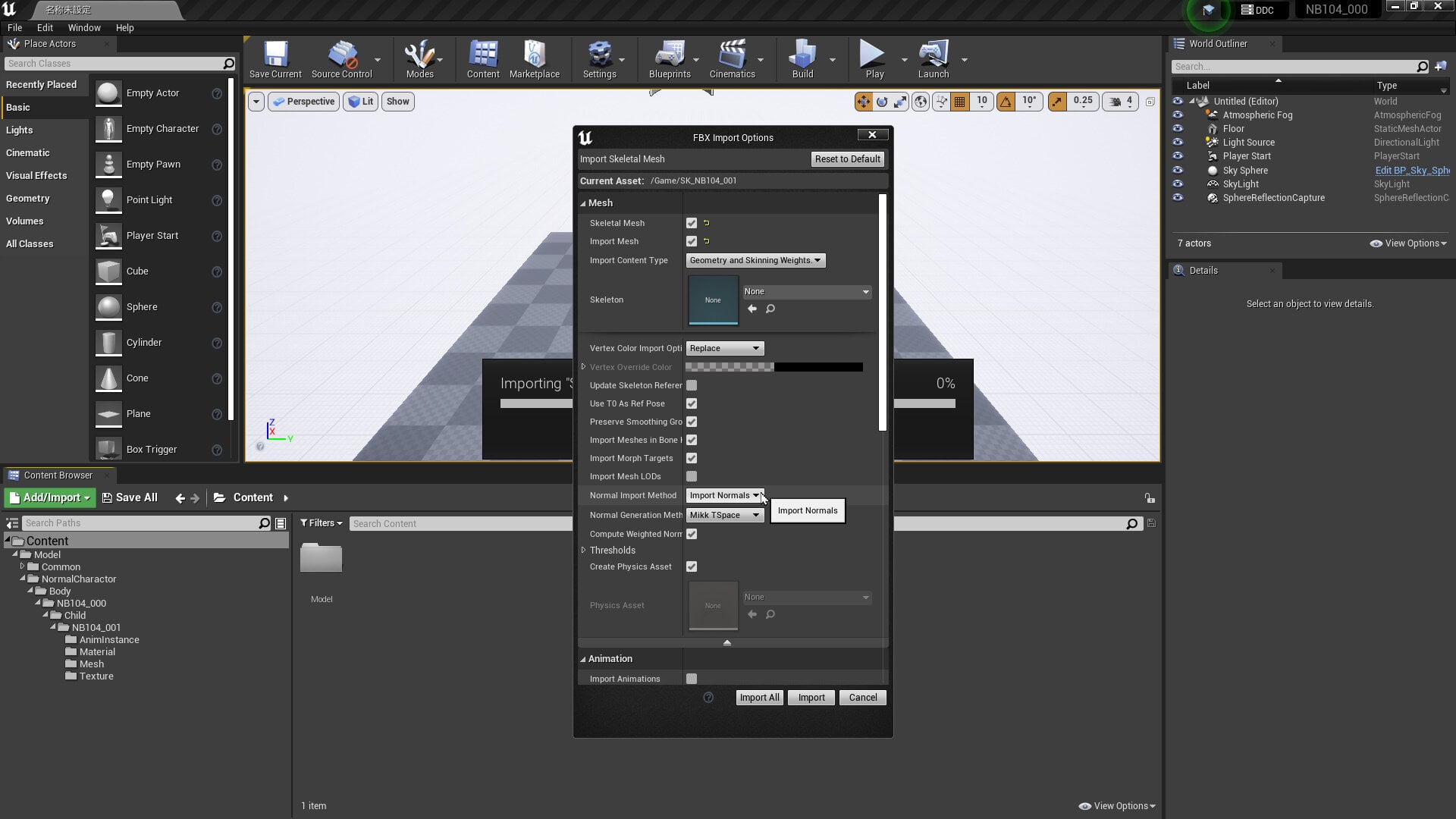

After creating all folders, drag the FBX exported from Blender and import them into UE4.
The settings are as follows.



Press ▽ under Skeleton.
Check Use to Ref Pose.
Check Import Morph Targetss.
Change the Normal Import Method pull-down to Import Norals.
Import all.

An error message stating that there is no smoothing information will appear, but it is OK to ignore it.









Editing

Spoiler



If you set up your textures in Blender, they will be imported with the FBX.
This time you will import the textures yourself.

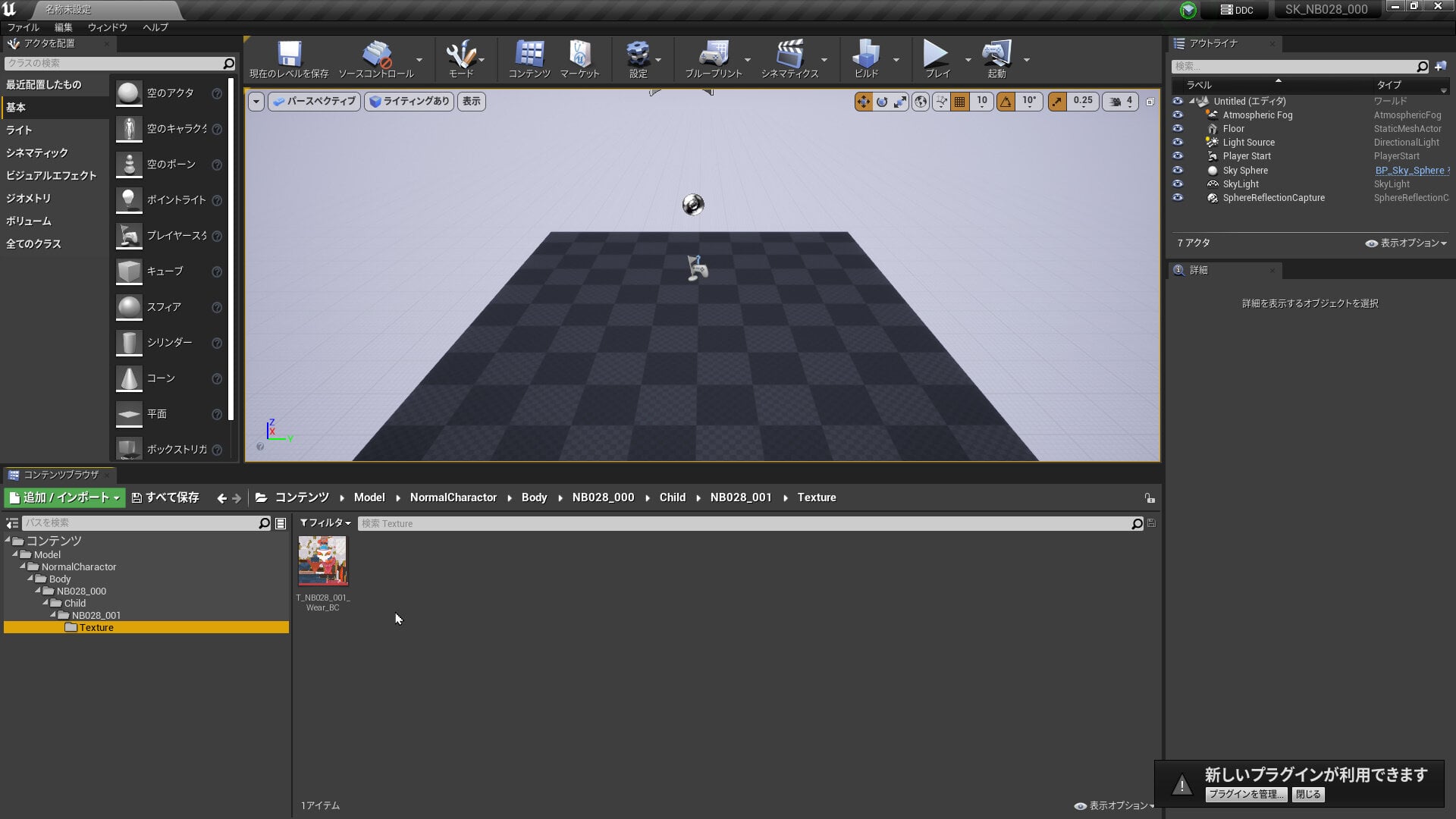

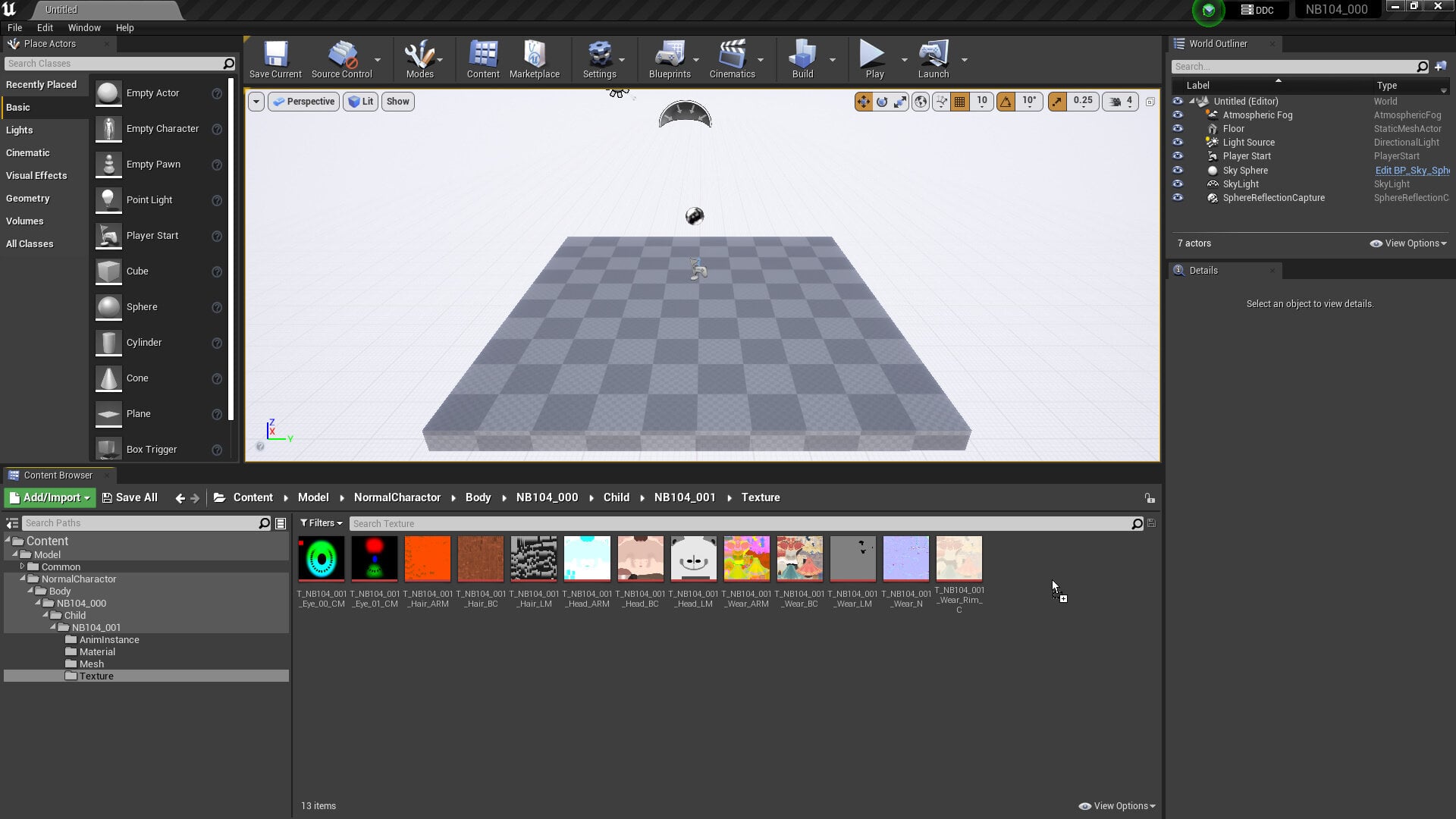

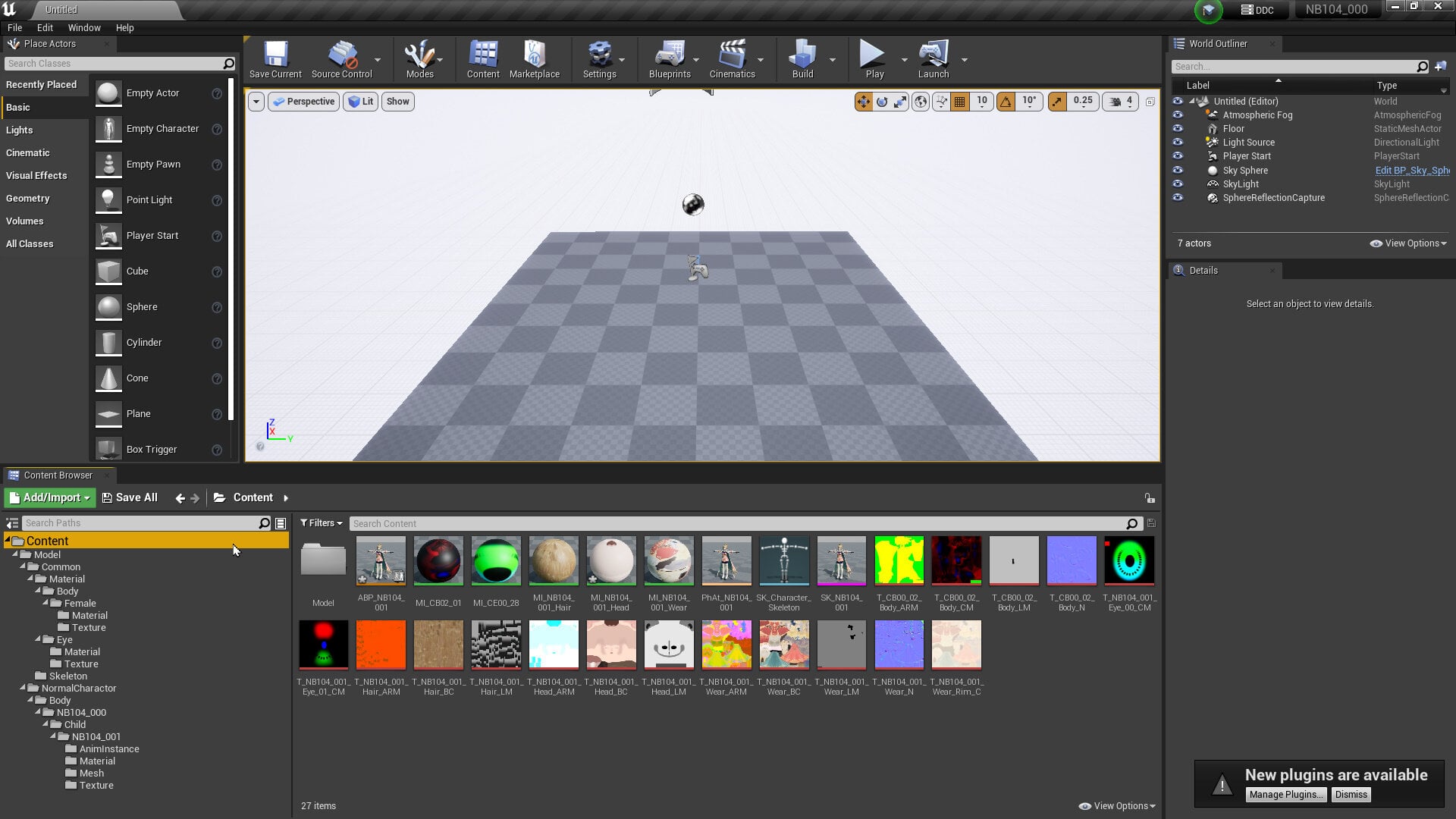

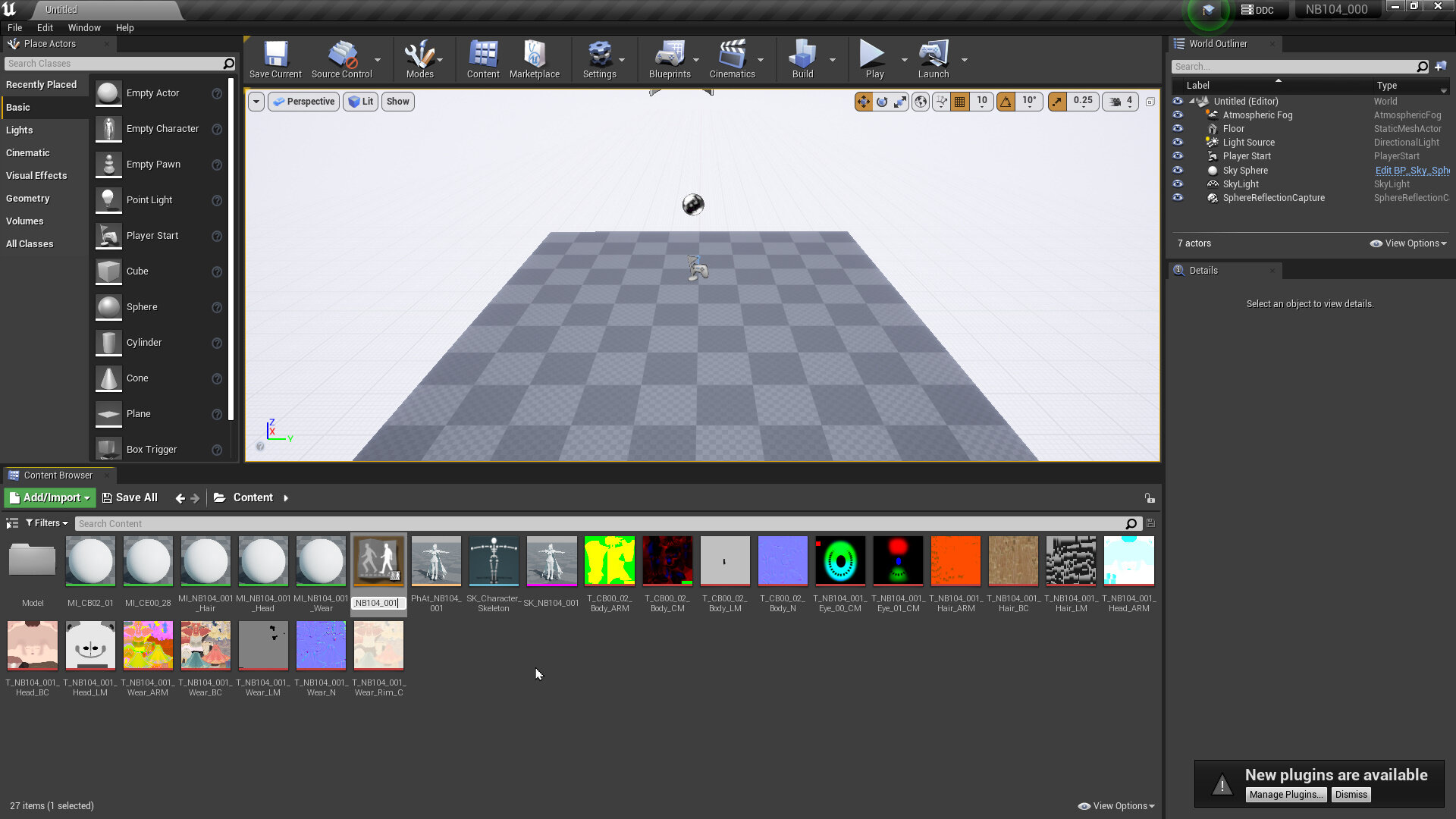

Open the folder containing the unzipped textures from UModel and drag & drop the textures to this screen in UE4.

The images are in the folder created for the textures, but can be in another folder.





Rename the asset (file).
In Unreal Engine, files are called assets.

SK_NB104_001_Skeleton -> SK_Character_Skeleton
SK_NB104_001_PhysicsAsset -> PhAt_NB104_001

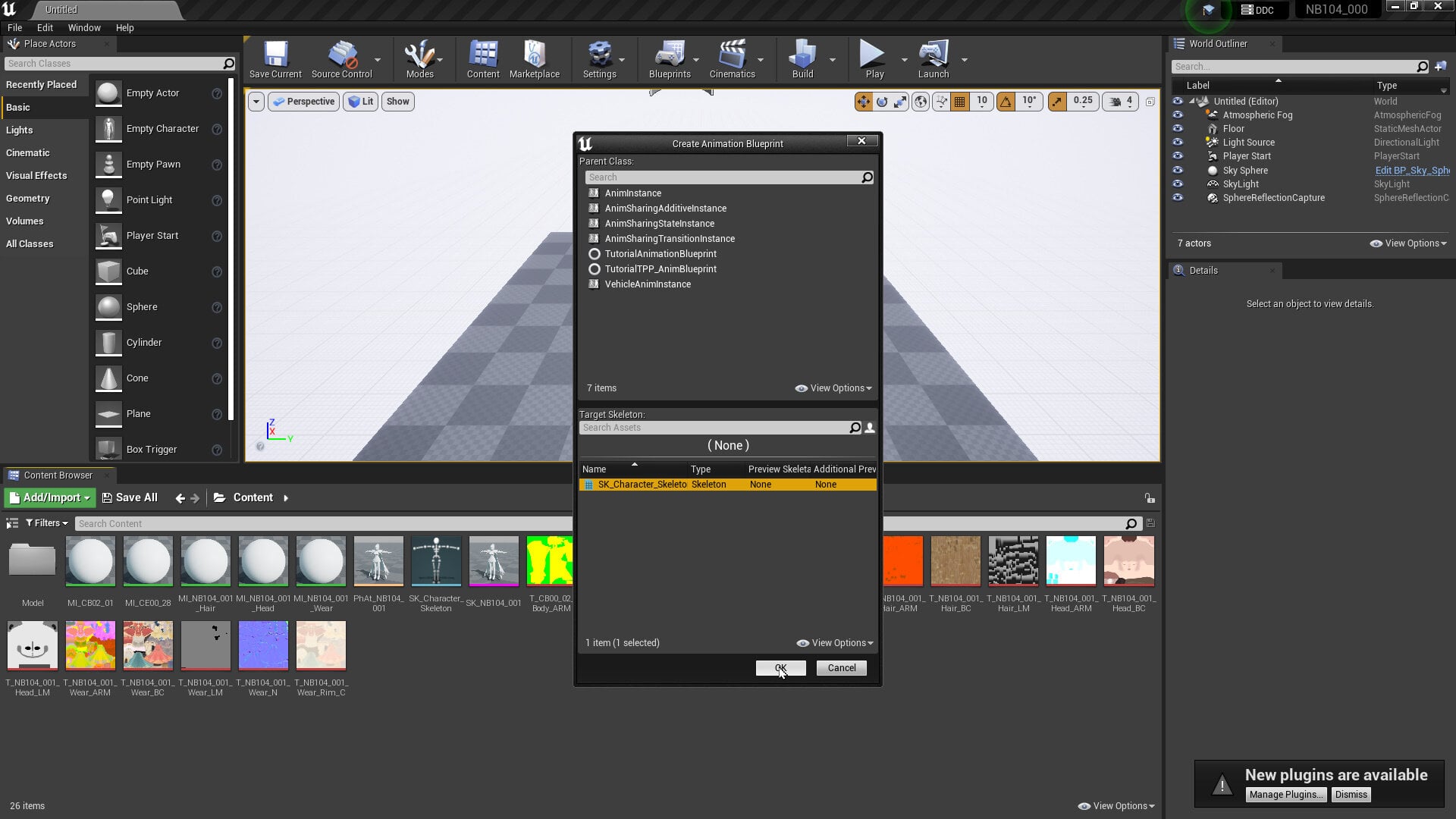

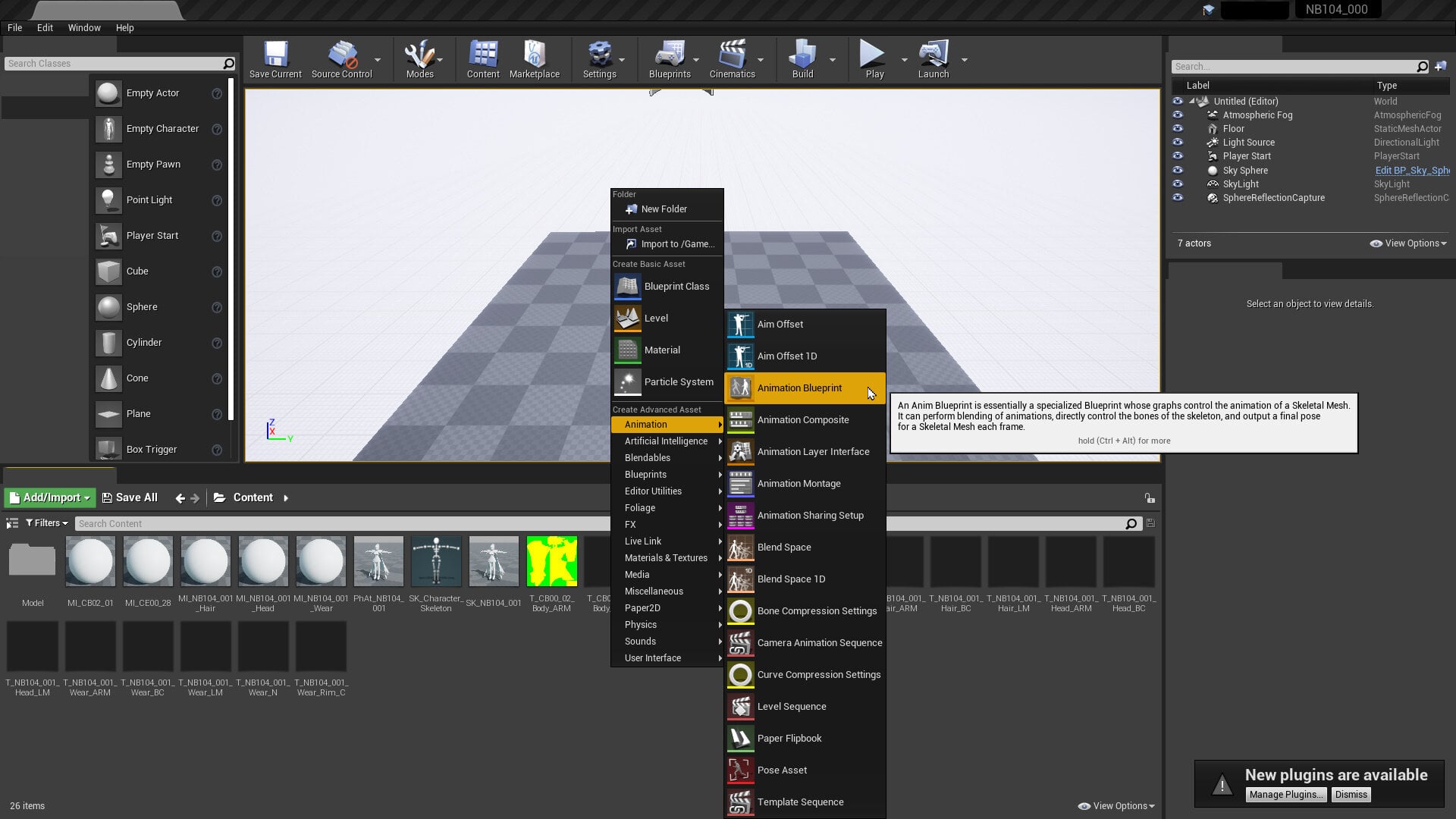

Right click on an empty space→Animation→Animation BP



Select SK_Character_Skeleton shown below and Ok.



Rename the Anim Blueprint to ABP_NB104_001.

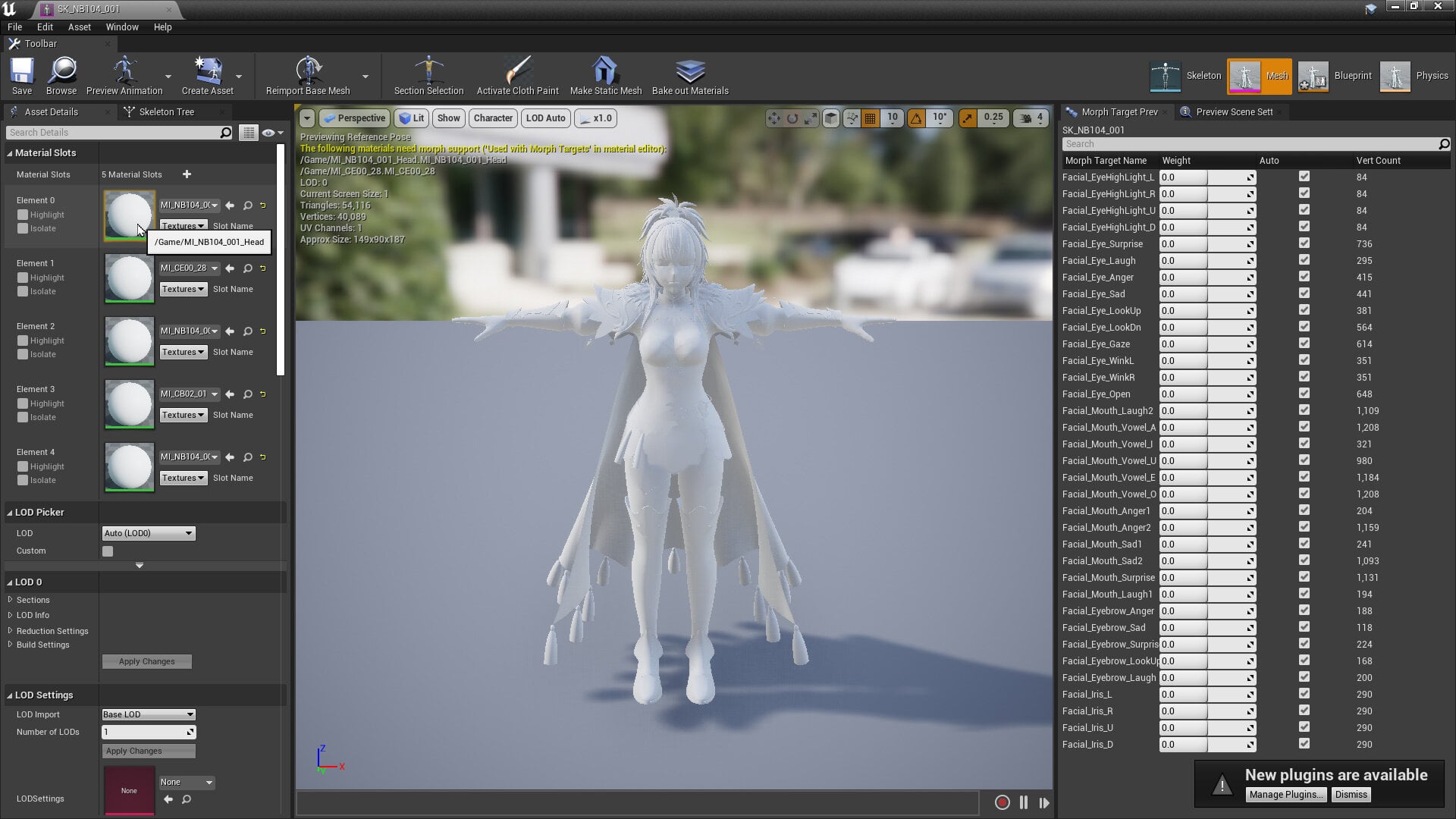

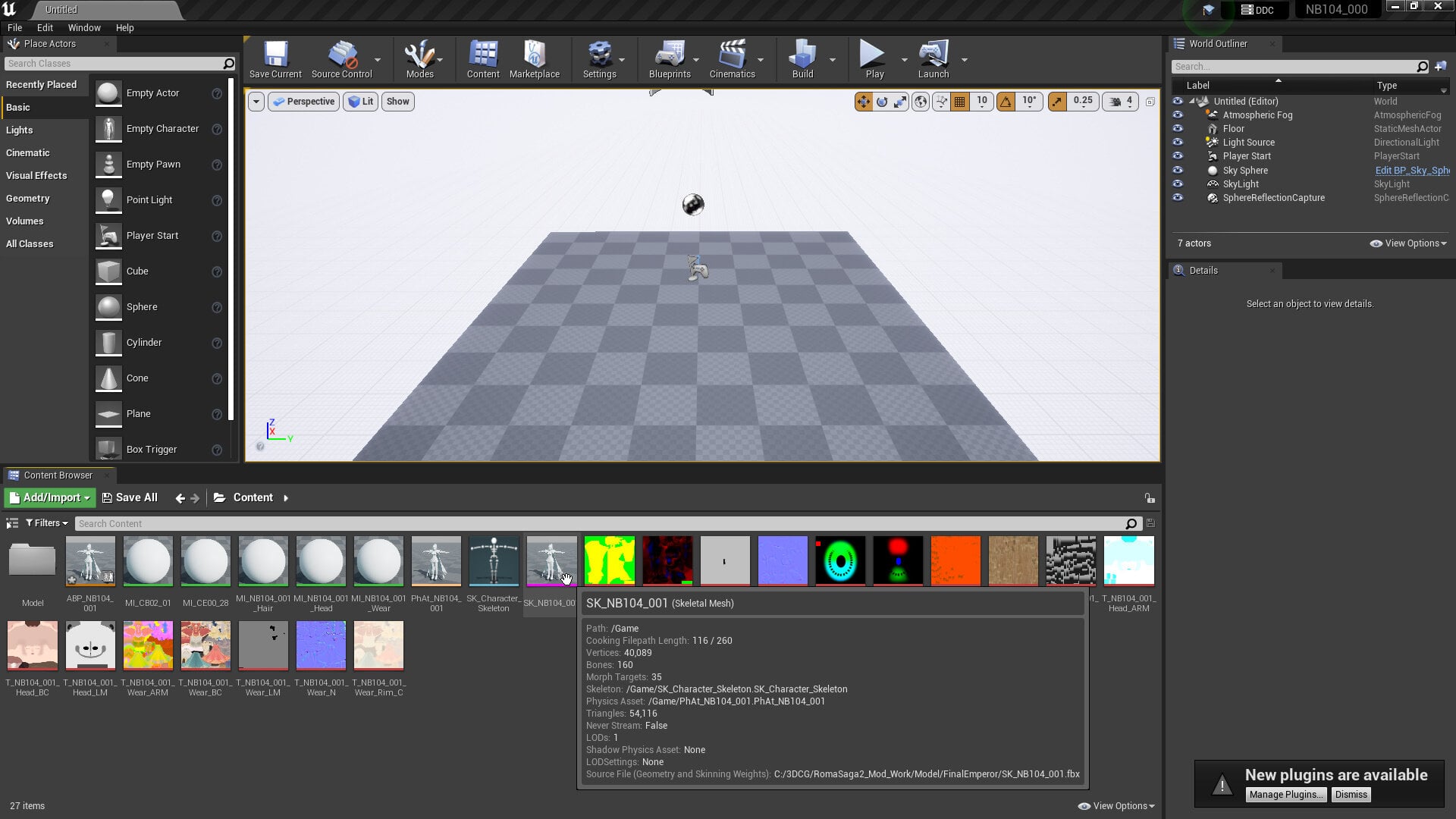

Double-click on the skeletal mesh (SK_NB104_001) to configure the settings.



Double-click on the material (white circle), MI_NB104_001_Head, that appears in Material Slots.

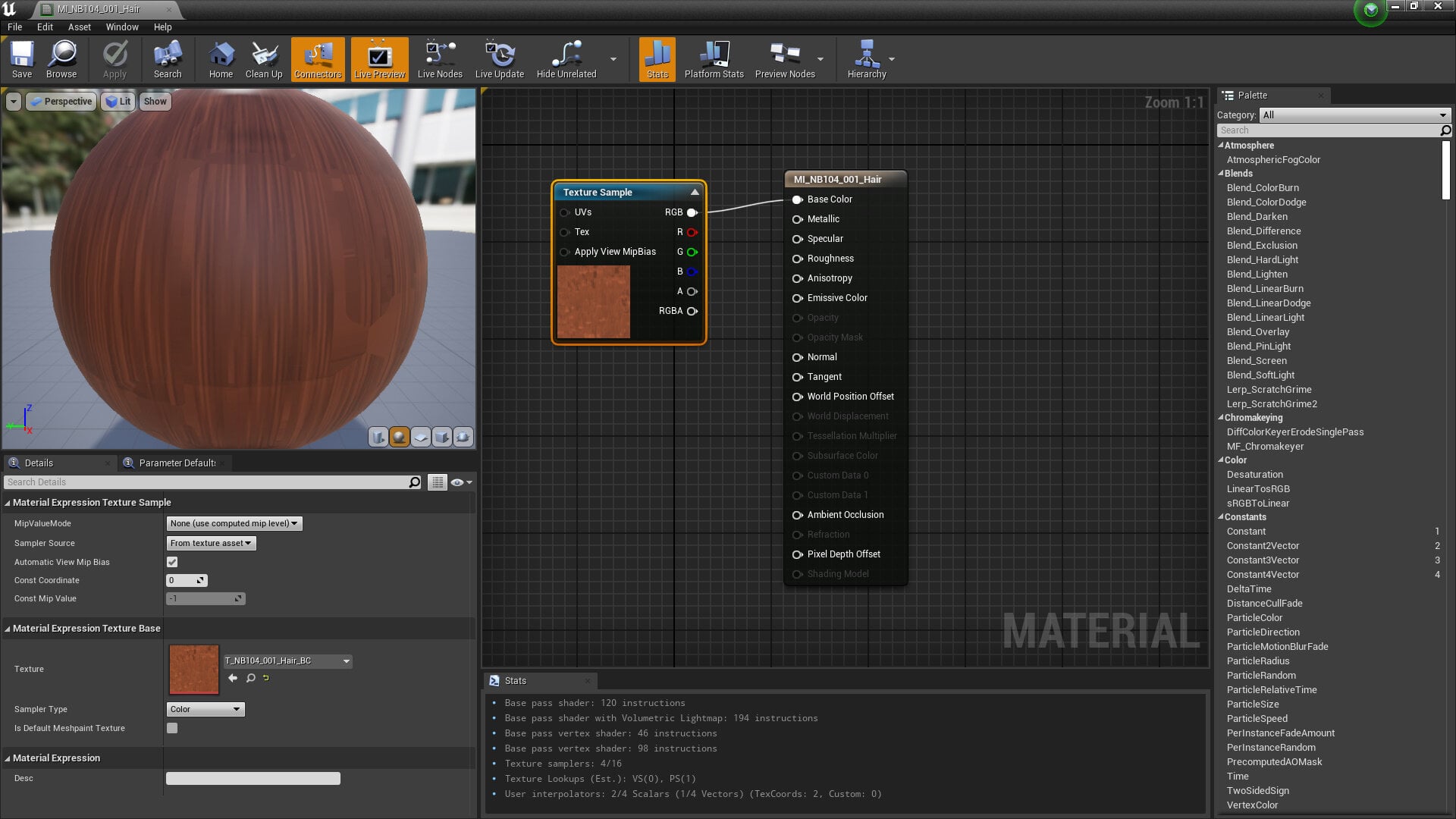

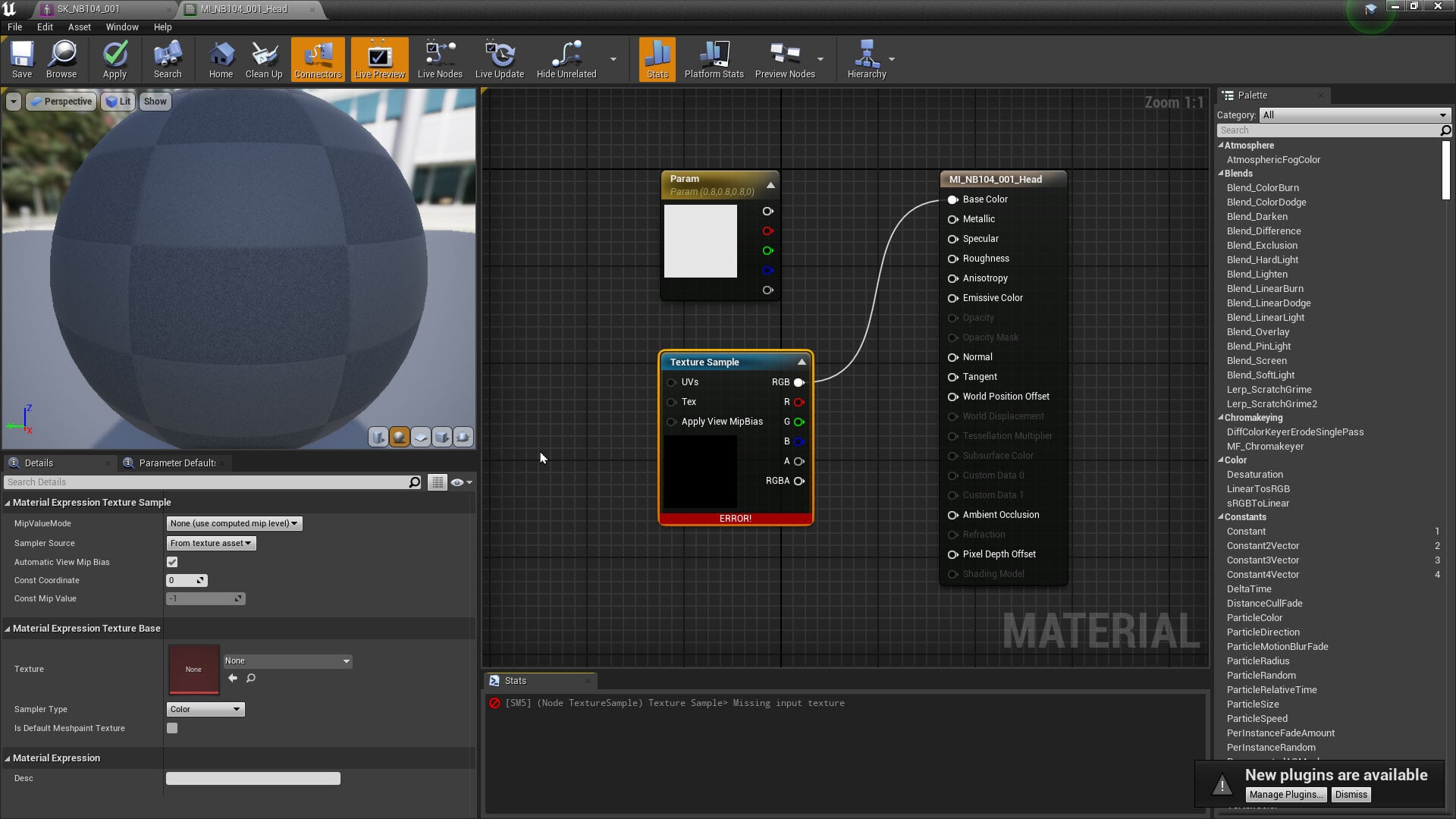

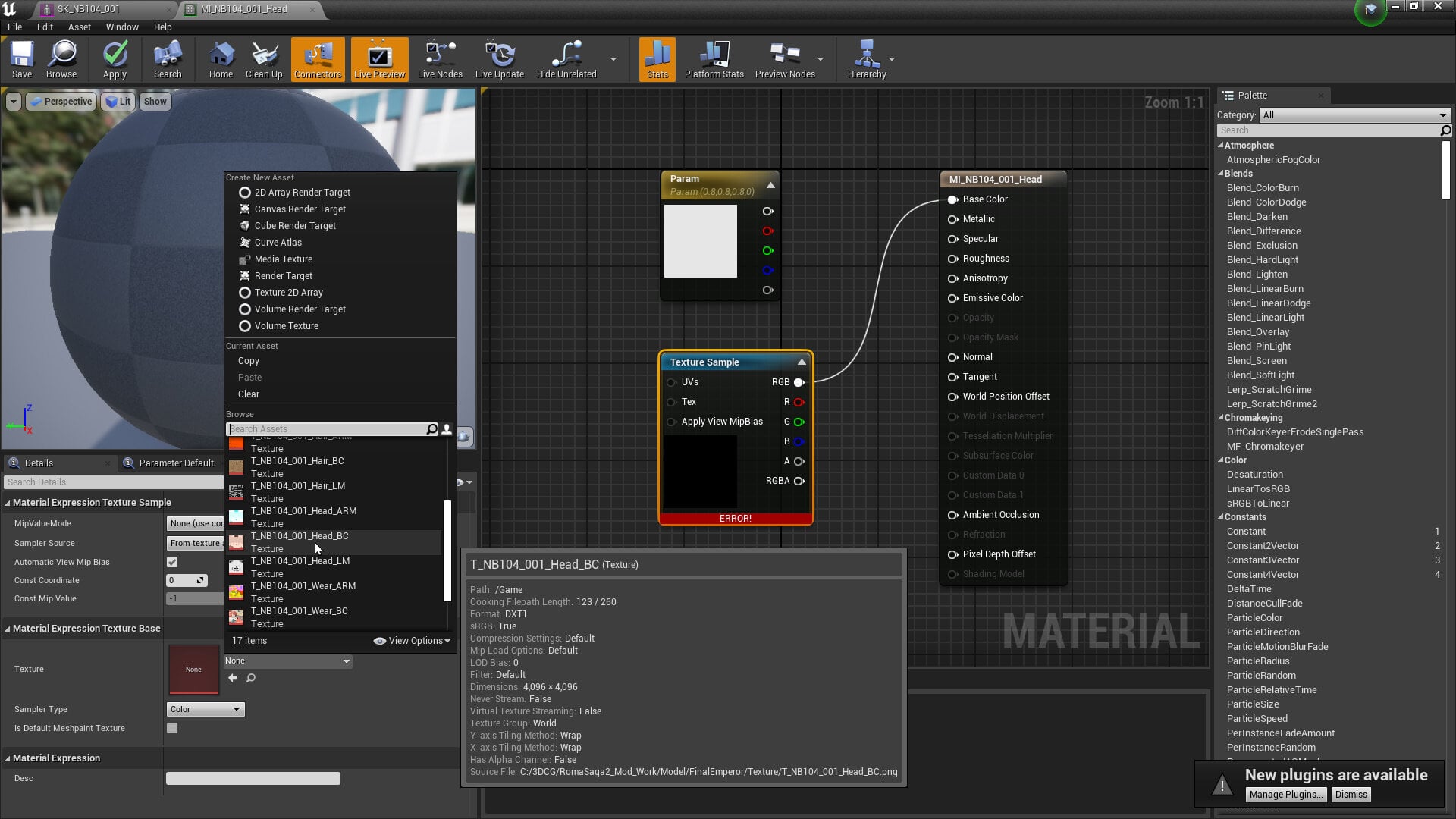

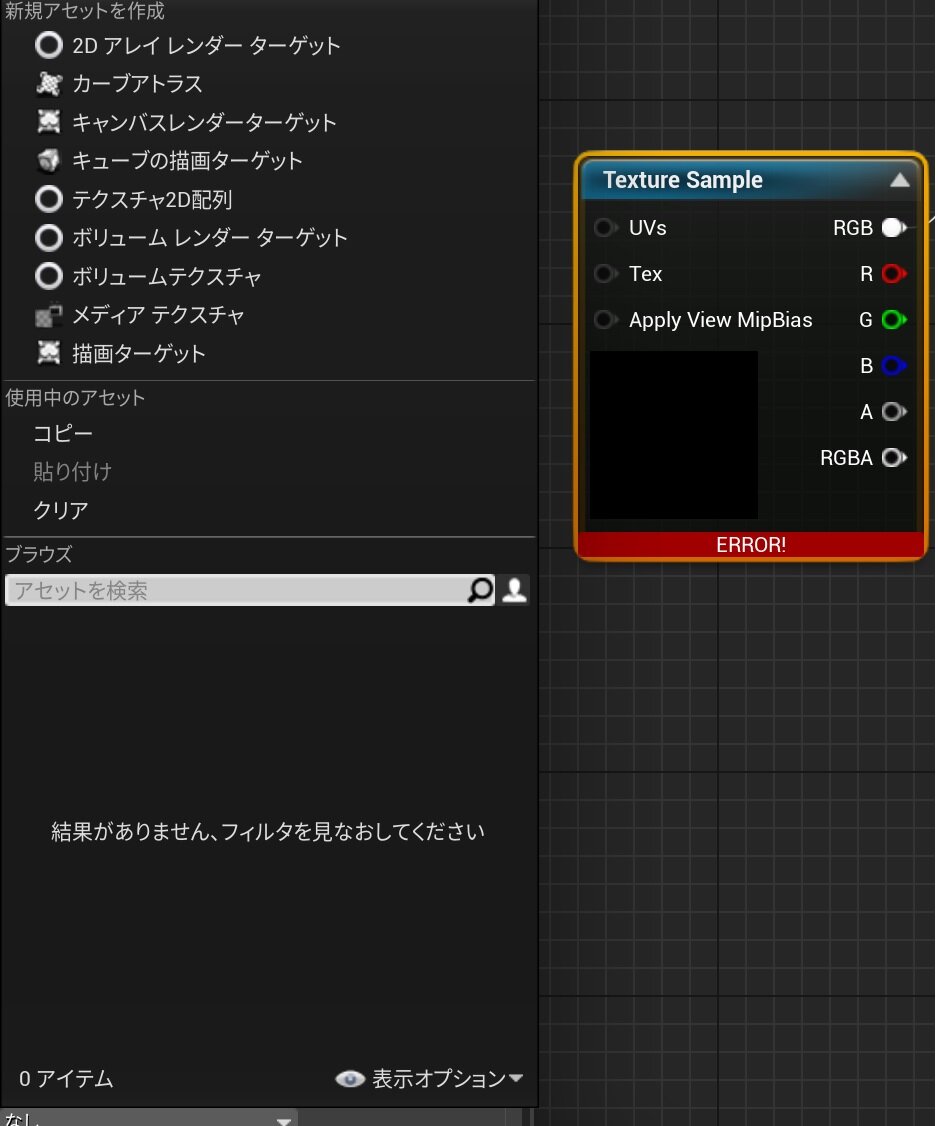

When you are in the Material Editor, right-click and type texture in the search window and press enter.

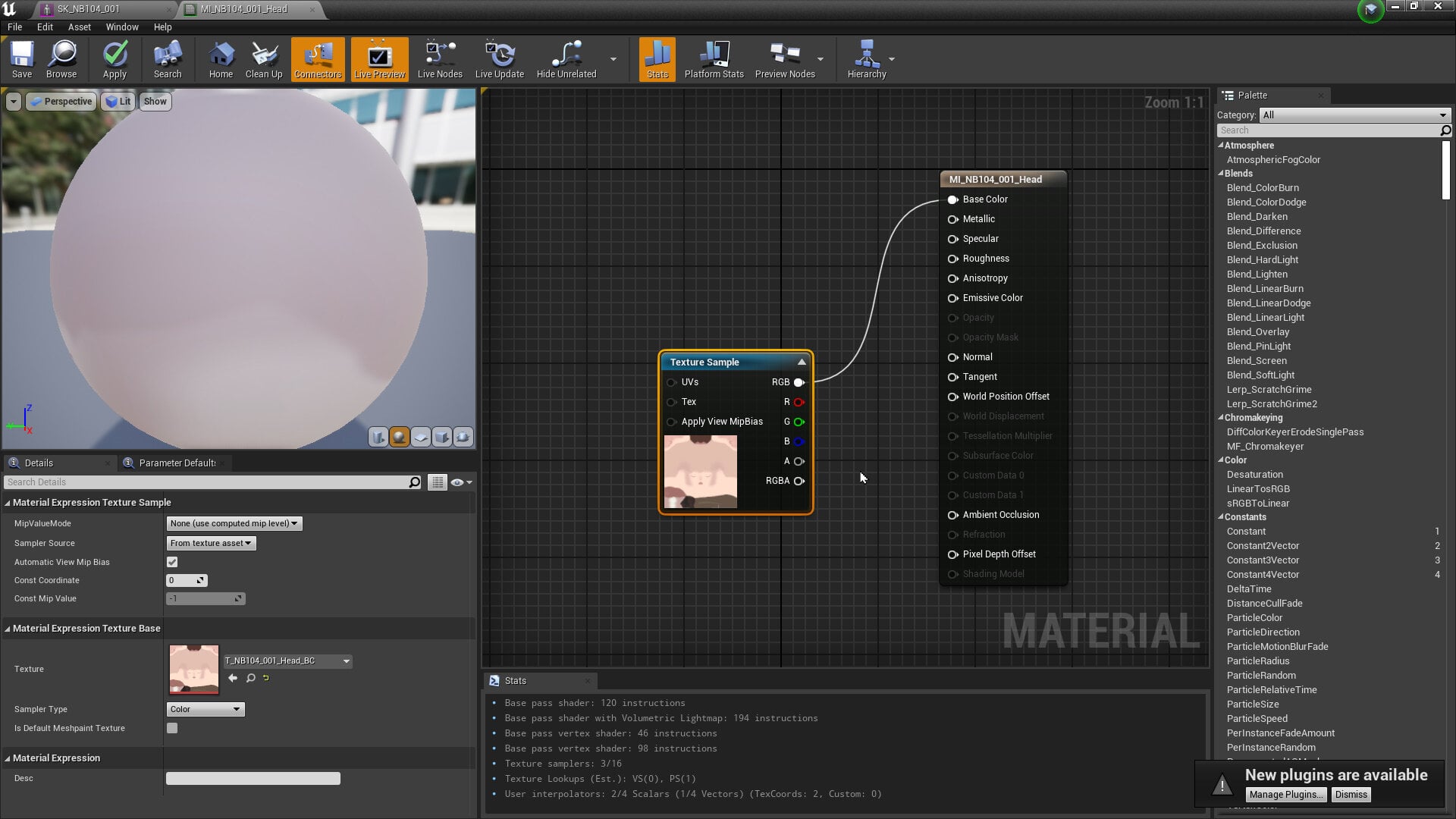

Connect the RGB of the texture sample node to the base color of material MI_NB104_001_Head.



Press the Texture pull-down in the Material Expression Texture base and select a texture with the same name as the material name.

There are multiple textures with the same name, select the one with _BC at the end of the texture name.
Delete the Param that was there from the beginning.





Save and return by pressing the X in the upper right corner.

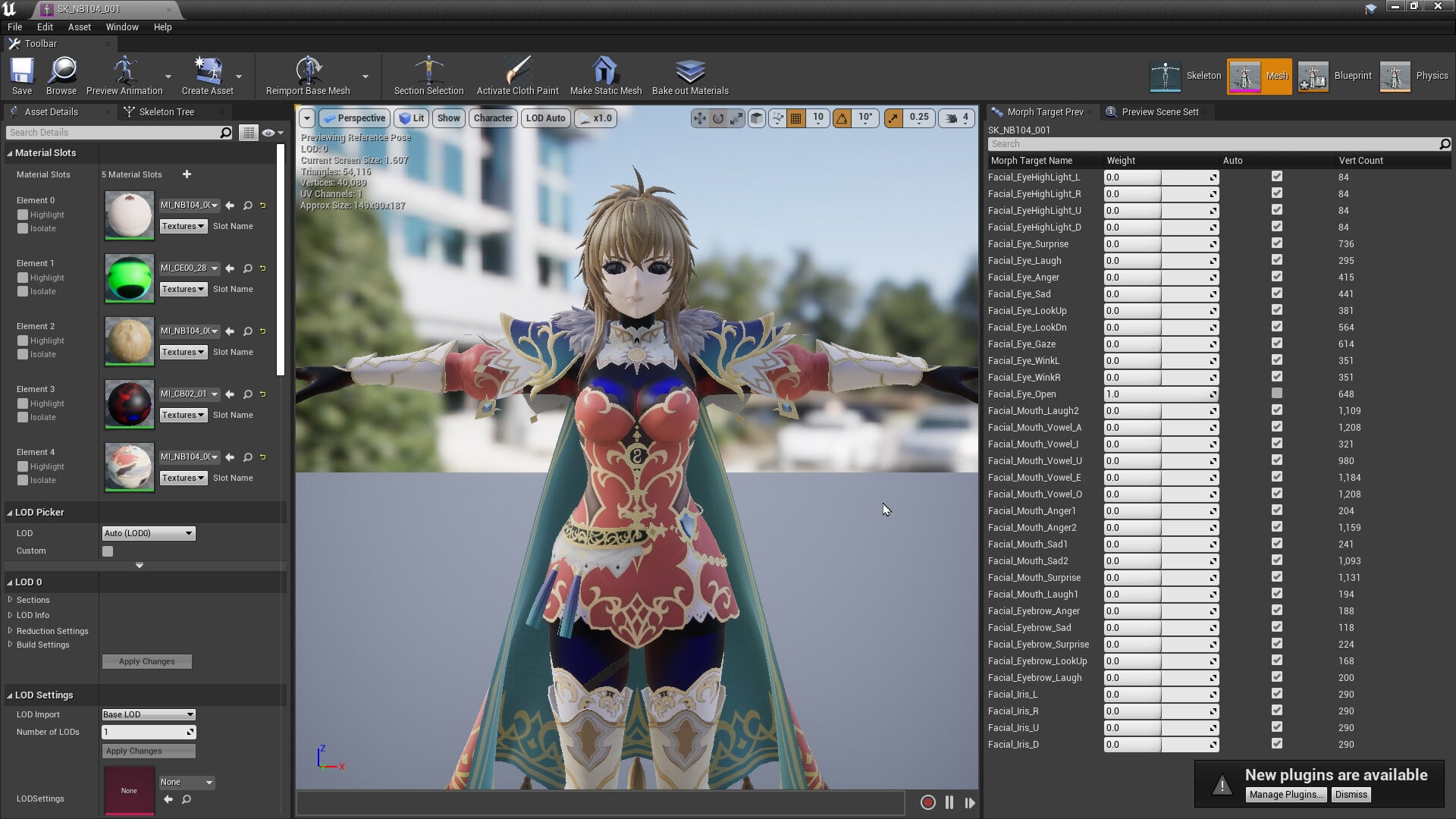

Double-click on the skeletal mesh (SK_NB104_001), and the face image will be pasted and colored.
Repeat this process.





The material for the eyes is MI_CE00_28 and the texture is T_NB104_001_Eye_00_CM.
The 3D model in this game has meditated eyes by default, so the eye textures will not be visible.

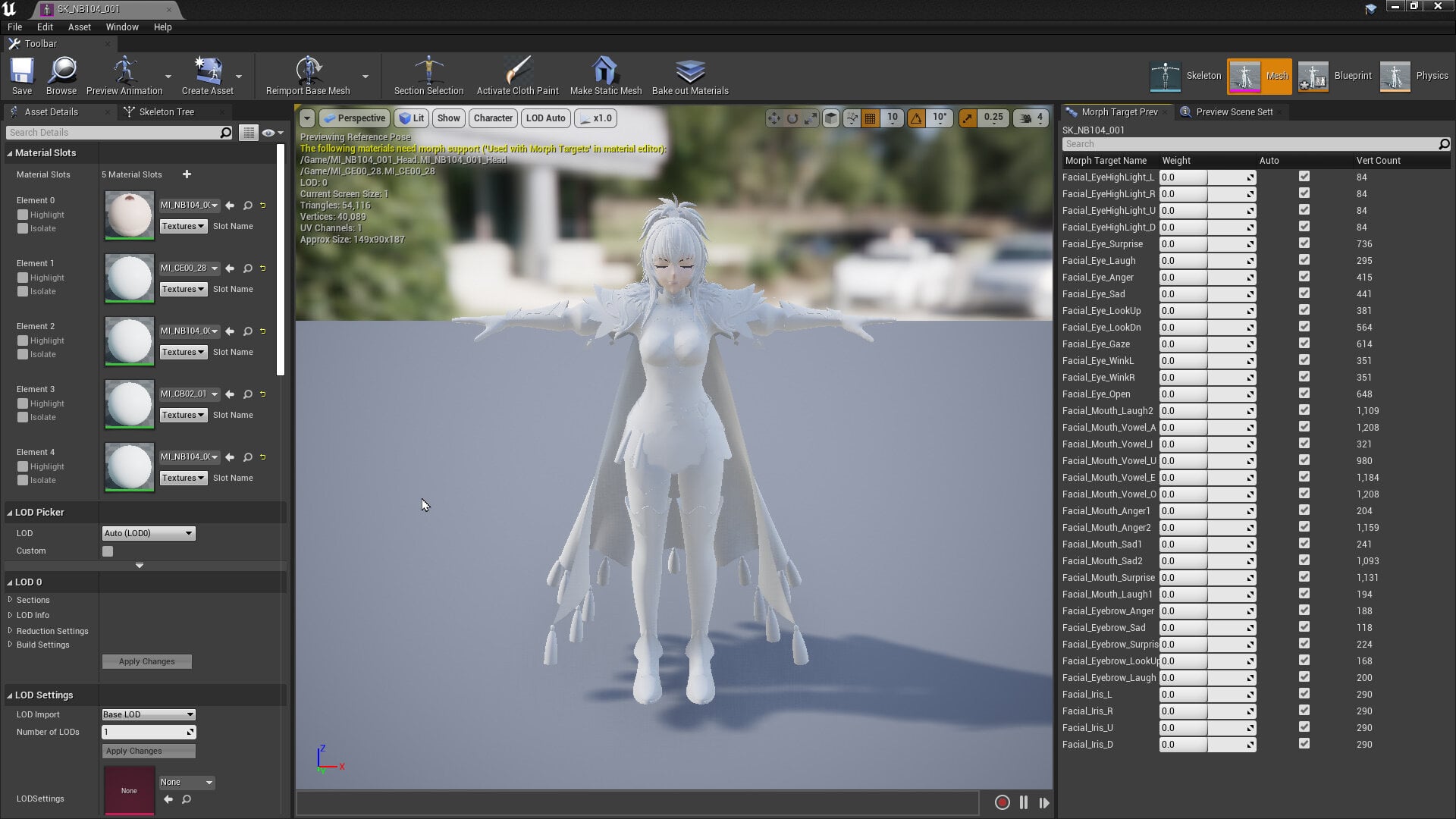

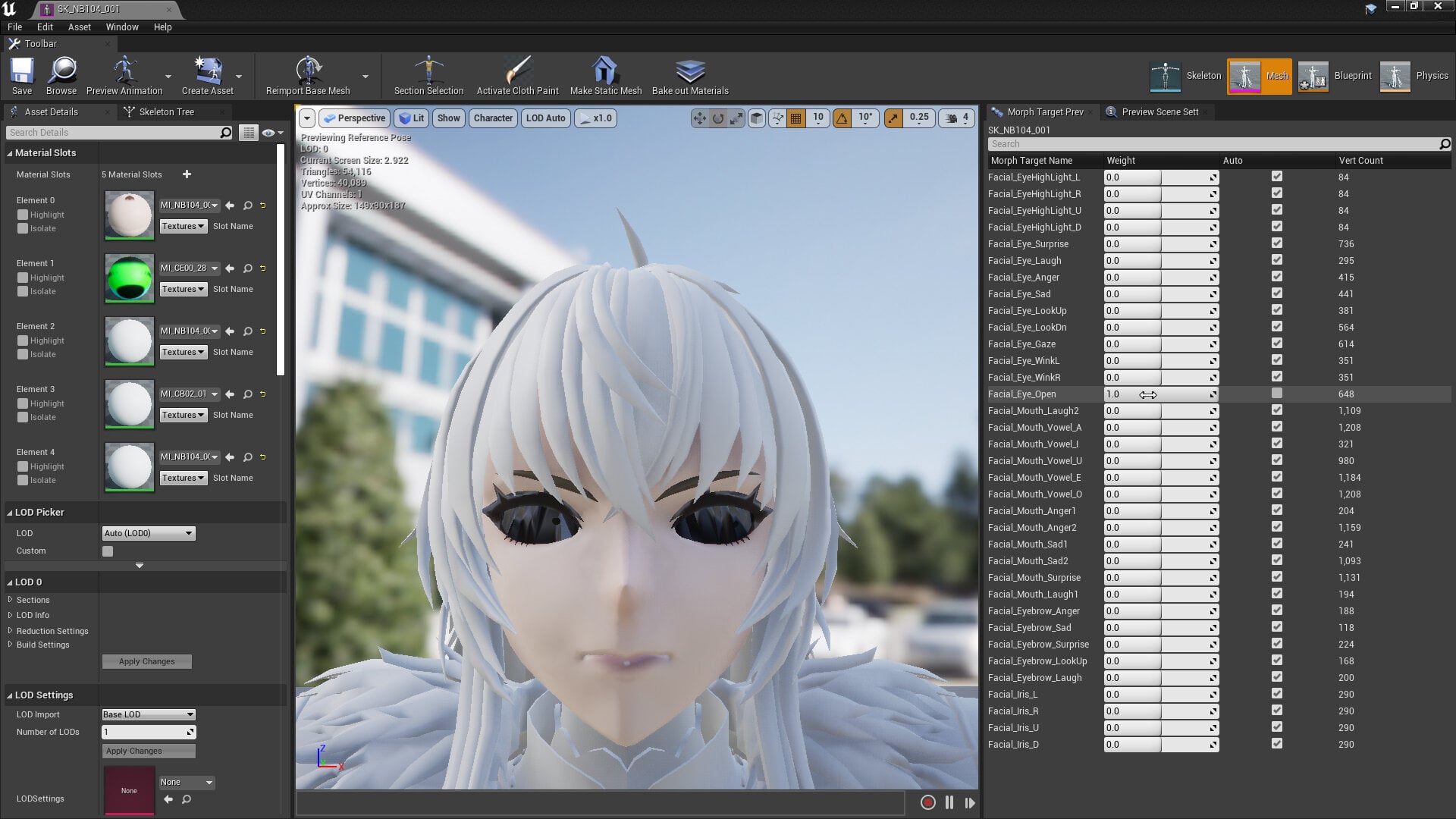

In the Morph Target Name tab on the right, enter 1 for the Facial_Eye_Opne weight.
The eyes will open and you will be able to see that a texture has been applied.





Set the other materials.
The body material is MI_CB02_01 and the texture is T_CB00_02_Body_CM.
The colors of the body and eyes may look a little strange. In the game they look correct.

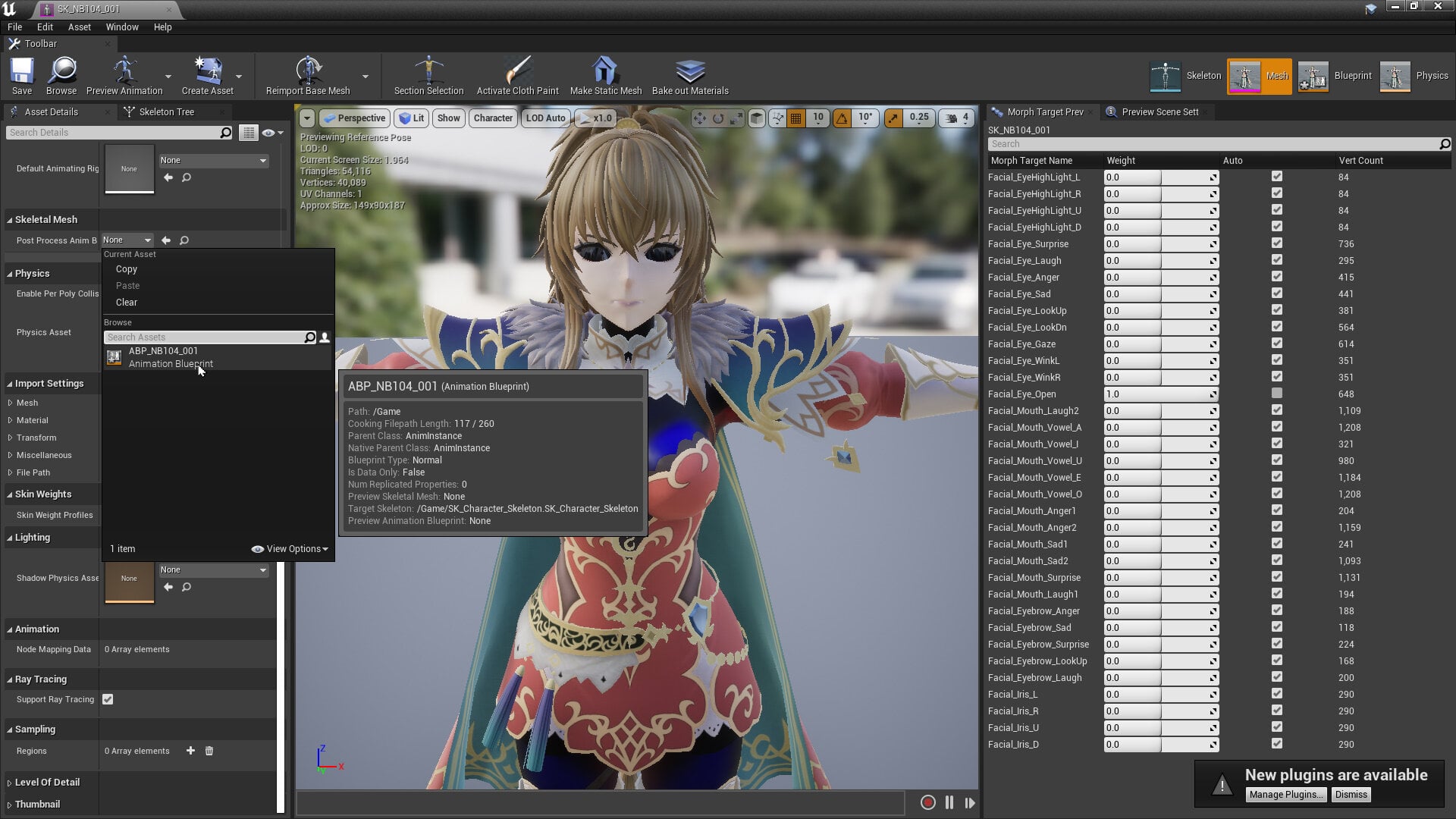

Scroll down the Asset Details bar on the left and press the Post Process Animation pull-down for the skeletal mesh.



Select ABP_NB104_001 (Animation BP).
Once saved, use the X in the upper right corner to return.

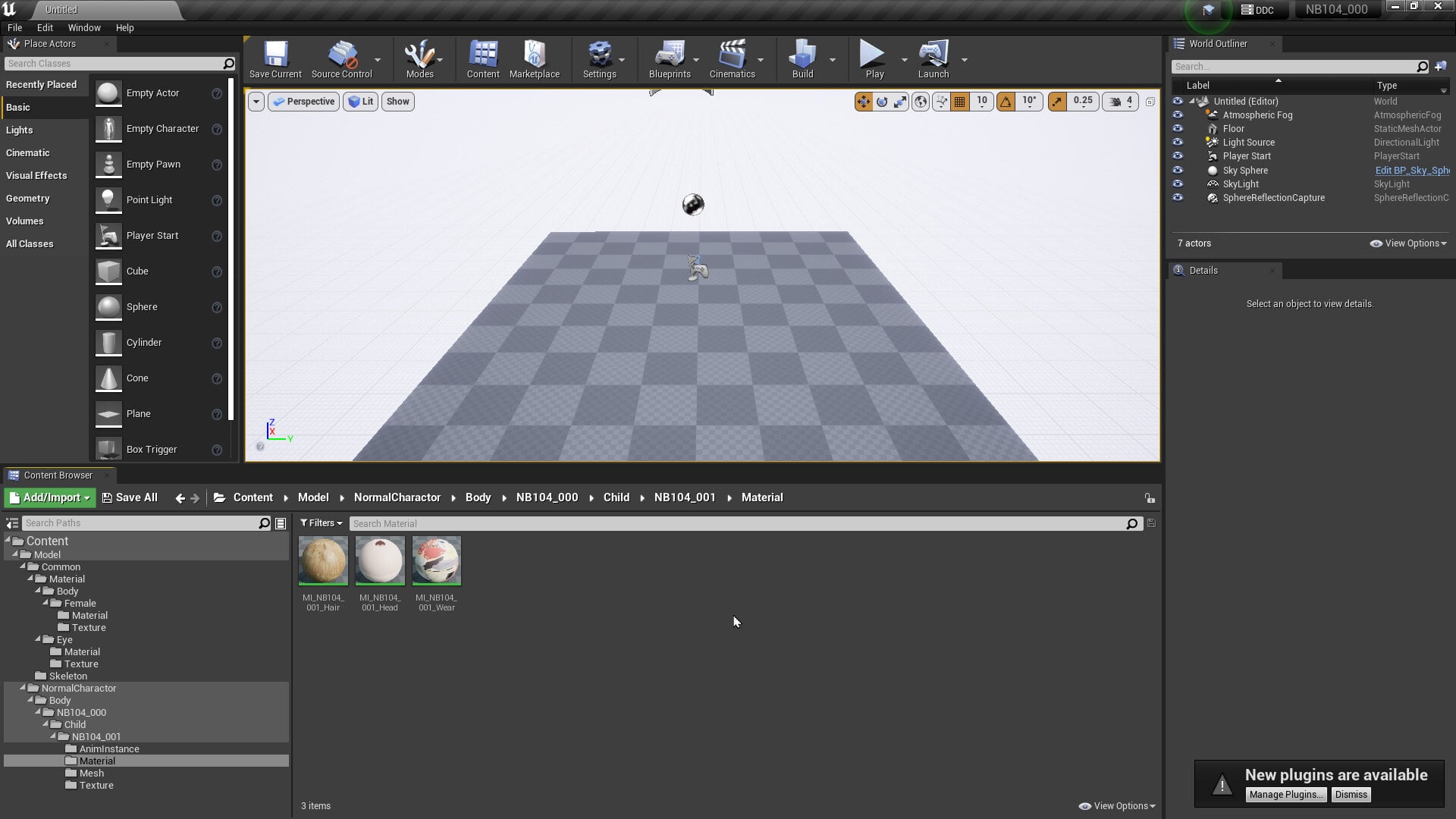

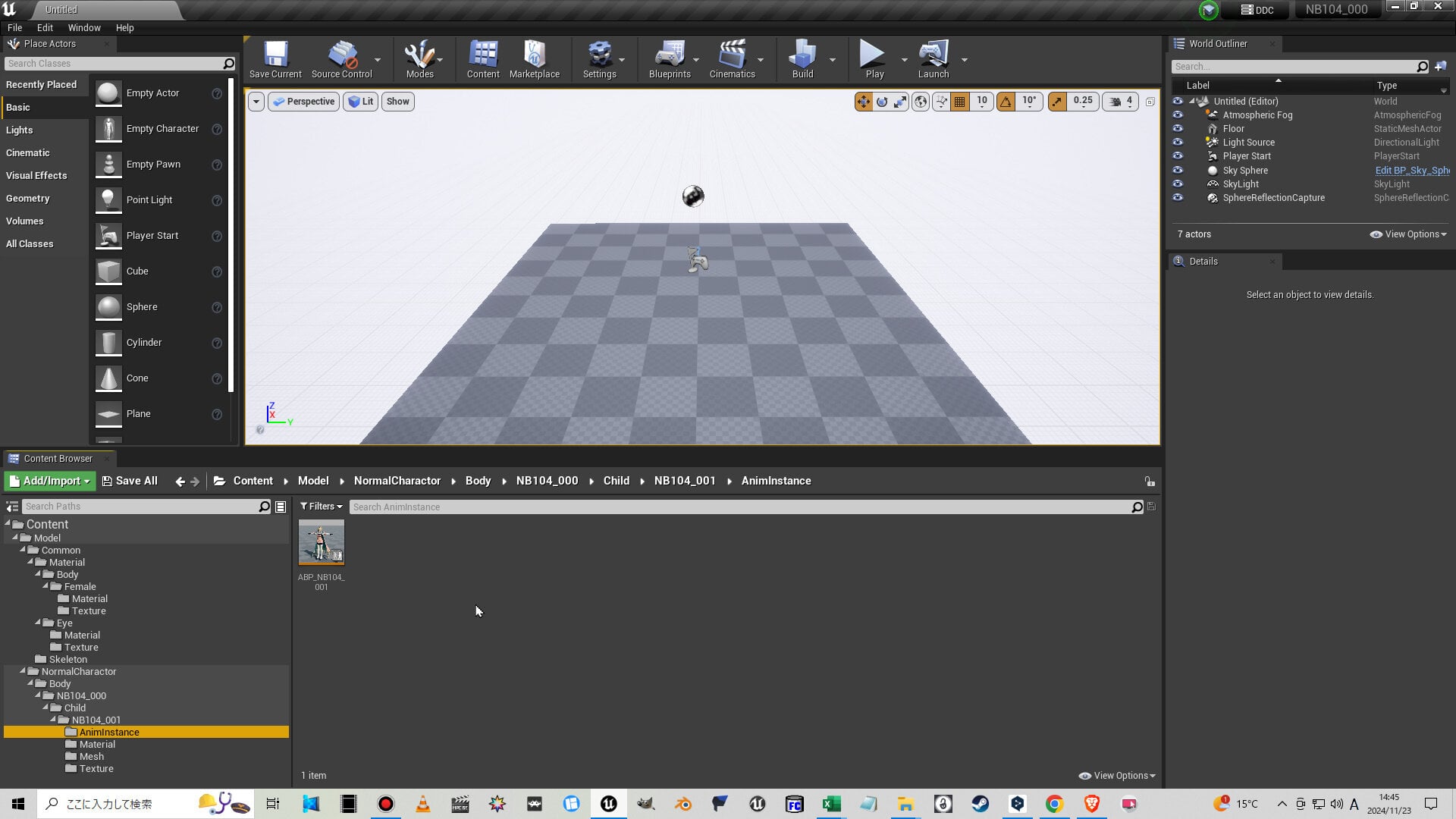

Moving an asset

Spoiler

The folders on the left can be expanded in a tree format by clicking on them.

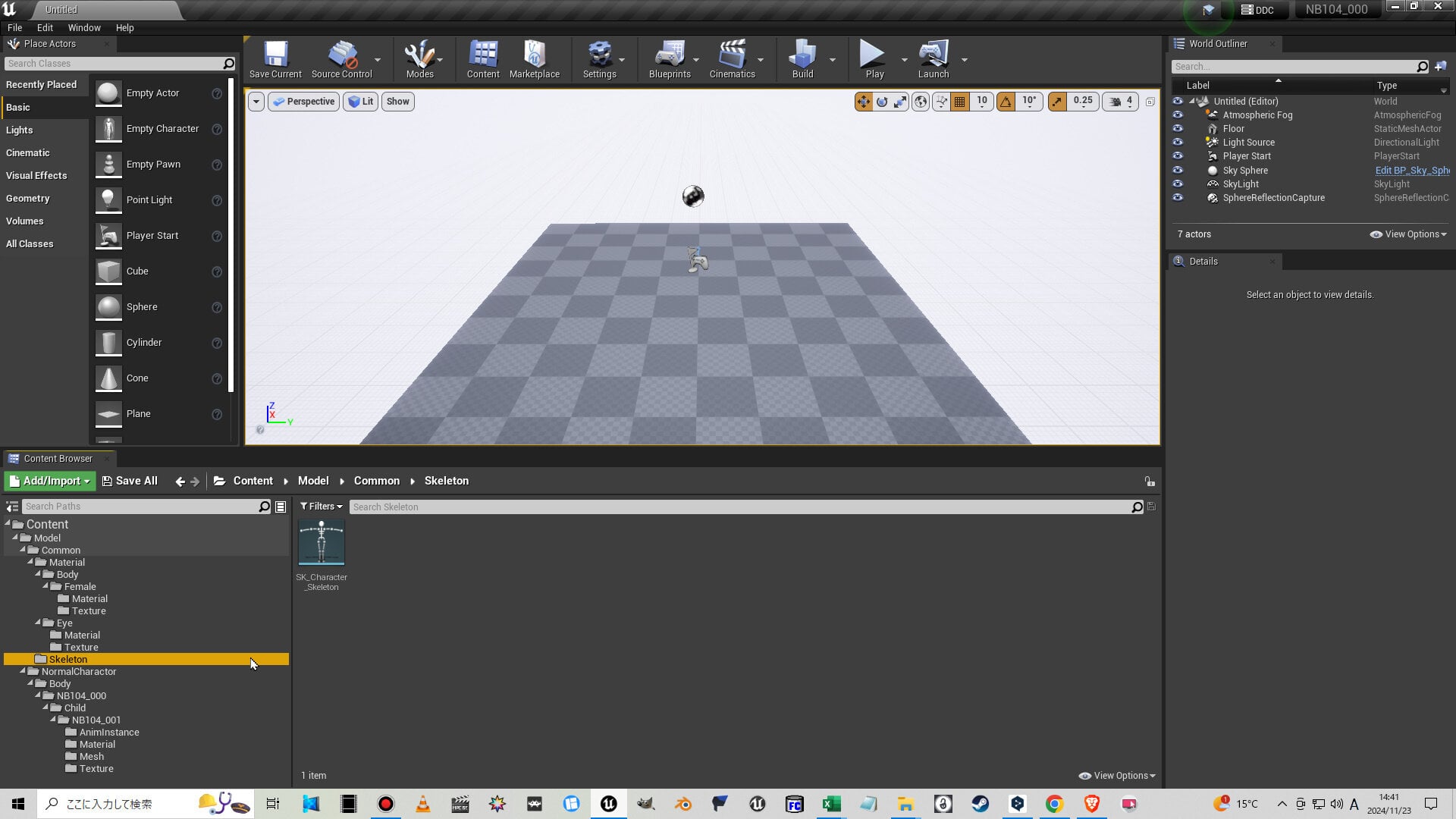

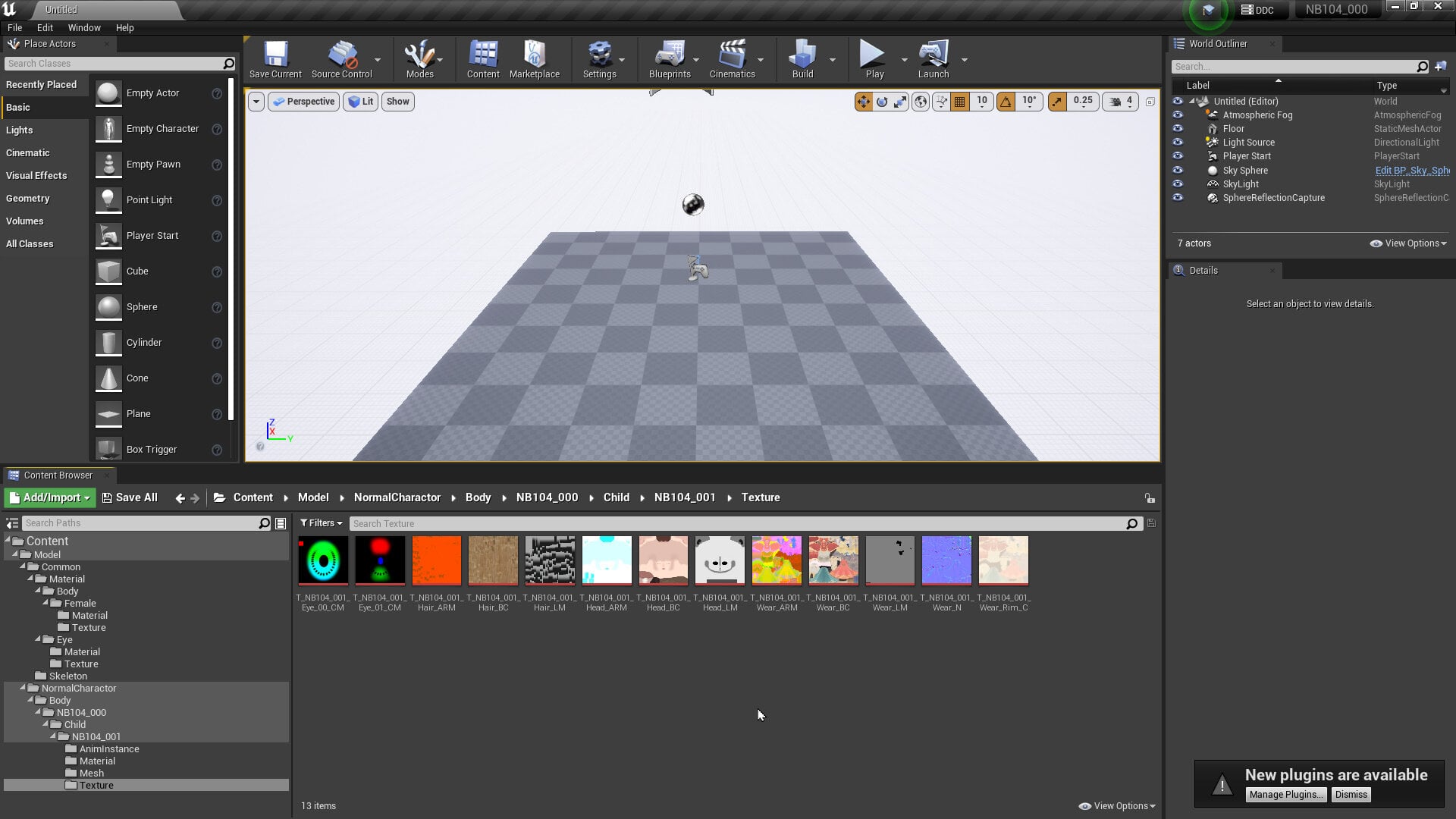

Drag the asset you want to move and drop it at the folder on the left.





SK_Character_Skeleton
Game/Model/Common/Skeleton





CB02_01

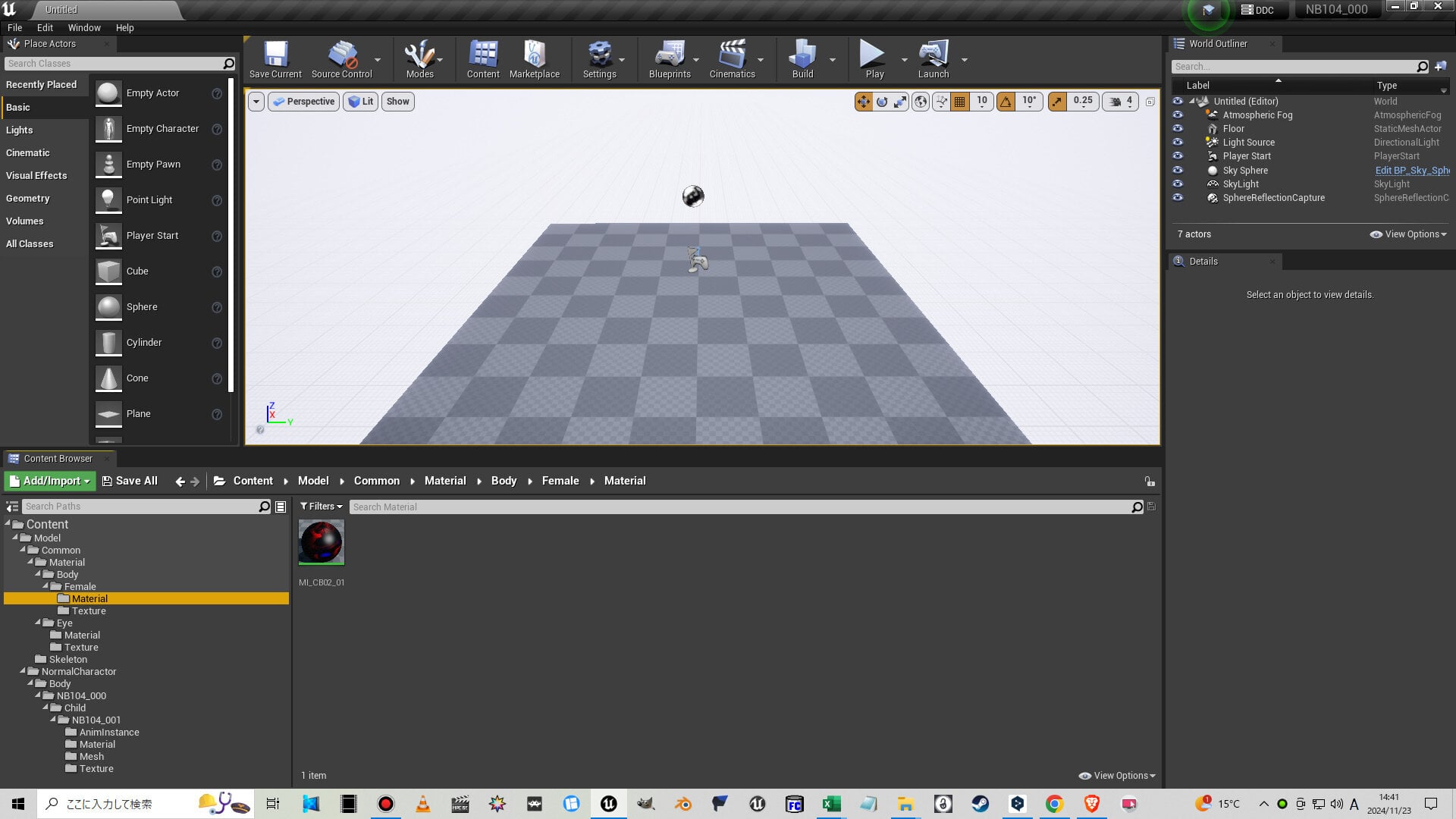

Game/Model/Common/Material/Body/Female/Material





T_CB00_02_Body_CM
T_CB00_02_Body_N
T_CB00_02_Body_LM
T_CB00_02_Body_ARM

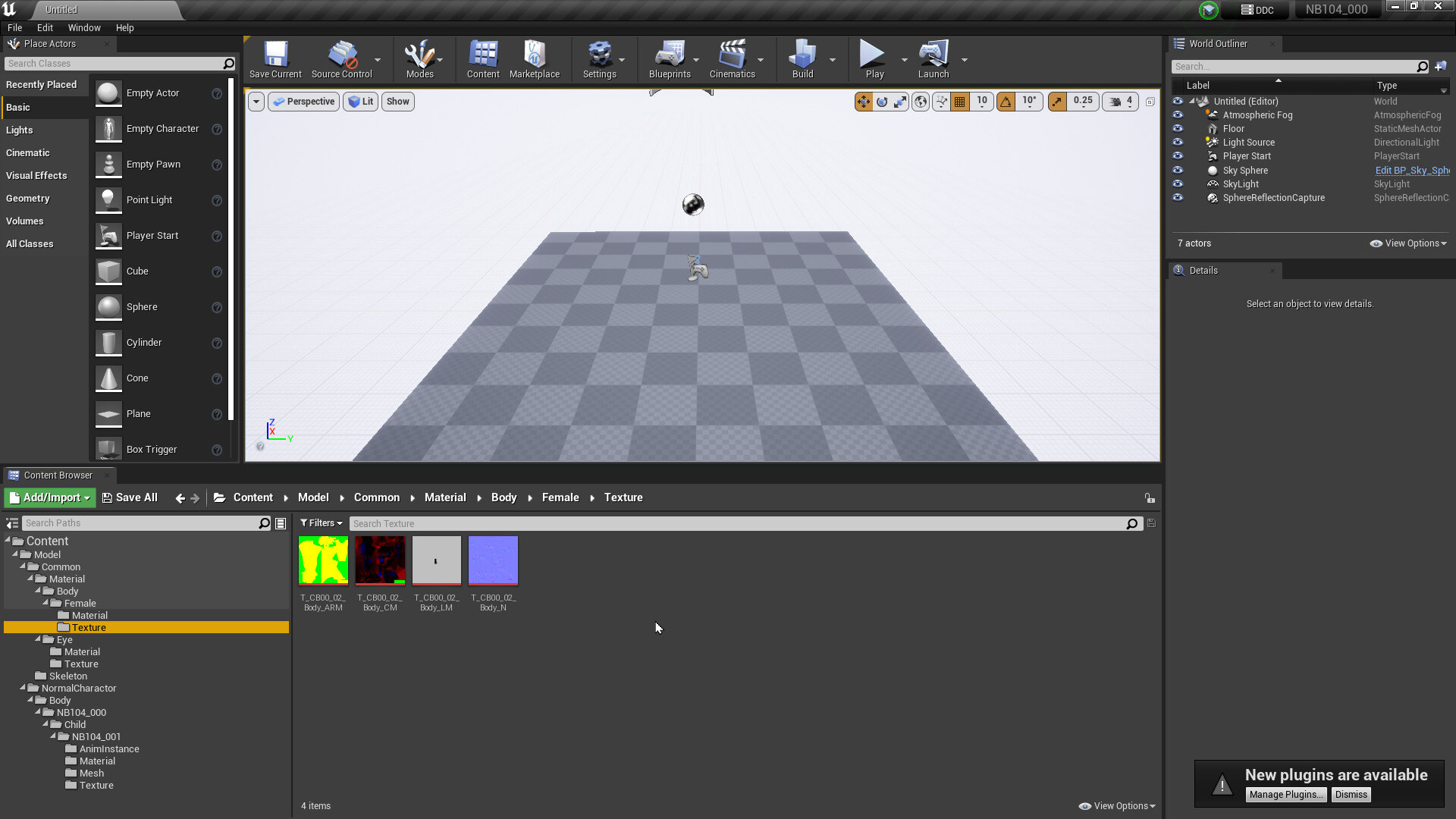

Game/Model/Common/Material/Body/Female/Texture





ABP_NB104_001
Game/Model/NormalCharactor/Body/NB104_000/Child/NB104_001/AnimInstance





SK_NB104_001
PhAt_NB104_001
Game/Model/NormalCharactor/Body/NB104_000/Child/NB104_001/Mesh





All other materials
Game/Model/NormalCharactor/Body/NB104_000/Child/NB104_001/Material





All other textures
Game/Model/NormalCharactor/Body/NB104_000/Child/NB104_001/Texture

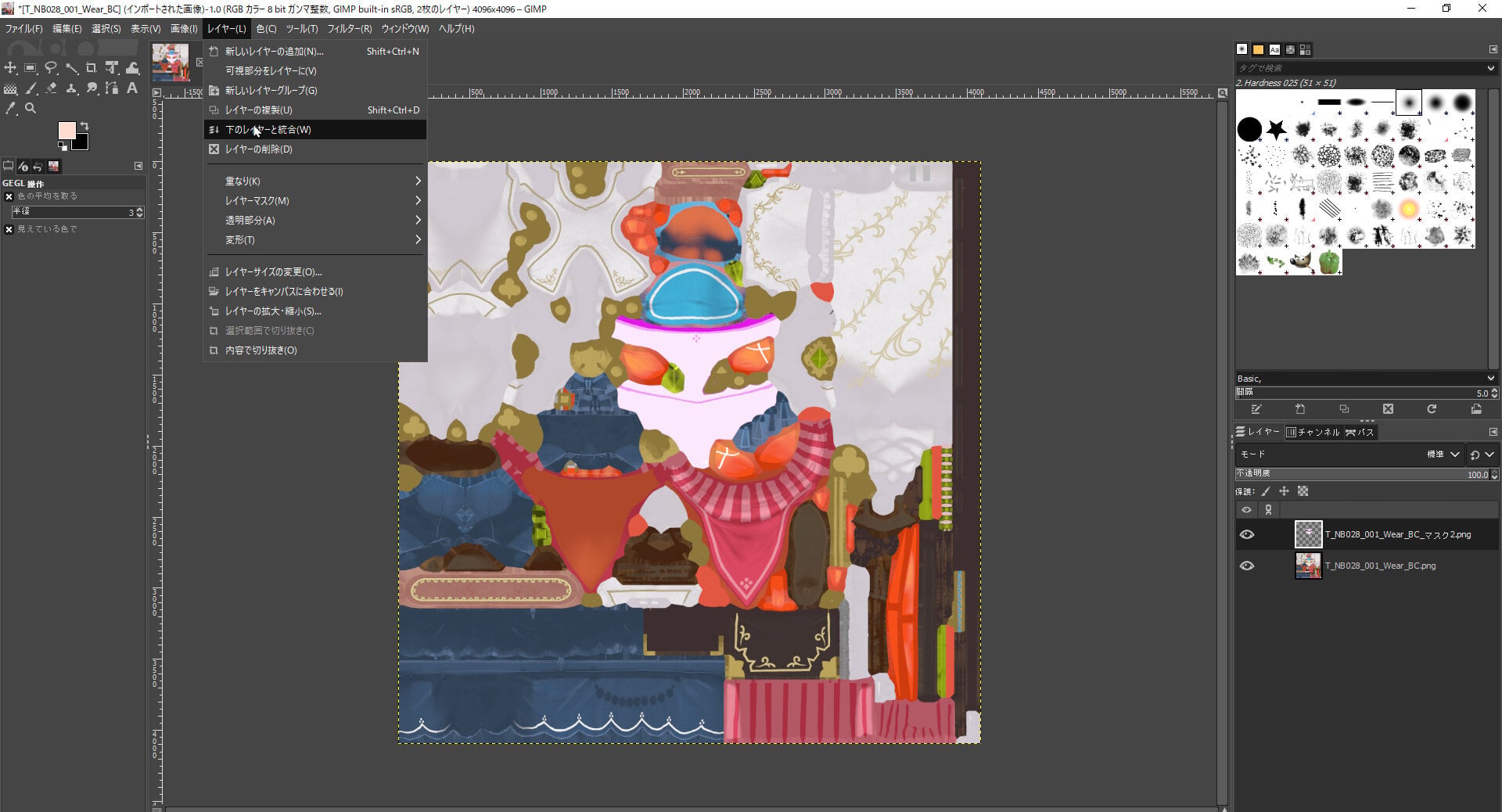

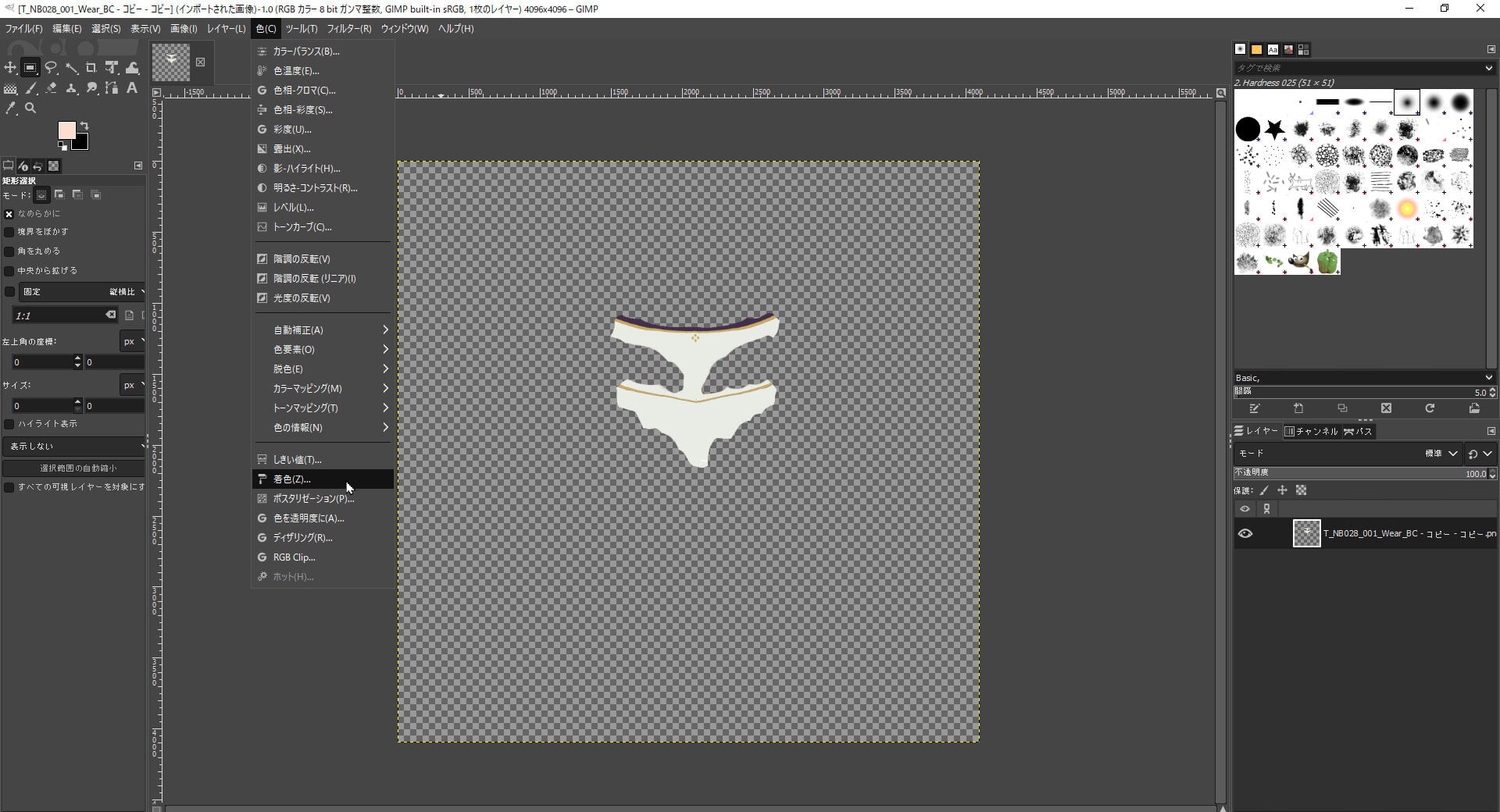

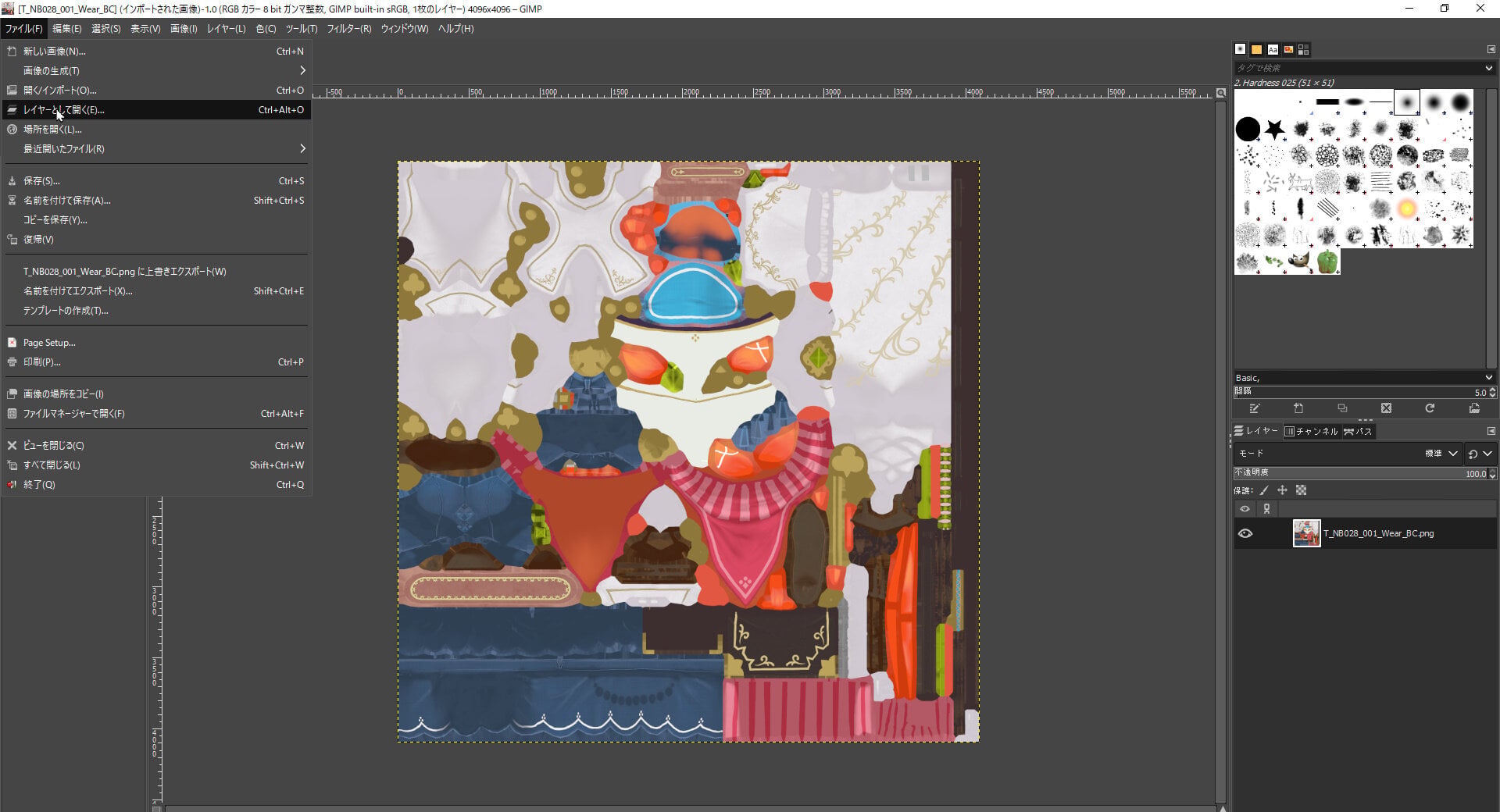

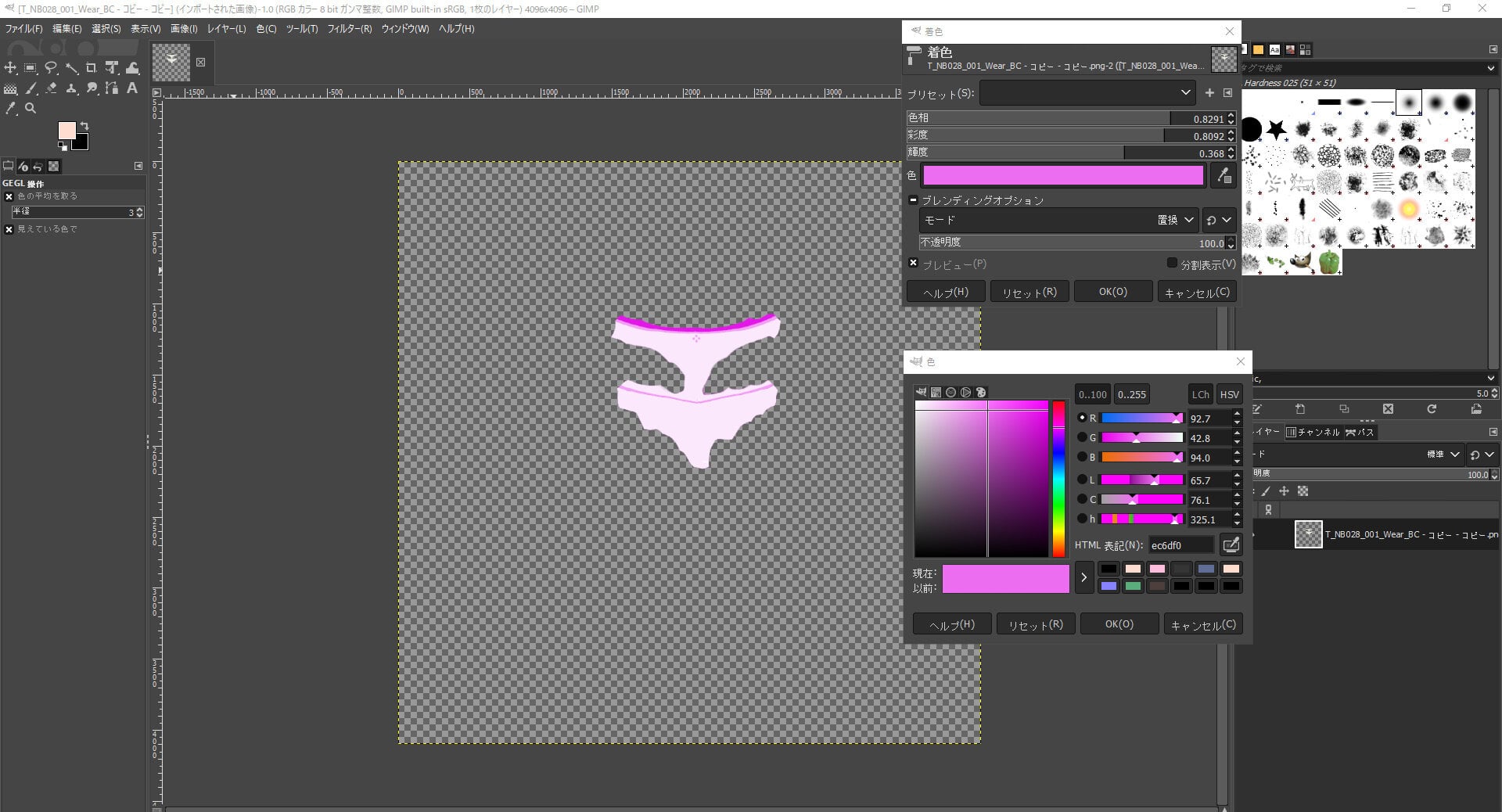

To change the hair color to Gerard's color, the hair texture T_NB104_001_Hair_BC was replaced with a color-changed texture.







Package a project

Spoiler

Pack it in .ucas format using a function called IOStore to make it a mod.
Change the following settings

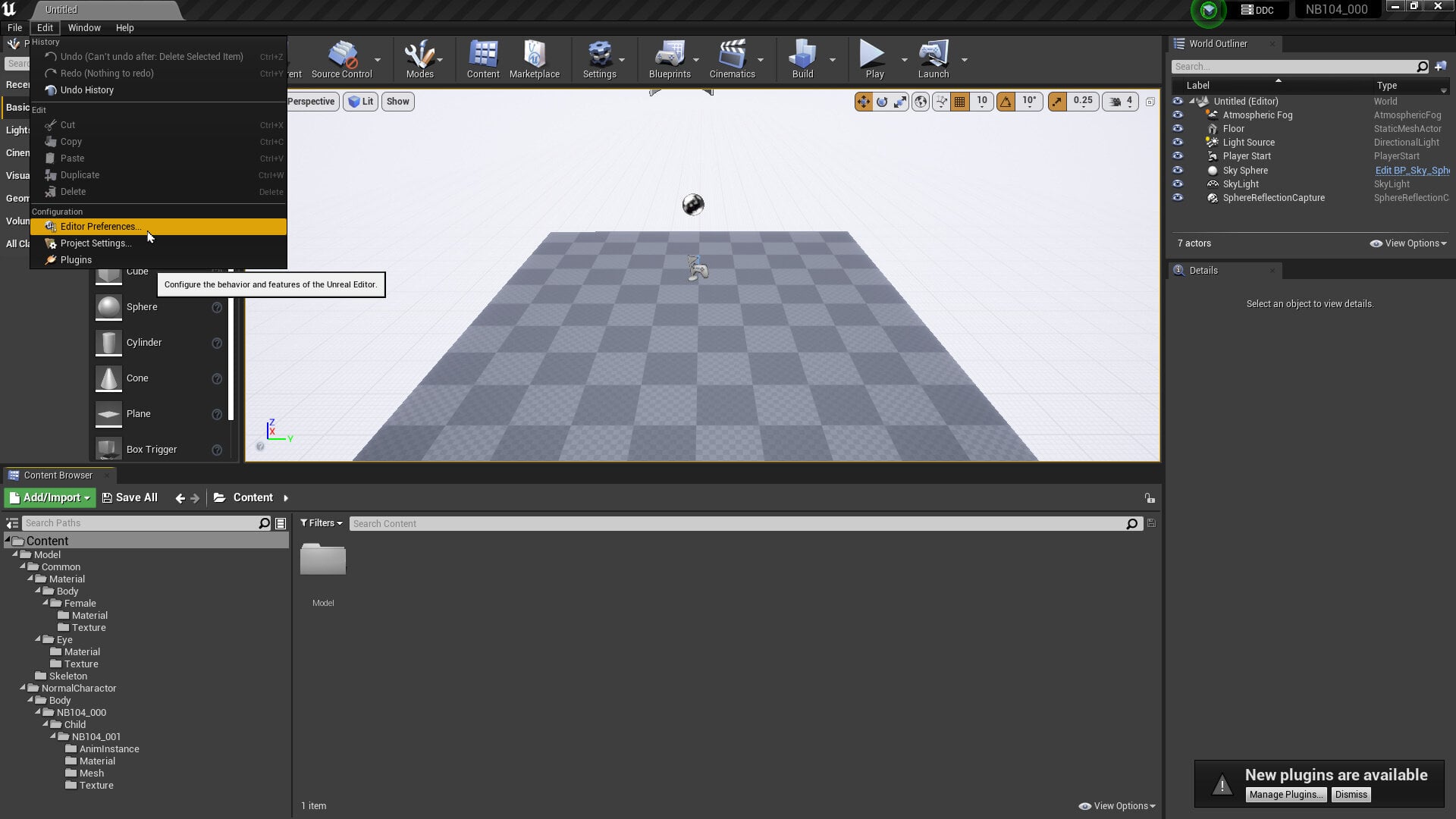

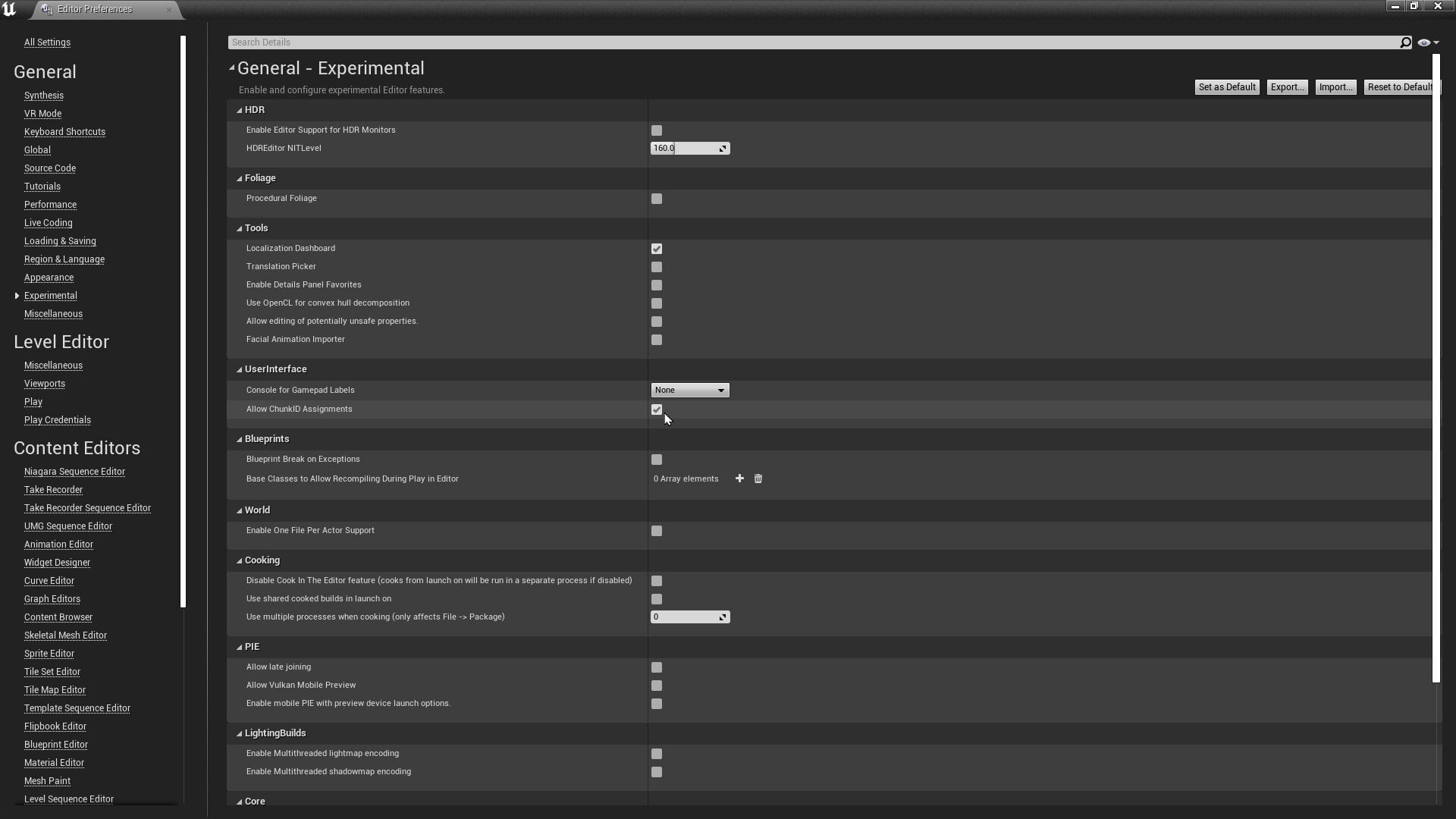

Edit at the top→Editor Preferences→Experimental Phase→User Interface
Check Allow chunk ID assignment

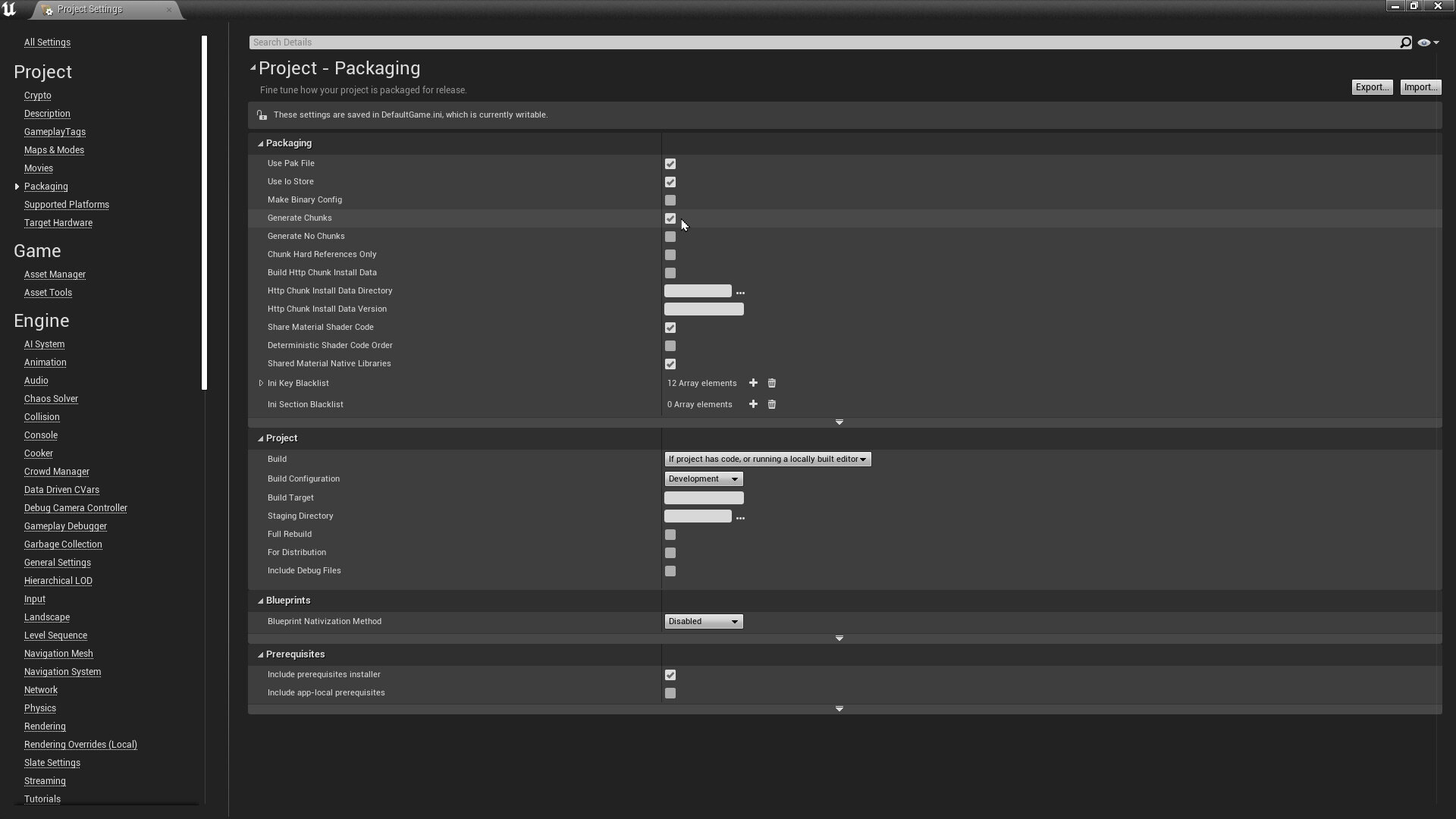

Edit at the top→Project Settings→Packaging
Check Use pak files
Check Use IoStore
Check to generate chunks

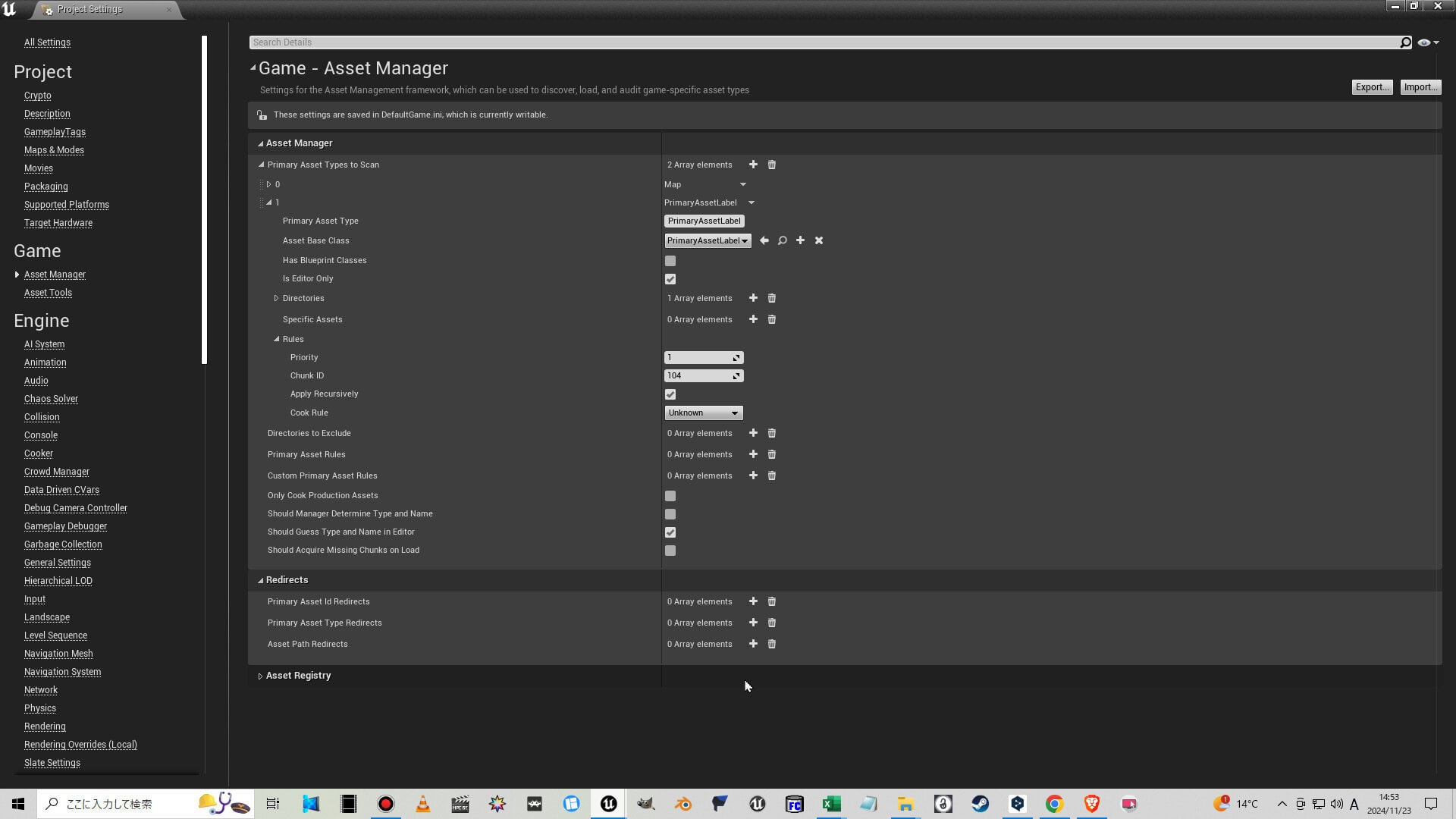

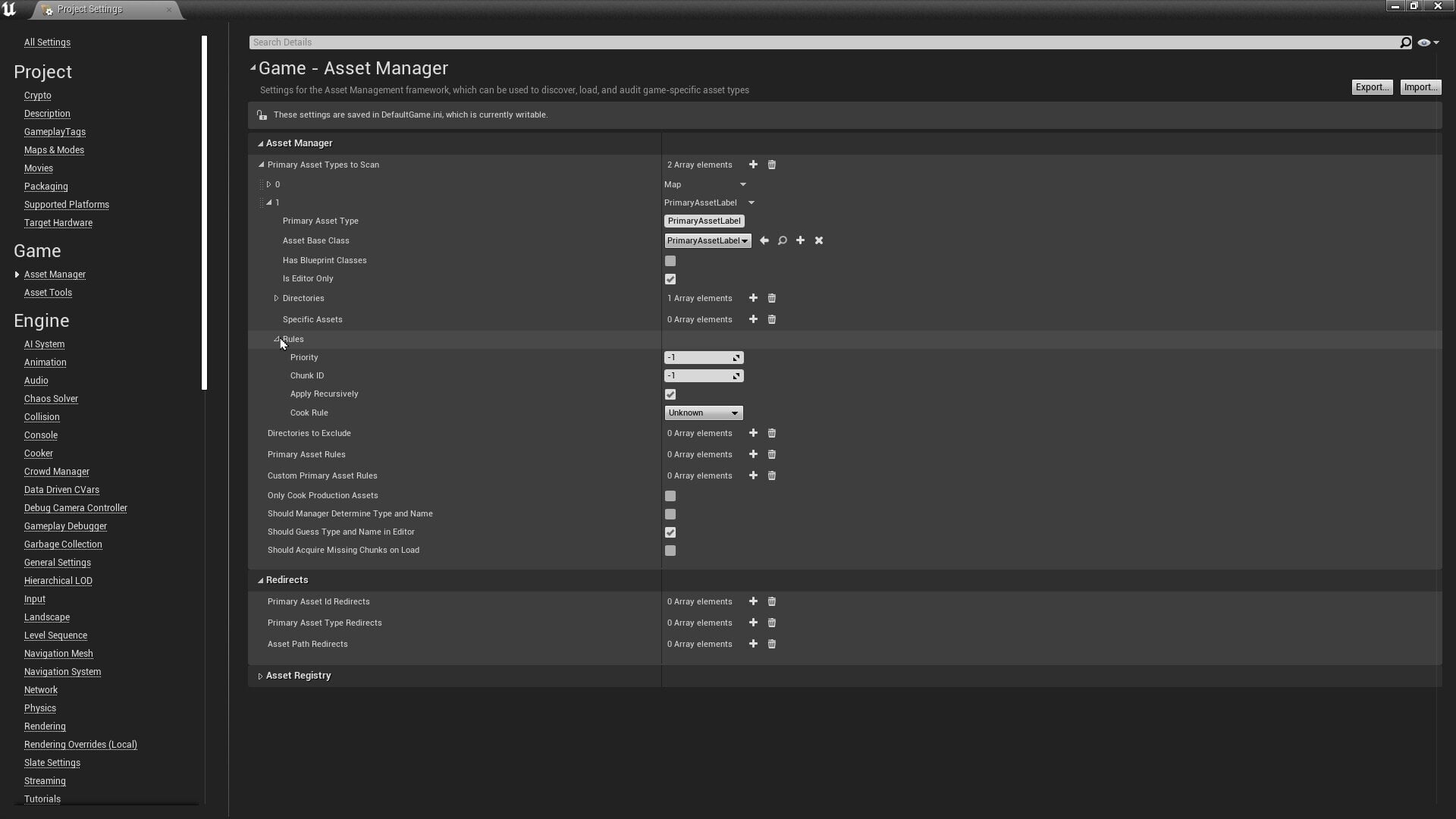

Edit at the top→Project Settings→Game→Asset Manager→Press △ for the primary asset type to be scanned→Press △ for 1.
Press △ for Rules.





Enter 1 for Priority.
Enter any number other than 0 for Cunk ID.
In this case, I entered 104.

Press the X in the upper right corner to return.

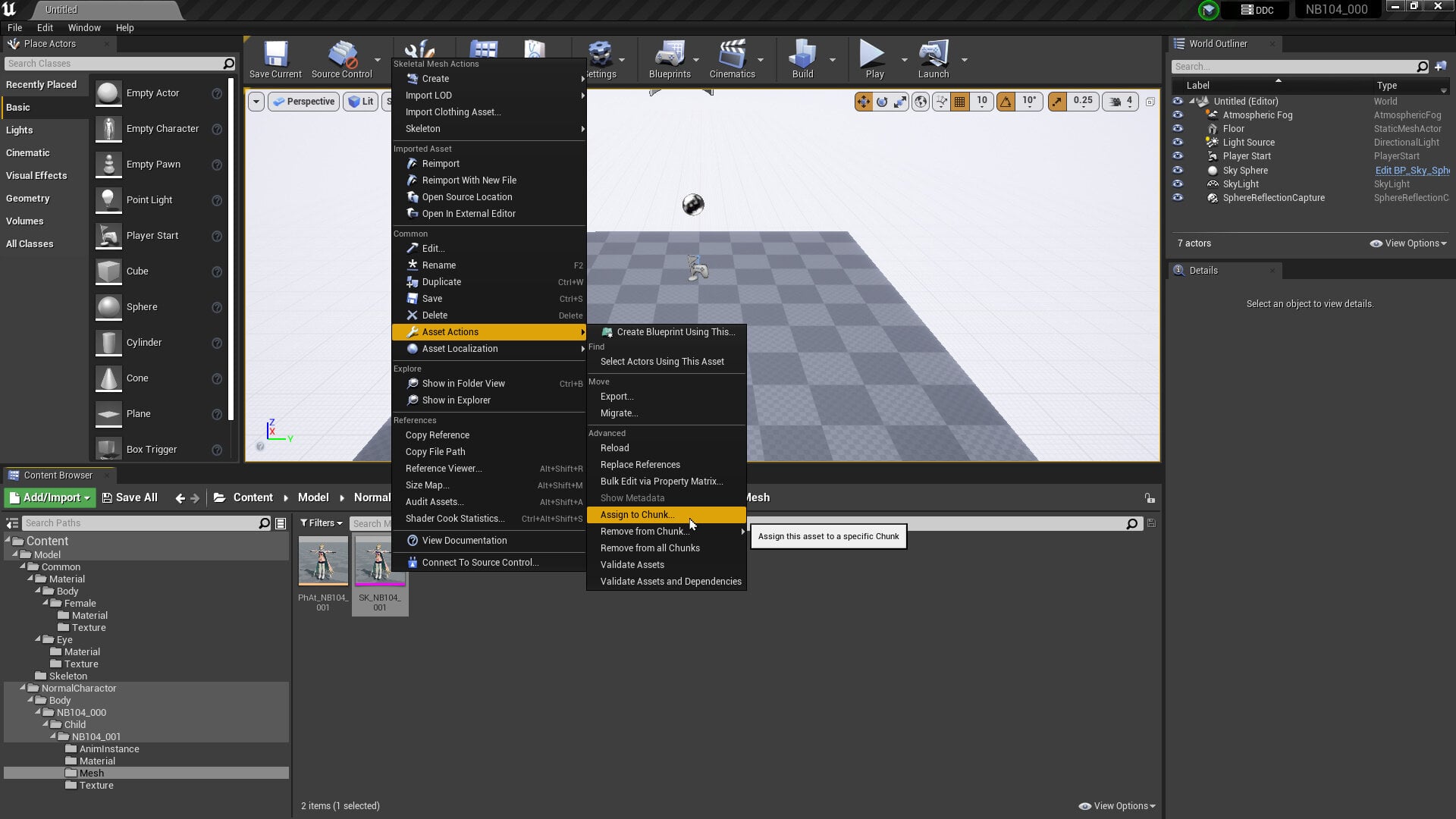

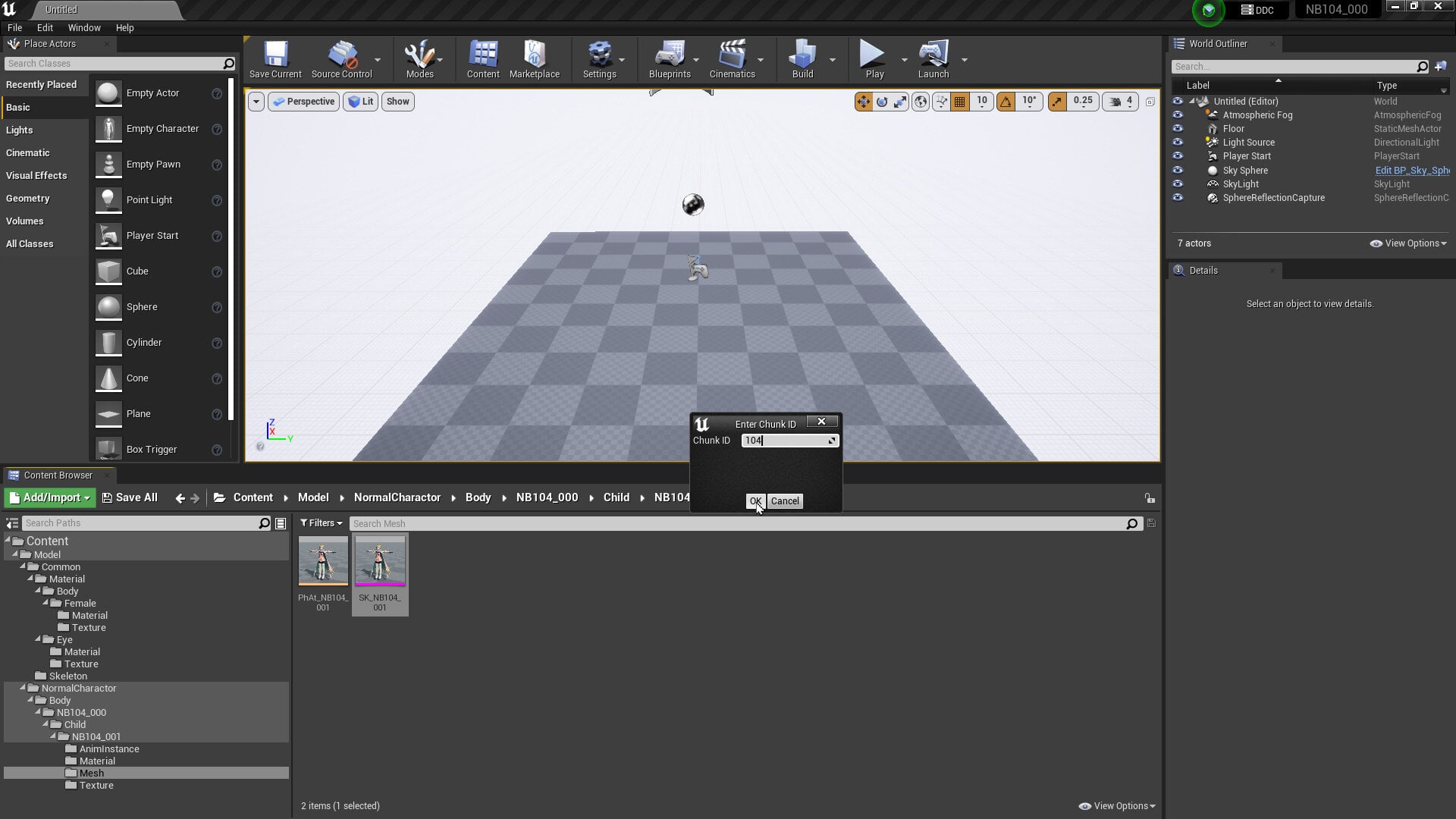

Return to the editor screen, right click on the file to be modded → Asset Action → Assign to Chunk.



Enter the chunk ID you set.
This time, set the chunk ID to SK_NB104_001 for the mesh and T_NB104_001_Hair_BC for the texture.





Export in a file format that can be used in games.

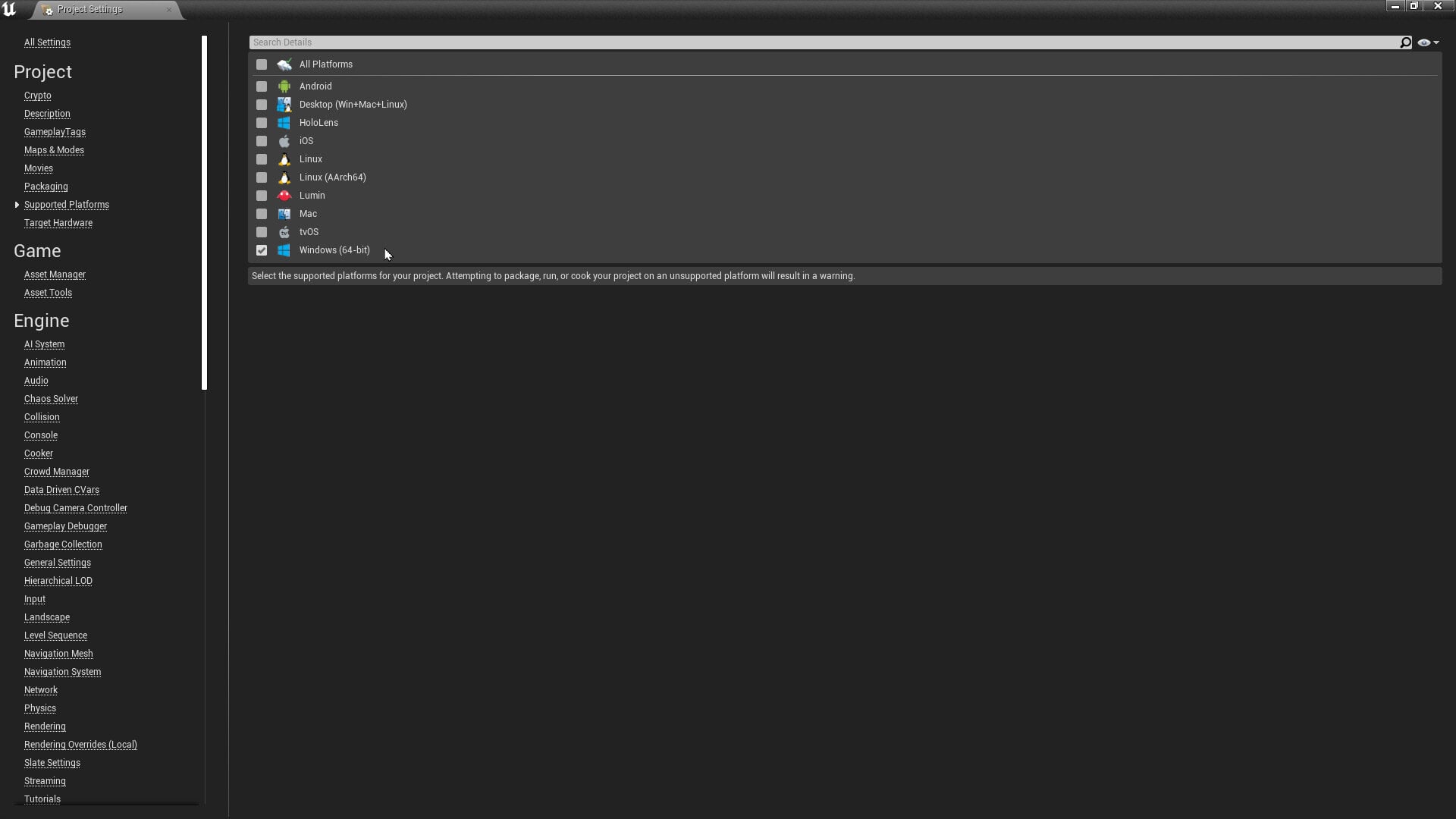

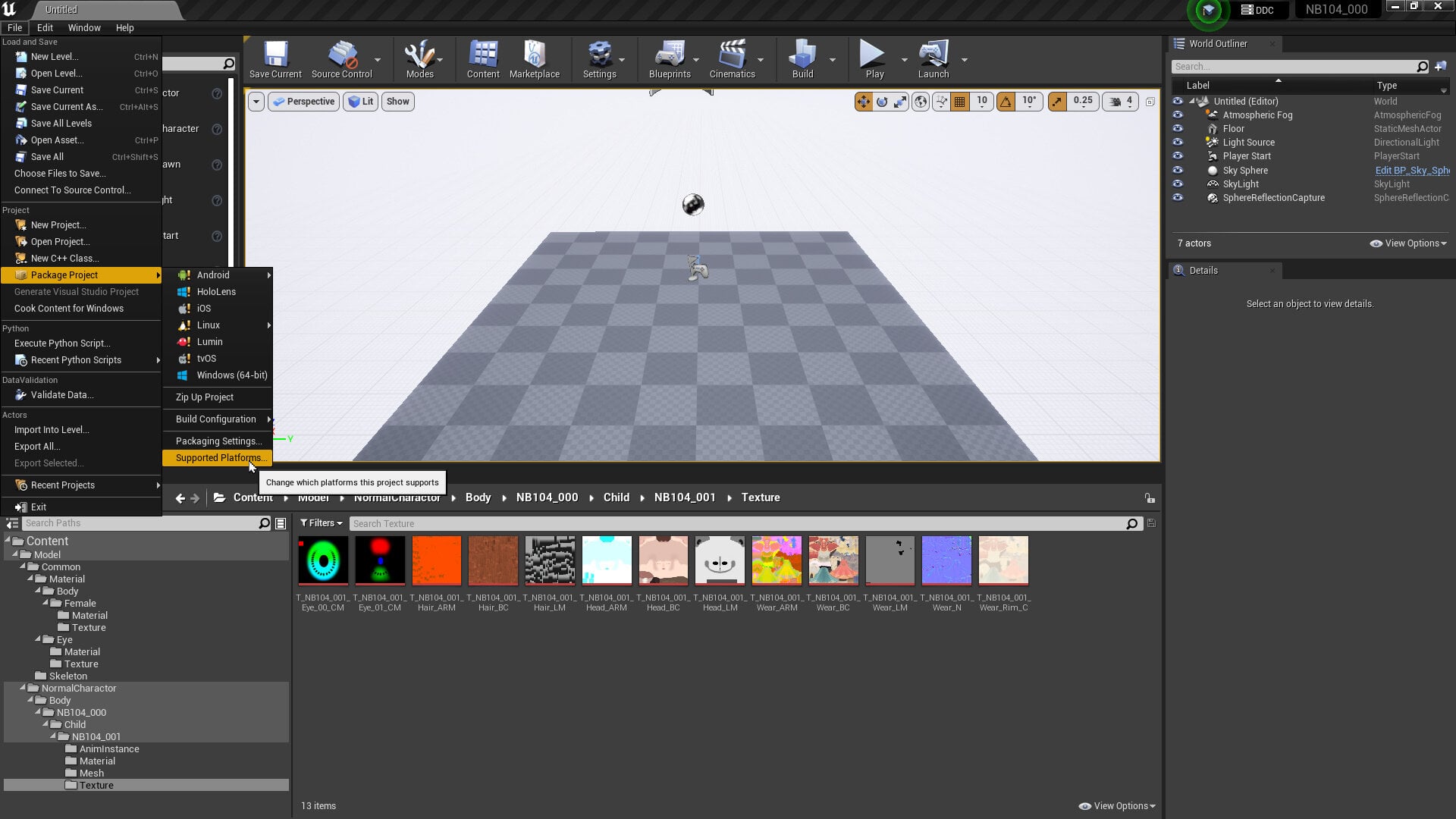

Top menu File→Package Project→Supported Platforms→Check Windows only.



Use the X in the upper right corner to return.





File from top menu→Save All

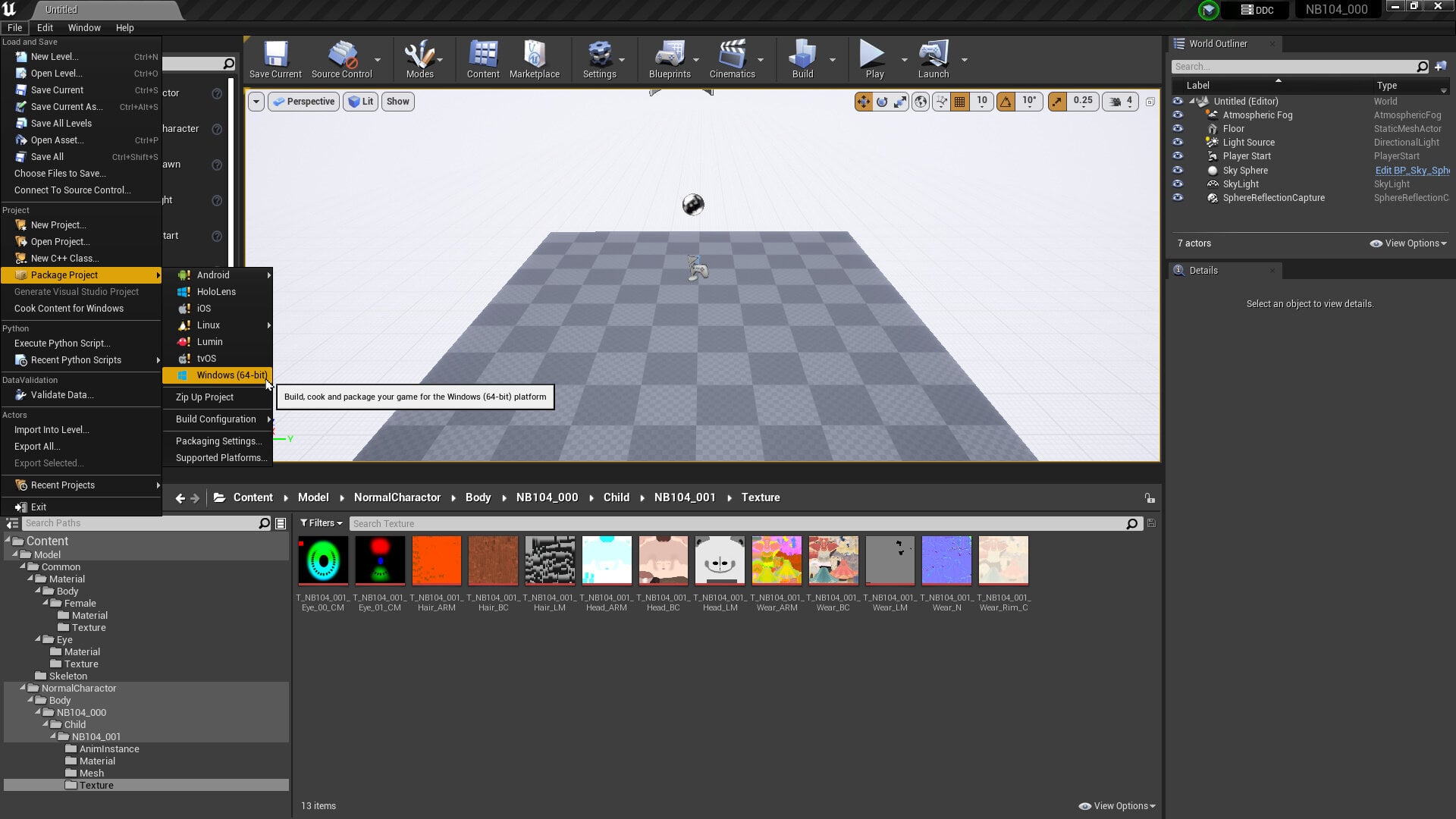

Top menu File→Package Project→windows 64 bit
Specify where to export







Edited December 8, 2024 by oppaiman

[oppaiman]

Confirmation of the created mod

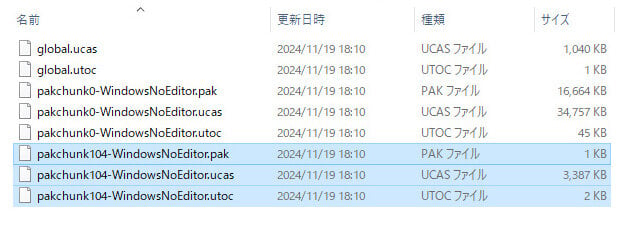

A folder called WindowsNoEditor is created and contains the files used for the mod.
WindowsNoEditor/NB104_000/Content/Paks

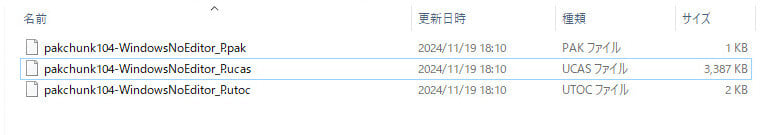

Three files are exported for each.
pakchunk0-WindowsNoEditor
pakchunk××××-WindowsNoEditor (chunk ID you set)



I do not want pakchunk0.
Putting it in the ~mod folder will crash the game.
Put only your pakchunk xxx-WindowsNoEditor in the ~mod folder.







Mod Name Rules

The part of the filename before the extension can be changed.
However, it is necessary to add _P at the back, like XXX_P.ucas.





It cannot be used at the same time as game data or mods created using the same chunkID. The game will crash.
For example, in this case, I set chunk104, so it cannot be used at the same time as other mods made with chunk104.



It is recommended that the mod name be something like pakchunk ID ××××_P.ucas so that you can see the chunkID used,

or write the chunkID used in the readme.

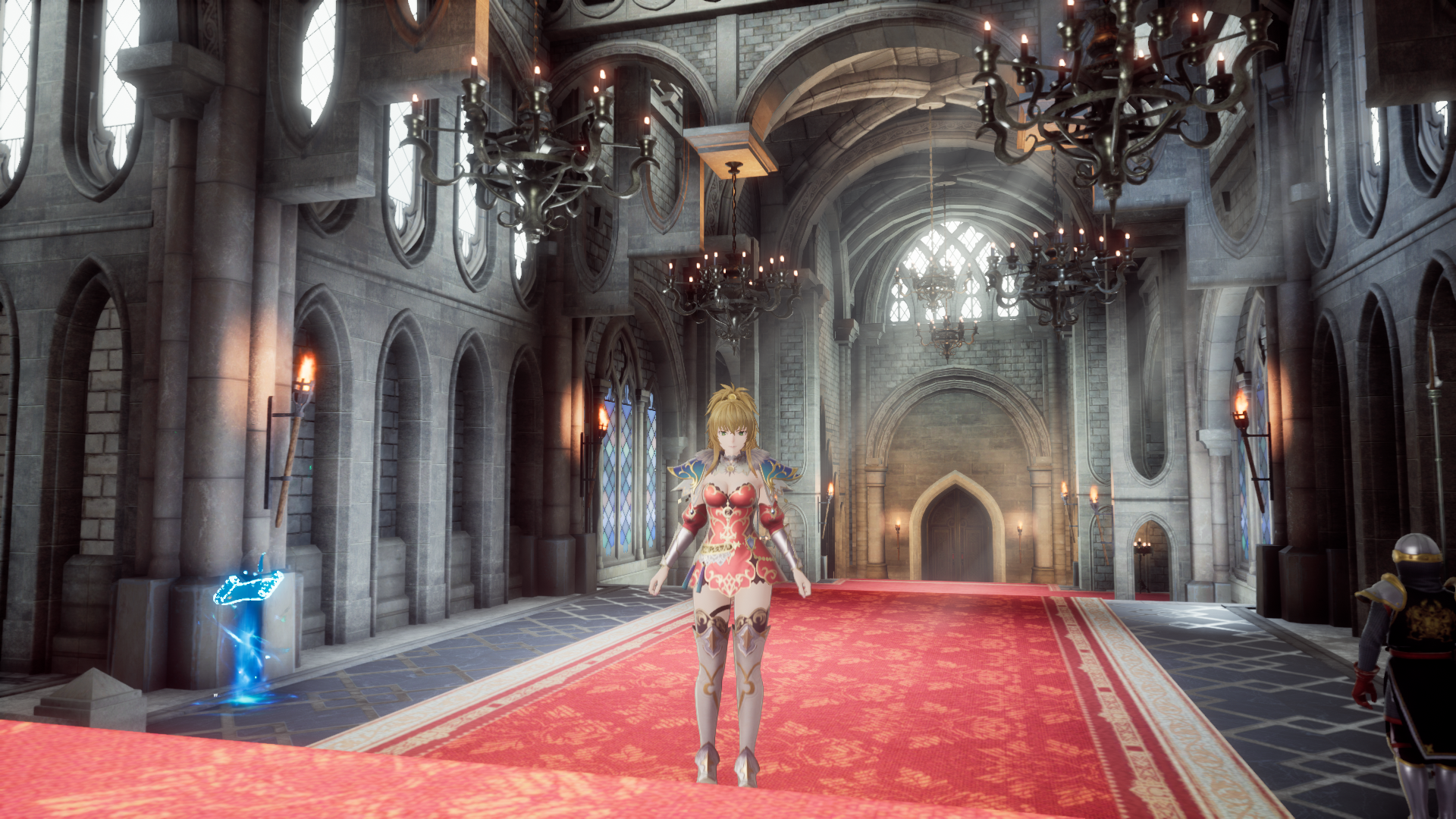

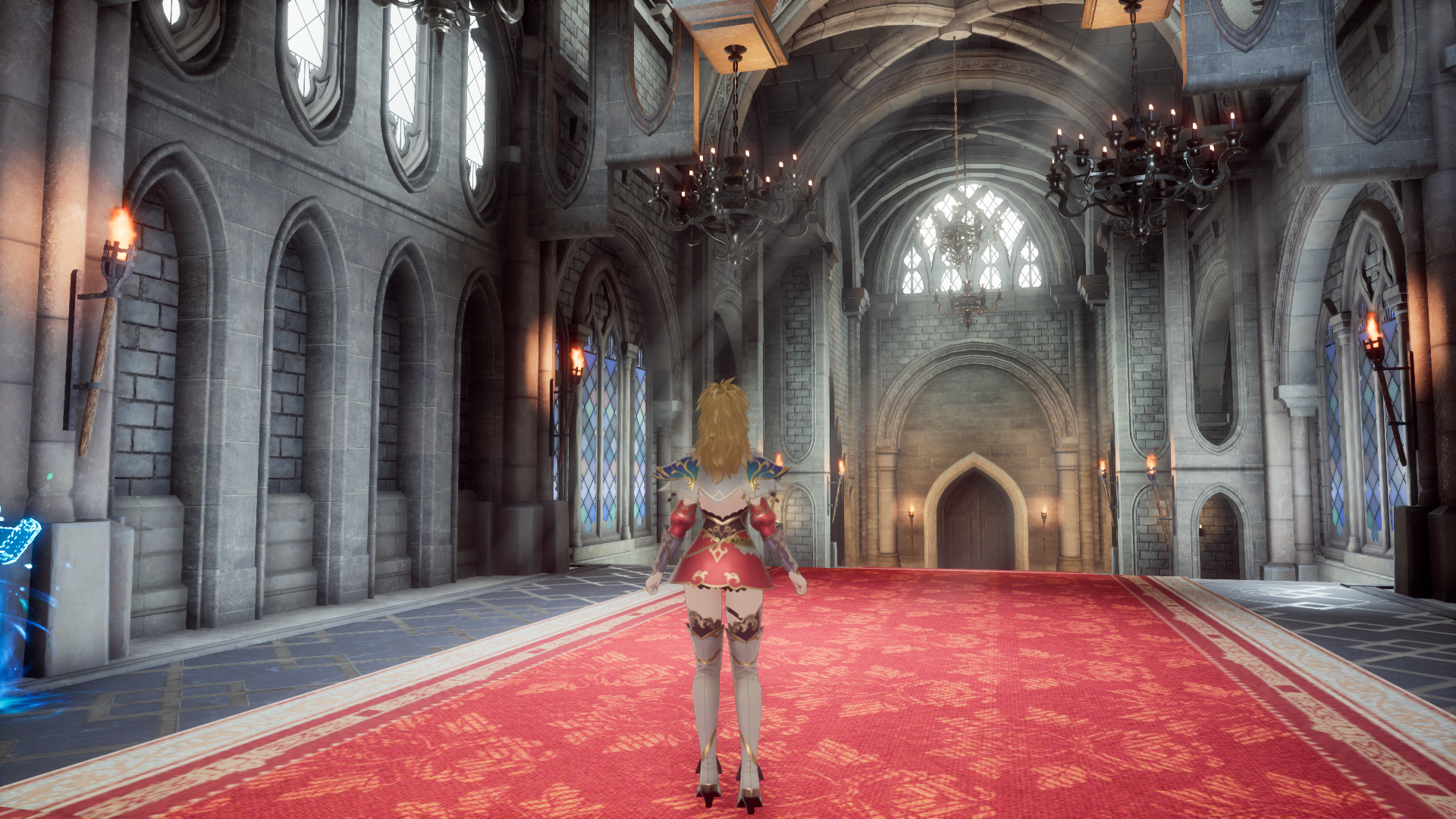

I will start the game and check it out.
I was able to change the hair color, but the mouth and eyes are a little strange.



The settings for importing FBX were wrong.

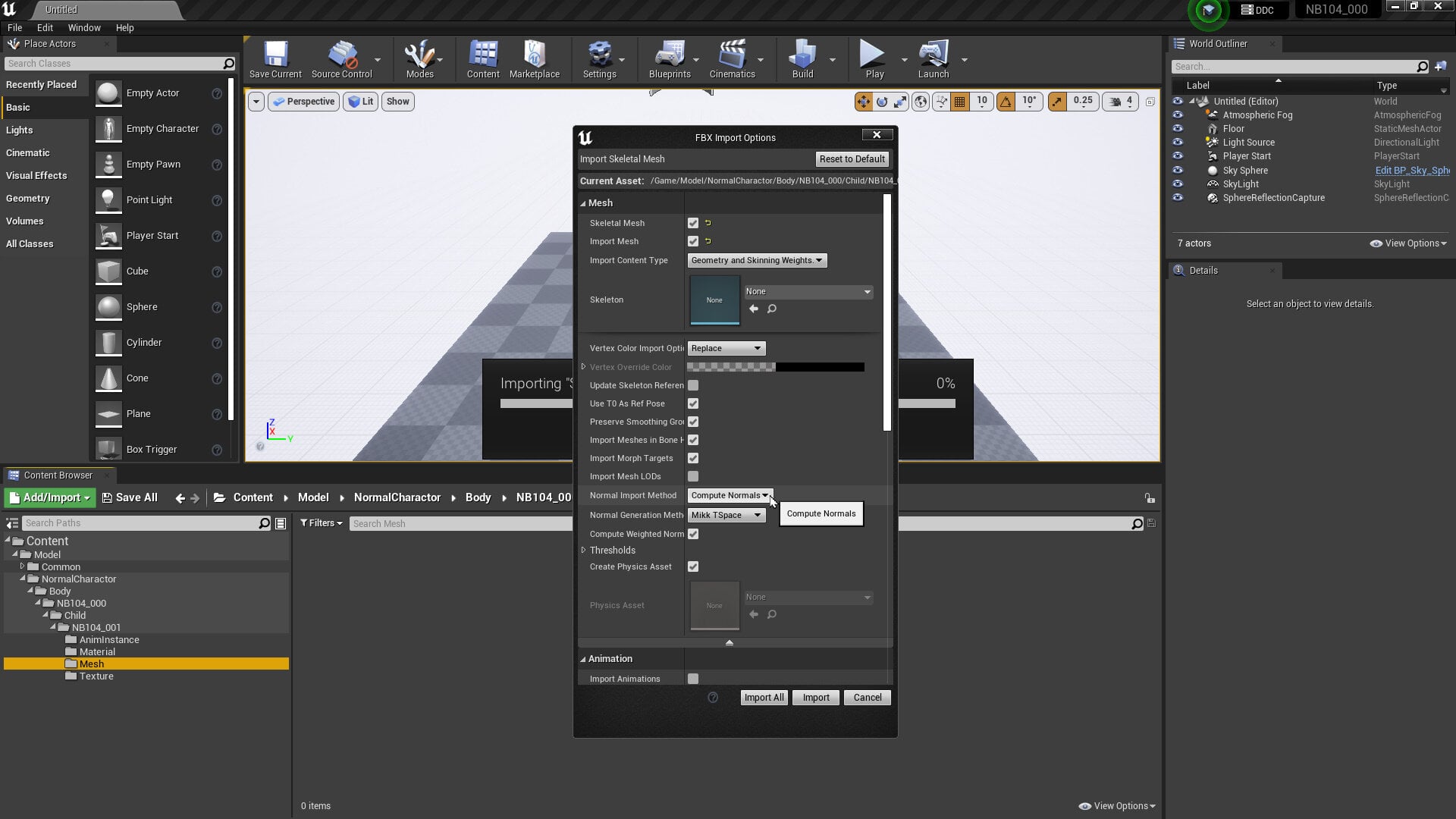

The Normal Import Method pull-down was set to Compute Normals.
Change it to Import Normals.





I will work on it again and check. It is cured.
This time I found the cause right away, but often the cause is unknown.





[oppaiman]

Frequently Asked Questions



Q. I added a mod and checked it in-game, but nothing has changed.

Spoiler

A.First, please make sure you did not forget to add _P at the end of the mod file name.
　Please check that the folder, file name, and location in UE4 are correct while looking at the Fmodel.
　If there is a case mistake or an extra space, the mod will not be recognized.





Q. My model does not change facial expressions.

Spoiler

A.Please make sure that the name of the shape key in Blender is correct.
　It should be a simple name like Facial_Eye_Anger.
　If there are unnecessary characters, it will not work.





Q.The model I made has completely white eyes.

Spoiler

A.Wrong settings when exporting FBX in Blender.
　Vertex Colors: should be Linear.
　Older than Blender 3.3 does not have this setting.





Q. My game crashes when I use a mod I made.

Spoiler

A.There are many possibilities.

• You are using the same chunk ID as the game data or other mods.
• The target of the modification is the same as the other mod (e.g. changing the appearance of the same character).
• The chunk ID is set to an asset other than the asset to be modified.

　　　If you are modifying meshes and textures, you must only set chunk IDs for meshes and textures.

• Unreal Engine 4 asset and mod names cannot contain spaces or symbols. Use underscores instead of spaces.

　　　

　　　Bad example
　　　Texture name BC

　　　Change the color of Final Emperor

　　　

　　　Correct example
　　　Texture_name_BC
　　　Change_the_color_of_FinalEmperor





Q. I want to reduce the number of chunk IDs used.

Spoiler

A. In one UE project, create folders and assets for multiple characters you want to make into a mod, and set the same chunk ID.
　Multiple characters can be made into one mod.





Q. Why use glTF mesh and psk armatures? It is cumbersome.

Spoiler

A. psk mesh has incorrect normals.
　The best results are obtained by using them in combination.





Q. Can I replace the look of a character with another character?

Spoiler

A. Yes. I have never done this, but there are model swap mod.
　They use a common skeleton and animation for many characters.





Q. Can I do an animation swap?

Spoiler

A. I have tried a little, but the orientation of the limbs is messed up, resulting in a non-human creature.
 　It may be possible, but we do not know how to do it at this time. If you know how to do it, please let me know.



Q. If I re-import FBX, do I have to redo the UE4 work?

Spoiler

A. No, there is no need to start over.
You can use your previous settings if you do not need to change them.



Mesh

　Delete before importing FBX.



Skeleton
　In the FBX import options, click on the Skeleton pull-down to select an existing skeleton.

　A new skeleton will be created during FBX import, but you can delete it.



　If you did not specify a skeleton when importing, right-click on the mesh of the character you want to assign

→Skeletal Mesh Action→Skeleton→Assign Skeleton, which will bring up a screen for selecting a skeleton.



　If you have deleted a skeleton, right-click on the skeletal mesh of the character you wish to assign a skeleton to,

　and select Skeleton→Assign Skeleton→ Create Skeleton to create a new skeleton. Just rename the new skeleton to the correct name.



Material
　Double-click on the skeletal mesh (SK) to open the editing window.
　Select the material that was previously textured from the material slot pull-down menu in the upper left corner.



ABP (Anim Blueprint)
　The procedure is the same as in the tutorial.
　Scroll down the menu on the left side of the SK edit screen and select “Anim Blueprint” from the pull-down menu of the Skeletal Mesh  　item.



Physics Asset
　Just below the ABP section is the Physics Asset section. Select the asset named PhAt_NB××××_×× from the pull-down menu.



• If you are reusing assets, delete the assets created during FBX import as they are no longer needed.
• For newly imported or reconfigured assets, re-set the chunk IDs.



It is faster to reuse the previous settings because it is time consuming to start all the UE4 work all over again from the beginning.







Q. Who is your favorite character?

Spoiler

A. It's a dancer, I would be happy if you could make a mod for me.



This concludes the mod tutorial.

Enjoy making mods!



Edited December 8, 2024 by oppaiman

[ararara_001]

Thanks to you I was able to remove the cloak of the final emperor!
Her expression and the colors in the front are in perfect condition.

Thank you!

I'm using DeepL with translation

[_QED]

I am deeply grateful for your assistance in providing such a detailed tutorial.👍

I am eager to create a MOD.

I kindly request that you do not delete this post.

[oppaiman]

I made the tutorial in the hope that more people would make mods,

so I am very happy to hear that you have succeeded in making a mod.



I will write more information that I know when I have more time.

[tatsuming]

Thanks very much for detail manual! One thing I have a question. In UE4 edition, No texture is shown in Material Expression Texture base, Texture pull down. Could you please give your advice? I'm fully following your manual in before steps.

[oppaiman]

Have you imported the textures to UE4 yet?



If not, open the folder with the textures on your PC and drag & drop them to this screen in UE4.



The image shows the folder for textures, but you can import to other folders as well.





[14kw23]

Thank you so much for your detailed explanation.
I will do my best to create my own mods from now on.



By the way, I am familiar with the blender 2.83 environment, and I was editing the mesh while listening to your explanation, but I lost the procedure in the middle of “Step 2: Shape key (facial animation)”.



> Press ▽ on the right edge of the Shape keys window in Object Data Properties.
> Press “Join as Shapes”.



The “Join as Shapes” menu described in “Press ‘Join as Shapes’” does not appear in my environment.
Am I correct in understanding that this means that I am “joining objects”?

[oppaiman]

Please try this.



1. If you are not in object mode, change to object mode.



2. Click on the main object you want to merge the shape key with and make it active.
(It will be glowing.)



3. Turn on the object data properties.

(Green triangle in the lower right corner)



4.In the window to the right of the Object Data Properties, there should be a ShapeKey entry.
If it is not there, drag the top of the window up to make it visible.



5. select Facial_×× first and then SK_NB×× last.
Join as Shape is displayed by pressing the ▽ under + and -.



Reference image URL

https://xxup.org/QA1Y3.gif

[ARKZ9]

すみません、こちらのMODのシティーシーフの下着のテクスチャを変更したいのですが、簡単にやる方法はありますか？

dds形式ならデータを変更することができるのですが。



Excuse me, I would like to change the texture of the underwear of the City Thief in this mod, is there an easy way to do this?
I can change the data if it is in dds format.



https://www.nexusmods.com/romancingsagarevengeoftheseven/mods/4

[tatsuming]

On 2024/11/24 at 午後9時2分, oppaiman said:

テクスチャをUE4にインポートしましたか?



そうでない場合は、PC 上でテクスチャを含むフォルダーを開き、UE4 のこの画面にドラッグ アンド ドロップします。



画像はテクスチャ用のフォルダを示していますが、他のフォルダにインポートすることもできます。







Thanks for your reply. I solved drag & drop the texture directly.

[oppaiman]

28 minutes ago, tatsuming said:

Thanks for your reply. I solved drag & drop the texture directly.

I am glad you were able to resolve this issue.😄



This part of the tutorial may have been a bit poorly explained.

[oppaiman]

4 hours ago, ARKZ9 said:

すみません、こちらのMODのシティーシーフの下着のテクスチャを変更したいのですが、簡単にやる方法はありますか？

dds形式ならデータを変更することができるのですが。



Excuse me, I would like to change the texture of the underwear of the City Thief in this mod, is there an easy way to do this?
I can change the data if it is in dds format.



https://www.nexusmods.com/romancingsagarevengeoftheseven/mods/4



自分はGIMPを使っているのでその操作になりますが、まず変更したい場所以外にマスクをします。
消したい部分を範囲選択して消去するか、消しゴムツールで消せばできます。

ただしPNGなど透過情報を扱える画像形式にする必要があります。

DDS形式にはあまり詳しくないですが、DXTの透過対応しているものにする必要があります。
こんな感じで変更したい部分以外消したら保存してコピーしておきます。



次に上部メニューの色(C)の中の「着色」を選ぶと色というバーが出てくるのでクリックすると色の調節ができます。

色が調節できたら保存して終了します。



I use the GIMP, so this is how I operate it. First, mask the areas other than the area you want to change.
You can do this by selecting the area you want to remove and erasing it, or by using the eraser tool.

However, it must be in an image format that can handle transparent information, such as PNG.
I am not familiar with the DDS format, but it needs to be one that supports DXT transparency.



Next, select “Color” from the “Color (C)” menu in the upper part of the window, and click on the “Color” bar to adjust the color.
Once the color is adjusted, save and exit.







今度は変更したいテクスチャを開いて、ファイル→レイヤーとして開くでさっき作ったマスクを開きます。



Now, open the texture you want to change, and open the mask you just created by choosing File→Open as Layer.





下着のところだけ残してマスクしたので位置調節しなくても下着の部分だけ色が変わります。

上部メニューのレイヤーの中の「下のレイヤーと統合」を選ぶと一枚の画像になるので保存します。



Since we left only the underwear area as a mask, the color will change only in the underwear area without adjusting the position.
Select “Merge with Layer Below” from the “Layers” menu in the upper part of the screen to save the mask as a single image.





UE4でプロジェクトを作って、Fmodelで確認しながらMODと同じフォルダを作ります。
Textureフォルダにさっき作ったテクスチャを入れてチャンクIDを振ってからパックすればOKです。
テクスチャの差し替えオンリーの場合はSkeletonとかMaterialとかは不要です。

今回は色変更で説明しましたが、マスクして変更したい部分に別の画像を貼り付けるとかでもいいと思います。



Create a project in UE4 and create the same folder as the mod while checking with Fmodel.
Put the textures you just created in the Texture folder, assign a chunk ID to it, and pack it.
If you are only replacing textures, you don't need Skeleton or Material.
In this case, I explained how to change the color, but you can also mask the area you want to change and paste another image on the area you want to change.



Edited November 26, 2024 by oppaiman

[ARKZ9]

細かくありがとうございます。
MOD制作初心者なので、また何か聞くかもしれませんが、よろしくお願いします。



実は、このMODの下着が白色ではなくグレー色に見えたのでテクスチャのせいかなと思ったのですが、テクスチャは白色で作られてるみたいですね。この場合は他に原因があるのでしょうか？



Thank you for the detail.
I am new to mod creation, so I may ask something else.



Actually, I thought it might be the texture because the underwear in this mod looked gray-colored instead of white, but it looks like the texture is made of white. Is there any other cause in this case?





Edited November 27, 2024 by ARKZ9

[oppaiman]

9 hours ago, ARKZ9 said:

細かくありがとうございます。
MOD制作初心者なので、また何か聞くかもしれませんが、よろしくお願いします。



実は、このMODの下着が白色ではなくグレー色に見えたのでテクスチャのせいかなと思ったのですが、テクスチャは白色で作られてるみたいですね。この場合は他に原因があるのでしょうか？



Thank you for the detail.
I am new to mod creation, so I may ask something else.



Actually, I thought it might be the texture because the underwear in this mod looked gray-colored instead of white, but it looks like the texture is made of white. Is there any other cause in this case?







MODのテクスチャの下着部分の色を確認してみたところ、
まだ白くする事が可能でした。



MODの下着部分のカラーコード e8ece4 (ほぼ白だけど完全に白ではない)
完全な白 ffffff



確認しやすくするためMODからスカートを削除、完全な白にしたテクスチャで確認してみました。
スカートがないとゲーム内でも真っ白になりました。
スカートがあると少し黒っぽく見えるのはおそらくスカートの影なんだと思います。

なぜか直接画像が貼れないのでスクショのURLです。



https://xxup.org/W2m4k.jpg



I checked the color of the underwear part of the mod texture,It was still possible to make it white.



Mod color code e8ece4 (almost white but not completely white)
Completely white ffffff



Removed the skirt from the mod to make it easier to check,I checked it with a completely white texture.

Without the skirt, it was completely white in the game.
I think it is probably the shadow of the skirt that makes it look a little darker with the skirt.

For some reason I can't paste the image directly, so here is the URL of the screenshot.

Edited November 27, 2024 by oppaiman

[ARKZ9]

おぉ、まだ白く出来ましたか！
検証ありがとうございます！スカートの影は致し方ないですね！



ちなみにですが、自分もゲーム内で観てみたいのですが、こちらのスカート有りの色を変更したバージョンは配布可能ですか？

二次配布はNGですかね？

スカートなどのパーツ消しやパーツ追加は是非、覚えてみたい要素です！



Oh, you could still make it white!
Thanks for the verification! The shadows on the skirt are unavoidable!

By the way, I'd like to see it in the game myself, but is it possible to distribute this version with the skirt and changed colors? Is secondary distribution NG?



I would love to learn how to erase and add parts such as skirts!

[14kw23]

On 11/23/2024 at 12:41 PM, oppaiman said:



Edit 3D models in Blender



Step 1: Import glTF

  Reveal hidden contents

To import psk format files in Blender, you need to install an add-on.
Download and install io_import_scene_unreal_psa_psk_280.zip.
See the link for installation instructions.



https://github.com/matyalatte/blender3d_import_psk_psa





Delete cameras, cubes and lights in the scene collection.
File→Import→glTF.

Select and import all extracted glTFs.
The settings can be left as default.



This may take some time depending on the performance of your computer.
Once import is finished, save the file once before working.







Step 2: Shape key (facial animation)

  Hide contents

SK_NB104_001_Morph000_Facial_xxx is a Shape Key (facial animation).
Edit it so that it moves in the game.



First, select all the humanoid icons named SK_NB104_001_Morph000_Facial_xxx and press Delete.
Do not delete SK_NB104_001.




The human-shaped icons will change to triangular icons.
Press ▷ on the left to expand the tree so that the mesh (green icon) is also visible.





Rename the object.
Press Ctrl+F2. Change to the following settings
All
objects Type:Find/Replace
Type:Find/Replace
Find:SK_NB104_001_Morph
Replace:Blank (do not enter anything)
Press OK.





character SK_NB104_001_Morph will be deleted.





Press Ctrl+F2.
All
objects Type:Strip_Characters
Characters:Digits
Strip From:Start
Press OK.





The first part of the name is deleted.





Press Ctrl+F2.
All
objects Type:Strip_Characters Type:Strip_Characters
Type:Strip_Characters
Characters:Punctuation
Strip From:Start
Press OK.





The underbar at the beginning of the name is removed.





Rename the mesh (green ▼) using the same operation.



Press Ctrl+F2.
All
meshes
Type:Find/Replace
Find:SK_NB104_001_Morph
Replace:Blank (do not enter anything)
Press OK.





Press Ctrl+F2.
All
meshes
Type:Strip_Characters
Characters:Digits
Strip From:Start
Press OK.



Press Ctrl+F2.
All
meshes
Type:Strip_Characters
Characters:Punctuation
Strip From:Start
Press OK.





Delete the remaining dots behind.
All
Press Ctrl+F2.
objects
Type:Find/Replace
Find:.001 (dot 001)
Replace: blank (enter nothing)
Press OK.





Both the object and the mesh will have a simple name like Facial_Eye_Anger.
Check to make sure that the name is correct, otherwise the animation will not work.
If everything is ok, save the file.





Go to object mode and change Blender's property editor to Object Data Properties.
Select all renamed objects while holding down the Shift key.
Finally, hold down the Ctrl key and click on the main object (SK_NB104_001).



Press ▽ on the right edge of the Shape keys window in Object Data Properties.
Press “Join as Shapes”.





The facial data will be merged into the main object's Shape Keys.





The renamed object is no longer needed. Select all of them and delete them.







Step 3: Import psk

  Reveal hidden contents



Use the psk armature and the glTF object, but multiply the glTF size by 100 since they are different sizes.
Click on the glTF armature (SK_NB104_001.001).
S key on the keyboard→100→Enter
The size is multiplied by 100.





Select both the glTF armature (SK_NB104_001.001) and the object (SK_NB104_001) and click on Object in the Blender top menu.
Click on Scale in Apply, and the size multiplied by 100 will be the default.





Delete the glTF armature (SK_NB104_001.001) as you do not need it.





Next, import psk.
File→Import→psk
The default settings can be left as is.





imported psk is automatically renamed as armature.
Delete the psk object (SK_NB104_001.001) as it is not needed.





Drag SK_NB104_001 and drop the cursor at Armature.
The position of SK_NB104_001 will change.





Select SK_NB104_001 → Armature while holding down the Ctrl key, and then
Right click→Parent→Armature Deform.
The glTF object and the psk armature are now combined into one.





Textures can be set either in Blender or in UE4.
I set mine in UE4.

This completes the editing of the model.
Make sure there are no mistakes in the names of the objects and shape keys before saving.





*Attention.
Modifying a mesh that has a shape key (Faishal animation) may break the mesh.
If you modify the mesh, you should not throw away the Blend file before modification.





Export FBX



Press keyboard A to select the armature and object.
File→Export→FBX



Configure as follows
Object Types: Camera and Lamp off
Scale: 1.00
Vertex Colors: Linear
Add Leaf Bones unchecked
Bake Animation unchecked







Choose a location to save the file.
The file name is optional, but I use the character mesh name of the mod I am creating.
In this case, I chose SK_NB104_001.



This is the end of the Blender work.



お答えありがとうございます。

日本語で理解が得られると思えましたので、日本語で書かせてもらいます。

私の環境では下の画像のようなエラーメッセージが出てしまいました。

どこかで処理を間違えたのかもしれません。

一旦モデルデータの変更は持ち越し課題として諦め、テクスチャの変更に移ろうかと思います。

テクスチャの変更だけを行いたい場合、STEP2等の手順は飛ばすことが出来るでしょうか？

[oppaiman]

On 11/27/2024 at 9:24 PM, ARKZ9 said:

おぉ、まだ白く出来ましたか！
検証ありがとうございます！スカートの影は致し方ないですね！



ちなみにですが、自分もゲーム内で観てみたいのですが、こちらのスカート有りの色を変更したバージョンは配布可能ですか？

二次配布はNGですかね？

スカートなどのパーツ消しやパーツ追加は是非、覚えてみたい要素です！



Oh, you could still make it white!
Thanks for the verification! The shadows on the skirt are unavoidable!

By the way, I'd like to see it in the game myself, but is it possible to distribute this version with the skirt and changed colors? Is secondary distribution NG?



I would love to learn how to erase and add parts such as skirts!



MODの二次配布はできないですね。
元々ないものを追加するのは難しいですけど、削除するだけなら簡単ですよ。



∼modフォルダにMODが入ってる状態でUmodelを起動して、Pakではなく∼modフォルダの場所を指定します。
MODのメッシュとかテクスチャを取り出せるのでBlenderの作業をします。
(シェイプキーの統合、glTFのメッシュとPSKのアーマチュアをひとつに)



左上が編集モードになってない場合はクリックして編集モードにします。
削除する頂点(ポリゴン)を選択していきます。
削除したい場所をShiftキーを押しながら左クリックします。
選択状態になっている場所は光ります。
間違えた場合は同じ操作をすれば光が消えます



スカートの部分を地道に選択していくのは大変なので簡単なやり方があります。
オブジェクトデータプロパティ(右下のアイコンが縦にたくさん並んでるところの下から3番目の緑の三角のアイコン)
を開くと頂点グループがあります。

名前にSkirtとついているグループをクリックしてすぐ下の選択を押します。
スカートの一部が選択状態になるので名前にSkirtとついているグループ全て選択します。
Deleteキー→頂点を削除で選択した場所をまとめて削除できます。

選択方法はいろいろあるので興味があれば検索してみてください。



動画にしてみました

https://xxup.org/U5sGY.mp4



Edited November 28, 2024 by oppaiman

[oppaiman]

23 hours ago, 14kw23 said:

お答えありがとうございます。

日本語で理解が得られると思えましたので、日本語で書かせてもらいます。

私の環境では下の画像のようなエラーメッセージが出てしまいました。

どこかで処理を間違えたのかもしれません。

一旦モデルデータの変更は持ち越し課題として諦め、テクスチャの変更に移ろうかと思います。

テクスチャの変更だけを行いたい場合、STEP2等の手順は飛ばすことが出来るでしょうか？





この作業をしないとゲーム内でキャラクターが目を瞑ったまま表情が変わらなくなってしまいます。



画像のヒトデみたいなアイコンはSK_NB032_001.001以外全て選択した状態でDeleteキーを押して削除してください。
削除するとヒトデのアイコンが▽に変わります。

その▽のアイコンをリネームしてください。
リネームが終わったら、リネームした▽Facial_×××_×××を全て選択、
最後に▽SK_NB032_001を選択してシェイプキーの統合を押すとエラーにならずにできると思います。



動画
https://xxup.org/vRgNB.mp4



Edited November 28, 2024 by oppaiman

[oppaiman]

Range of chunk IDs that can be used in this game.

Packing with a chunk ID of 10000 will create a file with chunk 300.
The maximum number of chunks that can be used seems to be 300.
Since chunk 0 is used in the default game and 1 will probably be used if there is an update, it is a good idea to set chunk IDs between 2 and 300.



このゲームで使えるチャンクIDの範囲

チャンクIDに10000を設定してパックすると、チャンク300のファイルが作られます。
使えるチャンクの最大値は300のようです。
チャンク0はデフォルトゲームで使われていて、アップデートがあった場合はおそらく1が使われるので、チャンクIDは2～300を設定するのがいいでしょう。
