Worse with "Hook 5 Paid"?

[OysterMug]

I recently installed the paid version of Hook 5 and immediately started doing some "before & after" comparison tests. I'm actually getting worse results (incorrect lighting) with "Hook 5 Paid" than I did with trusty old "Hook 5 Free" (or even OpenGL.)



I tried reusing the exact same "main11.fx" file, but it made no difference. Exact same room should not have different/worse lighting. This is particularly concerning as I don't want any AM/LevDef files I share to produce bad/different results simply because the user has the Free or Paid version of H5.



Anyone else notice such issues? Is there a "fix"?



[Foster66]

I just installed paid version too and after messing with settings in "F4" menu, where you can add your own light sources, it seems to be on the same level as a free version. That said I didnt really mess with the main file of free version to begin with.



[OysterMug]

Things is, for the past few weeks, I've been hard at work making a "Hook 4 Level Definition to H5 Converter" (just the LevDef, no objects) and it was coming along nicely. But now, it discovery that H5$ may produce totally different (worse even) results kinda throws a wrench in the works.

[RidSol]

From the beginning I used the paid H5 version for the PC and the free version only for my laptop. And whenever I used rooms or skins from one system on the other, I had to change the settings.



That's not the fault of H5$ but the minimalism of the free version.



The settings in H5$, on the other hand, can be easily changed via the GUI - I wouldn't want to miss it ?





[Foster66]

10 hours ago, OysterMug said:

Things is, for the past few weeks, I've been hard at work making a "Hook 4 Level Definition to H5 Converter" (just the LevDef, no objects) and it was coming along nicely. But now, it discovery that H5$ may produce totally different (worse even) results kinda throws a wrench in the works.

So did you tried playing with settings in the in-game hook5 menu ? Maybe you can get the results you want by changing the exposure of the light or tunning shadows

[pes1972]

Hook 5 paid is of course best option if you don´t have a really bad pre 2010 pc. It just have more options to configure and you have to put some time into it first few times you use it. Tired of those people not wanting to pay 1$ once to get paid version and instead they try to tell people basic version is just as good or even better?? Of course paid version with all it´s added features is better in every way, you just need to learn how to use it.

[RidSol]

The choice of the envmap is important in order to define the basic mood in the room first of all. A user uploaded a bunch of envmaps to MG some time ago (sorry I forgot the name) You can quickly select them in the GUI and try out the mood. I have uploaded them and they are available at -



MEGA zipped 755 mb, unzipped 2.8 gb



And don't forget to check the colors, positions and angles of the spots...

[OysterMug]

(I'm back online.)



A lot of users never tweak their "Main11.fx" file (they should), but I look at everything from the standpoint of being able to share my work and have it look right for other users.



If H5 users must "tweak" it... which they don't do... just to get the same results, then they are going to get garbage.

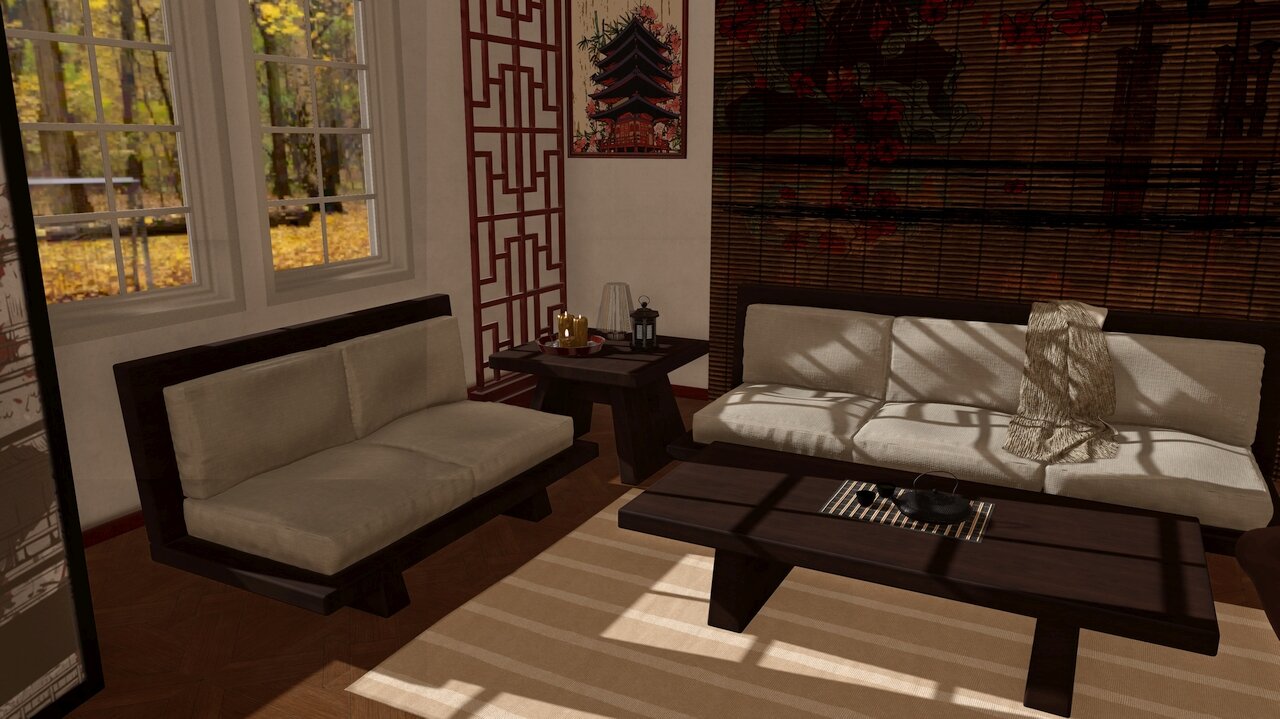

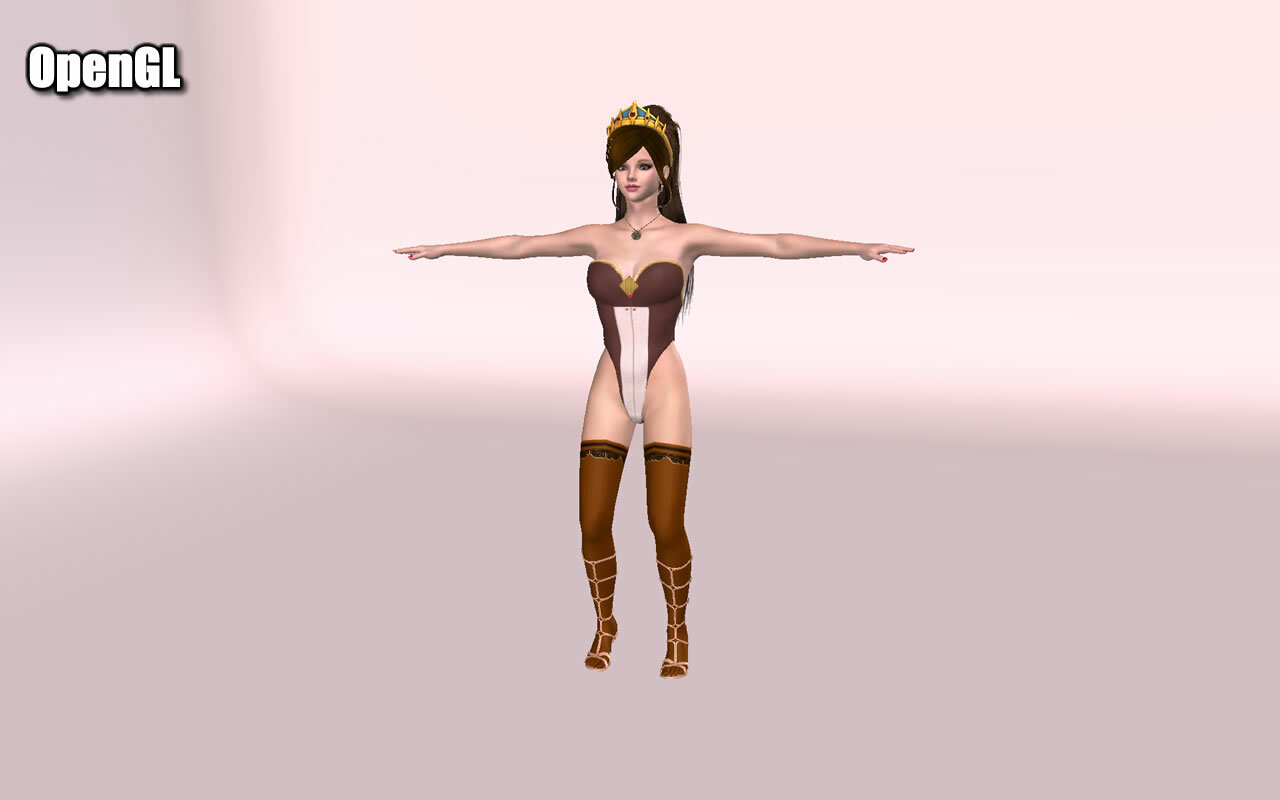

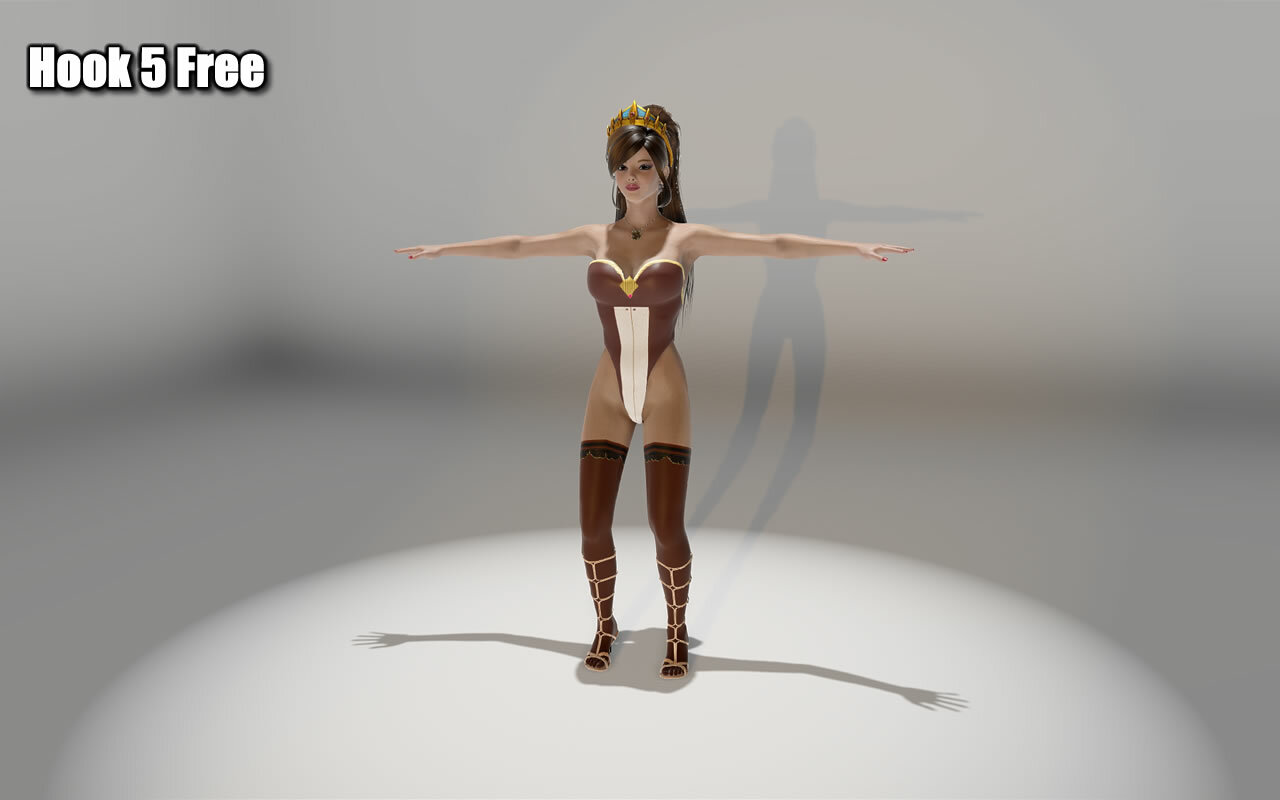

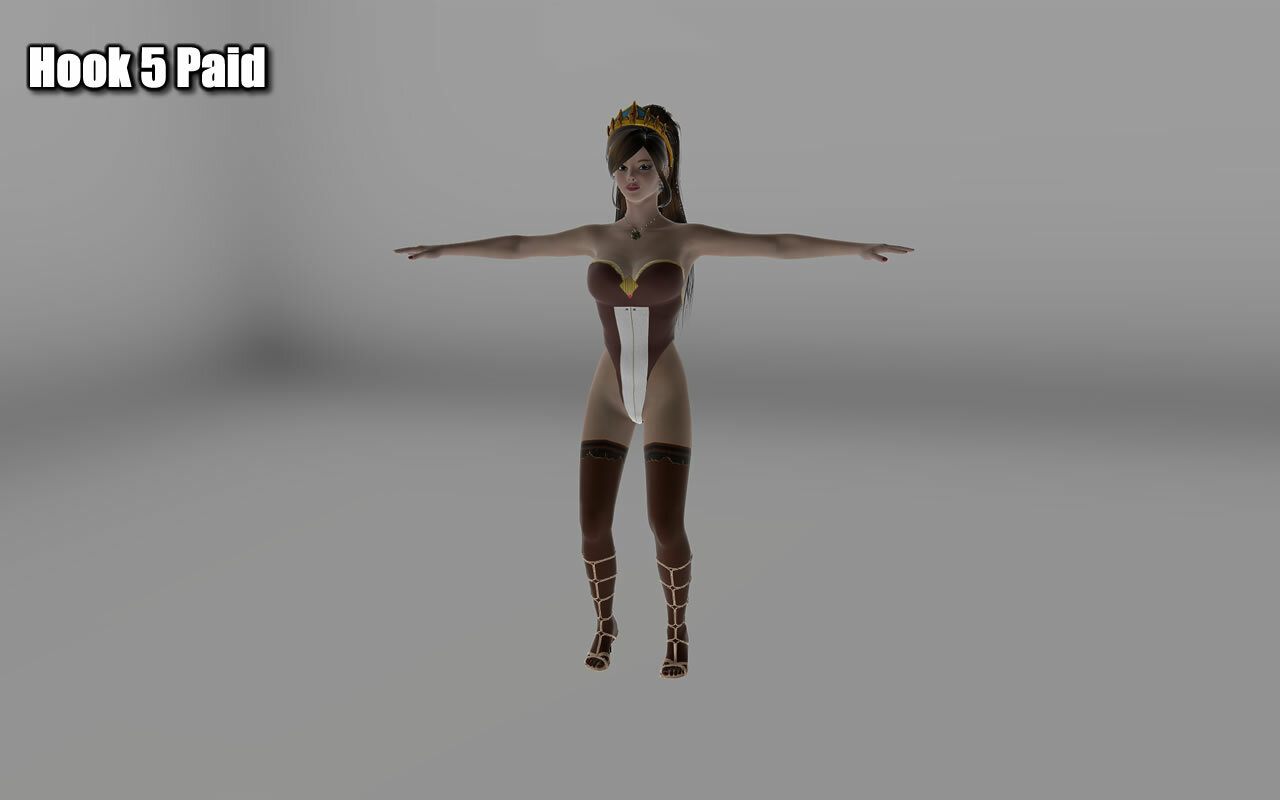

A few more tests. Same room. Exact same "main11.fx" file. Only difference is H5Free vs H5$ installed (also tried with stock & tweaked H5$ main11.fx files). Results should be the same (or better with H5$.) They're not. Not good.

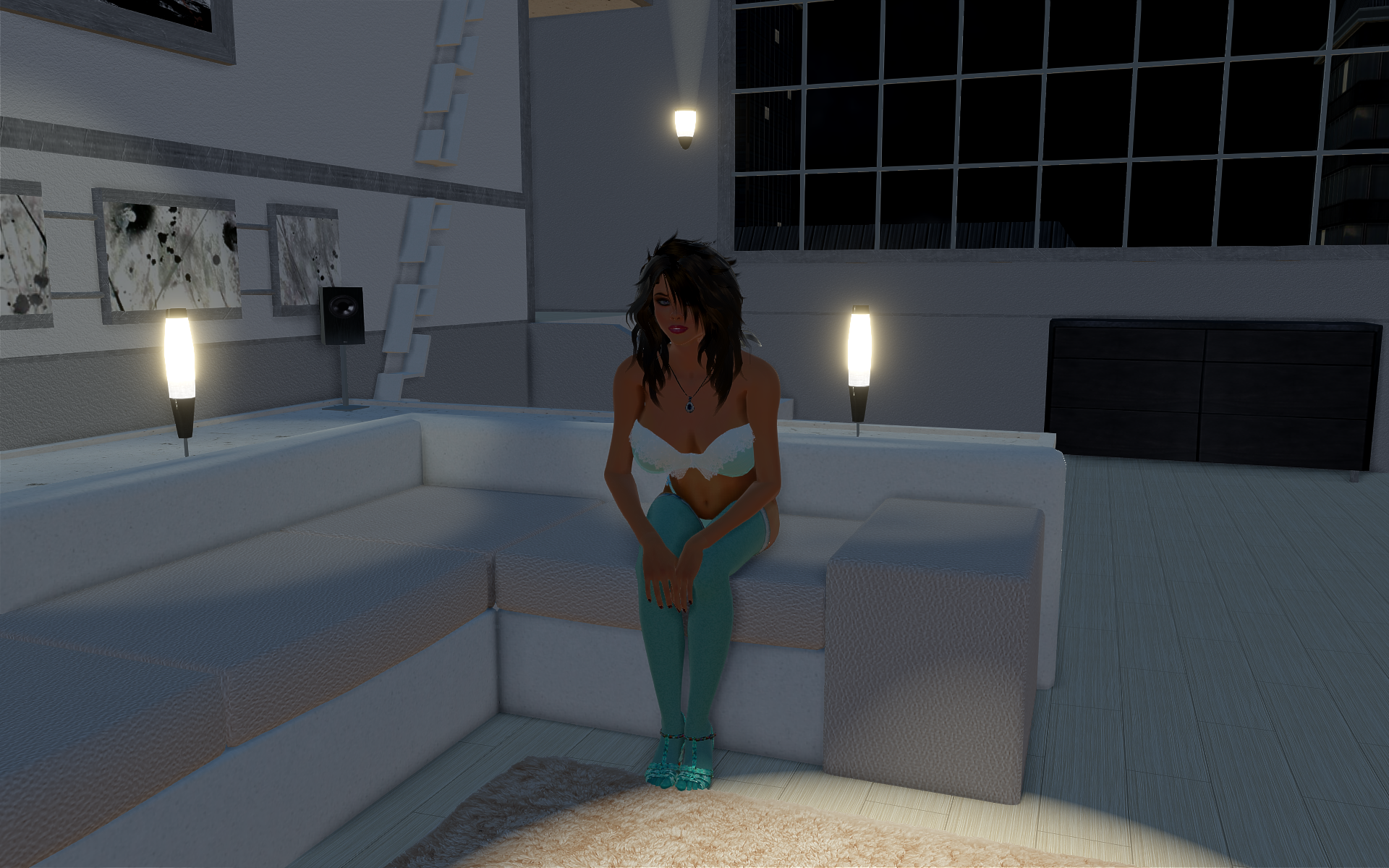

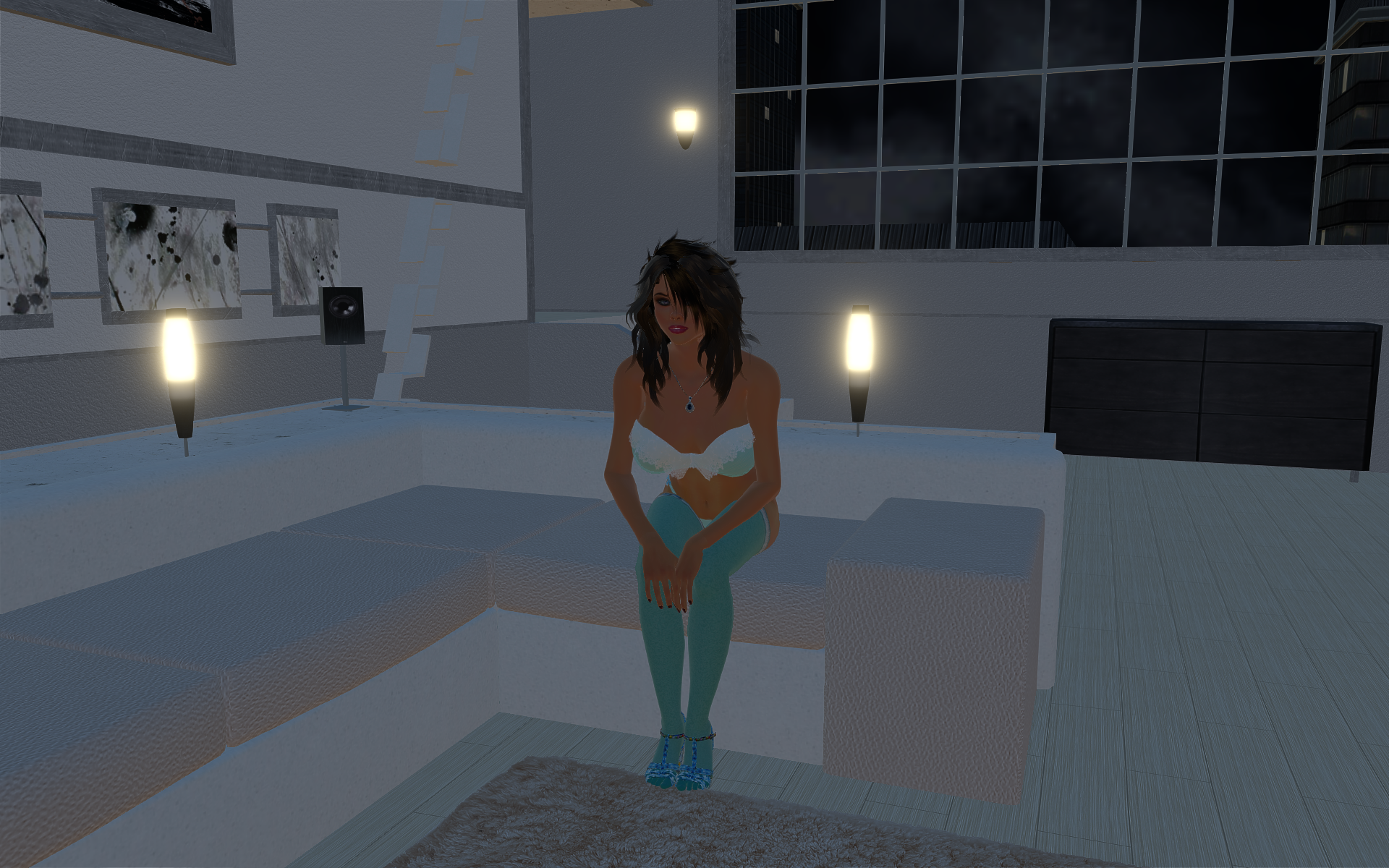

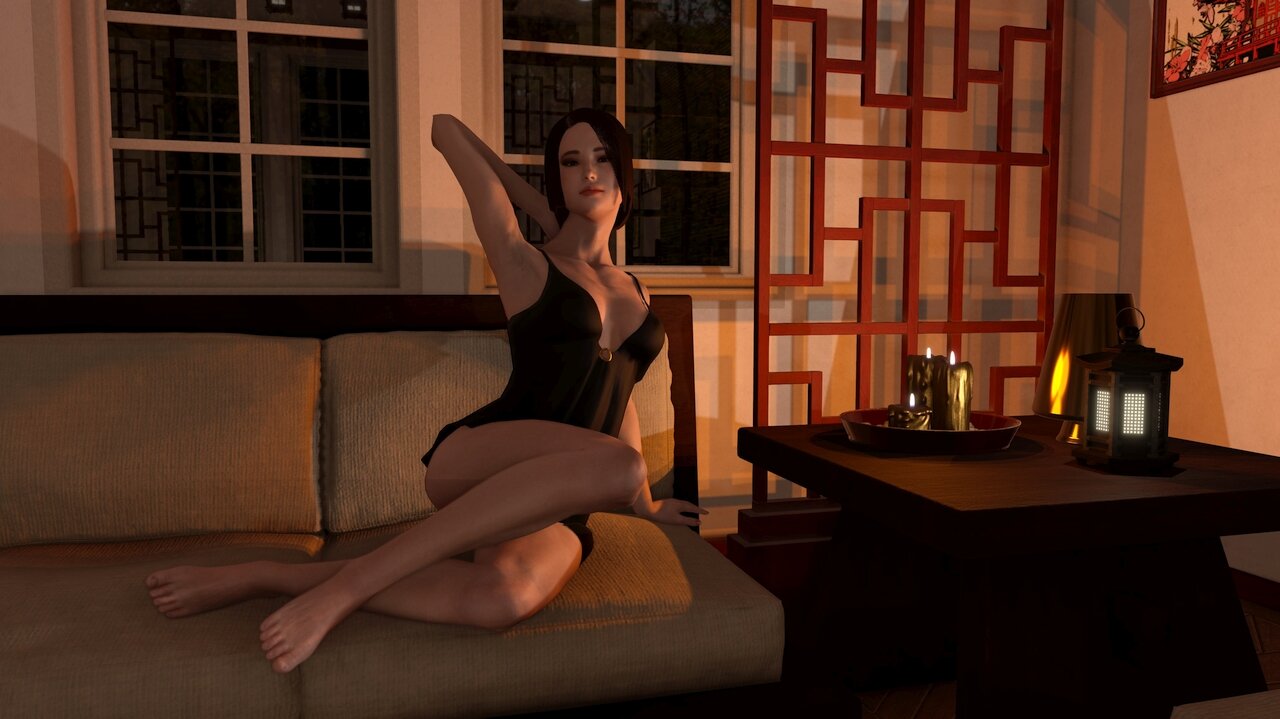

Already posted examples above. Here are two more. My "Loft at Night" (free vs Paid.) Notice the missing overhead light and lack of beam/flame on wall light. Free produces much better results. If H5$ can be tweaked to match, great. But how many H5$ users are even aware they are missing something?

Edited January 25, 2022 by OysterMug

[Daspex]

This is the reason why i dont use hook5.For every room the main fx must be altered in my opinion and this is simply too much work to me.Also after some time is gone,the game crashes to desktop with paid and free version.Also to create the pass files is

very time intensive.For making hd screenshots and comix this may be ok but for creating sequences hook5 is an absolutely no go from what ive experienced.



I mostly use OpenGL mode with reshade and some fx shaders .And exept of shaddows it can make a scene looking very good.Just installing hook

for better graphics is not needed in my opinion only if you want to have

hook objects and other stuff it makes sense  but thats not for me.



[RidSol]

I don't think the main.fx settings make such a big difference. They can be set right away in the GUI and you can see the result directly. I always use the same main.fx in most rooms and only occasionally change something to try it out. And the lighting of Oystermug's rooms are set in the room's _pass-file...



But what I have noticed is that you can have written a _pass-file as carefully as possible, e.g. for body textures, and they are not correctly adopted by the GUI. You have to insert them by hand and it still takes just 5 minutes. With some handwritten settings of lighting as well...



Attached is the main.fx I needed for Fight Club - as can be seen in the screenshots. Maybe it will help... And a little video. You can easily use h5m objects and create spots, move them, rotate them by holding the shift key. With the F2/F3 key, the room can be viewed in 3D or the overlaps of the other light sources...



main11.fx

[Daspex]

39 minutes ago, RidSol said:

I don't think the main.fx settings make such a big difference. They can be set right away in the GUI and you can see the result directly. I always use the same main.fx in most rooms and only occasionally change something to try it out. And the lighting of Oystermug's rooms are set in the room's _pass-file...



But what I have noticed is that you can have written a _pass-file as carefully as possible, e.g. for body textures, and they are not correctly adopted by the GUI. You have to insert them by hand and it still takes just 5 minutes. With some handwritten settings of lighting as well...



Attached is the main.fx I needed for Fight Club - as can be seen in the screenshots. Maybe it will help... And a little video. You can easily use h5m objects and create spots, move them, rotate them by holding the shift key. With the F2/F3 key, the room can be viewed in 3D or the overlaps of the other light sources...



main11.fx 7.05 kB · 0 downloads

Yeah, i know that h5 has a lot of features and im not against it but to me it takes a lot of extra time to learn how to use it and needs probably a lot of ram which i havent yet

But i agree that it is a usefull graphical extension if you have enough memory and knowledge.Also the scene extractor is a very useful function.



[OysterMug]

6 hours ago, RidSol said:

I don't think the main.fx settings make such a big difference.



Tweaking the Main11.fx file can make a tremendous difference. I can provide some examples if you are interested.



But the main point is that I don't know what's missing from the H5$ Main11.fx file to suppress the overhead lamp shown in the photo, and even if it can be fixed by tweaking the Main11.fx file, most users don't (or even bother to.)

Edited January 26, 2022 by OysterMug

[Titanoboa Serpentes]

@OysterMug



Hi, from my experience, hook5 paid doesn't work like hook5 free. There has been a lot more updates and changes to hook5 paid than to hook5 free. You can set almost all the "engine" settings in the main.fx file. If you open up the hook5 menu with F4, the settings under Graphics are all saved within the main.fx file. Some default room settings like [customizer_environment] for the Customizer and [default_room_environment] for the initial room that you load in VX are saved in that file. All other room settings have to be made in the _level_definition.txt file. You can use more than one setting text file by simply adding them to the [include] section in the _level_definiton.txt. Your _level_definition.txt has to include the basic settings for the room, or at lest point to a settings text file that has these settings in the [include] section. Something like this:



[environment]

cubemap =
cubecenter = 0.490000, 1.500000, 3.000000
cubesize = 17.500000, 4.000000, 14.700016
cubecolor = 102, 0, 255, 255
parallax_correction = true
cubesource_angle = 0.000000
cubesource_scale = 1.000000
cubesource_curve = 1.200000
cubesource_saturation = 1.000000
ambient_color = 255, 255, 251
ambient_intensity = 2.000000
lightmaps_enable = false
lightmaps_scale = 1.000000
no_lightmaps_in_cubemap = false
no_level_shadows = false
sky_intensity = 0.700000
hdr_exposure = 1.100000
hdr_bloom_clamp = 1.000000
hdr_bloom_amount = 0.500000
glow_scale = 0.010000
glow_cubemap_scale = 1.000000
glow_softness = 0.750000
saturation_scale = 1.000000
skybox_enable = true
skybox_cubemap =_hook5data\envmaps\kloofendal.dds
skybox_angle = 0.000000
skybox_curve = 5.000000
skybox_saturation = 3.500000
sky_glow = 1.000000
fog_base_level = -1.000000
fog_density = 0.000100
fog_height_density_fallof = 0.000100
fog_sun_scattering_amount = 0.001000
fog_sun_halo_amount = 0.010000
fog_sun_halo_spread = 0.100000
fog_affect_sun = 0.500000
fog_color = 84, 147, 200
wind_dir = 0.000000, 0.000000, 0.000000
wind_strength = 0.000000
wind_noise = 0.000000

LUTEnbale = false
LUTTexture =
LUTTilesSize = 16
LUTTilesAmount = 16
LUTChromaAmount = 0.000000
LUTLumaAmount = 0.000000

as_background = 0

HDRFuncVars_A = 4.700000
HDRFuncVars_B = 0.500000
HDRFuncVars_C = 1.900000
HDRFuncVars_D = 0.050000
EnvDiffuseScale = 1.100000
EnvSpecularScale = 1.000000



[sun_light]

type                 = sunlight
enable                 = true
rotation             = -129, -54, 50
color                 = 255, 255, 251
intensity             = 2.500000
shadow_param         = 10.000000, 200.000000
game_control         = false

sunrays_enable = true
sunrays_check_distance = 20
sunrays_step_size = 0.100000
sunrays_density = 0.000200

shadow_enable = true

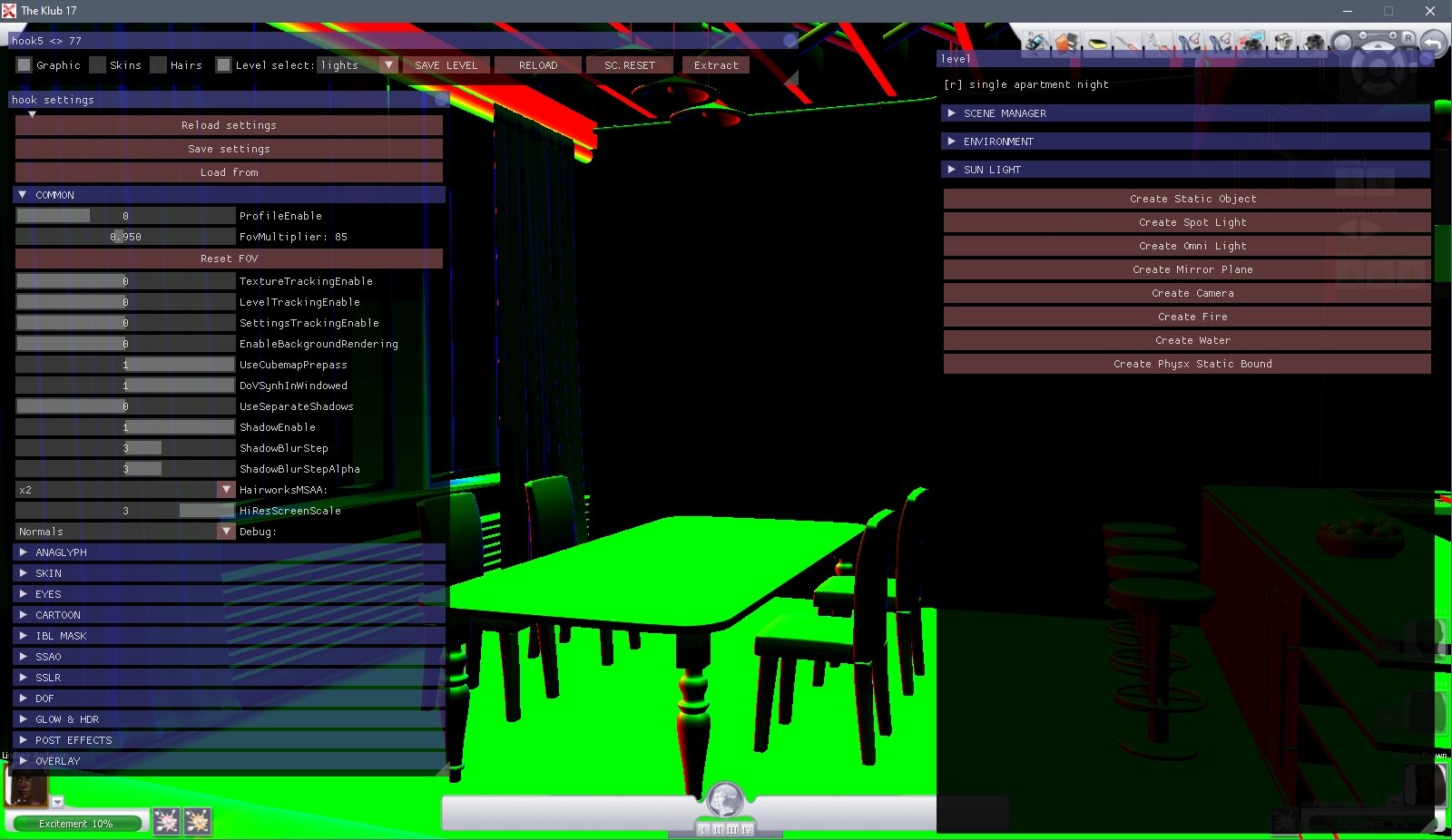

If you open up the ingame hook5 menu, the button level select opens exactly this file, and you can start to edit it to your liking. The spot and omnilights that are missing in your screenshot have to be manually created, like in RidSol's post. You simply have more freedom with hook5paid to light your rooms and more effects, but it comes with a lot of tweaking and editing.

The spotlights and omnilights have different parameters, but the most critical is the shadow bias value. Correctly set, it eliminates the shadow banding/ stripes that might appear on characters and objects. Another thing that strikes me by looking at your pictures is that you have to enable ambient occlusion in the Graphics menu.



I hope that helps.



[OysterMug]

Thanks. I eventually was able to improve my results by extensively tweaking the "main11.fx" file so my LevDefs produce results very close to what I was getting before, but it took some work. Most notably though, I get A LOT of "flickering" of lights/textures with H5U (Unlocked) than I did with H5F (Free.)



And to think there are MANY users who have never even touched their "main11.fx" file. ?‍♂️

[Titanoboa Serpentes]

@OysterMug Don't mention it. The flickering might have to do with your iShadowPoolCount = value in the main.fx file. If I remember correctly, the omnilights use six shadow targets and the spotlight uses one. So your iShadowPoolCount has to match that value. I first set up all the lighting in the room and then selectively switch on and off those lights that are not used for the camera view. In that way, I can use multiple light settings for different shots. If I want to have a realistic light setup, I put the omnilights or spots in different locations of the 'real' lamps that are in the scene. If you use the sunlight in any of your scenes/ rooms, you can adjust the split value at which the sunshadows are rendered. Another reason for flickering textures might be that the _pass.txt files for the textures are not setup correctly. Try to experiment with the cull_mode = value. Ranges from 0 to 4. 0 Draw all polygons. 1 polygons directed towards camera. 2 polygons directed away from camera. 3 first polygons directed to camera, then polygons turned away from camera. 4 opposite form 3. 3 is used for objects without alpha blending, whereas 4 is used with alpha blending.

Something that might also cause flickering is z-fighting.

Here are some examples from different rooms I've been modding:

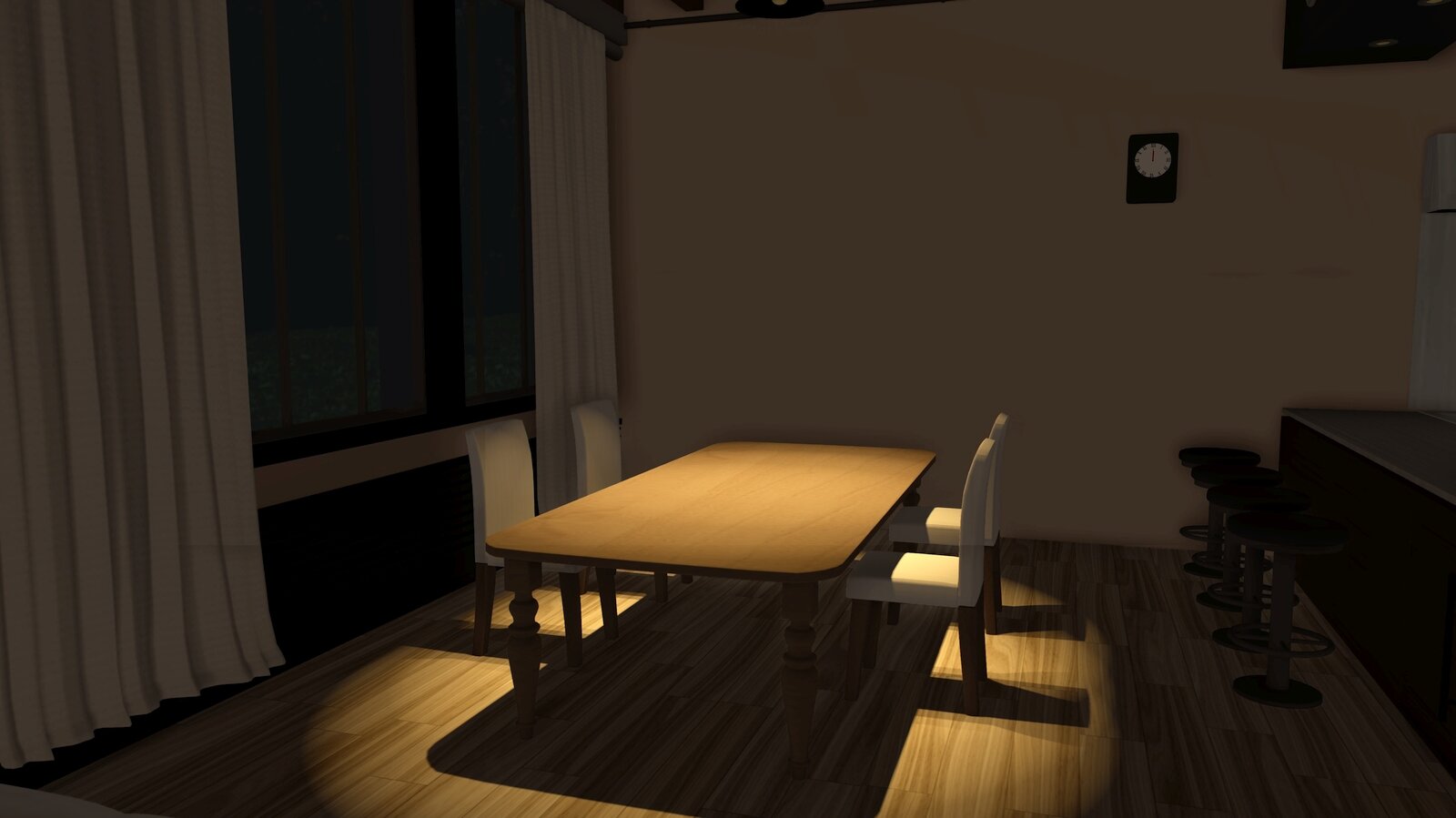

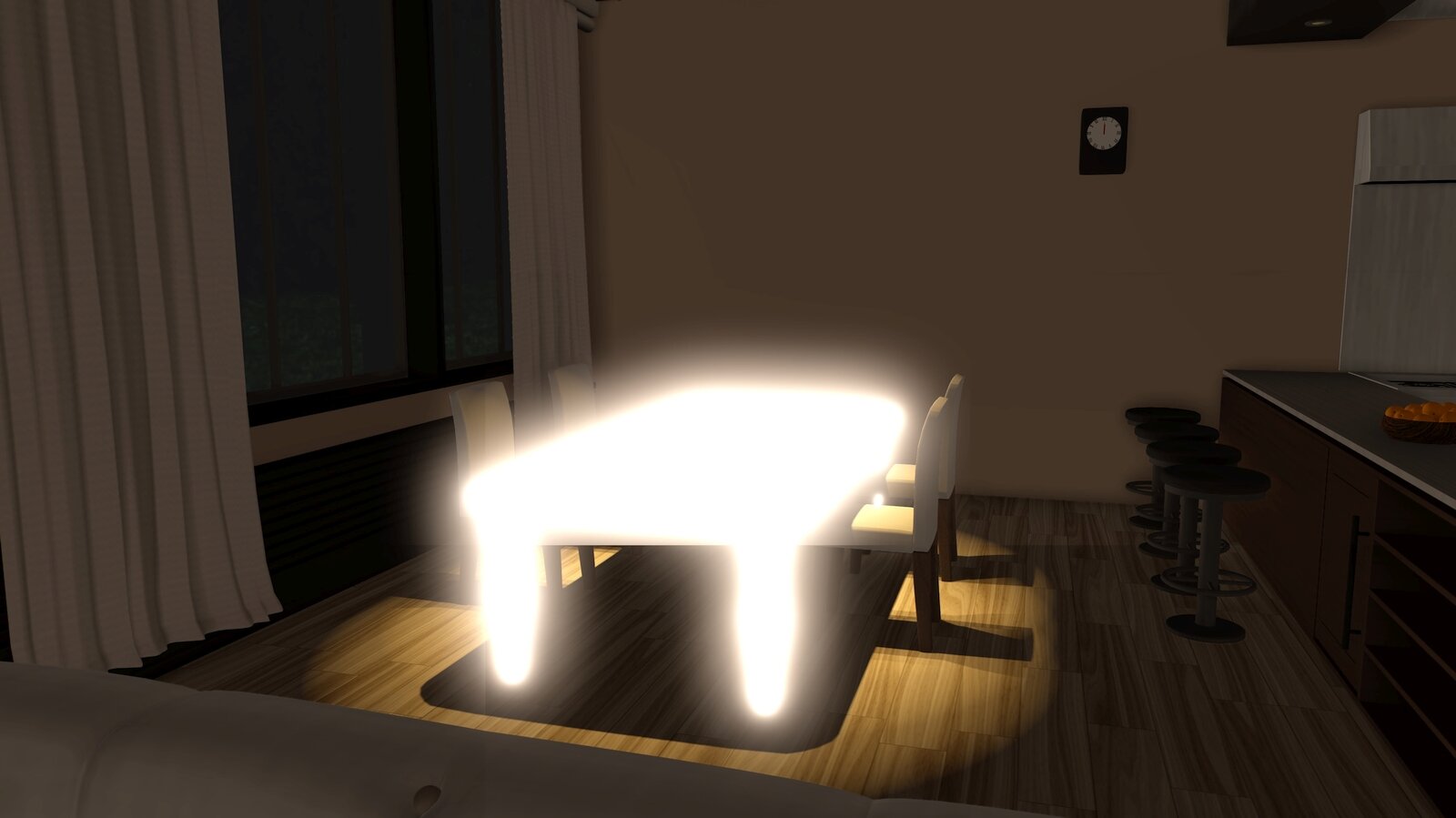

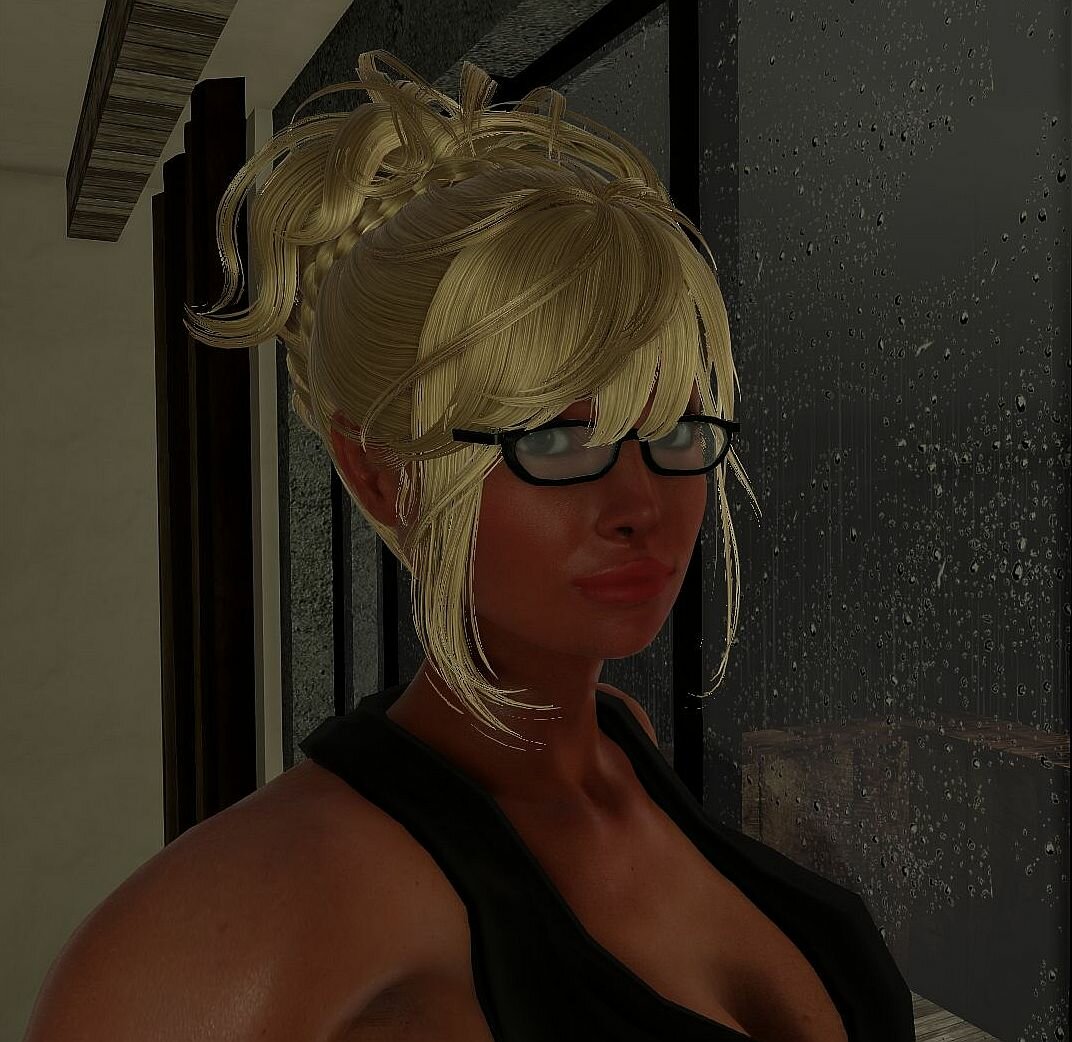

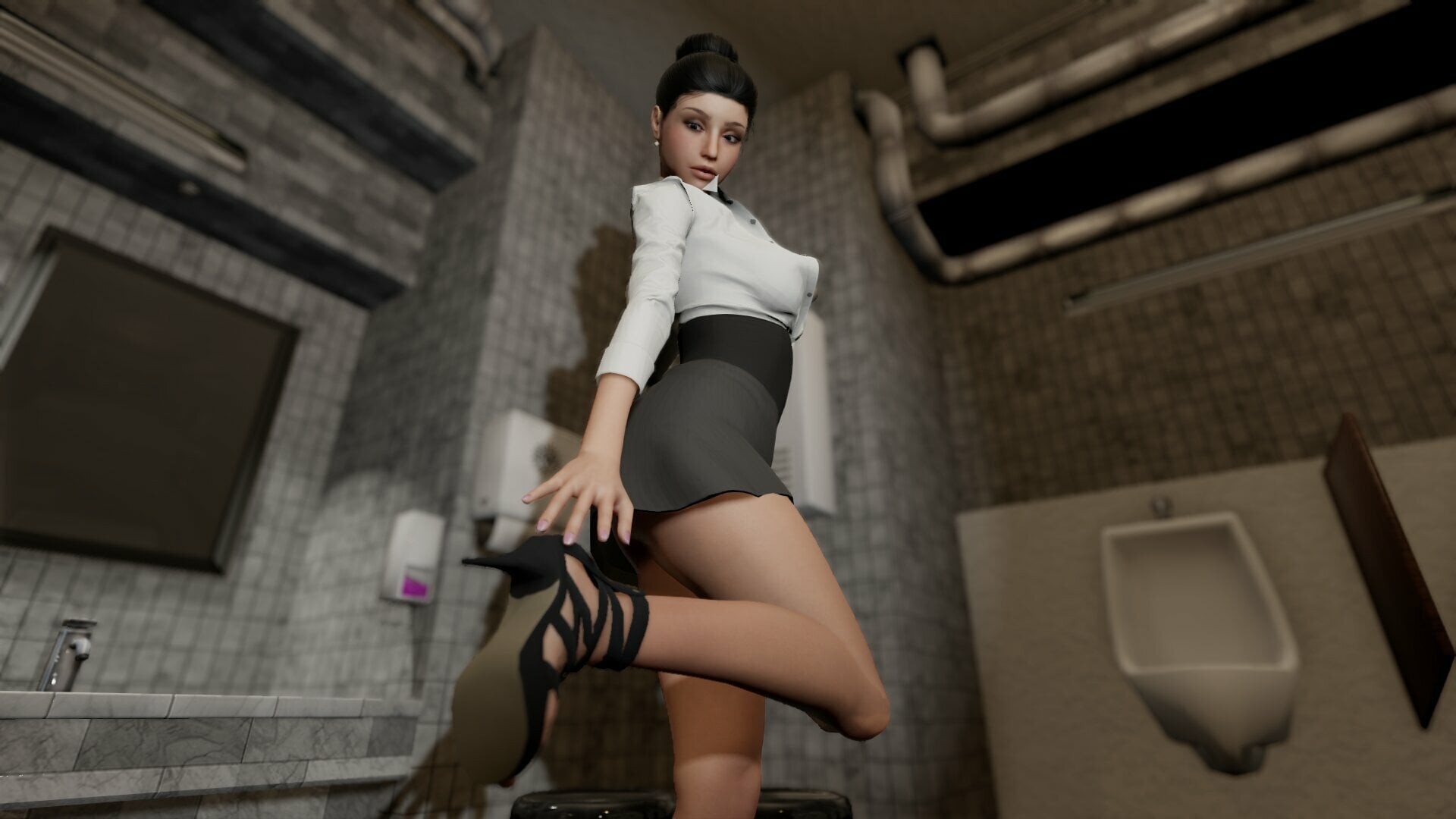

The first picture uses only the sunlight, with the sun split values set in a way that no light bleeding is happening at the ceiling. In the second picture, I use omnilights for the candles and spotlights for the ceiling (Not activated in the pictures). The shadow bias value had to be adjusted for every flame to get rid of the shadow banding on the model and the walls.

Edited February 26, 2022 by Titanoboa Serpentes

[OysterMug]

19 hours ago, Titanoboa Serpentes said:

@OysterMug Don't mention it. The flickering might have to do with your iShadowPoolCount = value in the main.fx file.



Son-of-a-gun, turns out I didn't even HAVE an "iShadowPoolCount" field in my main11.fx file! (used someone else's and tweaked it, never noticing the missing values.)

  Unfortunately, adding it back (with a default value of 2048) didn't fix the problem. I also tried adding "cull_mode" to the pass files for the table & chairs in my room to see if it had any effect and it didn't. I'm not sure what might be the cause. I captured a short video of what's going on:



Video.



Any ideas? Thx.

[Titanoboa Serpentes]

Hi OysterMug, the iShadowPoolCount value is far too high. I assume the flickering in the video comes from the iShadowPoolCount. I think pervokpetr mentioned that a value of 24 might best for performance. The value that you used is the iShadowMapSize = 2048. The MapSize defines how defined the shadows will look. So the math behind it is that you simply sum up all the shadow targets of your omnilights and spotlights. So if you have for example three omnilights and two spotlights you have to have at least a minimum iShadowPoolCount value of 20. If you put the iShadowMapSize = 2048 you will have at most 20 shadows that are baked at runtime into the 2048 shadow map. So the overall shadow targets in your scene should not exceed the IShadowPoolCount value. The flickering is the result of that value. If you use 2048 you will have 2048 shadow targets. I don't know what happens if you put in such a large number, but I think it simply reverts to the default value. I would use a value of 24 and then go upwards from that. I put my content of my main.fx here for you to check against.

If I were to fix the room I would first try to change the number light in such a way that the subjective impression stay the same while keeping the number of lights to a minimum. In the above images of my earlier post I first used three omnilights for each candle. It turned out to eat up lots of fps and to get rid of the flickering was almost impossible let alone for the shadow banding. But it looked the most realistic. Eliminating two omnilights got rid of all the flickering and banding. I just had to place it in a spot inbetween the candles to get nice shadows on my character and the walls of the room.
