Why this?

[Dorabella]

I installed Blender with everything necessary as shown here:



Converting Armors to Skyrim (the Blender-way)

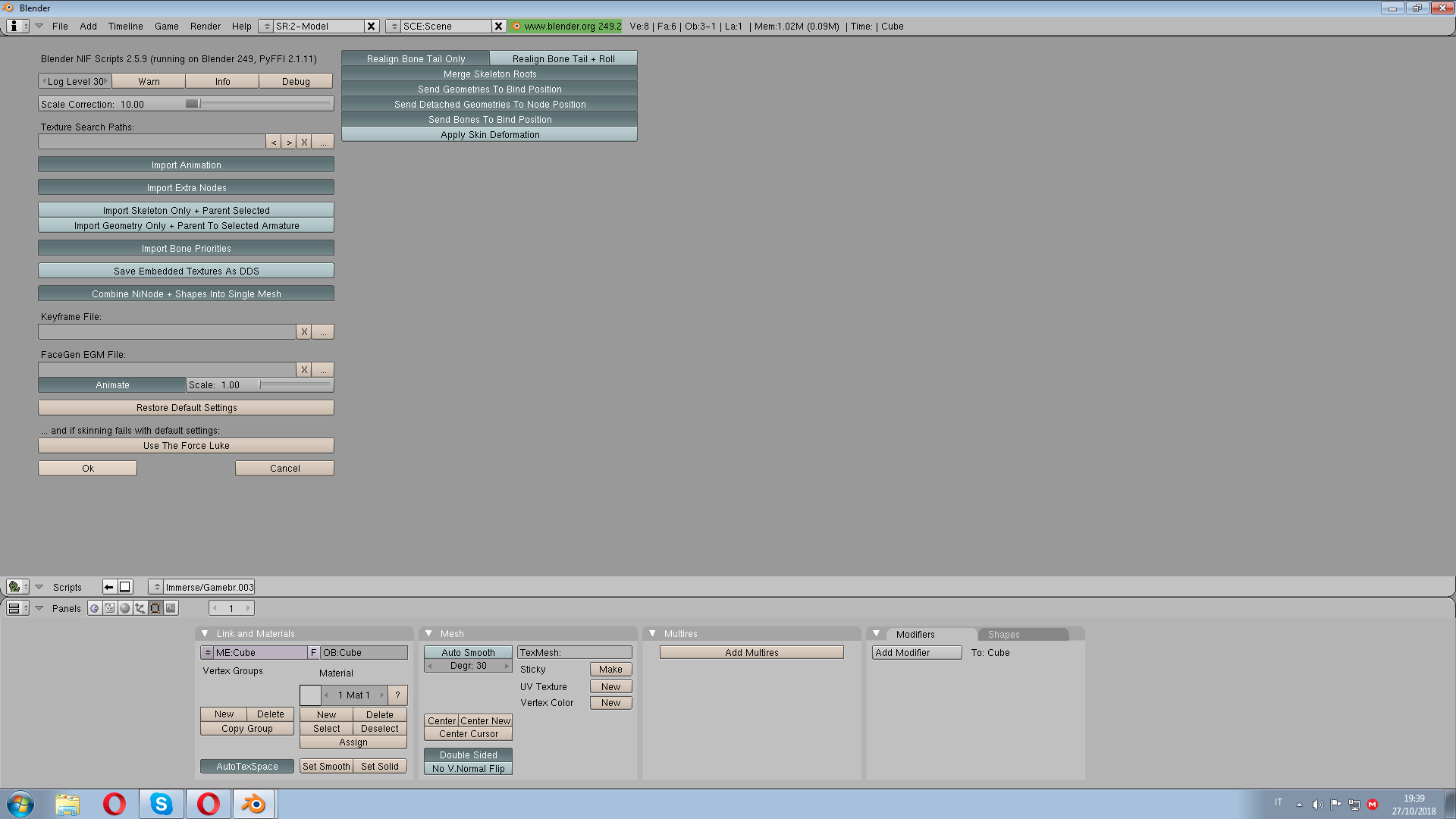

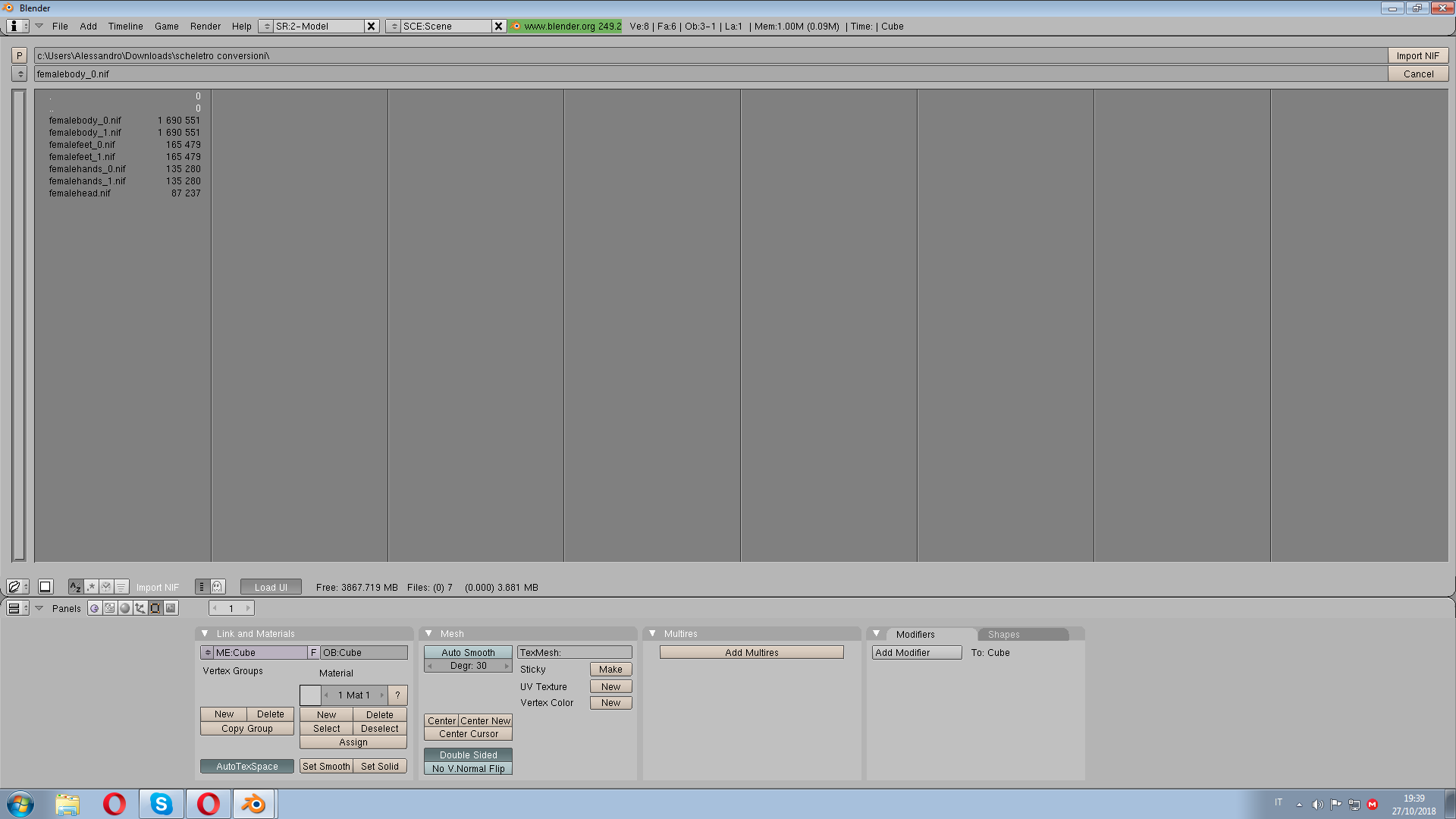

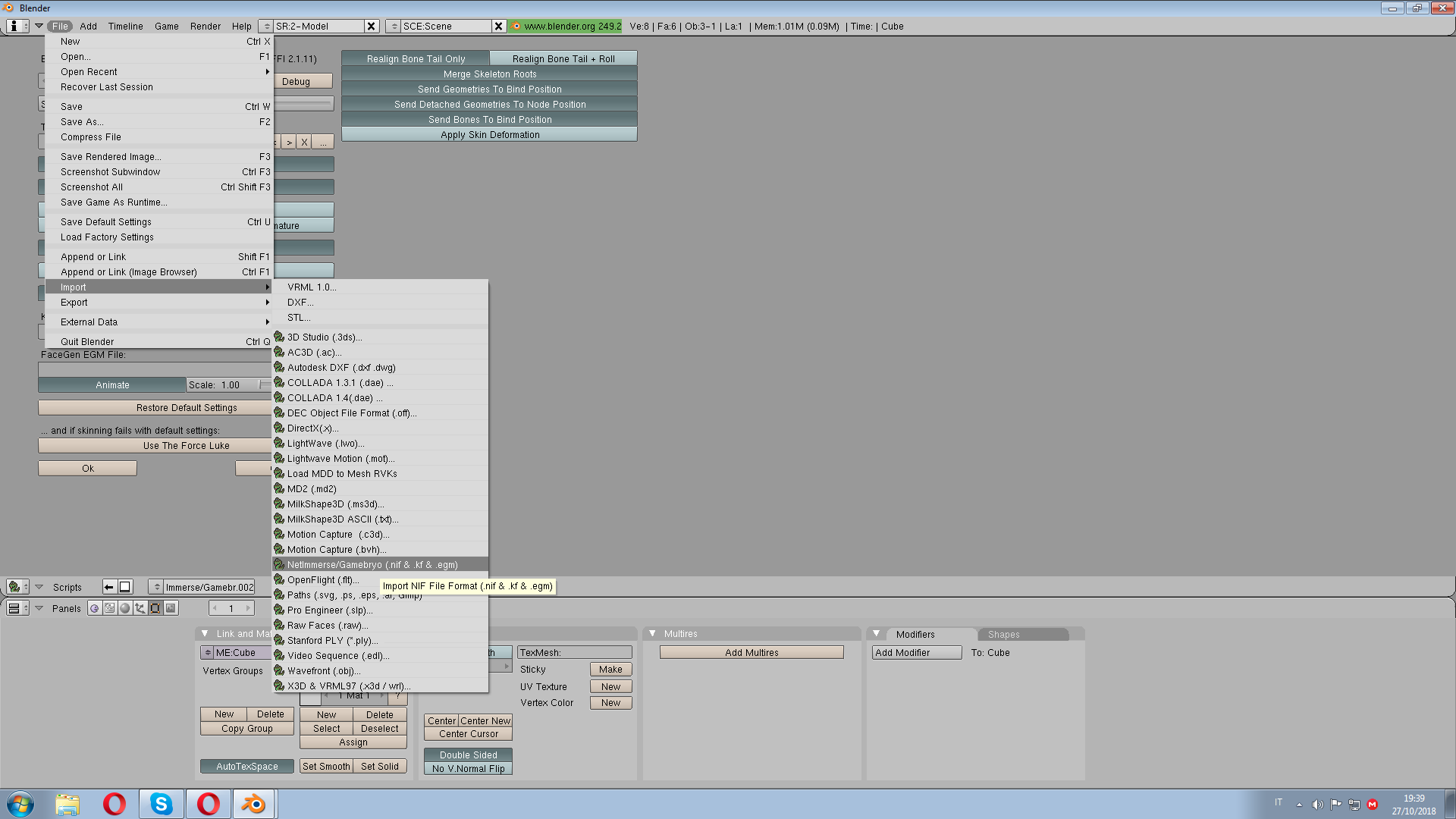

I've done all the necessary steps, but when I need to import the nif file into Blender, it reports an error and of course I can not proceed. What is missing?



Spoiler



[gregathit]

Are you absolutely sure you have prep'd the mesh properly:

2. Preparing Skyrim .nif files:

1. Open up NifSkope.

2. Go to Load (top left corner under File) and load your mesh .nif.

3. In Block Details (NOT Block List!) open the NiHeader tree.

4. Change the User Version and User Version 2 values (12->11 and 83->34, respectively).

5. Save and Load the .nif. This step is necessary as it will allow NifSkope to change the .nif version.

6. Delete the BSLightingShaderProperty elements from the Block List.

Because Blender is unable to process them, we have to delete those elements before loading the .nif in Blender.

7. Save the modified mesh.

[Azazellz]

BTW, on this Japanese wiki-page I found a link to nif-plugin for latest Blender, which can import and export .nif files directly, without any extra steps.

Just use google for translate this page.

[Dorabella]

3 hours ago, gregathit said:

Are you absolutely sure you have prep'd the mesh properly:

2. Preparing Skyrim .nif files:

1. Open up NifSkope.

2. Go to Load (top left corner under File) and load your mesh .nif.

3. In Block Details (NOT Block List!) open the NiHeader tree.

4. Change the User Version and User Version 2 values (12->11 and 83->34, respectively).

5. Save and Load the .nif. This step is necessary as it will allow NifSkope to change the .nif version.

6. Delete the BSLightingShaderProperty elements from the Block List.

Because Blender is unable to process them, we have to delete those elements before loading the .nif in Blender.

7. Save the modified mesh.

Of course, I have prepared all the nifs necessary (body, hands, feets, head), and to avoid some problems I saved them in another folder so I always know where to find them (from the trope is a suggestion released for any other work, without having to redo each time), I imported one of these starting from the nif femalebody_0

I will try to redo them, since it is the first time that I perform this type of work, I may have easily made some mistakes





2 hours ago, Azazellz said:

BTW, on this Japanese wiki-page I found a link to nif-plugin for latest Blender, which can import and export .nif files directly, without any extra steps.

Just use google for translate this page.

The necessary I got from this video, installed everything by following the step instructions



Blender with nif scripts install guide

[Azazellz]

27 minutes ago, Lestat1627 said:

Blender with nif scripts install guide

Very old and outdated video.

Use instructions and files from Japanese wiki.

It's pretty easy to understand, even after Google translate it for you.

[Dorabella]

8 minutes ago, Azazellz said:

Very old and outdated video.

Use instructions and files from Japanese wiki.

It's pretty easy to understand, even after Google translate it for you.

Thank's



[Dorabella]

14 hours ago, Azazellz said:

BTW, on this Japanese wiki-page I found a link to nif-plugin for latest Blender, which can import and export .nif files directly, without any extra steps.

Just use google for translate this page.

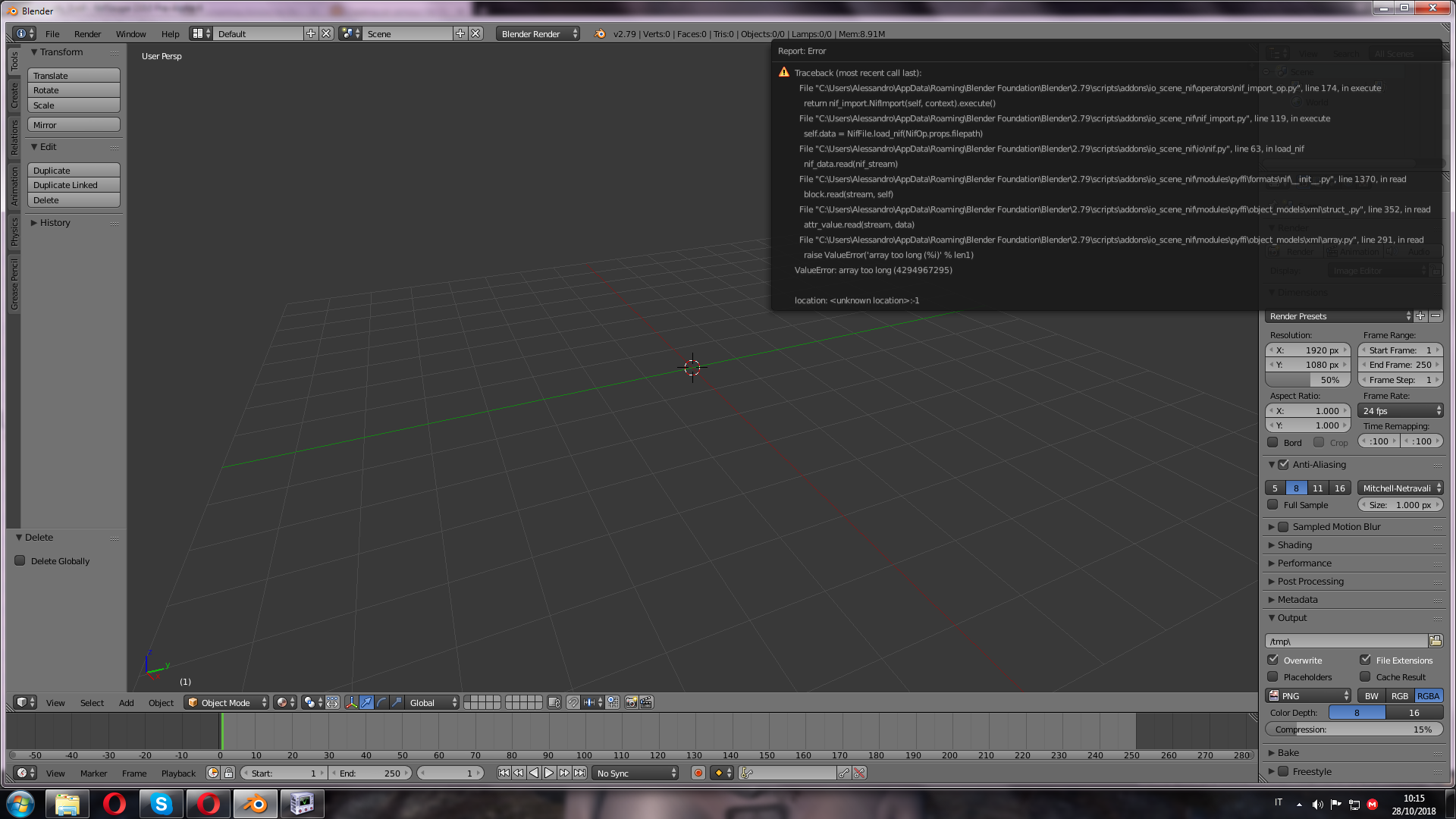

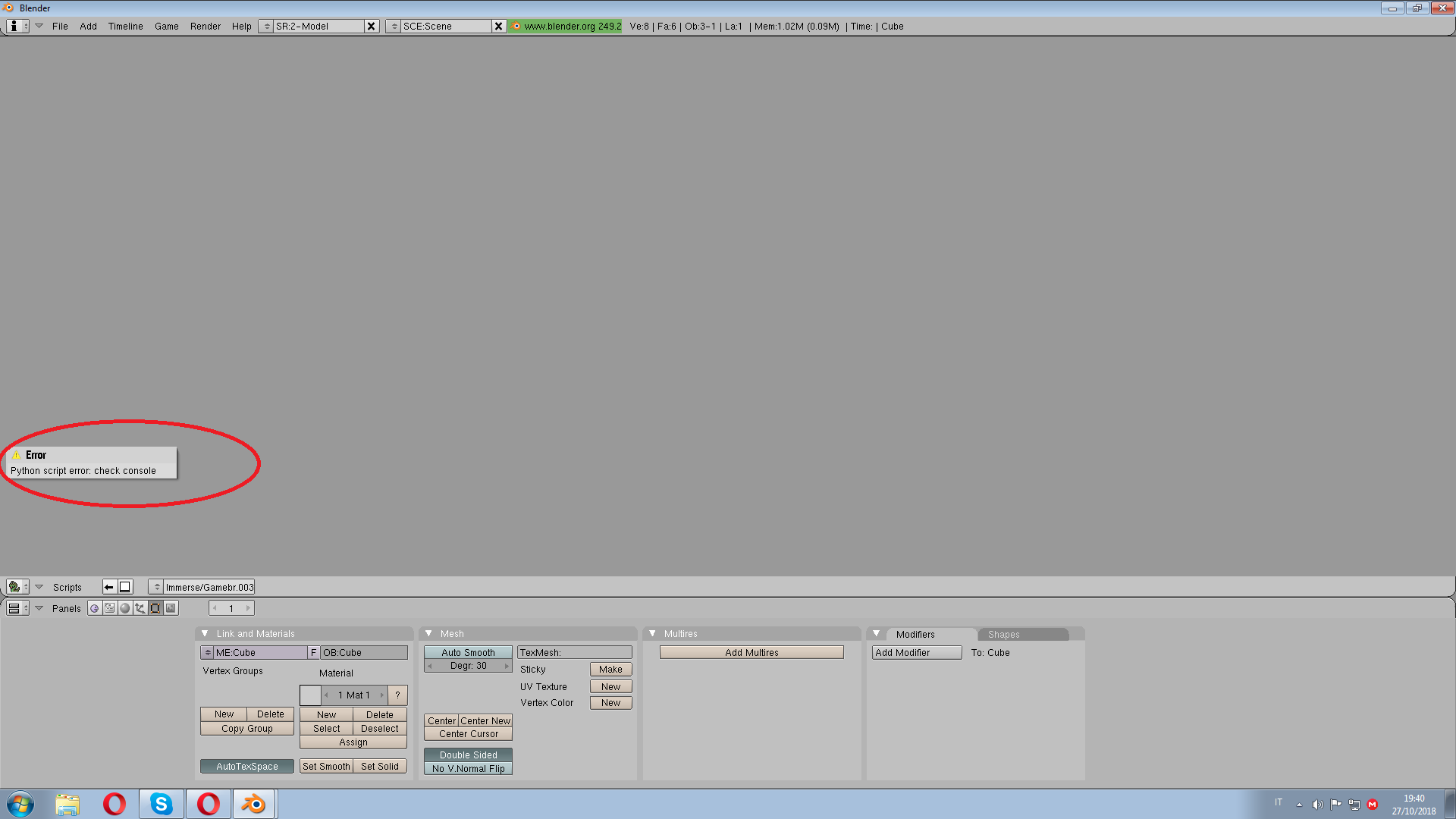

I have performed all the steps indicated, I have installed the various plugins and scripts in the way explained, but now this problem presents itself to me



Spoiler



[Azazellz]

6 minutes ago, Lestat1627 said:

I have performed all the steps indicated, I have installed the various plugins and scripts in the way explained, but now this problem presents itself to me

What file you trying to import?

It's be better if you can post it here, so we can check it.

[Dorabella]

Spoiler

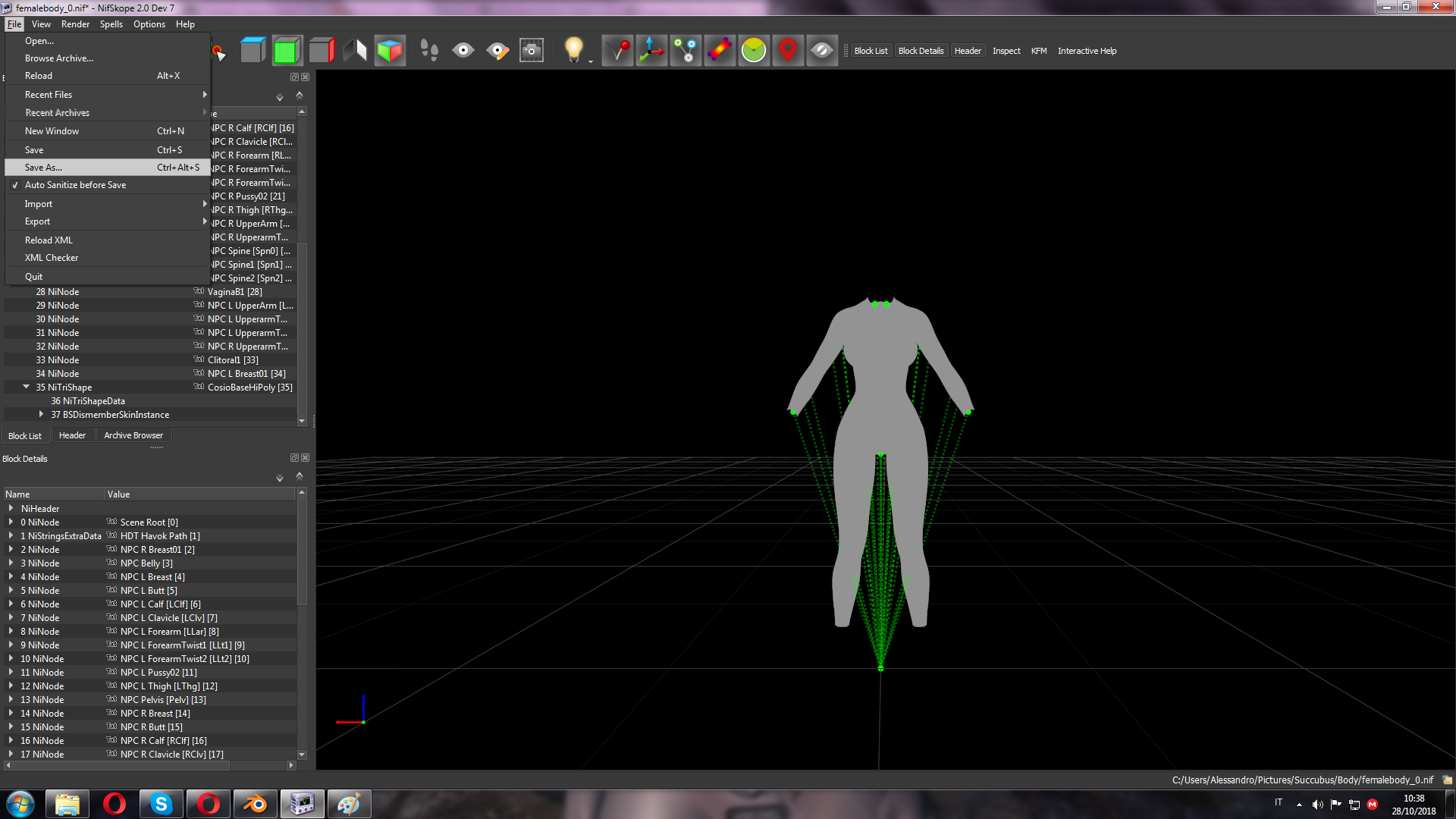

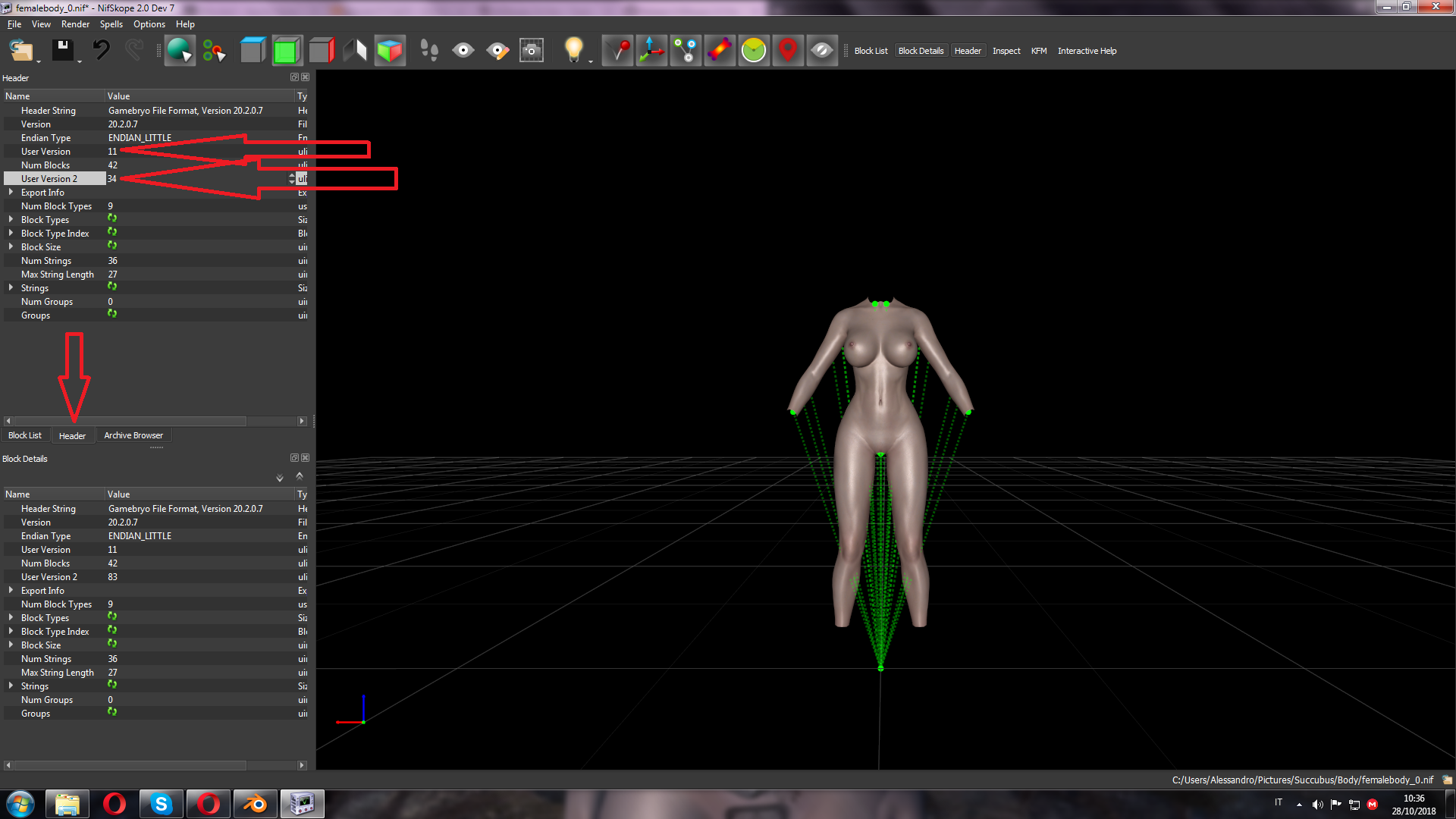

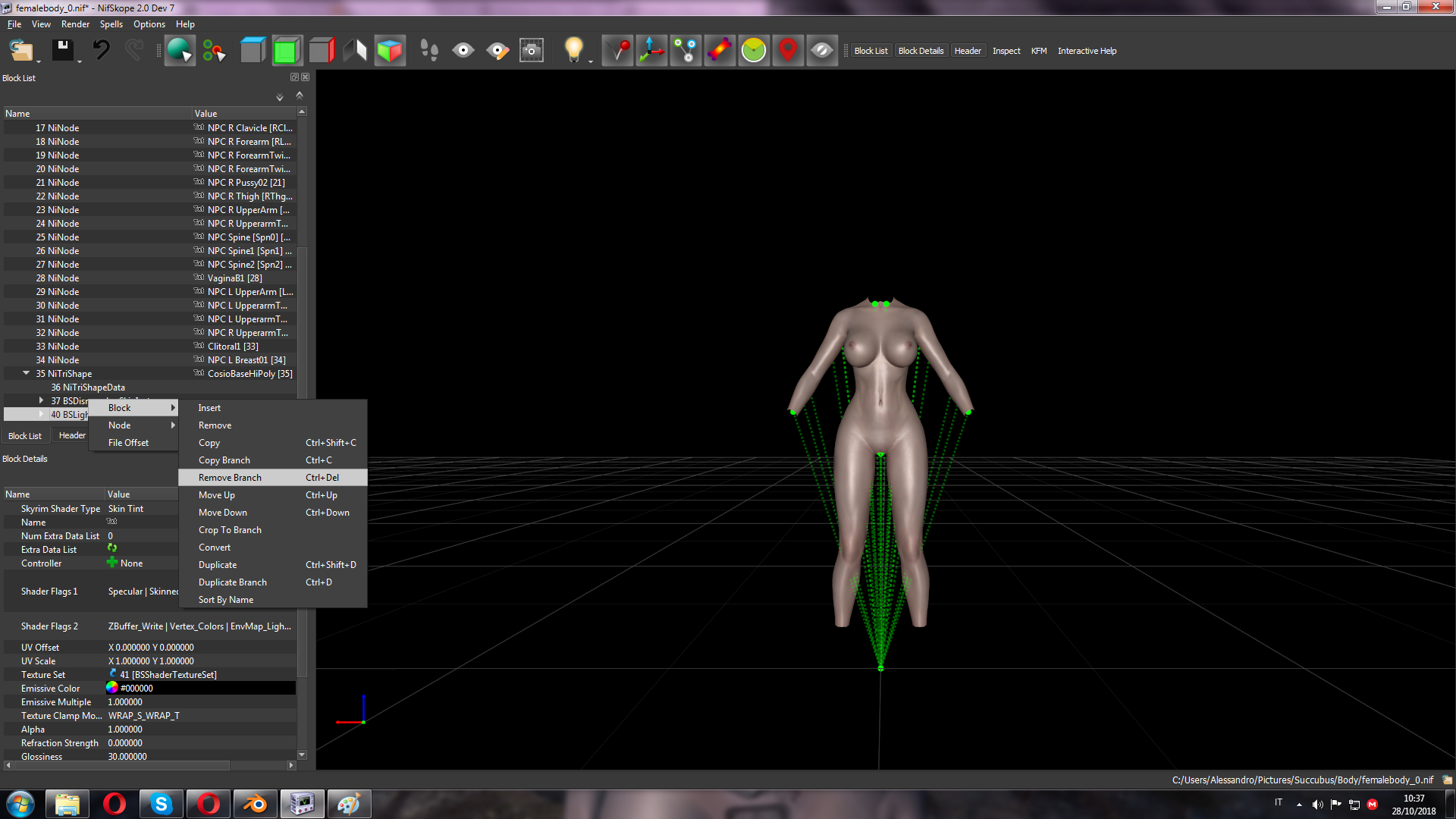

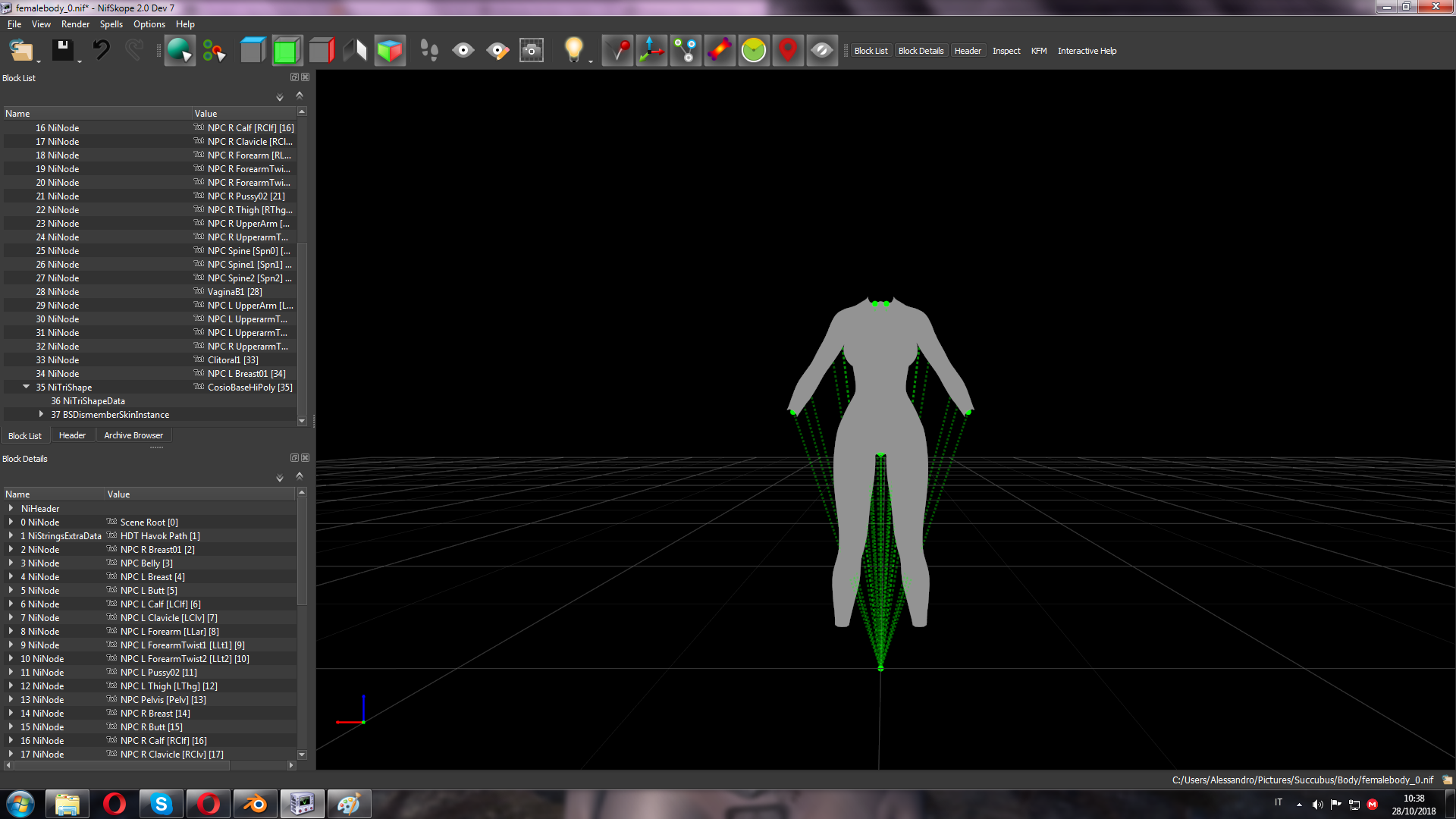

This is what I get from the steps indicated in NifSkope

[Azazellz]

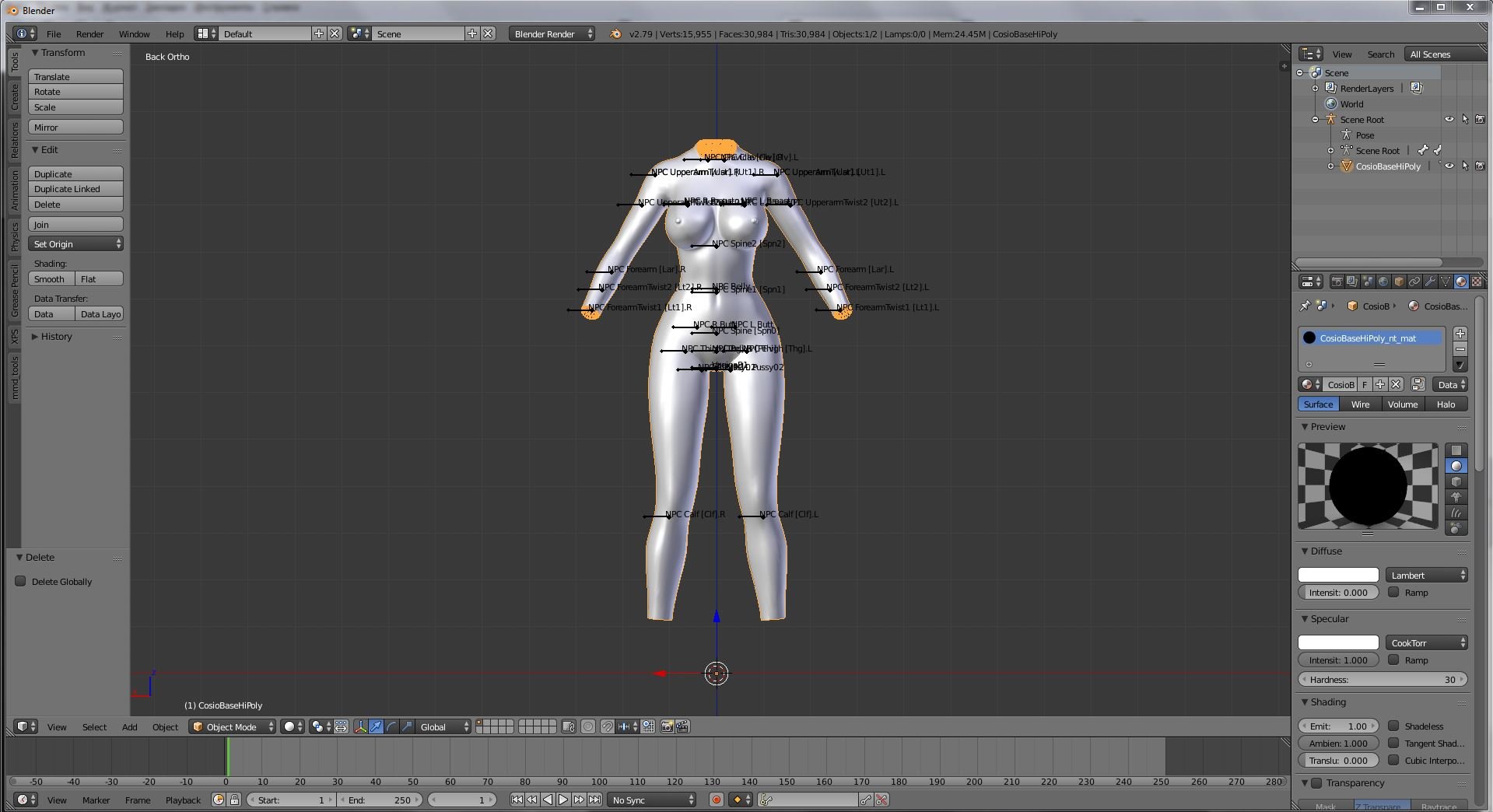

Latest blender (2.7.9), latest NifScripts, Cosio nif "As Is" (without any changes in version or blocks).

And....

Spoiler

But loading process process took a long time (like 2-3 minutes or so).

[Dorabella]

My Blender version is 2.79b

Blender nif plugins is 2.6.0.a.dev4  2018-07-30   From the Japanese post there are only these

[Azazellz]

6 minutes ago, Lestat1627 said:

My Blender version is 2.79b

Blender nif plugins is 2.6.0.a.dev4  2018-07-30   From the Japanese post there are only these

I assume you have x64 version?

[Dorabella]

Yes

NifScope is also version 2.0 dev7     https://afkmods.iguanadons.net/index.php?/topic/4136-nifskope-20-dev/

[Azazellz]

Well, then I have no idea why this is happening.

For me, everything works fine.

[Dorabella]

I see if I find any resolution to the problem

Thanks for your help

[crossfire1616]

Follow this steps:

1.Download Blender 2.79

2.Install Pyffi (  Release 2.1.11 (Nov 26, 2011)   )

3.Install Python 2.6.6 and 2.7.13 (just idk what version of Python, Pyffi is use)

4.Install  THIS addon.



Done.



P.S: Script isn't perfect, i mean materials on model may be broken so use Nifskope after export for fix issues.

[Dorabella]

4 hours ago, crossfire1616 said:

P.S: Script isn't perfect, i mean materials on model may be broken so use Nifskope after export for fix issues.

I will also try your suggestion. I hope to come up with it, it's annoying to always use things created by others, I'd like to be able to do something too

[Dorabella]

It creates another problem that certainly lies at the base of everything.

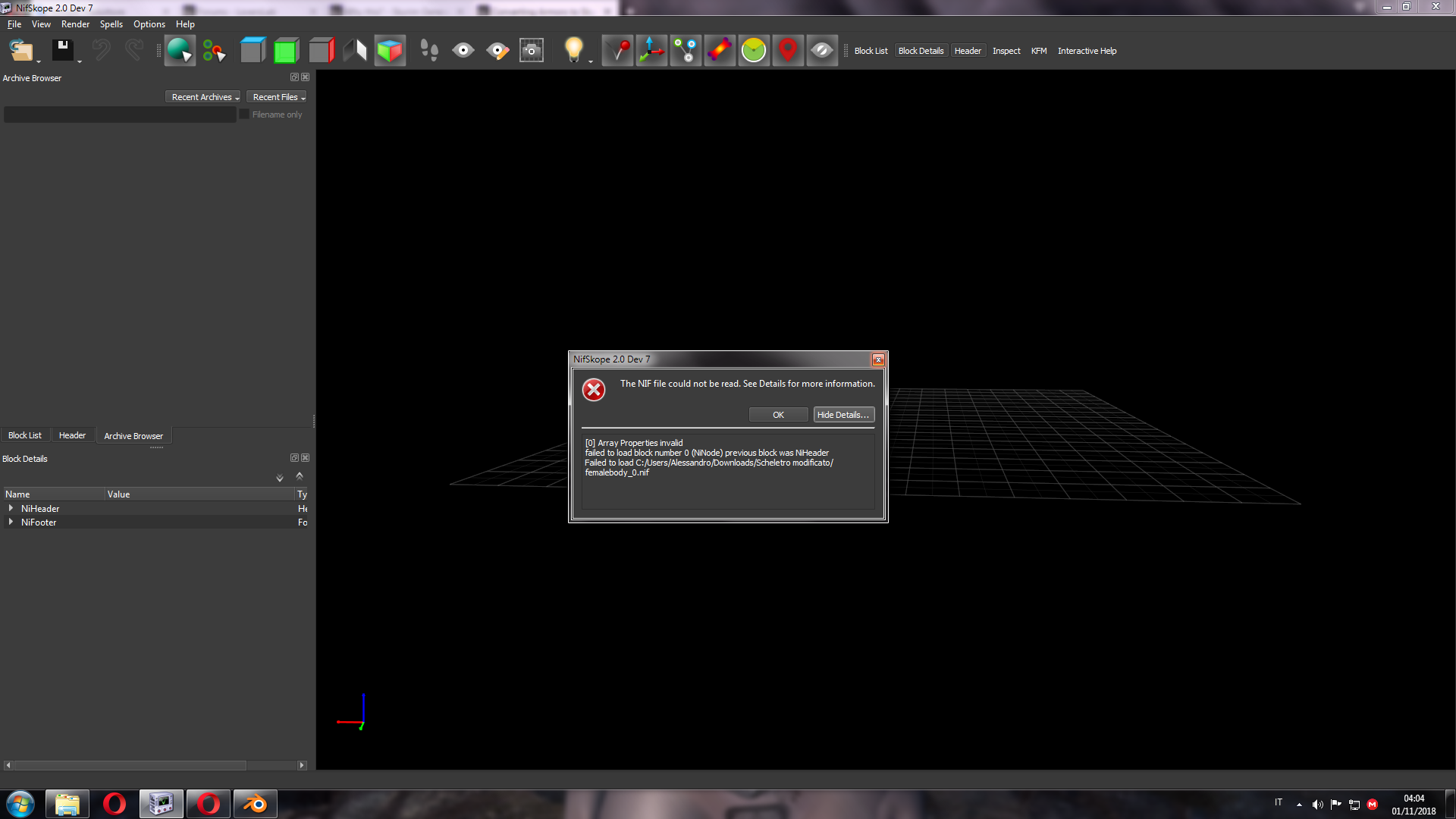

After executing the change steps of the Change User Version and User Version 2 values (11-> 12 and 34-> 83, respectively) .NifScope, when Save and Load the .nif. he gives me this error



Spoiler



[yatol]

On 10/28/2018 at 12:10 AM, Azazellz said:

Very old and outdated video.



so what?

about the links above, i would say the same as that one

LegSolo il y a 2 ans

good vid but useless without links



what was working in 2012, will still work in 2020

there's no reason to change

https://www.nexusmods.com/skyrim/mods/15690/?tab=description

easier to follow pictures than blabla

and if the links are dead, there's that on this site

https://www.loverslab.com/files/file/357-blender-249b-all-in-one/

[Azazellz]

3 hours ago, yatol said:

there's no reason to change

2.49b.

That's a reason.

[Dorabella]

8 hours ago, yatol said:

there's no reason to change

https://www.nexusmods.com/skyrim/mods/15690/?tab=description

easier to follow pictures than blabla



8 hours ago, yatol said:

and if the links are dead, there's that on this site

https://www.loverslab.com/files/file/357-blender-249b-all-in-one/

I have used both the guide and the various files indicated, but the problems remain.
Since I can not understand the real source of the above, I attach the nif file that I would like to change. If someone is kind enough to test it to see if the problem is by chance in the file itself



femalebody_0.nif

[crossfire1616]

15 hours ago, Lestat1627 said:

It creates another problem that certainly lies at the base of everything.
After executing the change steps of the Change User Version and User Version 2 values (11-> 12 and 34-> 83, respectively) .NifScope, when Save and Load the .nif. he gives me this error



  Reveal hidden contents

not need to change version in Nifskope, just in blender " Import > .nif > do changes > export nif ".

i not change any import or export settings, and leave it by default.

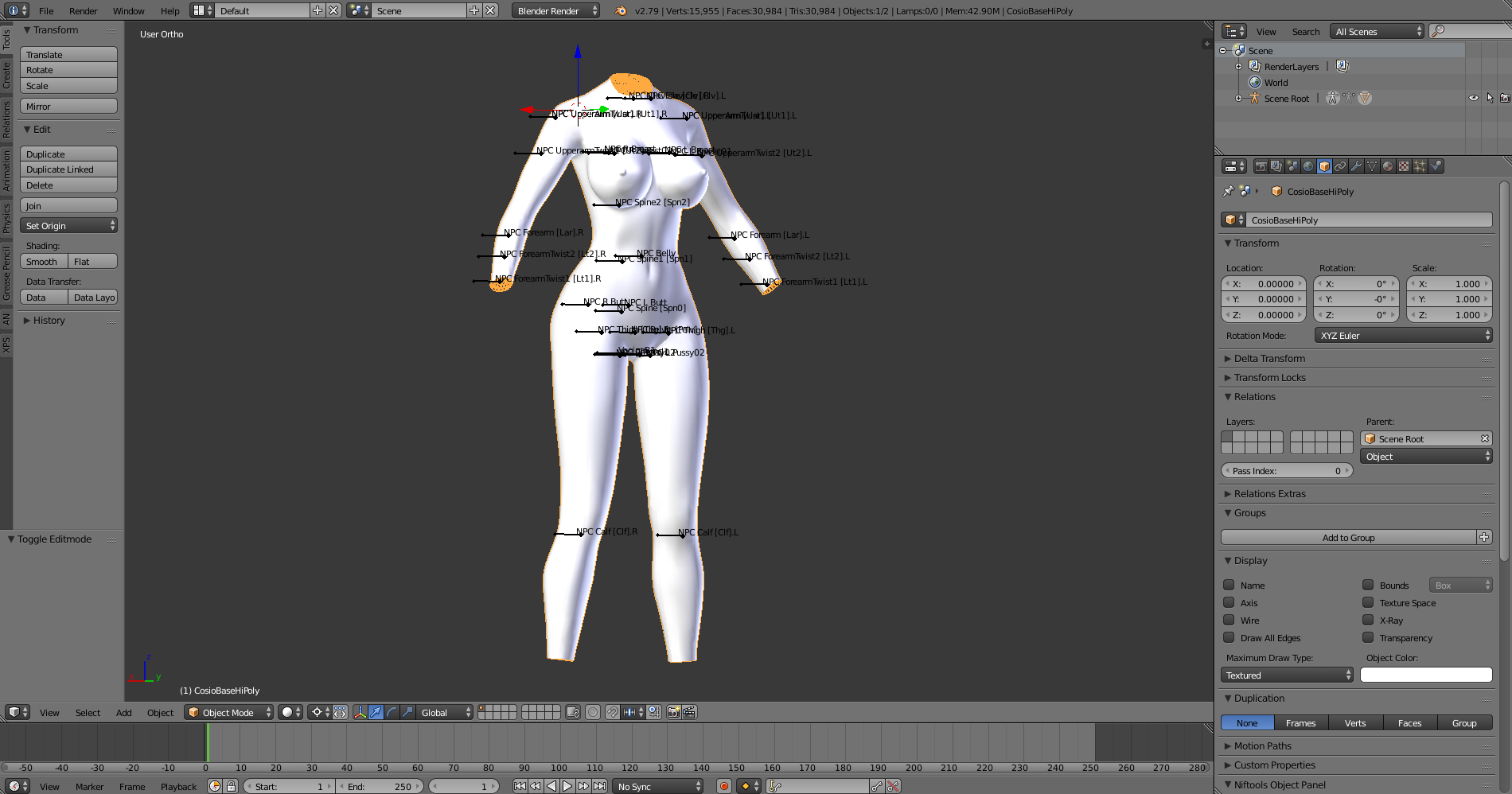

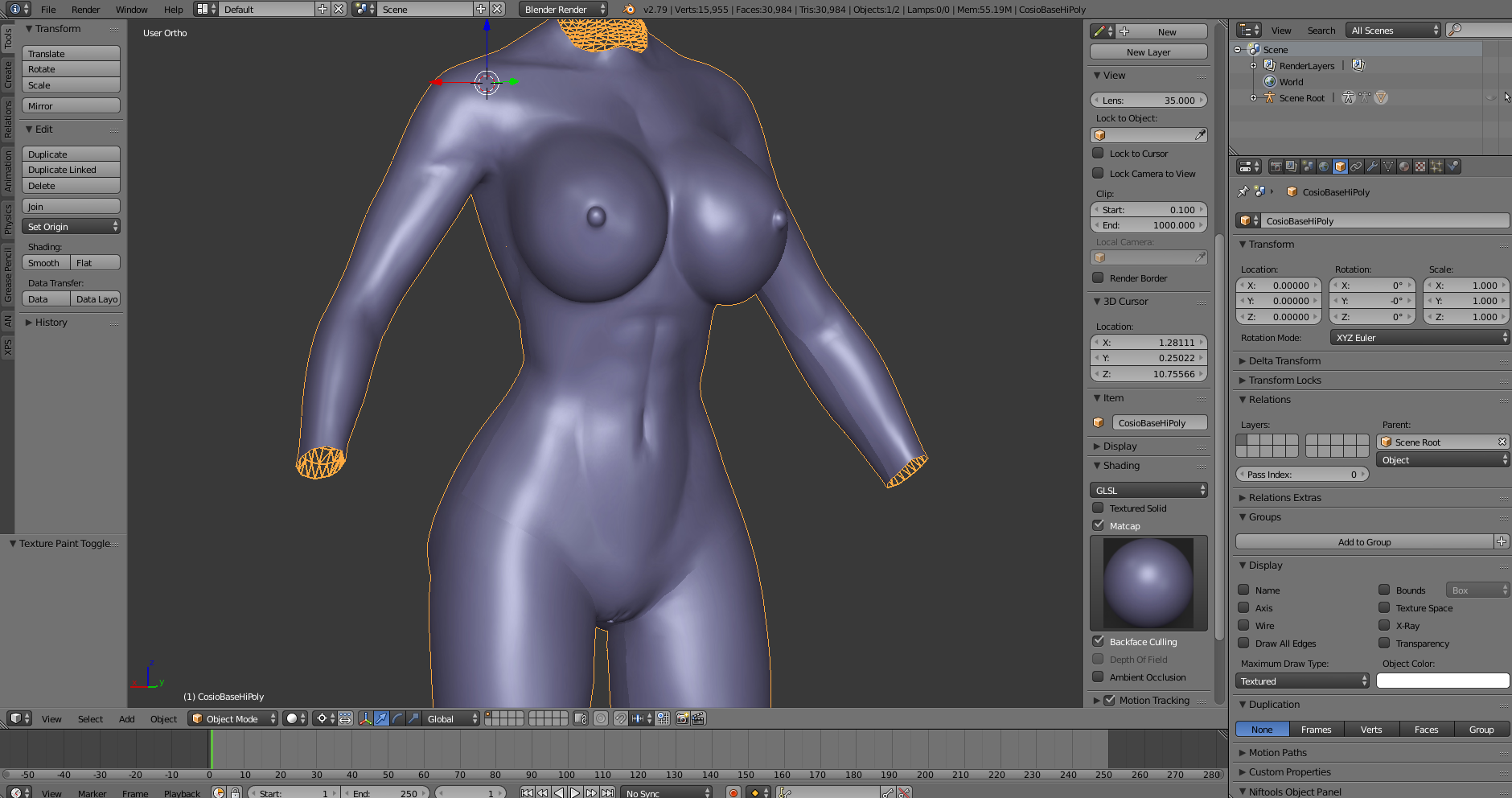

I can import your model, look picture...

Model has too many verts (~15k) so it's normal if script trying handle that about ~3min.





[Dorabella]

On 11/1/2018 at 7:14 PM, crossfire1616 said:

I can import your model, look picture...

Model has too many verts (~15k) so it's normal if script trying handle that about ~3min.

Ok, it works without any changes with NifSkope
