Help, hairstyle edit fail

[poblivion]

Hello, I tried to adjust the vanilla hairstyle a bit, but now it's invisible in the game.  In the Nifscope and OutfitStudio is visible . Haircut I edited in Outfit Studio, I remove a piece of hair. I do not know where the bug is, can anyone please fix it ? ?



THANKS

Hair01.nif

[Andy14]

I just looked into the nif for a moment - there do not seem to be any common mistakes.
You have removed vertices? Take a look in CK, if these hairs use a tri (morph).

If so, create new tri or delete tri from hairstyle. Make a Backup before ...

[poblivion]

44 minutes ago, Andy14 said:

I just looked into the nif for a moment - there do not seem to be any common mistakes.
You have removed vertices? Take a look in CK, if these hairs use a tri (morph).

If so, create new tri or delete tri from hairstyle. Make a Backup before ...

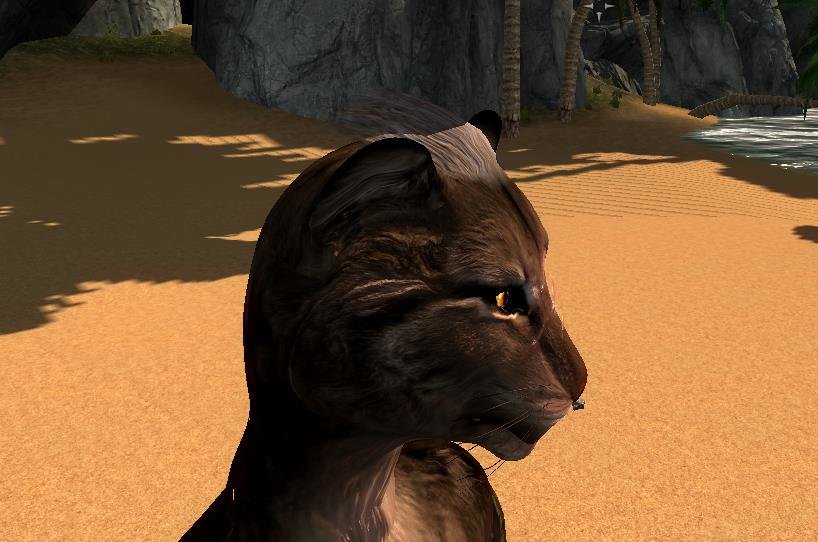

Hairstyle is not entirely invisible, it is visible part, but it is transparent.

[poblivion]

Here is old working file

Hair01 old.nif

[Andy14]

Rename the Scene Root -> Hair01 in your nif. It's the root node.

[poblivion]

1 hour ago, Andy14 said:

Rename the Scene Root -> Hair01 in your nif. It's the root node.

I tried it, but nothing changed

[RomeoZero]

"Scene Root" name is a common export name of scene you worked in and does not effect anything.The problem you have is alpha data and shader flag 1 "decal \dynamic decal" data mostly with CK dismember skin slot "hair 31\41".

[poblivion]

5 hours ago, romeozero said:

"Scene Root" name is a common export name of scene you worked in and does not effect anything.The problem you have is alpha data and shader flag 1 "decal \dynamic decal" data mostly with CK dismember skin slot "hair 31\41".



5 hours ago, romeozero said:

"Scene Root" name is a common export name of scene you worked in and does not effect anything.The problem you have is alpha data and shader flag 1 "decal \dynamic decal" data mostly with CK dismember skin slot "hair 31\41".



Thanks, for clarification, but unfortunately I do not have the knowledge to fix it myself







[RomeoZero]

3 hours ago, poblivion said:



Thanks, for clarification, but unfortunately I do not have the knowledge to fix it myself

If your hair is invisible in Chargen than you prob didn't assign dismember skin data slot to the hairs.

1]  Open your esp and go to character tab > headparts data and see vanilla hairs as reference = what goes where.

2]  Open nifskope load the hair > open mesh tree,see what is written under NiTriShape (NISkinInstance or BSDismemberSkinInst).If "SkinInstance" - manually update it by, right click on it > block >convert to > BSdismemberSkin > NiSkinPartition >Num Partitions - db click to set 1 > Partitions (click on green shit) > open tree > Body Part - db click set to 31 (hair) \41 (for hairline\hair cap) > right click on view scene > Batch > make all skin partitions > ok >ok. "If you do not have 3d app to set the data"


[poblivion]

1 hour ago, romeozero said:

If your hair is invisible in Chargen than you prob didn't assign dismember skin data slot to the hairs.

1]  Open your esp and go to character tab > headparts data and see vanilla hairs as reference = what goes where.

2]  Open nifskope load the hair > open mesh tree,see what is written under NiTriShape (NISkinInstance or BSDismemberSkinInst).If "SkinInstance" - manually update it by, right click on it > block >convert to > BSdismemberSkin > NiSkinPartition >Num Partitions - db click to set 1 > Partitions (click on green shit) > open tree > Body Part - db click set to 31 (hair) \41 (for hairline\hair cap) > right click on view scene > Batch > make all skin partitions > ok >ok. "If you do not have 3d app to set the data"

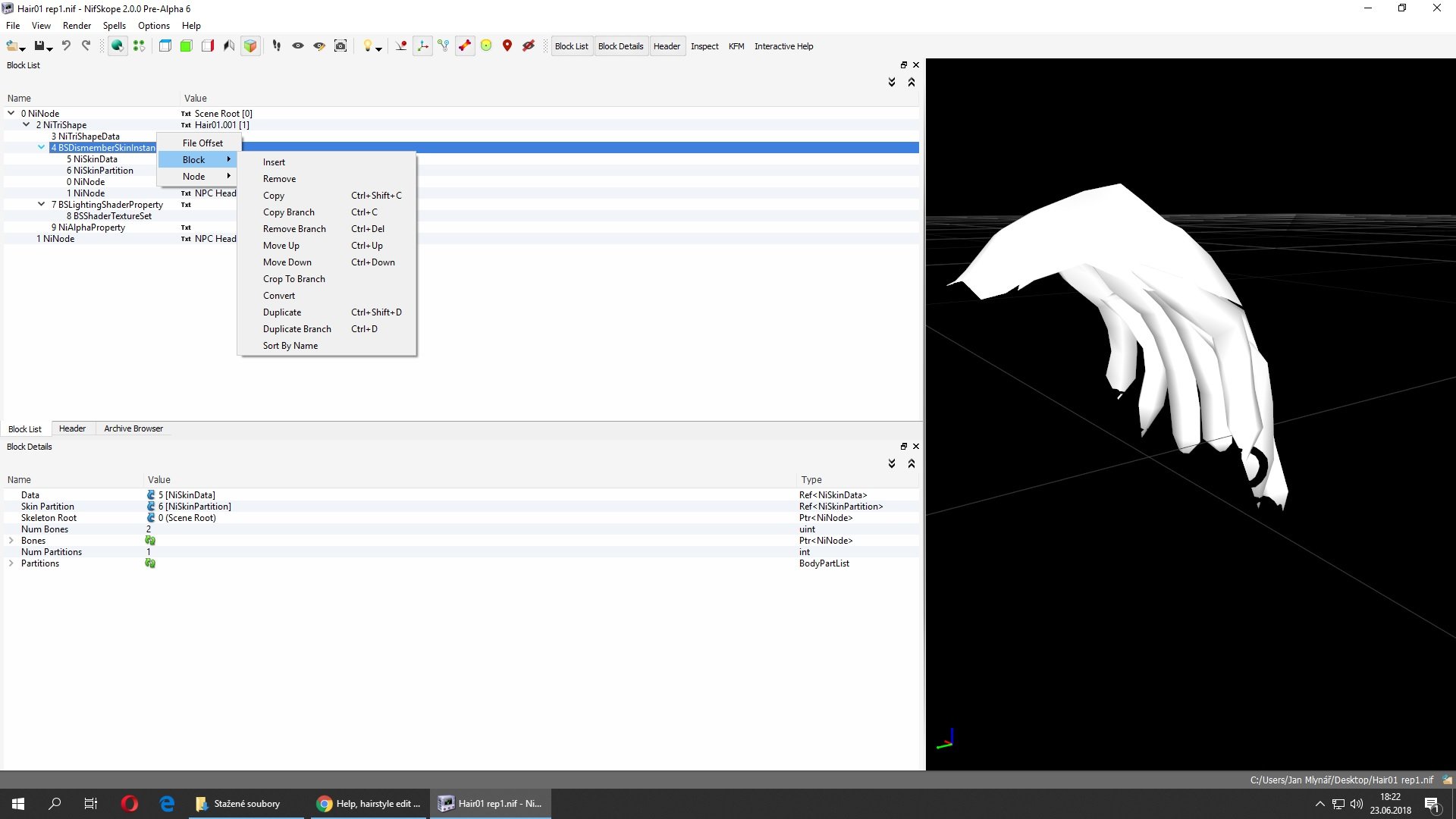

there is no "convert to"
