Heroes Regina Slot Swap

[SlleepingPancake]

I have been trying with absolutely no luck to try and figure out how to swap one armor piece in the Heroes Regina Armor set shown here http://www.loverslab.com/topic/76793-shadows-cbbe-hdt-bodyslide-conversions/

The armor piece is labeled in BodySlide as 1CBBE Fancy Fantasy but in game it is the Regina Inner 2 and in the Creation Kit it is _Regina_Inner2

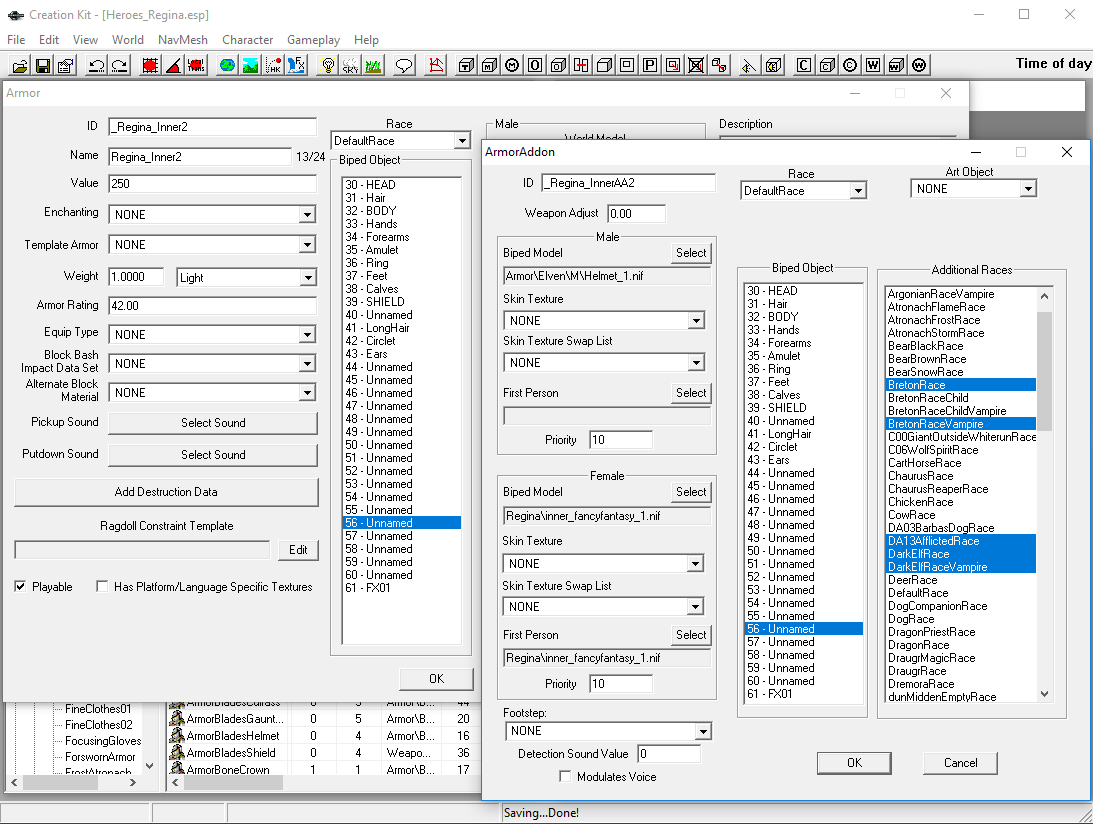

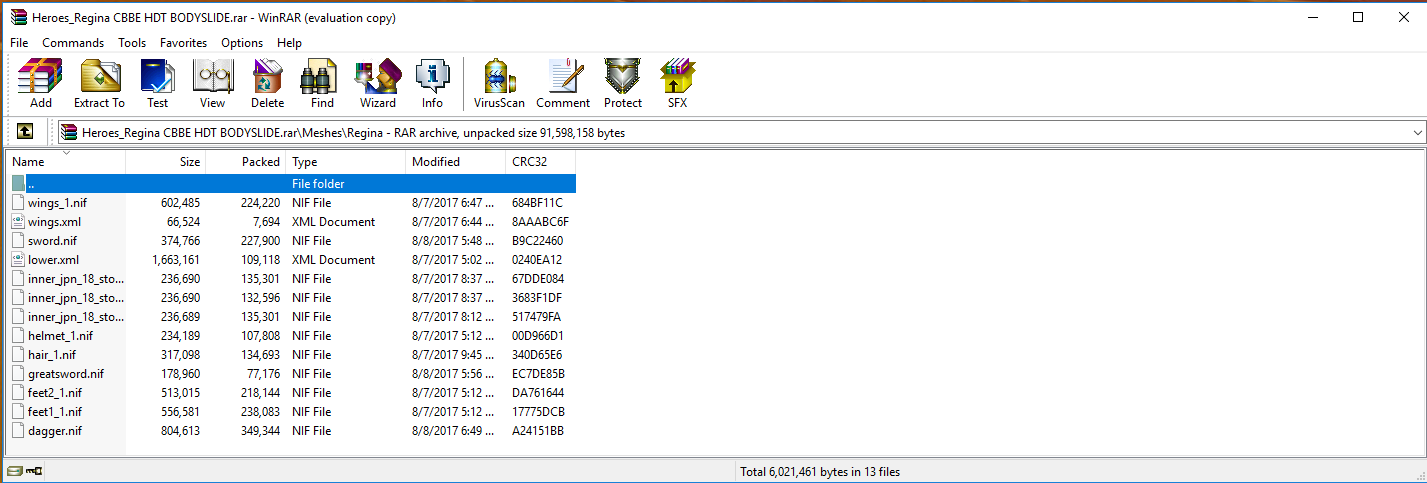

I have gone into the Creation Kit and tried to change the Armor Biped Object and the ArmorAddon to the 56 slot to no avail and it is driving me nuts, I've also attempted to go into Nifskope but oddly enough it seems that somehow the .nif file for the armor does not show up in the mod files.

Attaching pictures for reference.



If there is ANYONE who can either help me figure it out or just outright do the slot swap for me it would be very VERY appreciated.

[ppp]

You have built the outfit in Bodyslide, right?



Can you open the base file in CalienteTools\Bodyslide\ShapeData\Whatever?



If you can, you can change the slot there and then build the mesh.

[alexsilvestre]

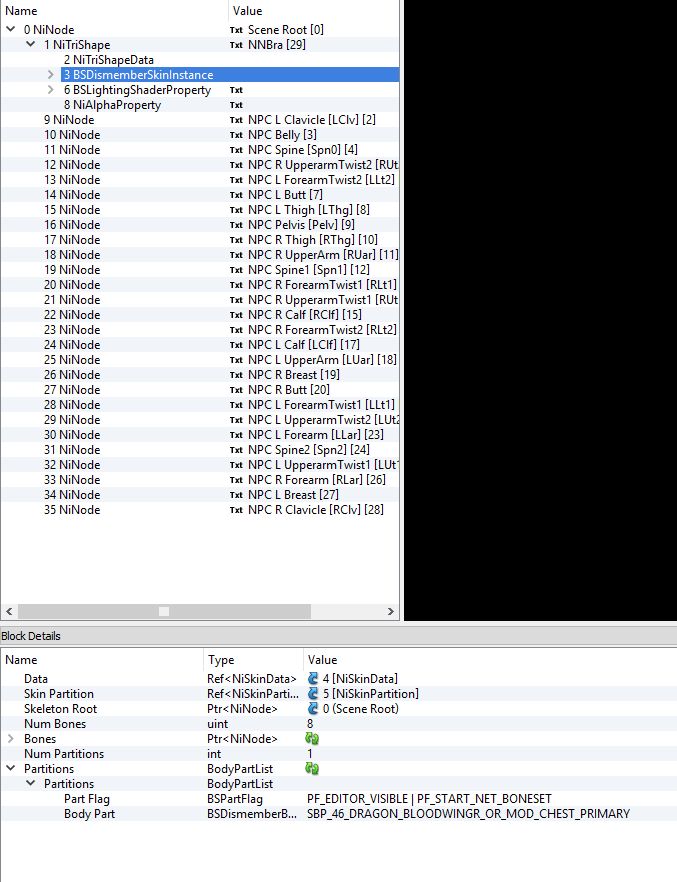

Thanks a lot for this reply. It was all I needed to fix to get some armor I am experimenting on to appear in game. Here's a screenshot of what you need to fix SleepingPancake. Should look something like this when you open the mesh with nifskope:



[yatol]

there's no tuto to understand what to do with those sbp_x?

left was the same as right, with some pauldrons

now those pauldrons have sbp 49

so you replace 32 by 49 in the armor addon (or it won't load sbp 49)

and you add 49 in the armor (and the right nif armor addon to not become a floating head with pauldrons)



option 2, you click on bsdismember then convert to nitriskin

no more sbp_x

you still have to replace sbp 32 with something else if you want to wear that with something else that also have sbp 32 (2 sbp 32? game pick the one with highter priority)
