In all likelihood there are those who have been doing this for some time already, so they are certainly more skilled

For those, like me, who are new to this kind of thing, using the classic copy/drop system for practice comes in handy to understand how the process works



For the method I illustrate, I use Cassandra Frost Witch . The first ( in HDT-SMP)  is to be copied and transferred to another (devoid of all that)



Necessary : Notepad++ , Nifskope, Outfitstudio



⚠️  Before proceeding further, always make a backup of the file you want to manipulate



Nifskope



Open Nifskope and, import the nif with HDT-SMP . Open Nifskope again, and import the nif to which you want to apply SMP .

Locate in the nif , the NiNode where SMP is inserted , passes on the other nif and locates the same NiNode



Spoiler

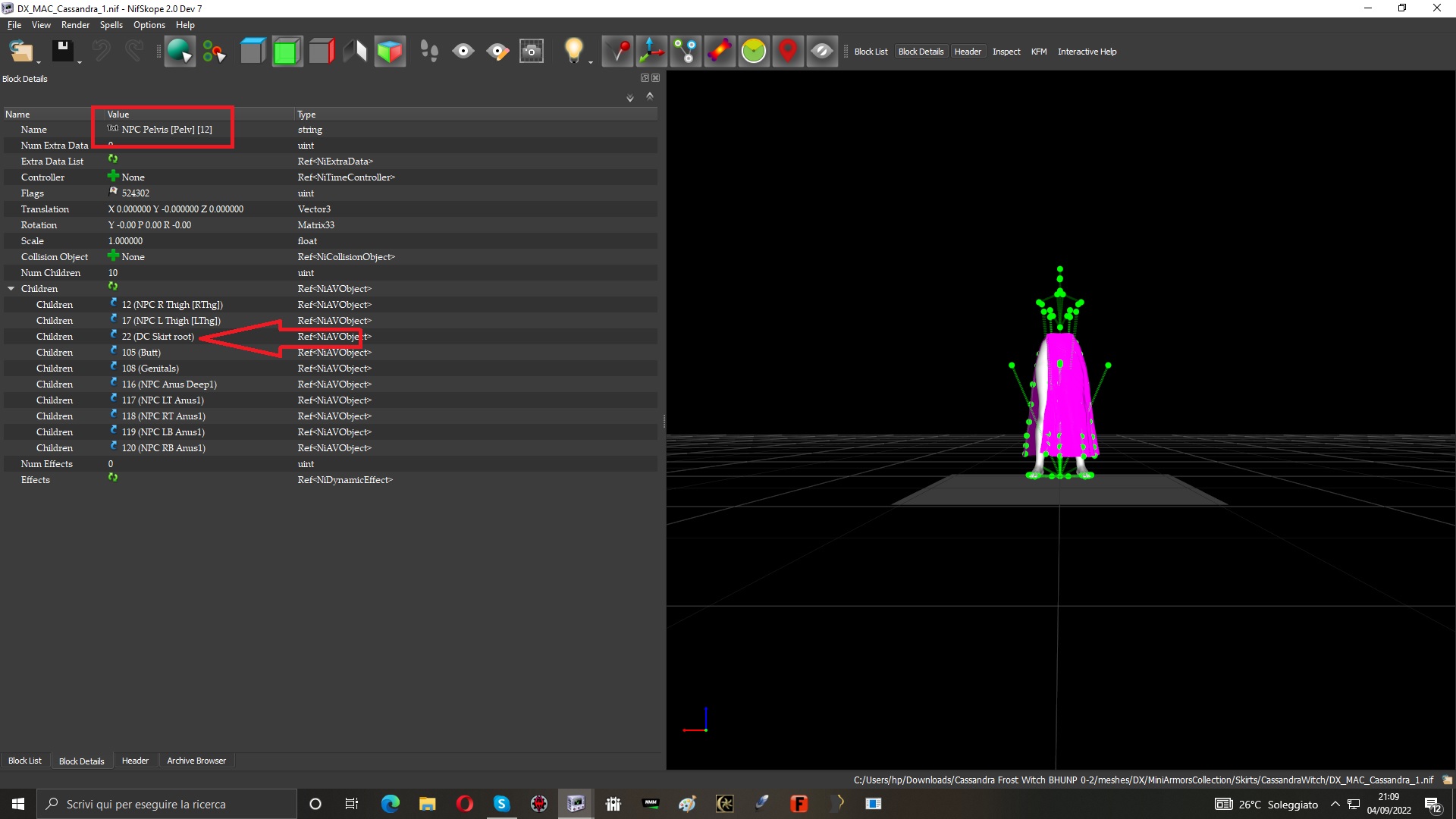

Nif with SMP

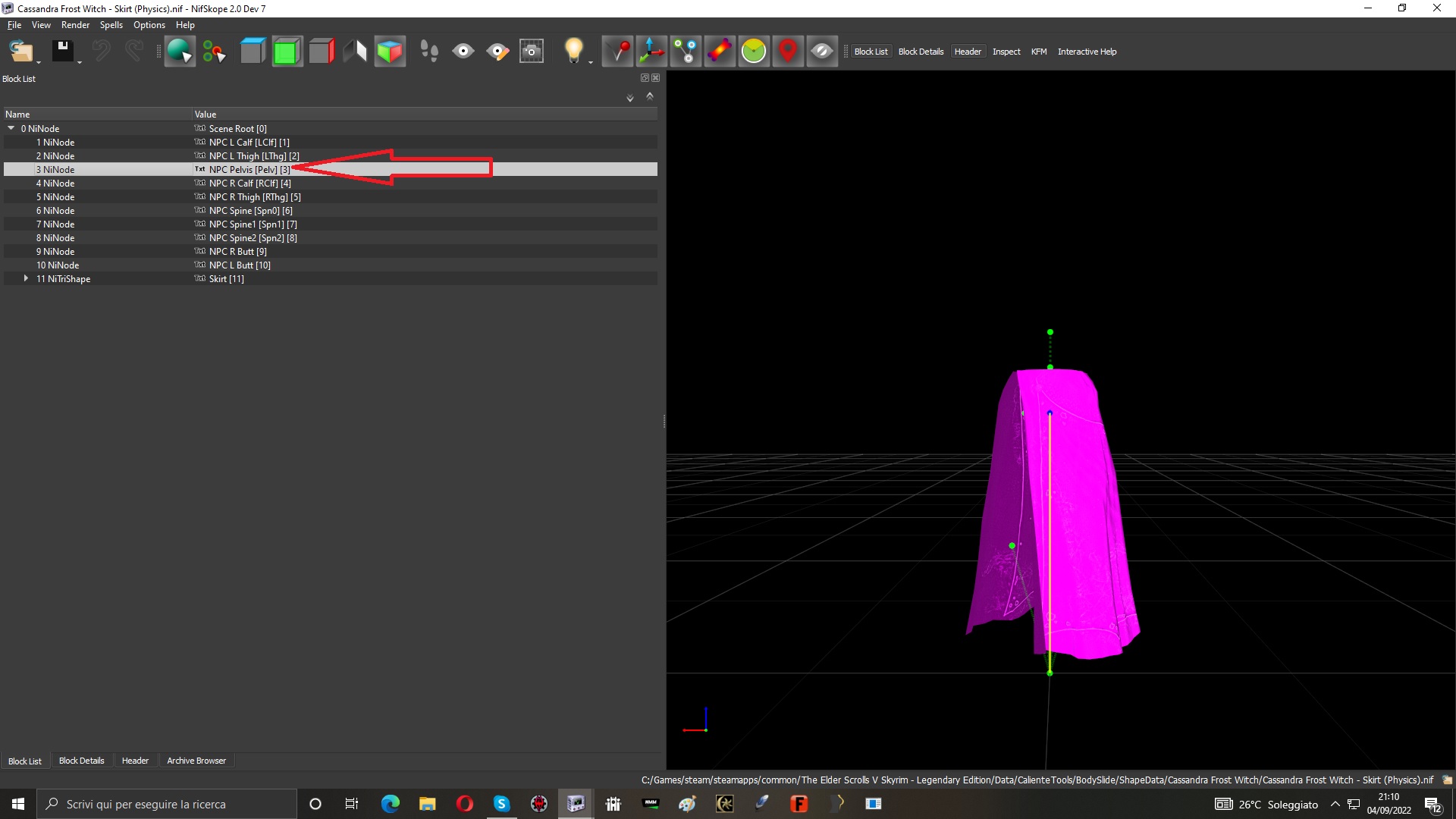

Nif Without SMP





Taking care to read the NiNode number you are interested in, go to Block List, select the NiNode ( in the example DC Skirt root )

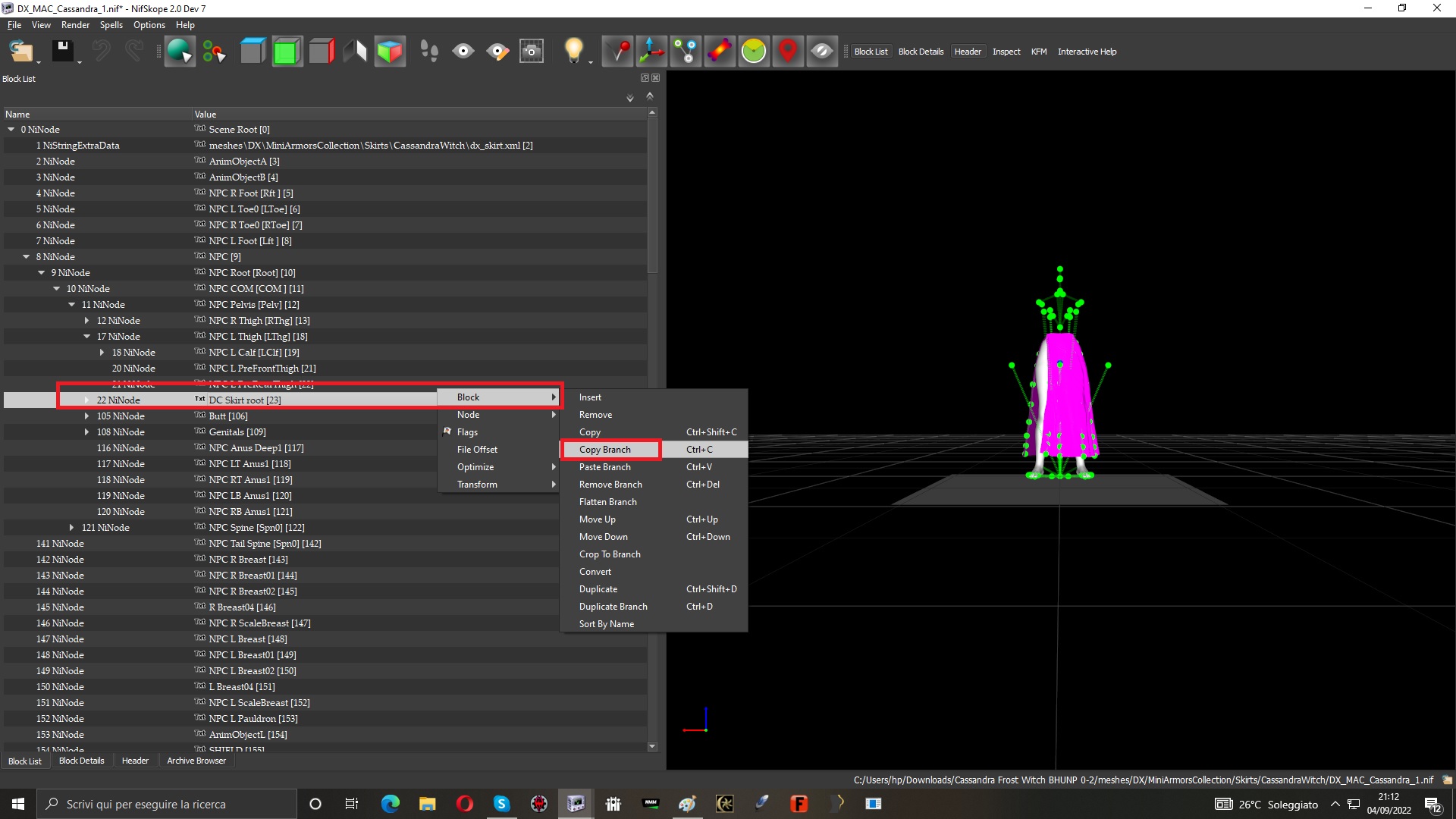

Right-click on the NiNode and select Copy Branch This will allow you to copy all settings



Spoiler

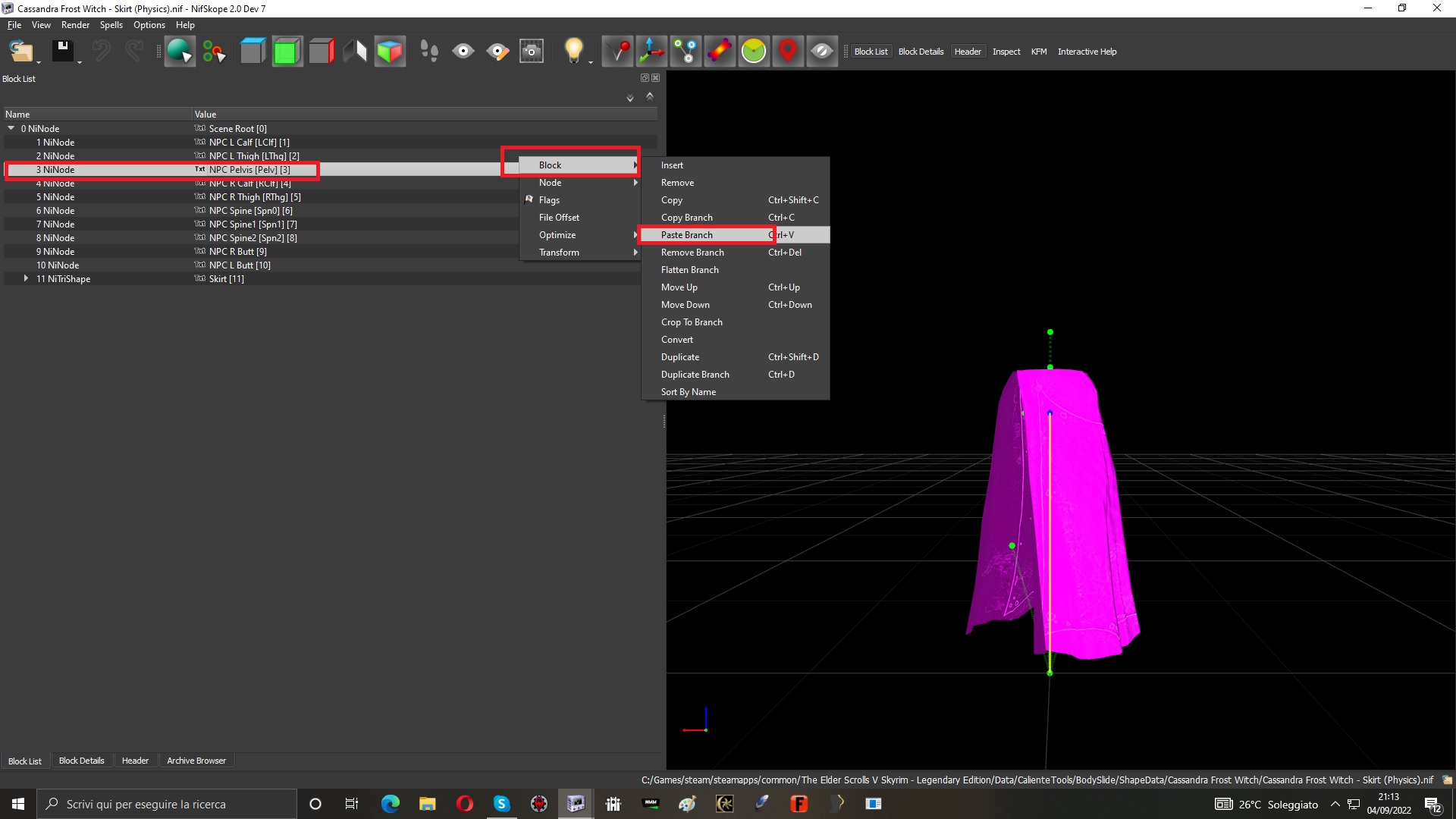

Switch to the other nif, select the NiNode to which SMP is to be applied (in the example NPC Pelvis), right-click on the NiNode and select Paste Branch



Spoiler









With this step, all NiNodes are transferred from one Nif to another in exactly the same position

Now you have to insert NiNodes and turn them into Bones

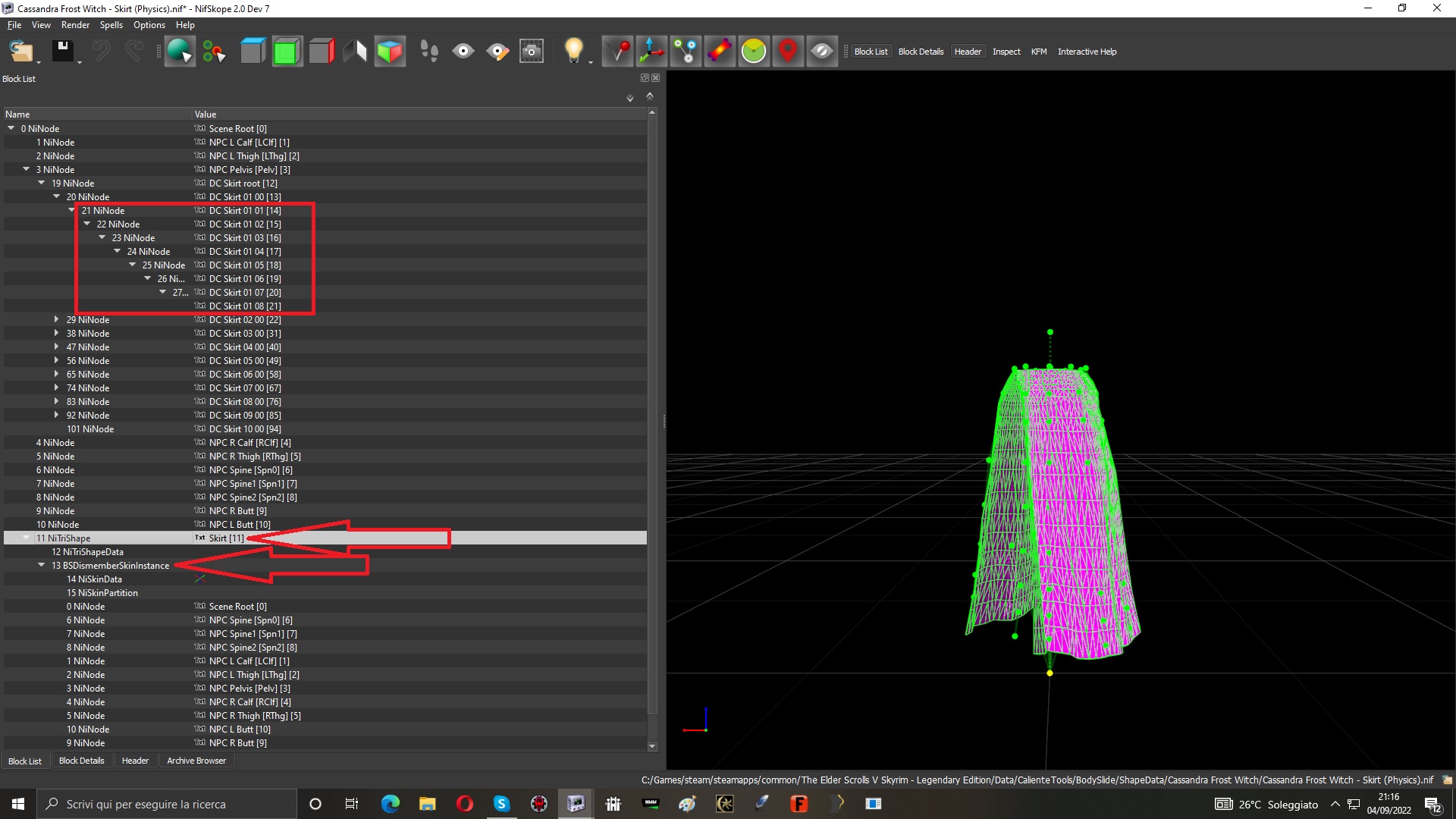

From the Nif to which you have applied SMP, click on the image, extend the NiTriShape, select BsDismemberSkinInstance



PS : Extend the submenu of the NiNodes you have applied and read the FIRST NUMBER

The DC Skirt root, not to be calculated, only functions as a reference. The NiNode DC Skirt 00 , will not be counted, it will work as a base bone



Spoiler



Count how many NiNodes have been added, in the example they are a series of 9 types consisting of 8 NiNodes.

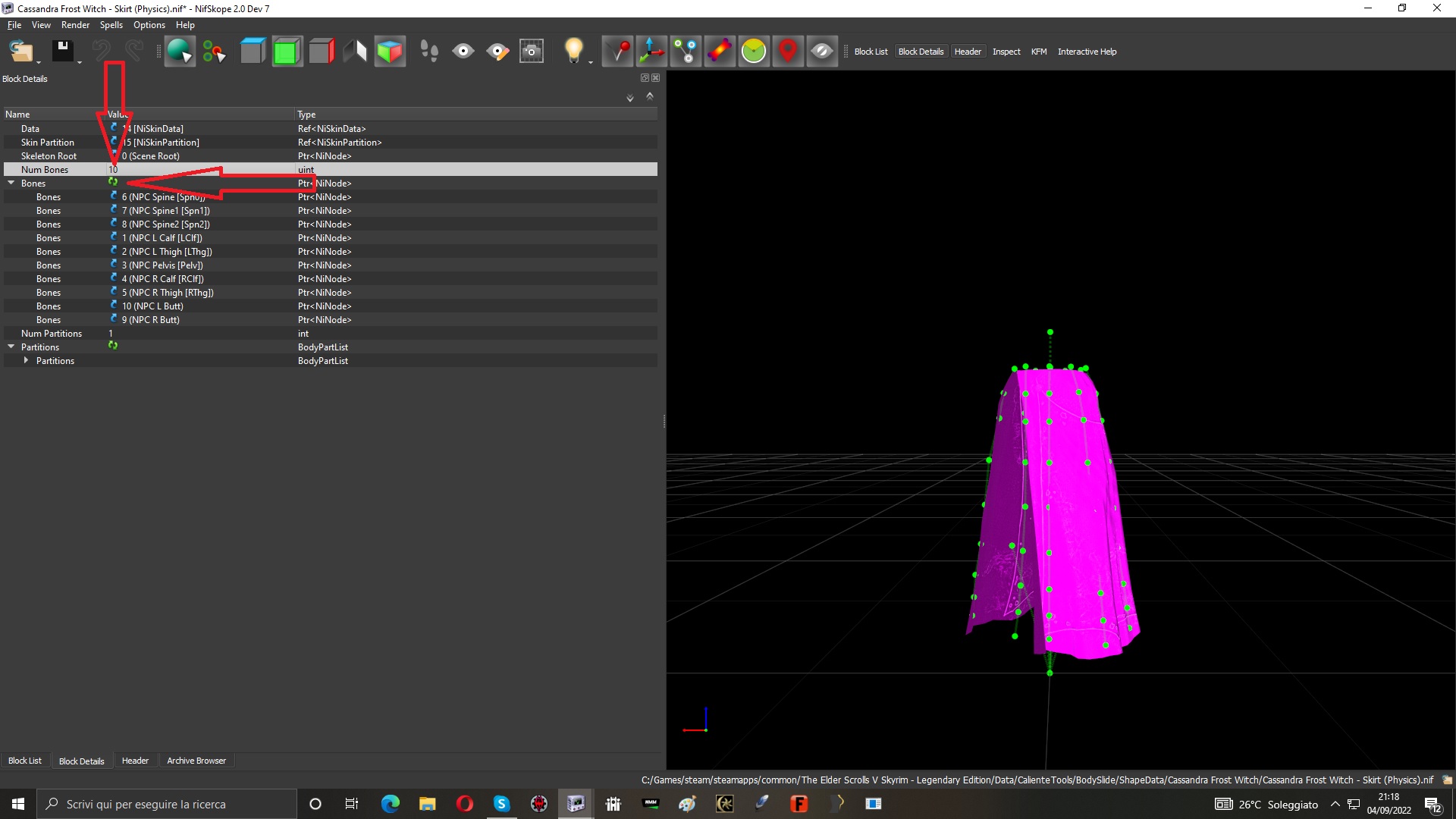

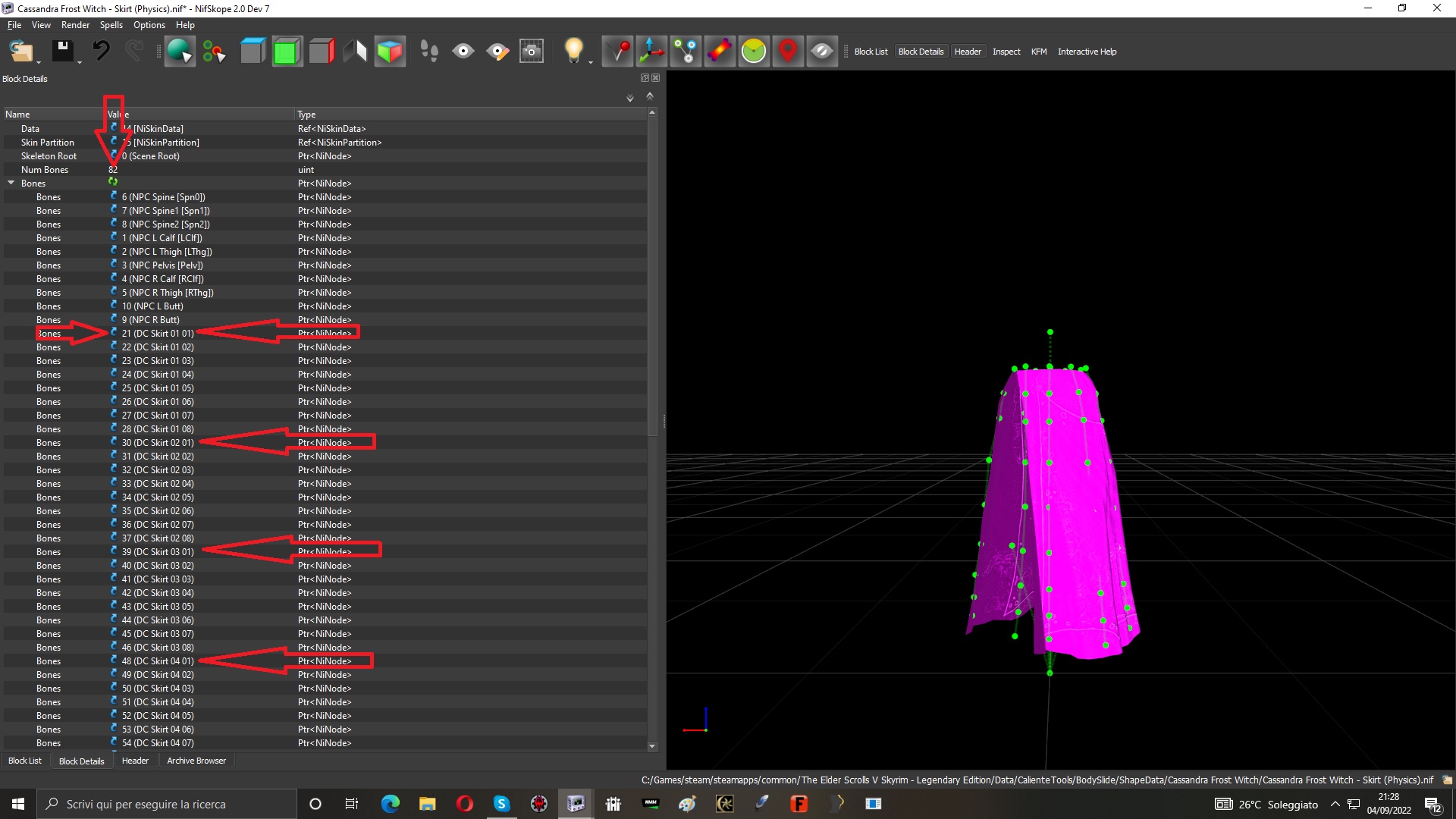

Having selected the BsDismemberSkinInstance , double-click on the number of bones to edit, add as many bones as there are NiNodes to insert

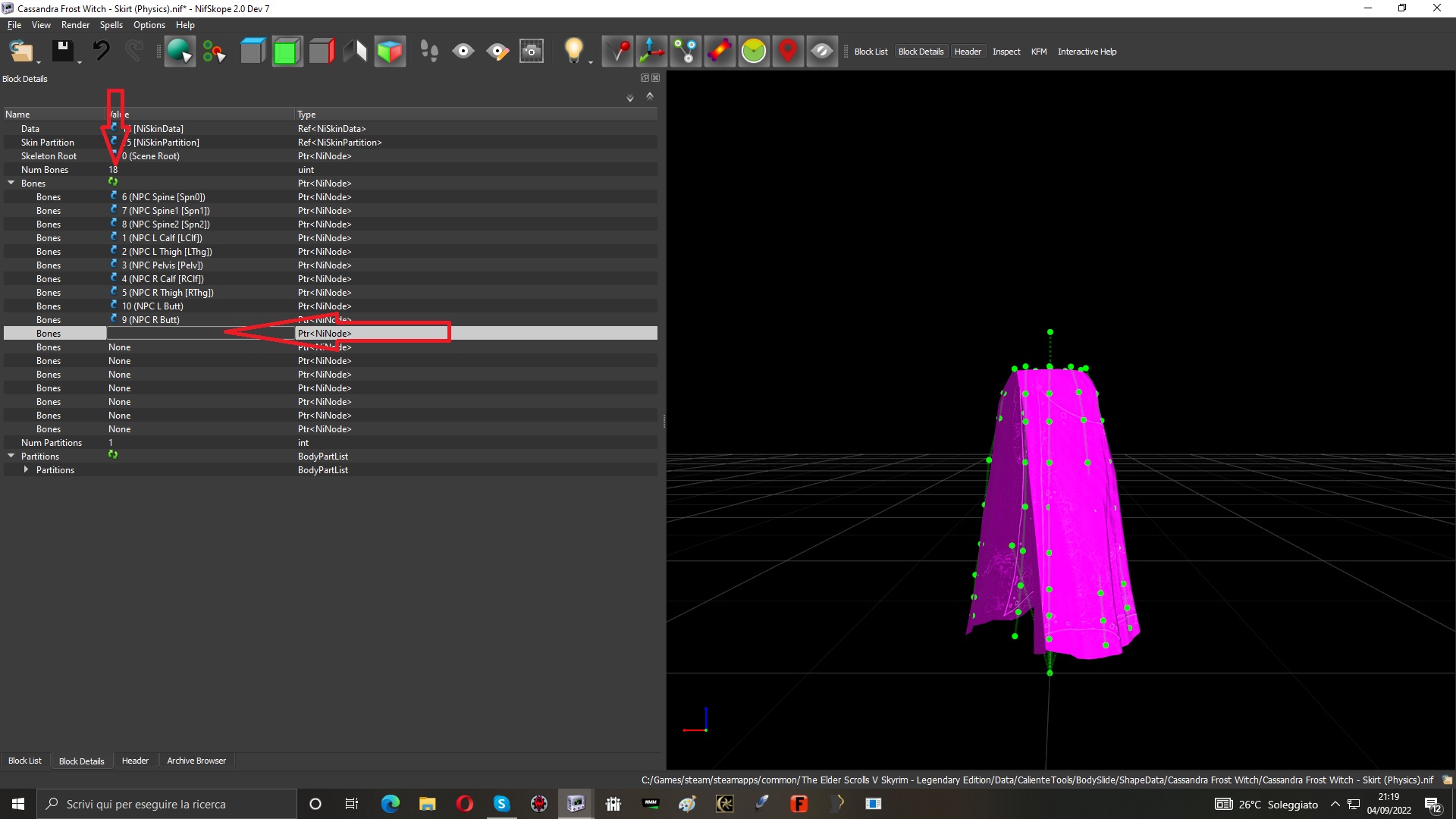

Double-click on the green icon to edit



Spoiler

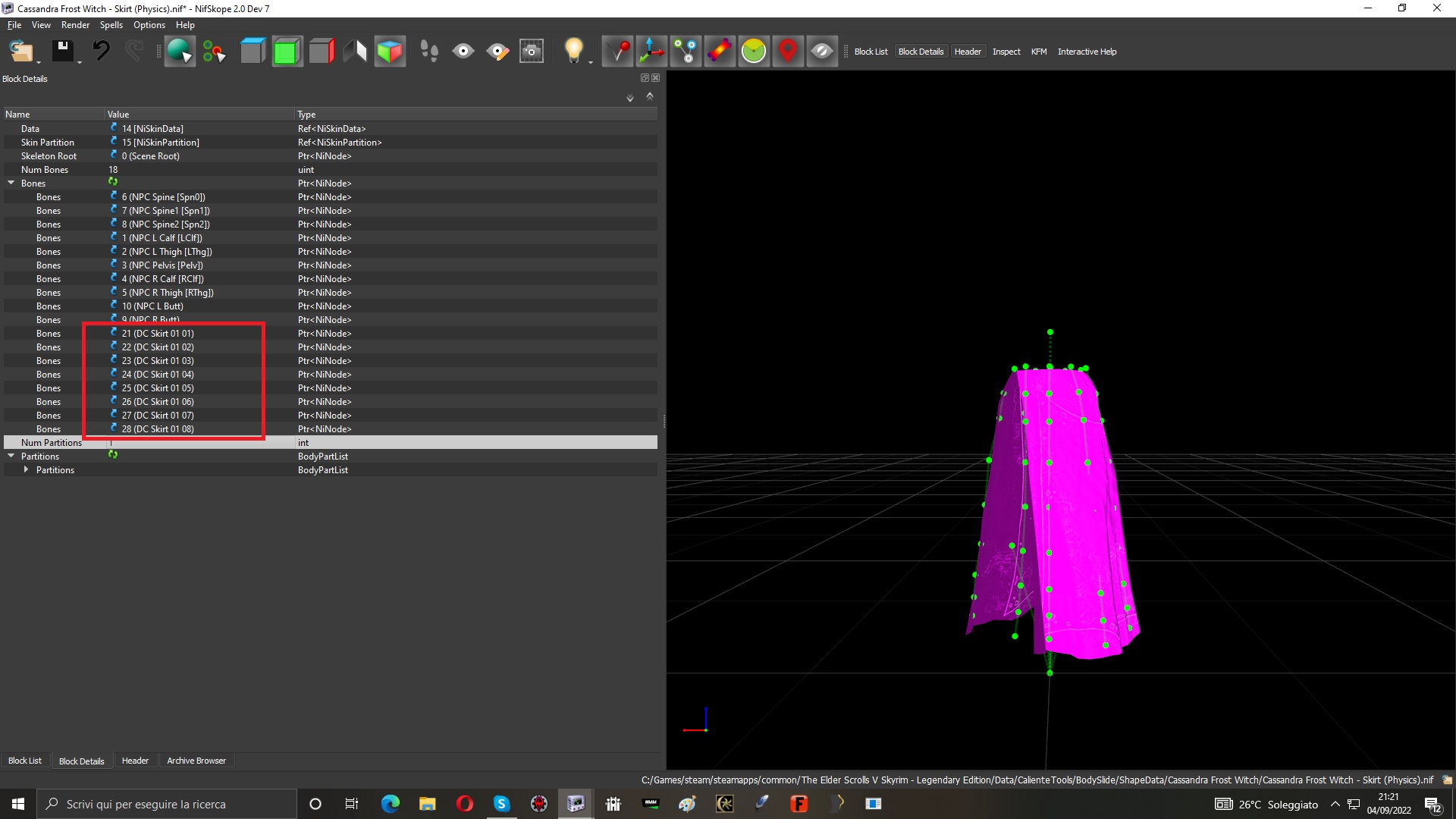

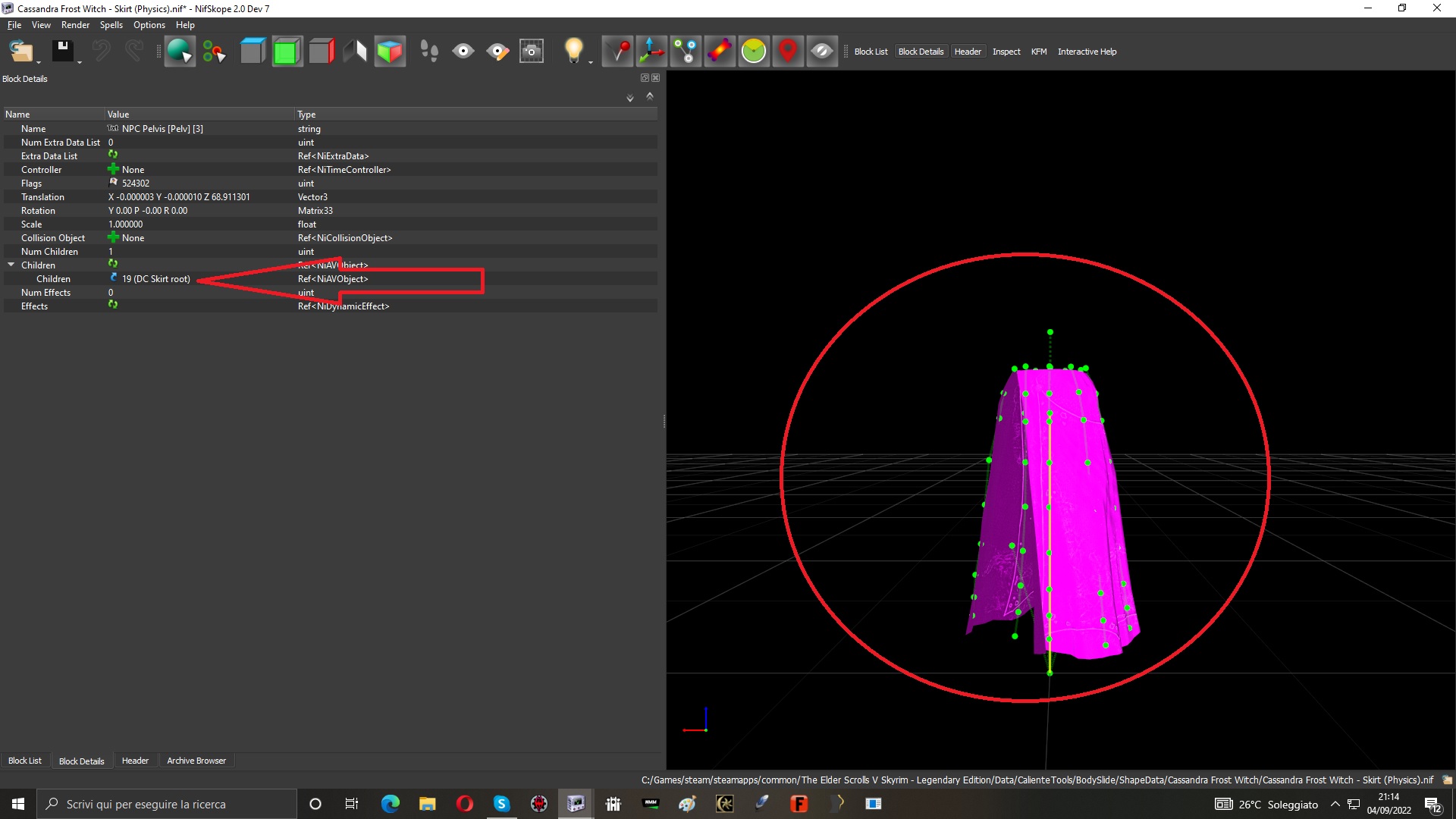

Compilation is simple, double-click on the empty line and enter the NiNode number. Proceed like this until you have entered them all

Spoiler

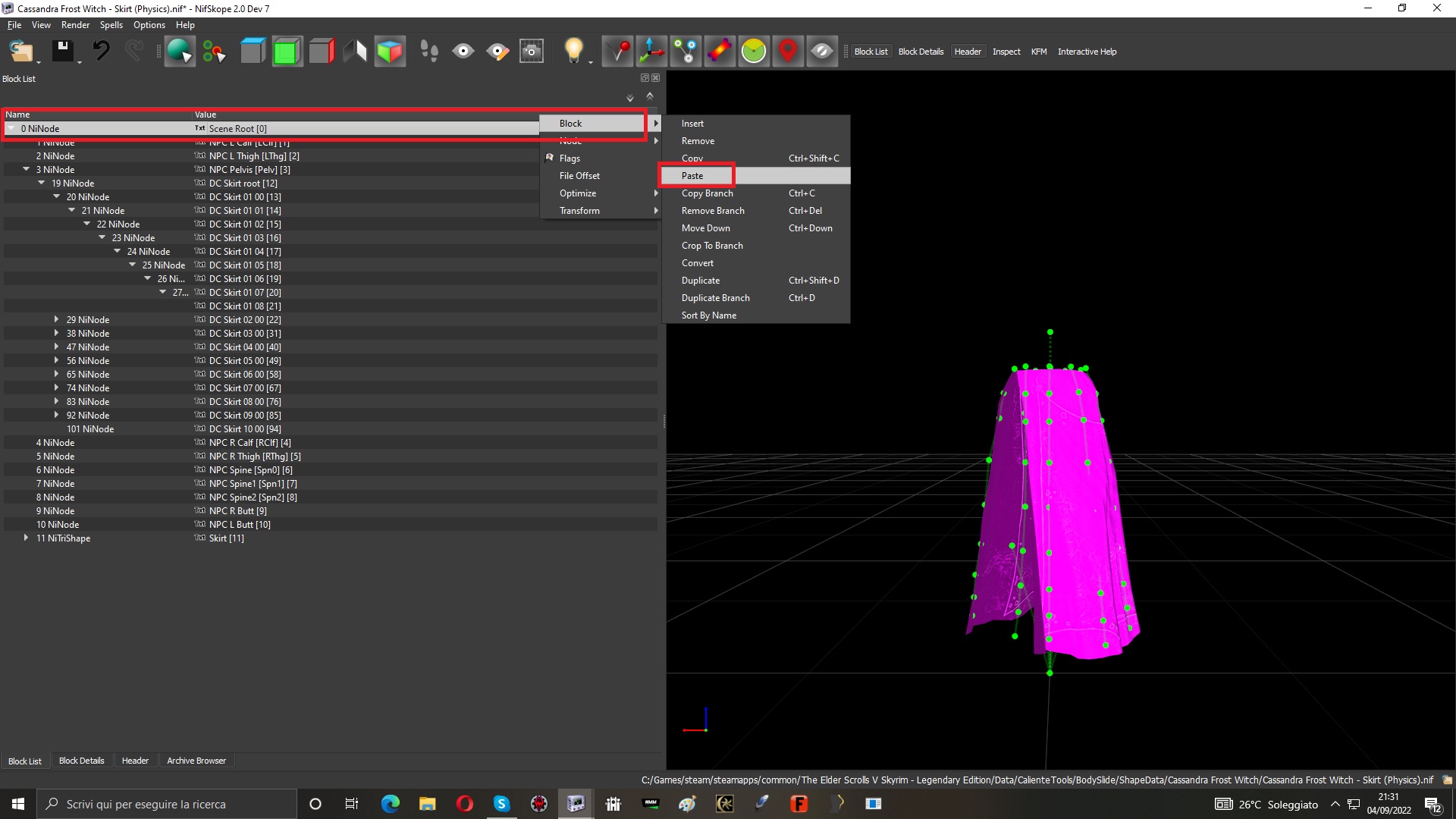

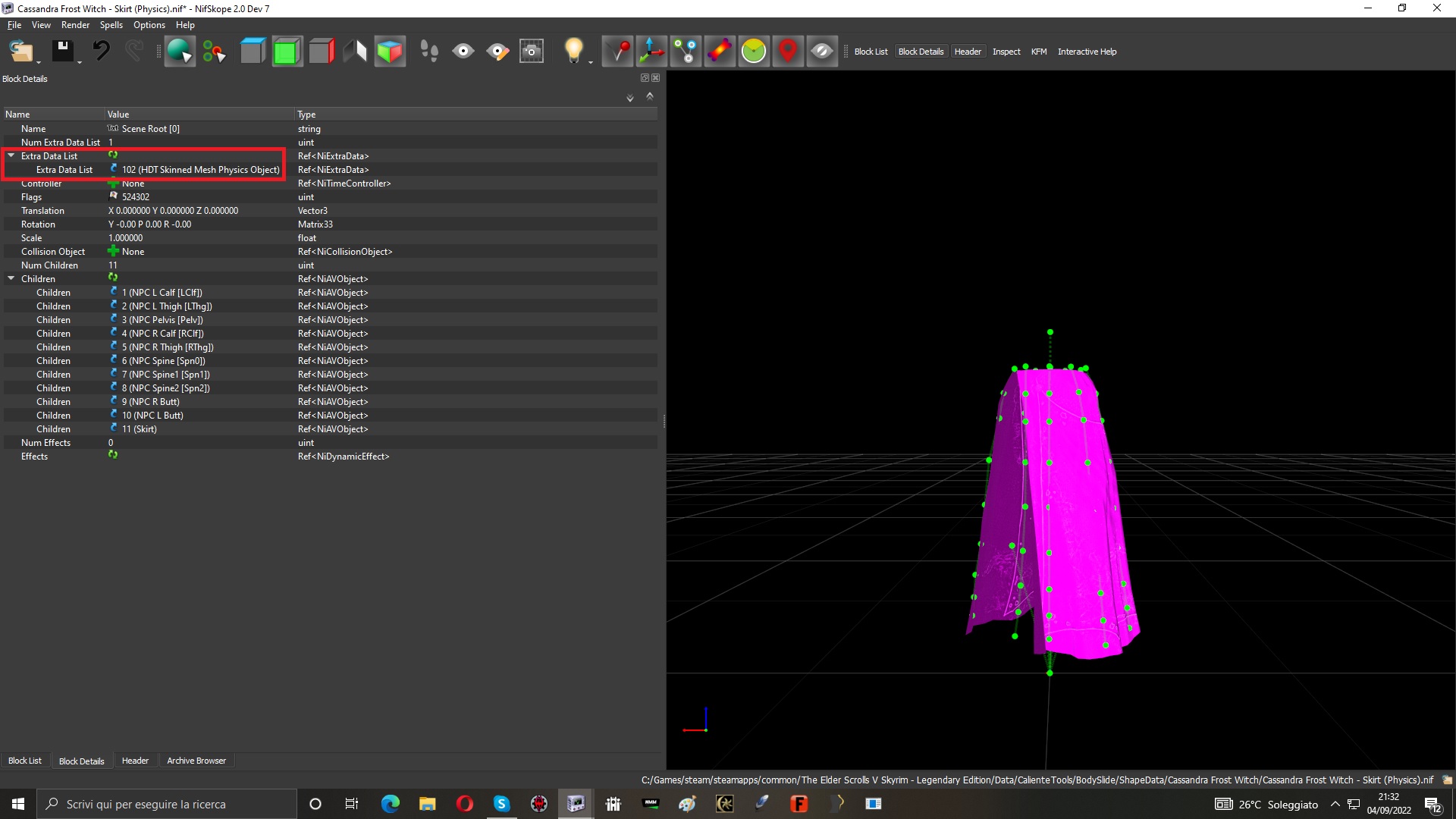

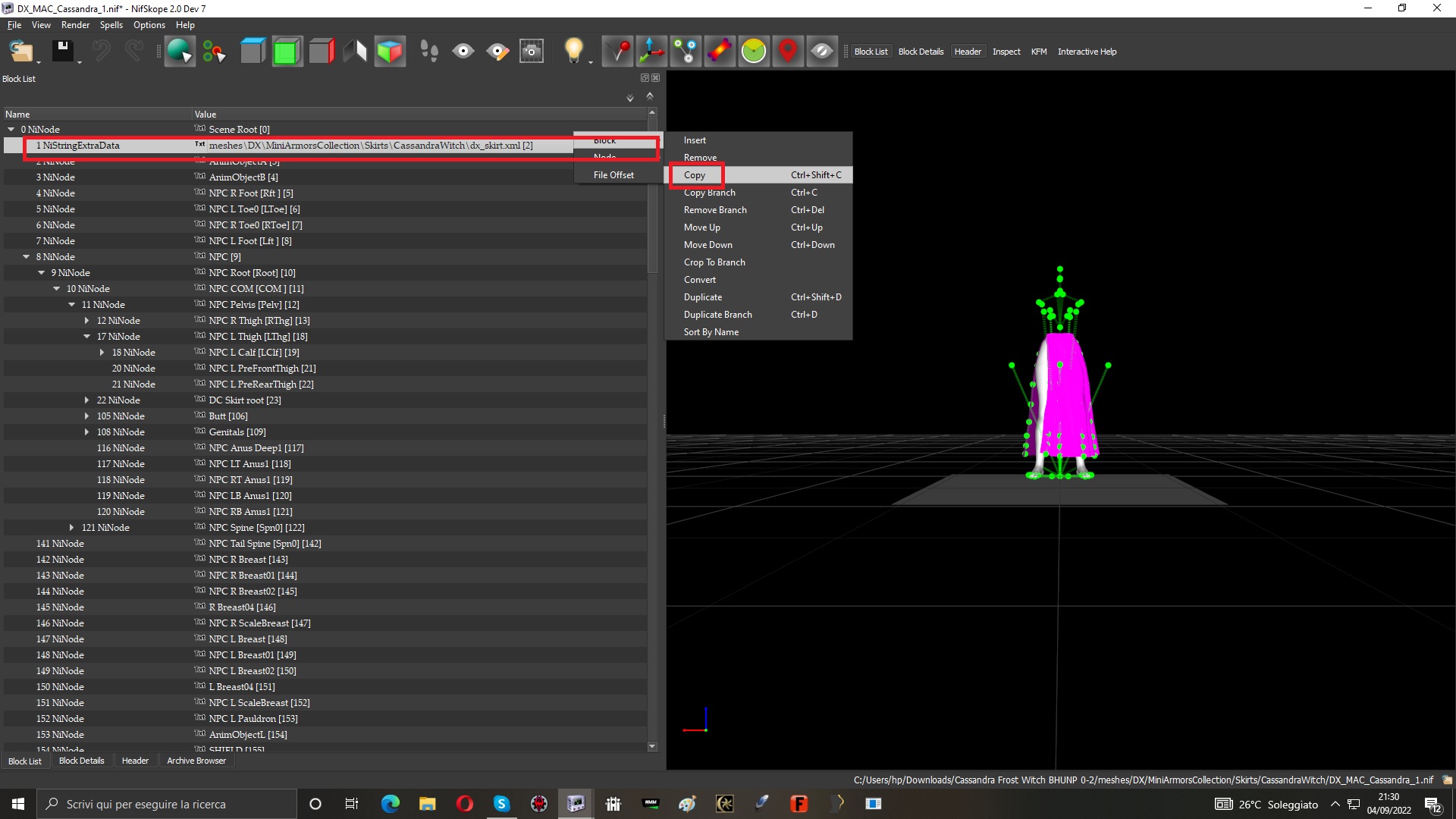

When you have finished, go to the nif from which you copied the NiNodes and , copy the string HDTPhysicsObject Extend 0NiNode, right-click on string, select Copy . Switch to the other Nif, right-click on 0NiNode,and select Paste



Spoiler















take the XML of the source nif and copy it to the new destination . If, the destination is different, the HDTPhysicsObject string must be recompiled



Save and we are done with Nifskope



Outfitstudio



Open Outfitstudio\file\import nif and import the newly created nif  In the left panel, click on Bones, in the right panel, switch to Bones . You will see white icons that must be removed in order to apply the weights

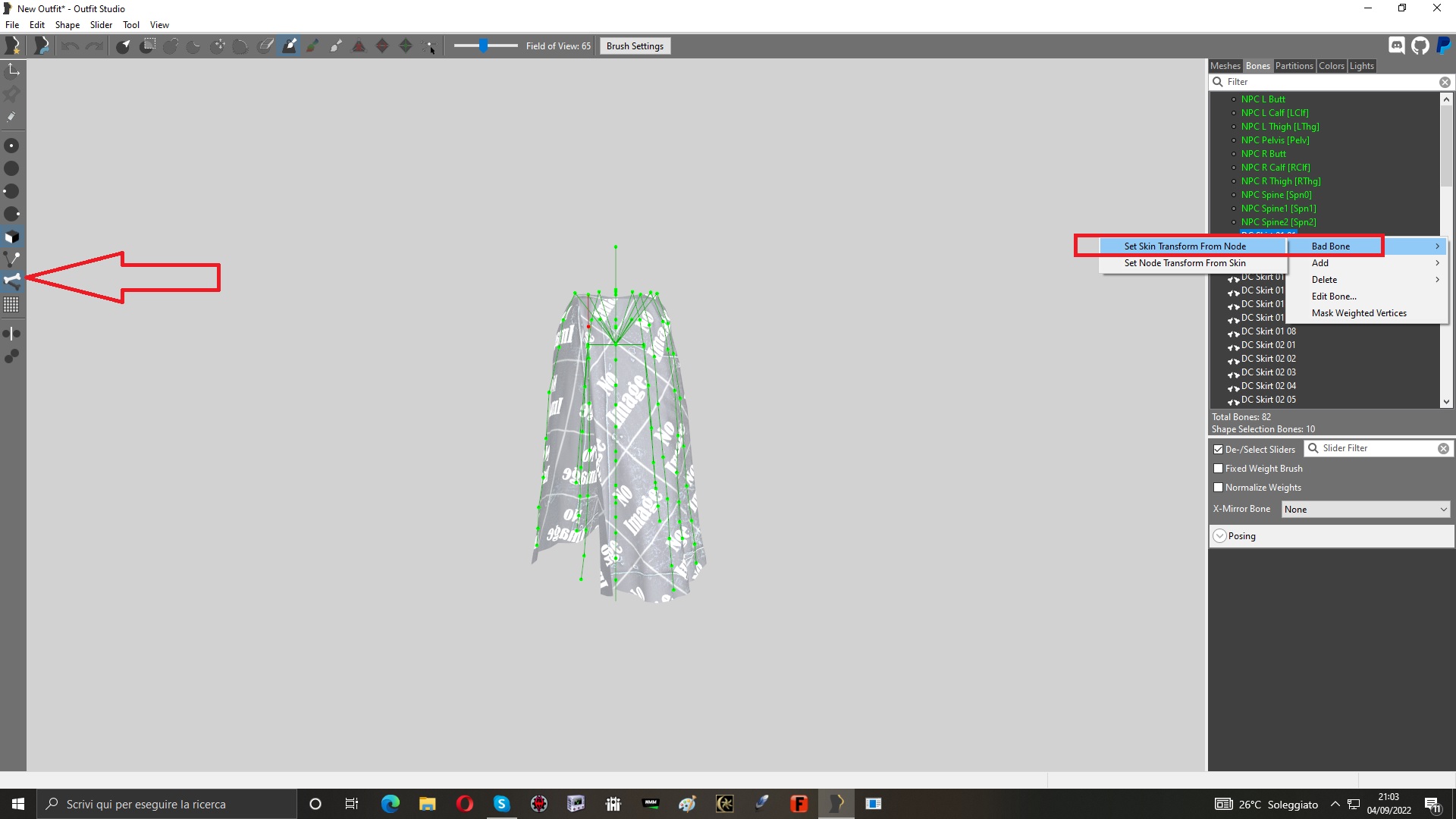

Right-click on the bones, select Bad Bones \Set Skin Transform for Node . Repeat step on all nodes to be corrected . Without this step, it will become impossible to apply weights without deforming your nif



Spoiler



Without bone transformation



Spoiler

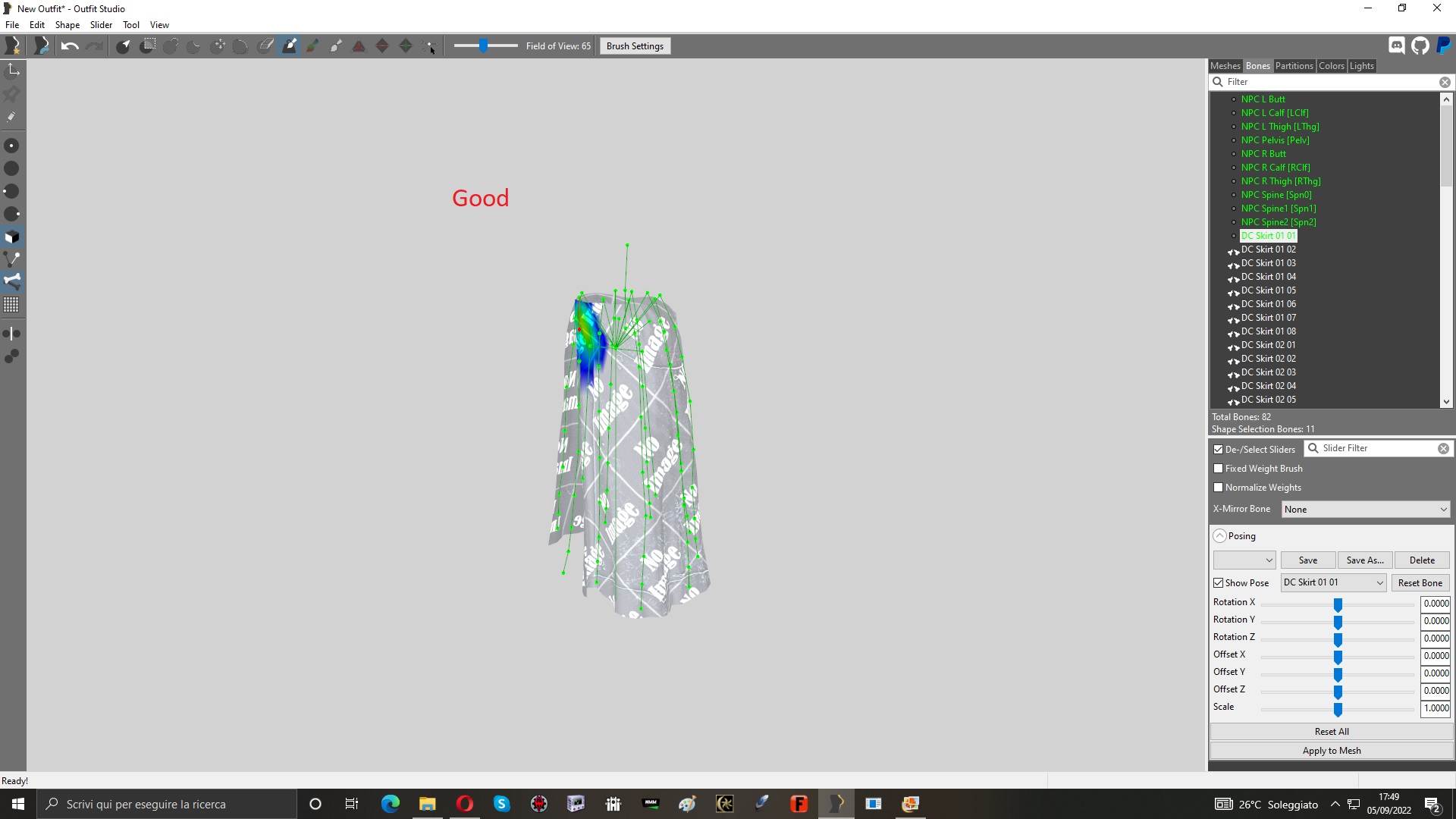

With Bones transform



Spoiler

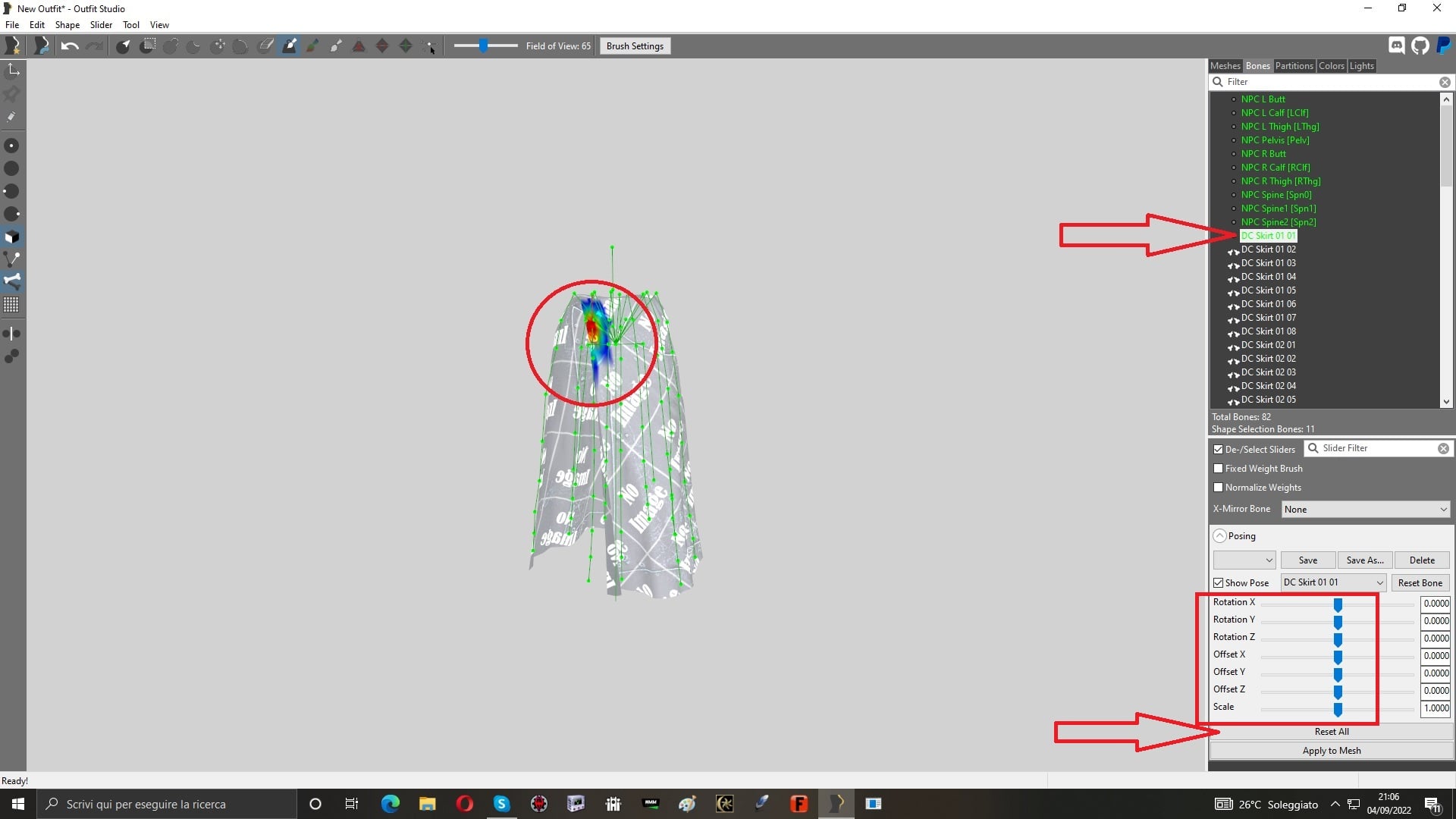

At the end of the transformation of ALL bones, apply the weights . Select the bones , in the panel below, extend Posing , select the same Bone selected in the Bones panel  . Hold down the left mouse button, hover over the bones to be modified . The more times you hover over it, the more it will change colour and lighten to red. use the sliders at the bottom to visualise how it will move, then remember to reset them to 0

proceed until all bones are made .



Important: DO NOT save anything before you have finished. This will result in the automatic removal of all those bones that were not applied, forcing you to start over.



Spoiler





When you have finished, click on file\export nif and save overriding the nif.



Feel free to make a backup of the nif created in Nifskope. This will prevent you from having to redo everything from the beginning.
Feel free to do the process with just a few bones at a time. This will be easier .



The most that will happen to you will be to do the job in more time . The point of all this is to understand how it works .

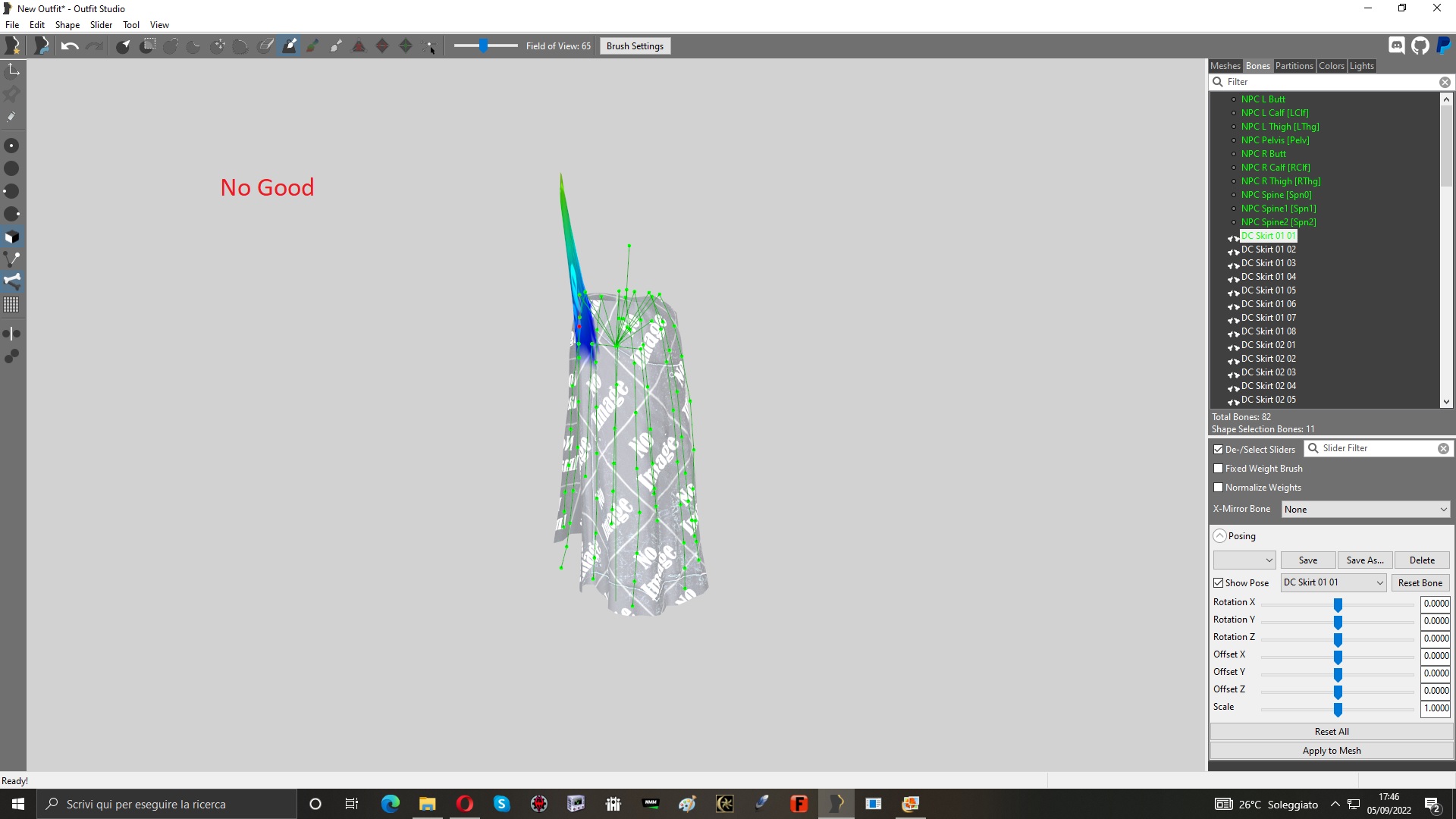

A few bones at a time will also serve to make any corrections easier . In the game, you may end up with an effect such as the screen No Good



This is determined by the weights and, guessing the right dosage will be a little laborious .



Notepad ++

With the nif open in Outfitstudio, locate ALL bones. Should be edited . If you decide to use the same type of nif, i.e. two identical nifs, simply, as mentioned above, move the XML from one side to the other

If, you decide to make from 0 , a new XML will have to be compiled . For those who, like me, are beginners, the first method is more practical

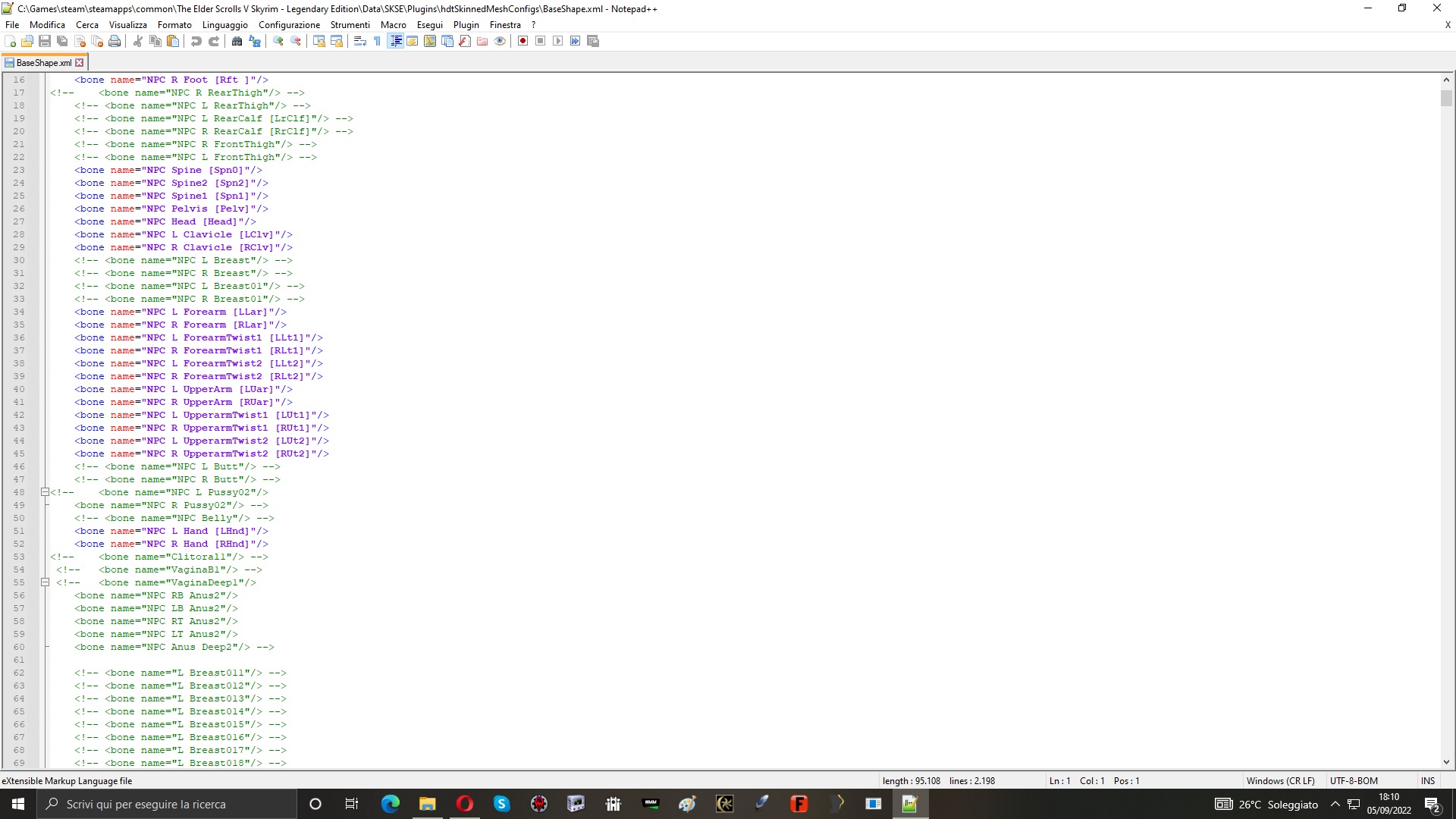

Example Editor. As a guide, you can use a pre-existing XML . The purpose of using this programme is to , colour the strings so that you can see whether they have been compiled correctly.
If, the string turns out to be a different colour from the one used as a visual sample, the answer is simple . Incorrect compilation



Spoiler





Edited September 5, 2022 by ?????? 1627

[Dorabella]

Applied Example . In video no. 1, SMP was applied using the method described above . In video nr 2 the hat is static without SMP

As already mentioned, the right values must be found in the compilation of the XML . Although it is not perfect here, it is still enough to give the idea



1 Cassandra Frost Witch with Hat SMP



Spoiler









2  Cassandra Frost Witch without Hat SMP



Spoiler
