Where to find SoS SMP Collisions

[Colossus228]

Hi. I googled a lot, but I didn't managed to find SoS configs or body where arms have SMP collisions. My current preset have issue so men's arms do not collide with women's boobs. Any link or info will be appreciated.

[traison]

SMP configuration files can be anywhere. You can find out where by inspecting the following:

1. The defaultBBPs.xml file. Find the name of the body tri shape, and the xml file path will be next to it.
2. The male body nif file. Find the NiStringExtraData node named "HDT Skinned Mesh Physics Object". Its value is the path to the xml file.

[Colossus228]

1 hour ago, traison said:

SMP configuration files can be anywhere. You can find out where by inspecting the following:

1. The defaultBBPs.xml file. Find the name of the body tri shape, and the xml file path will be next to it.
2. The male body nif file. Find the NiStringExtraData node named "HDT Skinned Mesh Physics Object". Its value is the path to the xml file.



Body is ok, but what about hands?

[traison]

4 minutes ago, Colossus228 said:



Body is ok, but what about hands?



Same deal. Technically you could have a hat that adds physics to your hands, but if we just start off assuming that's not the case then malehands.nif if what you're looking for.



Edit: Example:

<map shape="Hands" file="SKSE\Plugins\hdtSkinnedMeshConfigs\hands.xml"/>



Edited August 4, 2024 by traison

[Colossus228]

2 hours ago, traison said:



Same deal. Technically you could have a hat that adds physics to your hands, but if we just start off assuming that's not the case then malehands.nif if what you're looking for.



Edit: Example:

<map shape="Hands" file="SKSE\Plugins\hdtSkinnedMeshConfigs\hands.xml"/>





Well, i have everything needed but still can't get it to work. 😔

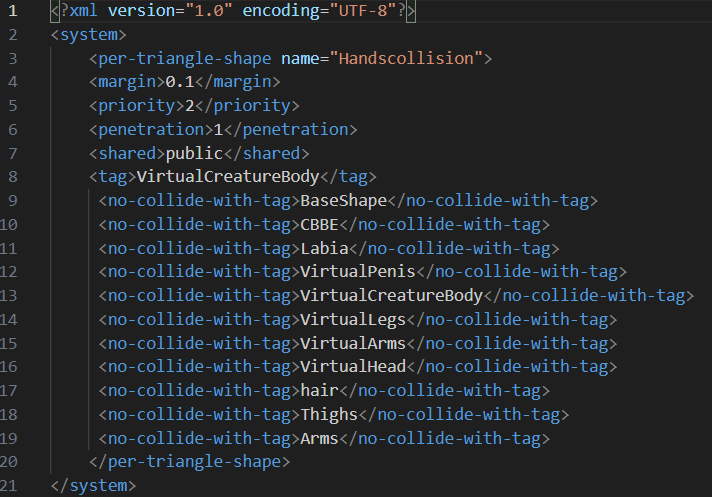

Screenshots



Spoiler



Edited August 4, 2024 by Colossus228

[traison]

Open hdtSOSSMPHands.xml and make sure it has collision defined for "nymphhands0".

[Colossus228]

58 minutes ago, traison said:

Open hdtSOSSMPHands.xml and make sure it has collision defined for "nymphhands0".



There is nothing similar to "nymphhands0", but i don't get what I should change

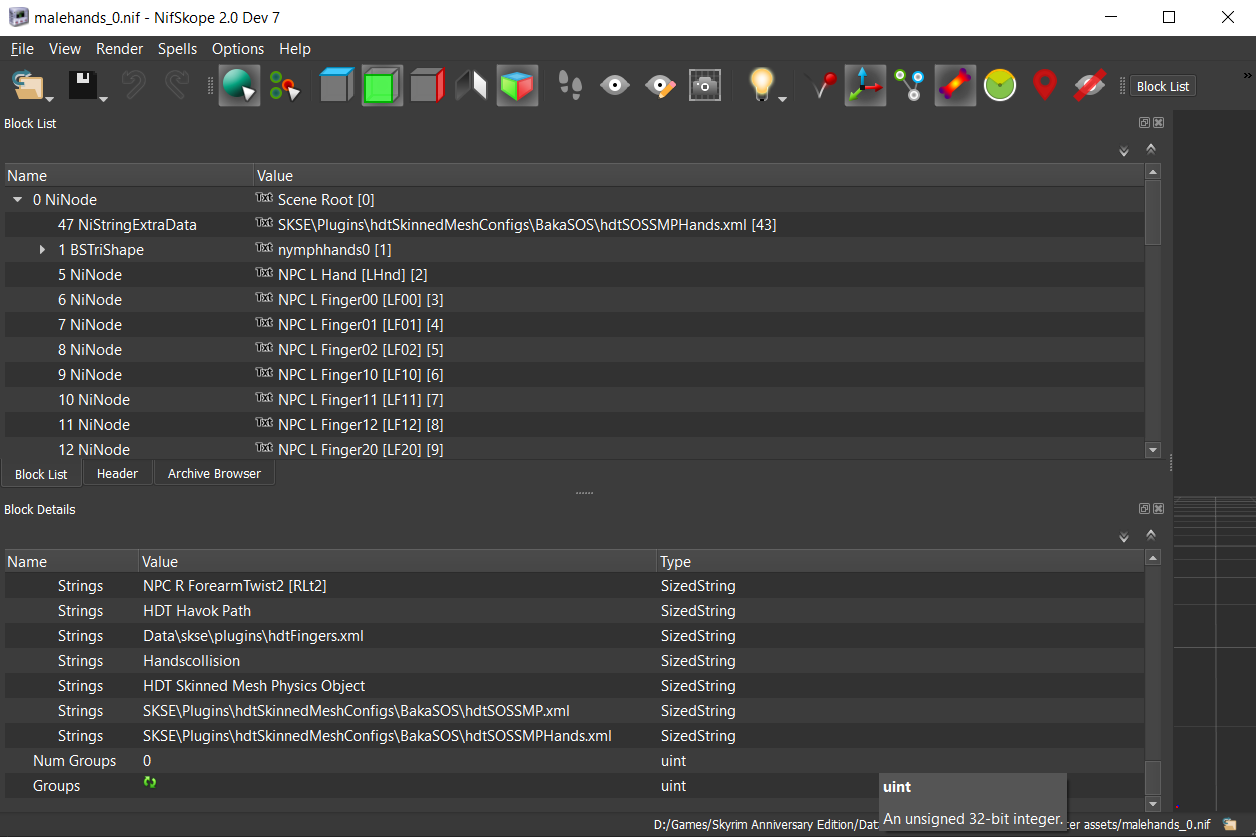

Spoiler



[traison]

    <per-polygon-shape name="nymphhands0">
        <margin>2.0</margin>
        <shared>public</shared>
    </per-polygon-shape>



[Colossus228]

29 minutes ago, traison said:

    <per-polygon-shape name="nymphhands0">
        <margin>2.0</margin>
        <shared>public</shared>
    </per-polygon-shape>

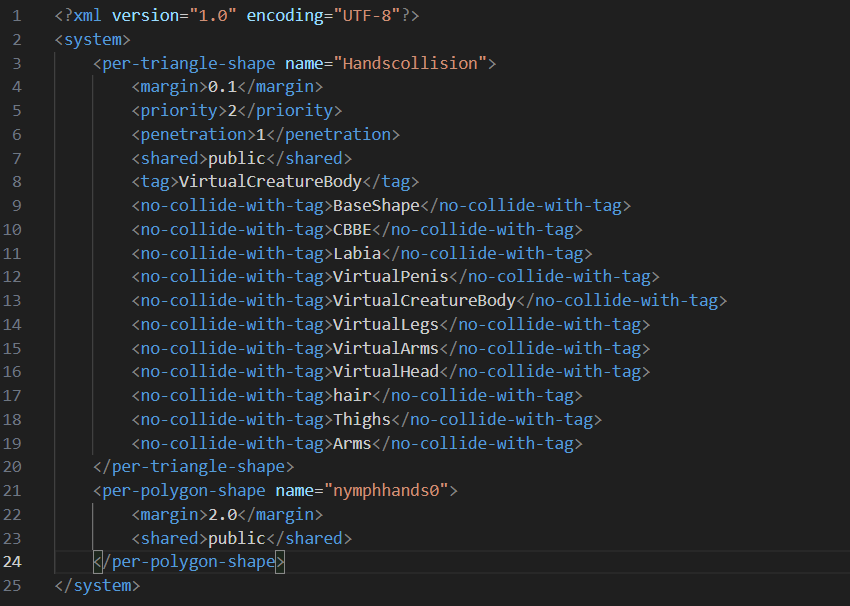

Doesn't work for me:

Spoiler



Edited August 4, 2024 by Colossus228

[traison]

Thats then most likely caused by the collide filters on the body.

[Colossus228]

2 hours ago, traison said:

Thats then most likely caused by the collide filters on the body.



May CBPC interfere in this case?

[traison]

That's always a posibility. If in doubt, always disable the *other* physics system when working on configuration files. If the physics change when you enable it again, you know you have a conflict.
