Adjust Meshes Height

[krocoz]

Hi guys, how do you change the height of an hats/helm? Do I need to use nifskope, 3d editor, or both? And what are the steps to do so?



Also I got a question regarding how to enable your shoes/boots to make it become HDT HH enabled. I did read the guide how to enable it and I have already followed the guide, but the height of the shoes/boots didn't change. Do the mesh needs to have some other requirements too i.e. the mesh height must be at a certain number or anything else?



Thx before.

[-alpha-]

you'll need to edit the hat in nifskope



the HDT is a script.

you can use CK or TesVedit to add the script.



The easiest way is to use tesvedit and copy an already existing HDT heel to the one you want to enable it on

[krocoz]

you'll need to edit the hat in nifskope



the HDT is a script.

you can use CK or TesVedit to add the script.



The easiest way is to use tesvedit and copy an already existing HDT heel to the one you want to enable it on



What are the steps to edit the hat in nifskope?



I've tried it, but the result is still the same as the shoes can't doesn't have their height increased.

[krocoz]

Bump!

[krocoz]

Bump!





[Vader666]

...

What are the steps to edit the hat in nifskope?

...

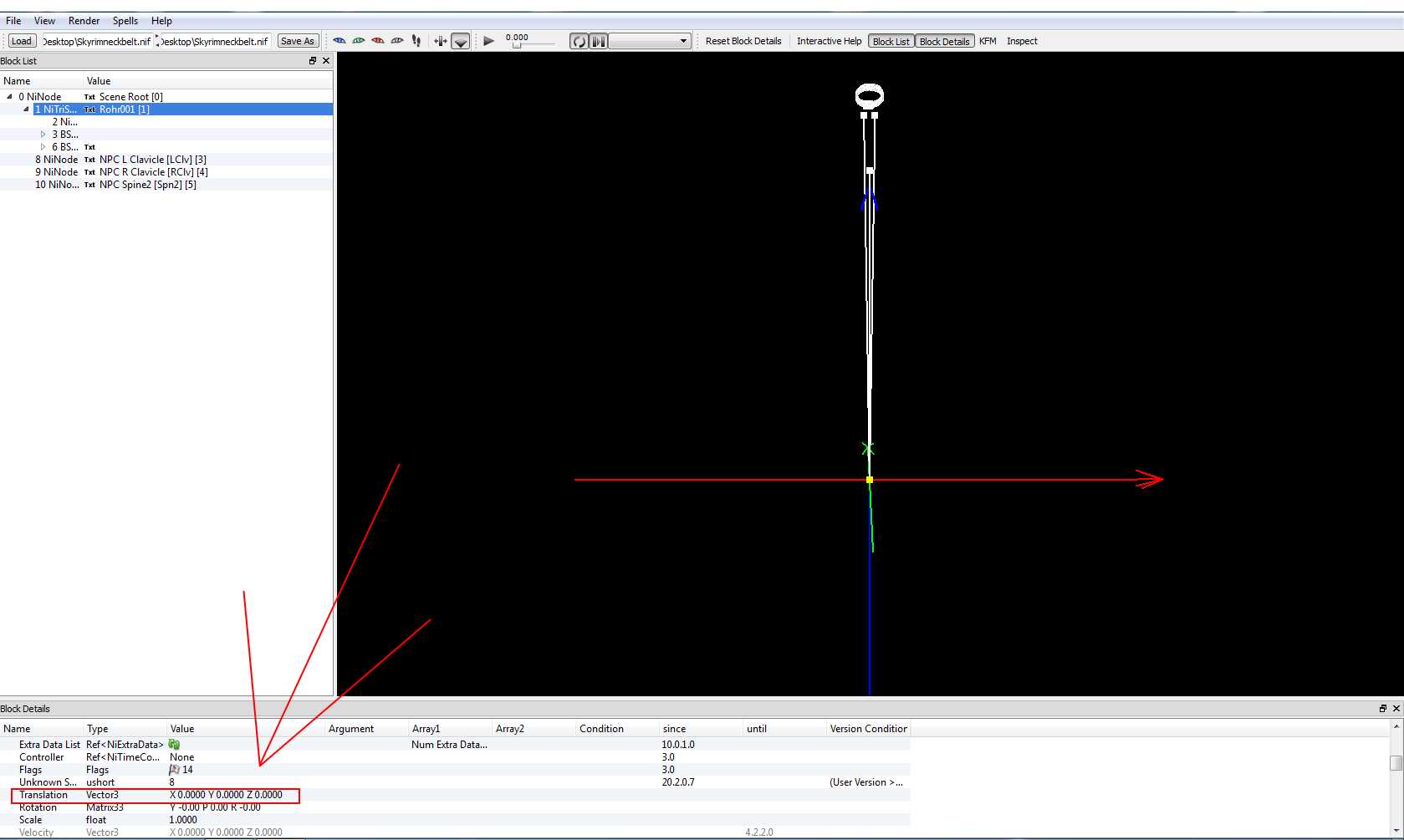

Click on the Mesh, search for "translation" change the value for Z axis

[krocoz]



...

What are the steps to edit the hat in nifskope?

...









Click on the Mesh, search for "translation" change the value for Z axis





Are u sure it's "translation"? 'Cause I can't find any.

[Vader666]

[krocoz]




Ah so there is, but still it didn't work. The hat don't have any NiTriShape node, only NiTriStrips node, but still I have changed the Z value in nifskope, it's got higher in nifskope preview screen, but no changes ingame.

[krocoz]

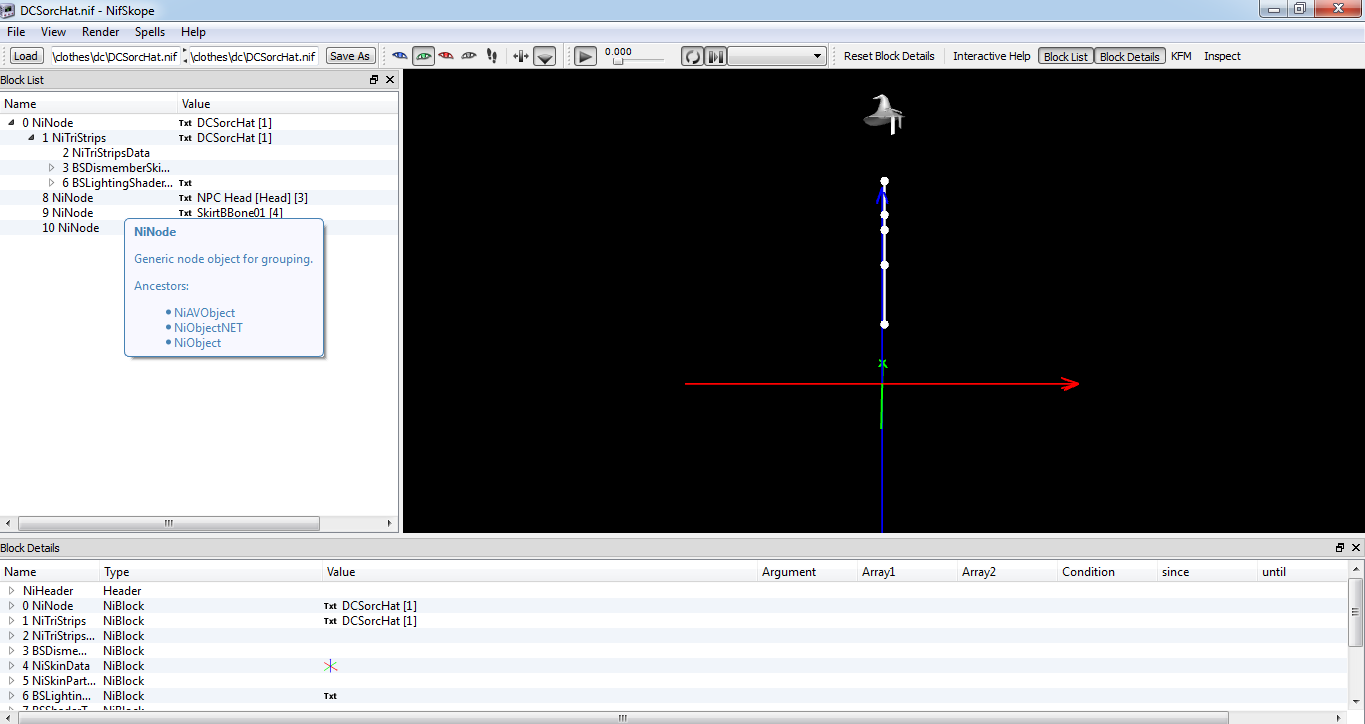

Here's the screenshot I took (the hat's from Dragon's Crown Sorceress outfit):

[krocoz]

Bump!

[krocoz]

Bump!

[Ayn Sof]

Did you try this? after you edit the height, right click the nitristrips, then click Transform > Apply

[krocoz]

Did you try this? after you edit the height, right click the nitristrips, then click Transform > Apply



It works! Thx! I also need to do that on the NiNode too.
